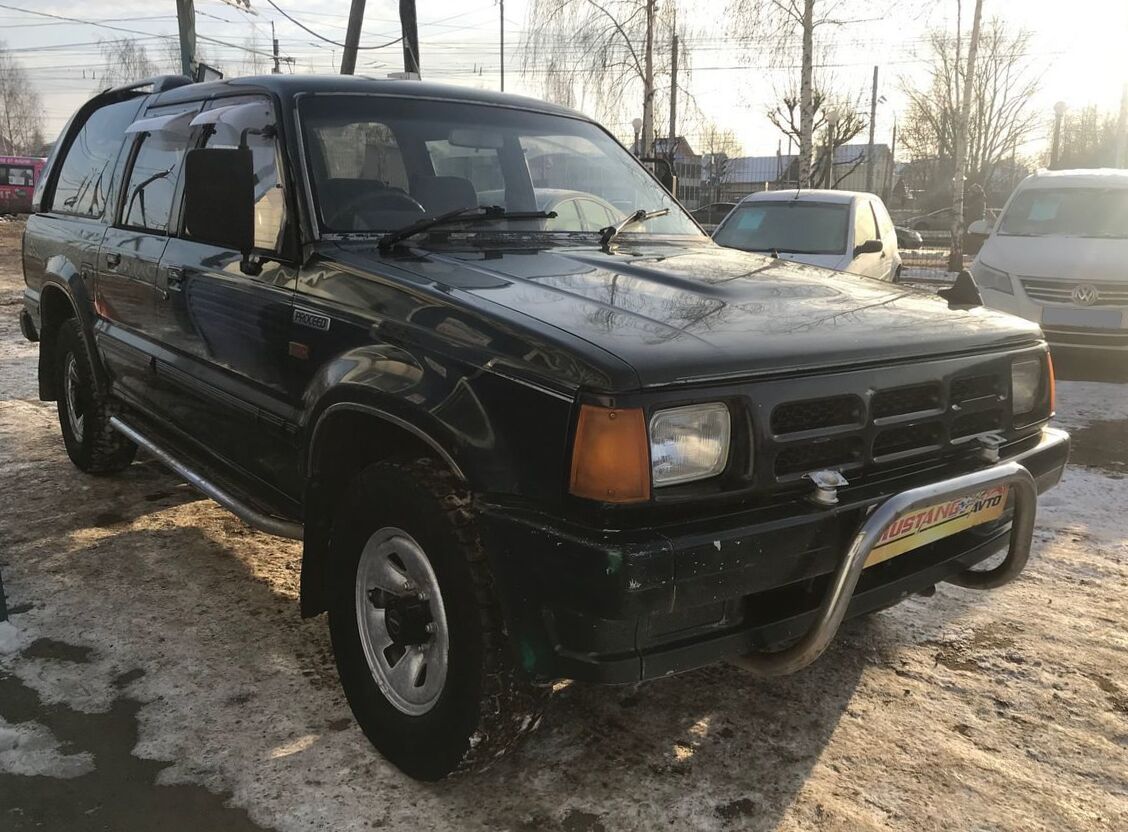

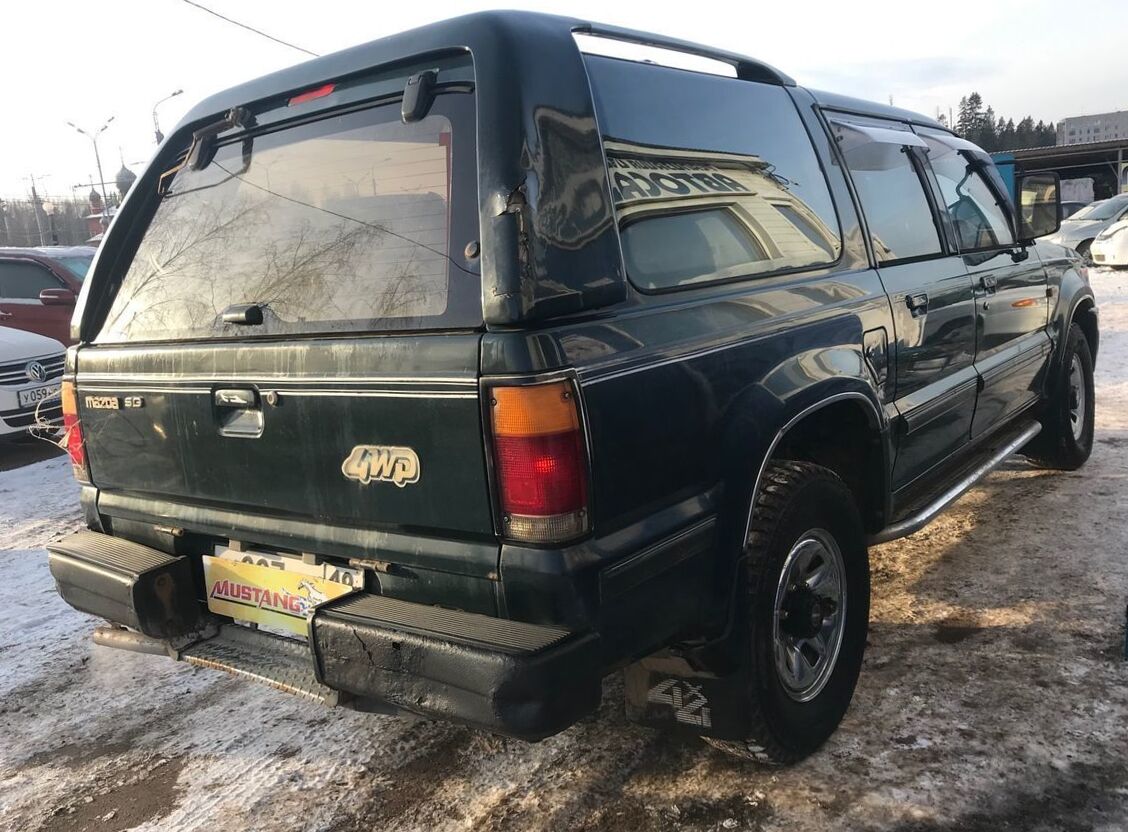

1994 Mazda Proceed 2.6 Marvie

1994 Mazda Proceed E-UV66R 2.6 Marvie (120 Hp)
Proceed E-UV66R 2.6 Marvie (120 Hp)
1994 Proceed E-UV66R 2.6 Marvie (120 Hp)
Mazda Proceed E-UV66R 2.6 Marvie (120 Hp)
1994 Mazda Proceed E-UV66R 2.6 Marvie (120 Hp)
Proceed E-UV66R 2.6 Marvie (120 Hp)
1994 Proceed E-UV66R 2.6 Marvie (120 Hp)
Mazda Proceed E-UV66R 2.6 Marvie (120 Hp)
1994 Mazda Proceed E-UV66R 2.6 Marvie (120 Hp)
Proceed E-UV66R 2.6 Marvie (120 Hp)
1994 Proceed E-UV66R 2.6 Marvie (120 Hp)
Mazda Proceed E-UV66R 2.6 Marvie (120 Hp)

More photos of Mazda Proceed

Mazda Proceed Problems
Radiator fan clutch not working
1996, Clutch not working in the fan Do you
have this part? Fan is turning when engine
is o...

Body typeSUV
Power120 Hp
Engine Displacement2600 cm3 or 2.6L or 158.6 cu-in
Transmission GearboxAutomatic
Fuel TypeGasoline
Drive wheel4WD
Mileage136701 Miles
Price (out of date)$2571

Frequently Asked Questions

What is the body type, Mazda Proceed SUV 1994?SUV, 7 Seats, 5 Doors
How much power, Mazda Proceed E-UV66R 1994?120 Hp
What is the engine size, 1994 Mazda Proceed 2.6 Marvie?2.6L or 2605cm3
How many gears, What type is the gearbox, Mazda Proceed 1994 SUV 2.6 Marvie (120 Hp)?Automatic transmission 4
What is the drivetrain, 1994 Mazda Proceed SUV 2.6 Marvie (120 Hp)?All wheel drive (4x4)
How long is this vehicle, Mazda Proceed SUV 1994?4950 mm
How wide is the vehicle, Mazda Proceed E-UV66R 1994?1720 mm

Mazda Proceed E-UV66R 2.6 Marvie (120 Hp) 1992, 1993, 1994, 1995, 1996 Specs

General information

Complectation name2.6 Marvie
Production start year1992
Production end year1996
Price of new car in Tokyo, yen2457000
Drive typeAll wheel drive (4x4)
Frame typeSUV
Transmission typeAutomatic transmission 4
Engine volume, cc2605
Frame nameE-UV66R
Clearance, mm210
Manufacturing countryJapan
Right hand driveyes
Left hand driveno

Vehicle generation

Generation nameUV
Generation number1
Production start year1991
Production end year1996

Engine, transmission and steering specs

Engine specs

Engine nameG6
FuelPetrol (Gasoline)
Engine typeIn-line, 4-cylinder
Has turbono
Max power, hp120
Max power RPM, rpm4500
Max power, hp (kWt) / rpm120 (88) / 4500
Max torque, N*m202
Max torque RPM, rpm3500
Max torque, N*m (kg*m) / rpm202 (21) / 3500
Compression ratio8.4
Bore, mm92
Stroke, mm98
Actuator valvesSOHC

Fuel consumption

Fuel consumption (10/15 mode), l/100km13.9
Fuel consumption (60 km/h mode), l/100km8.3


1st gear ratio2.786
2nd gear ratio1.546
3rd gear ratio1
4th fear ratio0.694
Rear gear ratio2.272


Power steeringyes


Frame dimensions

Exterior length, mm4950
Exterior width, mm1720
Exterior height, mm1800

Interior dimensions

Seat rows3
Interior length, mm2750
Interior width, mm1400
Interior height, mm1135

Chassis dimensions

Wheel base, mm3000
Front axle length, mm1440
Rear axle length, mm1430
Turning radius, m6.4
Wheel spacing front1480
Wheel spacing rear1470

Weight and permissible load

Mass, kg2175


Fuel tank capacity, l56


Remarks (temporary)Information of fuel consumption in mode \"10-15\" is not available as they were absent in the sale documents. Therefore data for mode \"10\" were inserted.

Suspension specs

Suspension specs

Front stabilizeryes
Front suspensionIndependent on double wishbones
Rear stablilizerno
Rear suspensionDependent, spring loaded

Wheel rims

Aluminium wheelno


Front wheels225/80R15
Rear wheels225/80R15


Front brakeDiscs
Rear brakedrum brakes
Brake front search1
Rear brake2



Xenon lampsno
Front fog lampsno
Rear fog lampsno
Additional stop lightno
Cornering lampsno

Side mirrors

Power adjustable door mirrorsno


Ultraviolet glass protectionno


Tilt sunroofno
Twin sunroofno


Roof railyes
Front spoilerno
Rear spoilerno
Back wiperyes

Body color

Colors2 20 12


Steering wheel and center panel

Leather windingno
Telescopic steeringno
Tilt steeringyes

Interior design

Leather seatno
Wood panelno


Reclining seatsno
Removable seatsno
Turning seatsno

Electric interior package

Power adjustable driver seatno
Power ajustable front seatno
Power ajustable back seatno
Centralized door lockyes
Keyless enterno
Power windowyes
Central power window controlno



Drivers airbagno
Passengers airbagno
Side airbagno

Children safety

Child car restraintsyes

Active and passive safety

Durable frameno
Side impact barno
3 point safety beltyes
Safety belt pretensionerno
Safety belt limiterno

Electronic security and traffic control systems

Break assistno
traction controlno
Cruise controlno



Automatic air conditioningno
Twin conditioning systemno
Air purifierno

Audio systems

Autoreverse casetteyes
CD playerno
CD changerno
MD palyerno
MD changerno

Navigation and video equipment

Parking assist systemno

1994 Mazda Proceed E-UV66R 2.6 Marvie (120 Hp) specs

See Mazda B-Series (North America) for that market's version

The Mazda B-series is a 2-door pick-up truck, first manufactured in 1961 by Mazda Motor Corporation. The current model, which was first manufactured in 1999, is the mark 7. The mark 7 can be manufactured with 1 of four body styles and 1 of two engines.

From the first B-Series pickup truck, Mazda has used the engine displacement to determine the name. Thus, the B1500 had a 1.5L engine, and the new B4000 has a 4.0L V6. In Japan, Mazda used the Proceed name on its compact pickup trucks, and another line of larger trucks is available called the Mazda Titan. Other names used for this line include Mazda Bravo (Australia), Mazda Bounty (New Zealand), Mazda Magnum / Thunder / Fighter (Thailand), and Mazda Drifter (South Africa).

Mazda's partnership with Ford has resulted in the sharing of this vehicle—the Mazda B-Series and Ford Ranger are essentially the same. In Australia and New Zealand, since the 1970s, the Ford Courier name is also used and the line continues today.

However, it should be borne in mind that the Mazda B-Series and Ford Ranger twins found inside North America are unrelated to the ones sold elsewhere. These are engineered by Mazda, whereas the North American models are developed by Ford. See Mazda B-Series for more information on the variations on the B-Series line.
