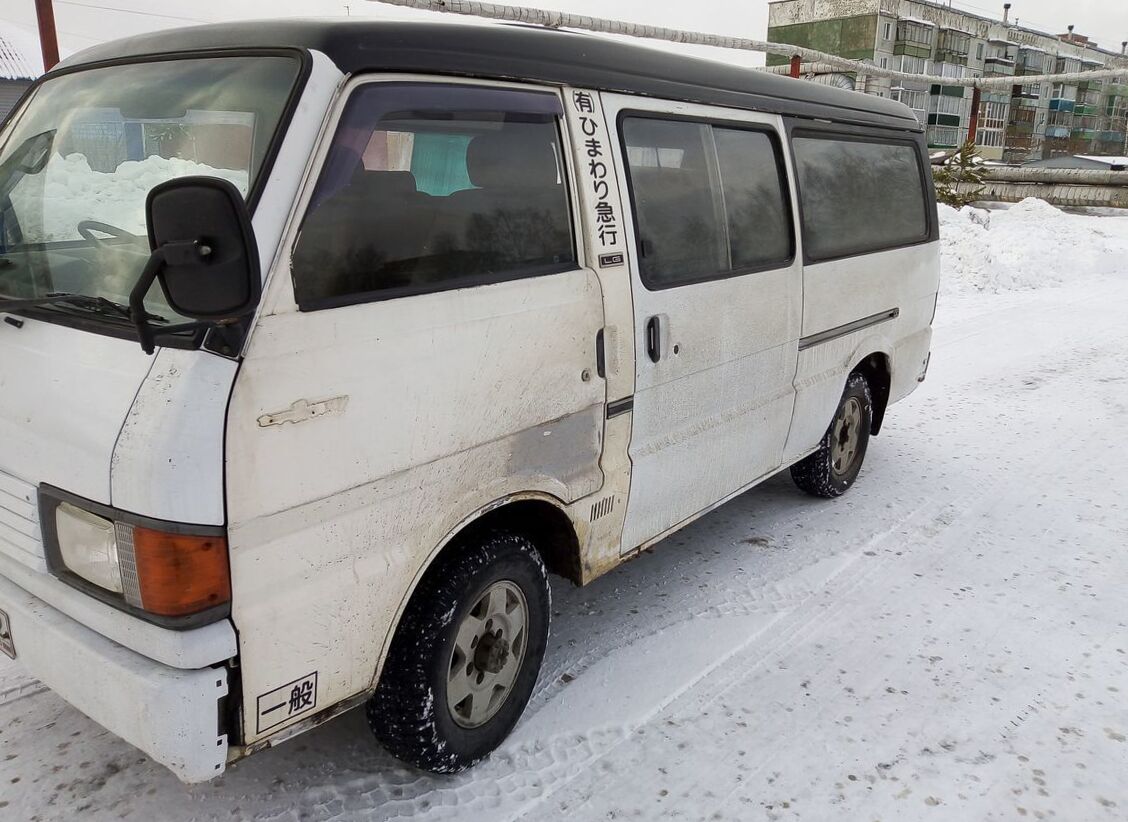

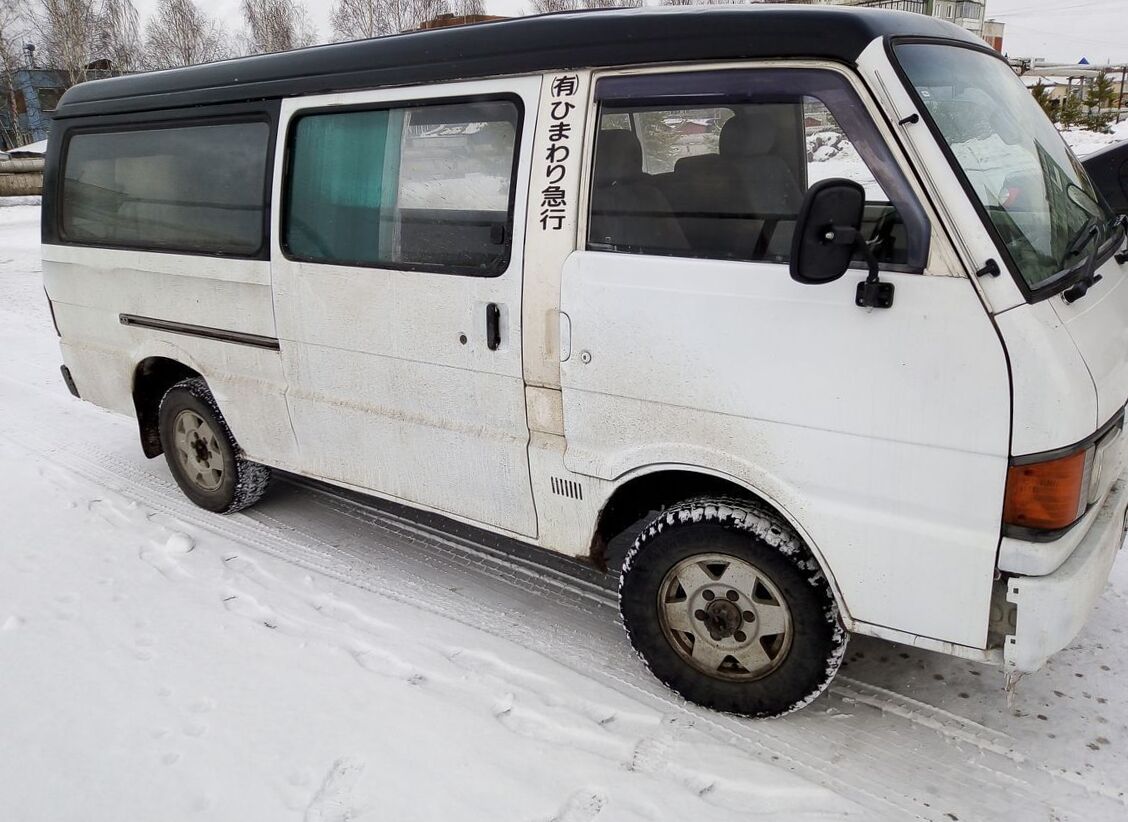

1991 Mazda Bongo Brawny III 2.0DT Limited
Mazda Bongo Brawny Problems
Not starting with a key bt push whats is wrong
2001, Starting with a push whilst starter its
ok refusing on ignition but cranking smoothly
pl...
Hard starting
2009, Was boiling the head was skimmed and put
back,but now its coming off when you are drivin...
High fuel consumption, always shaking and unsta...
1996, Car idle always moving up and down. The
plugs are always very black. High fuel
consumpti...
| Body type | Minivan |
|---|---|
| Power | 76 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | white |
| Transmission Gearbox | Manual |
| Fuel Type | Diesel |
| Drive wheel | FR or RR |
| Vin | SR2AM****21 |
| Price (out of date) | $1777 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 1991 Mazda Bongo Brawny III? | Minivan, 9 Seats, 4 Doors |
| How much power, Mazda Bongo Brawny Minivan 1991? | 76 Hp |
| What is the engine size, Mazda Bongo Brawny Q-SRF9W 1991? | 2L or 1998cm3 |
| How many gears, What type is the gearbox, 1991 Mazda Bongo Brawny 2.0DT Limited? | 5 speed Manual |
| What is the drivetrain, Mazda Bongo Brawny III 1991 Minivan 2.0DT Limited (76 Hp)? | Rear |
| How long is this vehicle, 1991 Mazda Bongo Brawny Minivan 2.0DT Limited (76 Hp)? | 4590 mm |
| How wide is the vehicle, 1991 Mazda Bongo Brawny III? | 1690 mm |
Mazda Bongo Brawny III Q-SRF9W 2.0DT Limited (76 Hp) 1990, 1991, 1992, 1993 Specs
General information | |
|---|---|
| Complectation name | 2.0DT Limited |
| Production start year | 1990 |
| Production end year | 1993 |
| Drive type | Rear |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 1998 |
| Frame name | Q-SRF9W |
| Clearance, mm | 180 |
| Manufacturing country | Japan |
| Doors | 4 |
| Right hand drive | yes |
| Left hand drive | no |
Vehicle generation | |
| Generation name | SR |
| Generation number | 3 |
| Facelift number | 1 |
| Production start year | 1990 |
| Production end year | 1994 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | RF |
| Fuel | Diesel |
| Engine type | water cooling 4 cylinder SOHC |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 76 |
| Max power RPM, rpm | 4000 |
| Max power, hp (kWt) / rpm | 76 (56) / 4000 |
| Max torque, N*m | 172 |
| Max torque RPM, rpm | 2000 |
| Max torque, N*m (kg*m) / rpm | 172 (18) / 2000 |
| Compression ratio | 21.1 |
| Bore, mm | 86 |
| Stroke, mm | 86 |
Fuel consumption | |
| Fuel consumption (60 km/h mode), l/100km | 5.3 |
Transmission | |
| 1st gear ratio | 3.958 |
| 2nd gear ratio | 2.332 |
| 3rd gear ratio | 1.407 |
| 4th fear ratio | 1 |
| 5th gear ratio | 0.868 |
| Rear gear ratio | 4.263 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4590 |
| Exterior width, mm | 1690 |
| Exterior height, mm | 1980 |
Interior dimensions | |
| Capacity | 9 |
| Seat rows | 3 |
| Interior length, mm | 3195 |
| Interior width, mm | 1480 |
| Interior height, mm | 1365 |
Chassis dimensions | |
| Wheel base, mm | 2400 |
| Front axle length, mm | 1450 |
| Rear axle length, mm | 1410 |
| Turning radius, m | 4.6 |
| Wheel spacing front | 1450 |
| Wheel spacing rear | 1410 |
Weight and permissible load | |
| Mass, kg | 1590 |
Volumes | |
| Fuel tank capacity, l | 62 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear stablilizer | no |
| Rear suspension | Dependent, spring loaded |
| LSD | option |
Wheel rims | |
| Aluminium wheel | yes |
Tires | |
| Front wheels | 185SR14 |
| Rear wheels | 185SR14 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Front fog lamps | no |
| Rear fog lamps | no |
| Additional stop light | no |
| Cornering lamps | no |
Side mirrors | |
| Power adjustable door mirrors | yes |
Windows | |
| Ultraviolet glass protection | no |
Roof | |
| Sunroof | yes |
| Tilt sunroof | no |
| Twin sunroof | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
| Back wiper | yes |
Body color | |
| Colors | 669 685 |
Interior | |
Steering wheel and center panel | |
| Leather winding | no |
| Telescopic steering | no |
| Tilt steering | yes |
| Tachometer | yes |
Interior design | |
| Leather seat | no |
| Wood panel | no |
Seats | |
| Reclining seats | yes |
| Removable seats | yes |
| Turning seats | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Power ajustable back seat | no |
| Centralized door lock | yes |
| Keyless enter | no |
| Power window | yes |
| Central power window control | no |
Safety | |
Airbags | |
| Drivers airbag | no |
| Passengers airbag | no |
| Side airbag | no |
Children safety | |
| Child car restraints | no |
Active and passive safety | |
| Durable frame | no |
| Side impact bar | no |
| 3 point safety belt | no |
| Safety belt pretensioner | no |
| Safety belt limiter | no |
Electronic security and traffic control systems | |
| Break assist | no |
| traction control | no |
| Cruise control | no |
Amenity | |
Microclimate | |
| Cooler | no |
| Automatic air conditioning | no |
| Twin conditioning system | option |
| Air purifier | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | yes |
| CD player | no |
| CD changer | no |
| MD palyer | no |
| MD changer | no |
Navigation and video equipment | |
| Parking assist system | no |
1991 Mazda Bongo Brawny III Q-SRF9W 2.0DT Limited (76 Hp) specs
|
The next Bongo van appeared in 1978. It was a mid-engine rear wheel drive vehicle. Ford sold this version of the van as the Ford Econovan, while Mazda sold it for export as the E1300, E1400, and E1600, depending on engine size. Engines:
The Bongo was redesigned for 1983 with new engines. A new long-wheelbase version known as the Bongo Brawny was introduced. Engines:
The SS platform Bongo lasted from 1989 until 1998. This van was also sold by Nissan as the Vanette. The SG platform Bongo Friendee was introduced in 1995. Ford began selling the Friendee in the Japanese home market as the Ford Freda. Petrol Engines:
Diesel Engines: » Read More About Mazda Bongo Brawny |
