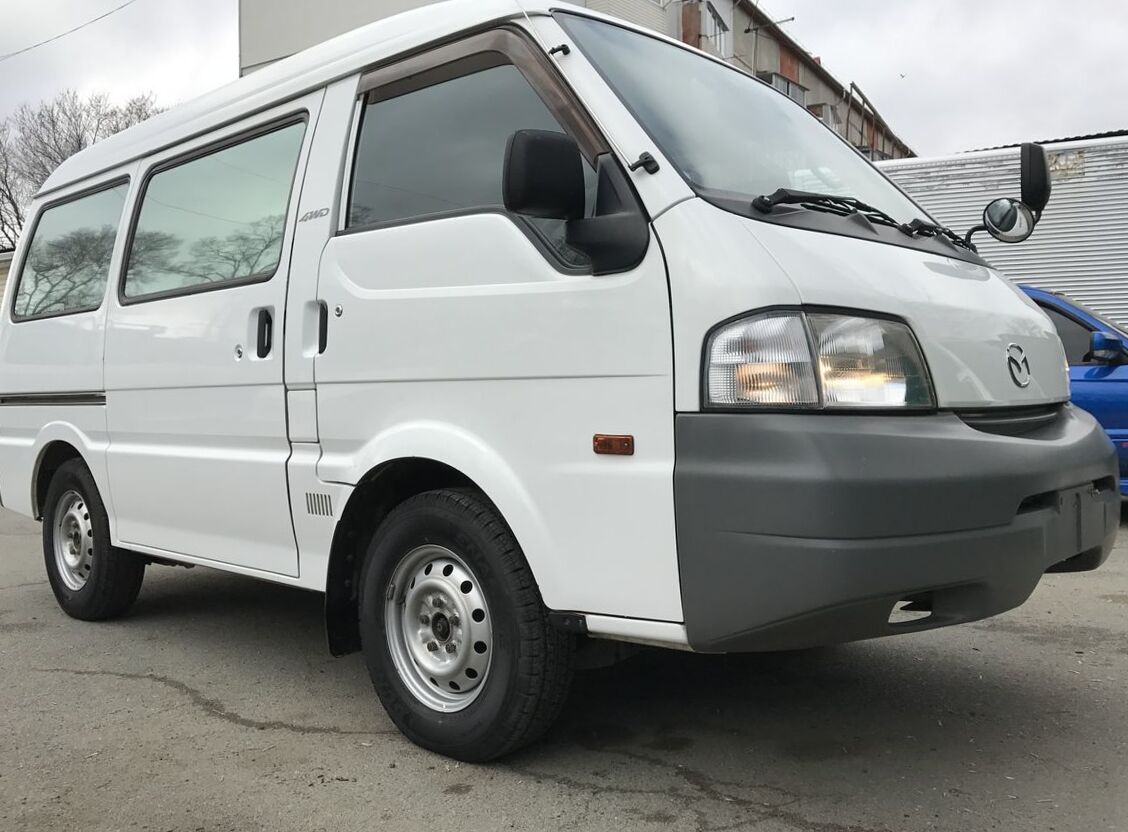

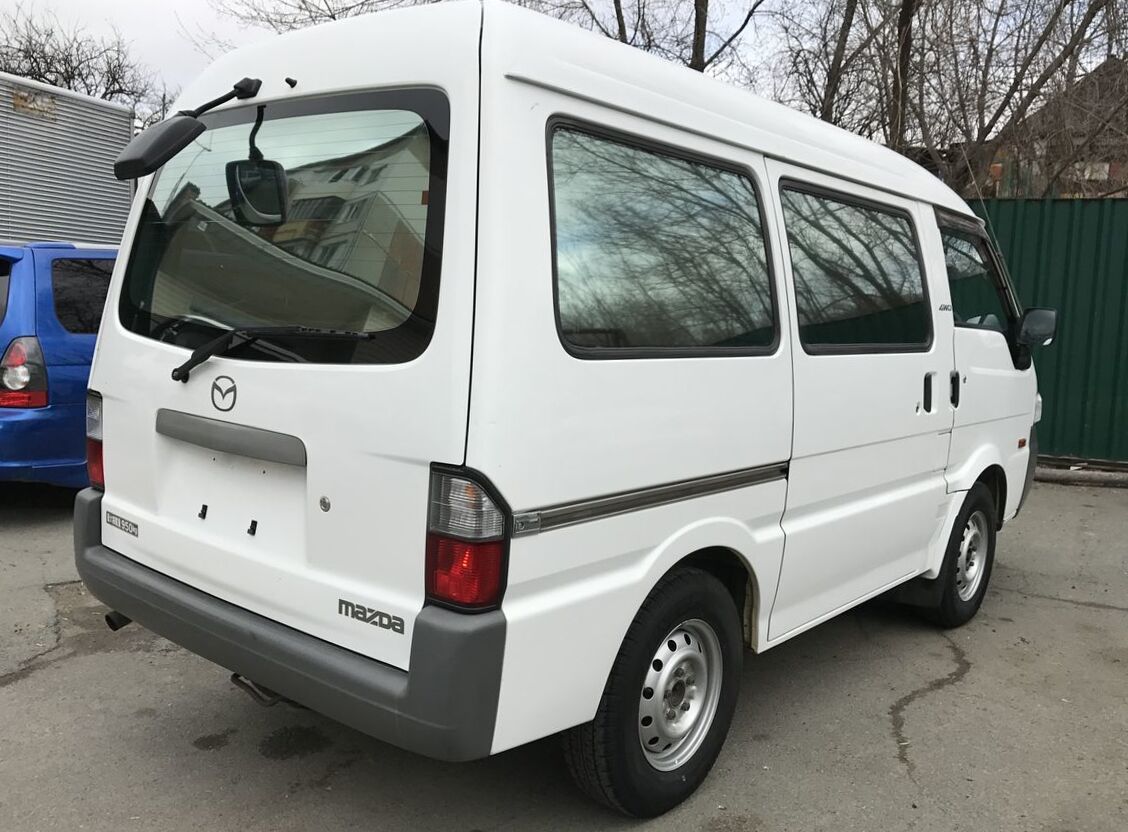

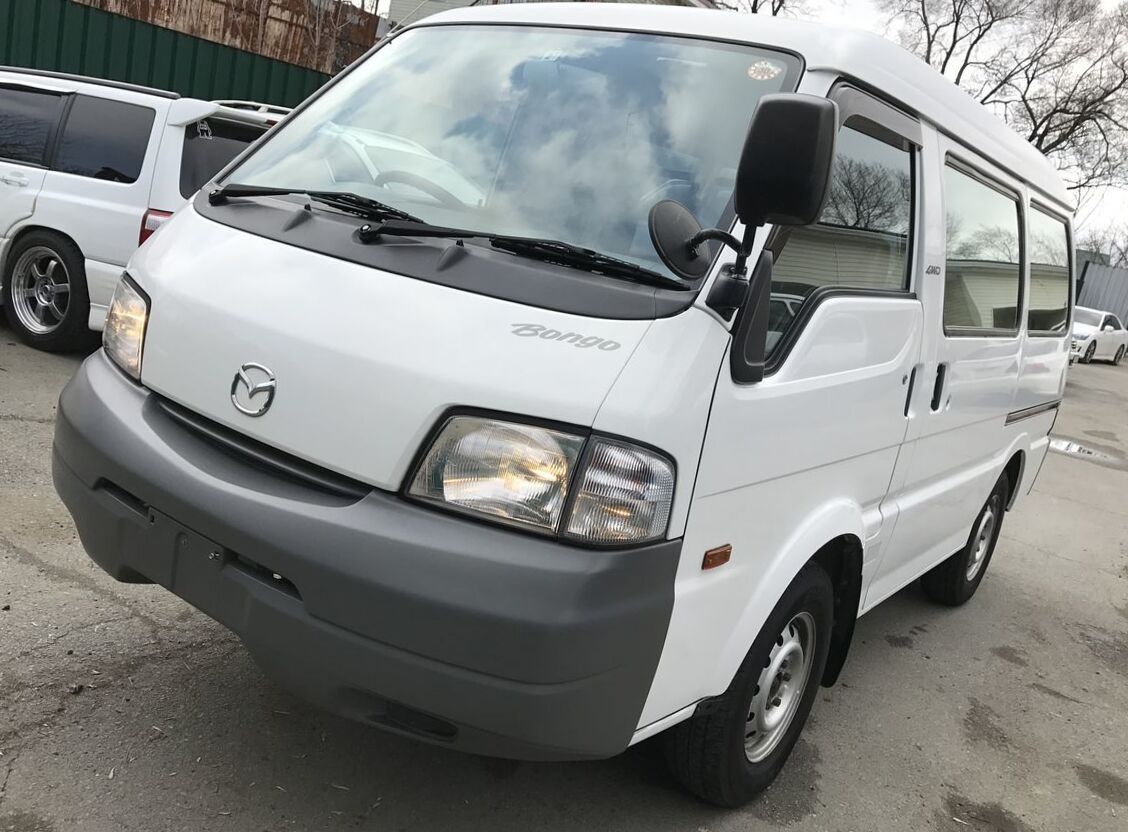

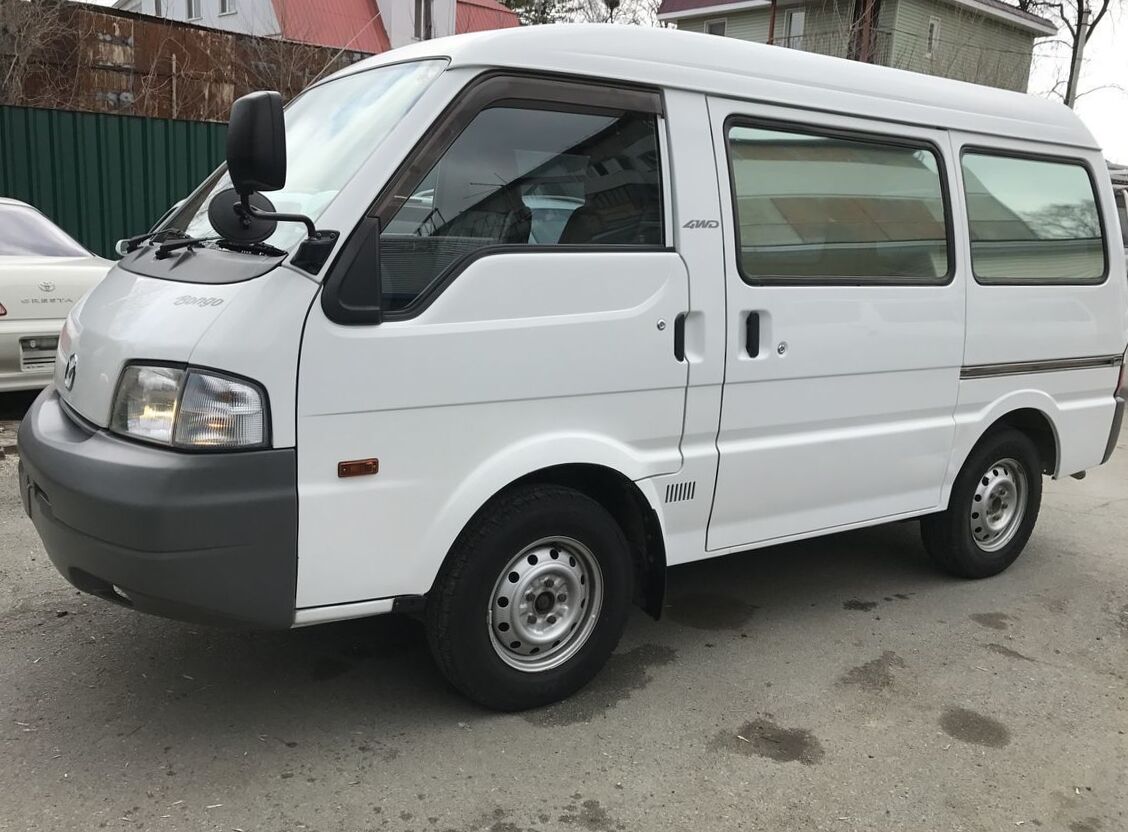

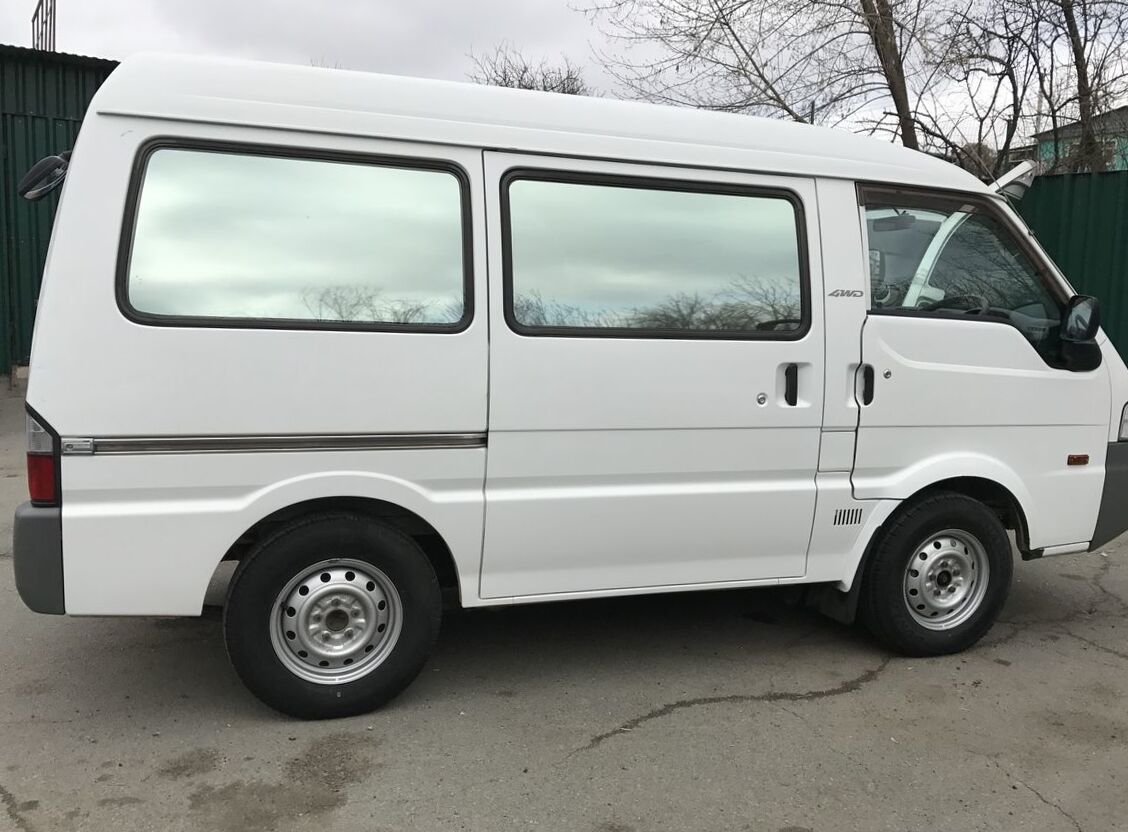

2011 Mazda Bongo IV 1.8 DX low floor high roof 4WD (5 door 5 seat)
Mazda Bongo Problems
Engine shake during rite on road
2011, My van shake or tremble every time i
drive slowly slower than 40km/hr and engine
going l...
Start Problem
1992, Cannot start the van in the morning or
when parking in hours and the engine get cool
it ...
Can not find any rotor discs
1992, There is not parts readily
available.Spare parts dealers are unable to
locate the part n...
Body type | Minivan |
---|---|
Power | 102 Hp |
Engine Displacement | 1800 cm3 or 1.8L or 109.8 cu-in |
Color | white |
Transmission Gearbox | Automatic |
Fuel Type | Gasoline |
Drive wheel | 4WD |
Mileage | 78914 Miles |
Vin | SKP2M-****58 |
Price (out of date) | $8824 |
Frequently Asked Questions | |
---|---|
What is the body type, 2011 Mazda Bongo IV? | Minivan, 5 Seats, 5 Doors |
How much power, Mazda Bongo Minivan 2011? | 102 Hp |
What is the engine size, Mazda Bongo ABF-SKP2M 2011? | 1.8L or 1798cm3 |
How many gears, What type is the gearbox, 2011 Mazda Bongo 1.8 DX low floor high roof 4WD (5 door 5 seat)? | Automatic transmission 4 |
What is the drivetrain, Mazda Bongo IV 2011 Minivan 1.8 DX low floor high roof 4WD (5 door 5 seat) (102 Hp)? | All wheel drive (4x4) |
How long is this vehicle, 2011 Mazda Bongo Minivan 1.8 DX low floor high roof 4WD (5 door 5 seat) (102 Hp)? | 4285 mm |
How wide is the vehicle, 2011 Mazda Bongo IV? | 1690 mm |
Mazda Bongo IV ABF-SKP2M 1.8 DX low floor high roof 4WD (5 door 5 seat) (102 Hp) 2010, 2011, 2012, 2013, 2014, 2015, 2016 Specs
General information | |
---|---|
Production start year | 2010 |
Production end year | 2016 |
Drive type | All wheel drive (4x4) |
Frame type | Minivan |
Transmission type | Automatic transmission 4 |
Engine volume, cc | 1798 |
Frame name | ABF-SKP2M |
Clearance, mm | 185 |
Manufacturing country | Japan |
Doors | 5 |
Winter complectation | yes |
Steering locaton | right |
Vehicle generation | |
Generation name | SK |
Generation number | 4 |
Production start year | 1999 |
Production end year | 2020 |
Engine, transmission and steering specs | |
Engine specs | |
Engine name | L8 |
Fuel | Petrol (Gasoline) |
Engine type | 4 cylinder DOHC |
Max power, hp | 102 |
Max power RPM, rpm | 5300 |
Max power, hp (kWt) / rpm | 102(75)/5300 |
Max torque, N*m | 147 |
Max torque RPM, rpm | 4000 |
Max torque, N*m (kg*m) / rpm | 147 (15) / 4000 |
Variable cylinder system | no |
Max power, kw (ps) / rpm | 75?102?/5300 |
Max torque, N*m (kg*m) / rpm (carsensor) | 147?15?/4000 |
Start stop system | no |
Fuel consumption | |
Fuel consumption (10/15 mode), km/l | 10.2 |
Fuel consumption (10/15 mode), l/100km | 9.8 |
Transmission | |
Shifter position | On the steering column |
Steering | |
Power steering | yes |
Steereing gear type | Gear rail |
Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
Exterior length, mm | 4285 |
Exterior width, mm | 1690 |
Exterior height, mm | 1985 |
Exterior size (L x W x H), mm | 4285x1690x1985?mm? |
Interior dimensions | |
Capacity | 5 |
Seat rows | 2 |
Interior size (L x W x H), mm | -x-x-?mm? |
Chassis dimensions | |
Wheel base, mm | 2220 |
Front axle length, mm | 1450 |
Rear axle length, mm | 1390 |
Turning radius, m | 5.1 |
Front/rear axis length | 1450/1390?mm? |
Wheel spacing front | 1450 |
Wheel spacing rear | 1390 |
Weight and permissible load | |
Mass, kg | 1500 |
Total weight | 2560 |
Max capacity | 950 |
Volumes | |
Fuel tank capacity, l | 53 |
Suspension specs | |
Suspension specs | |
Front suspension | Independent on double wishbones |
Rear suspension | Dependent, spring loaded |
Sport suspension | no |
Low down | no |
Air suspension | no |
Cenral diff lock | no |
LSD | no |
4ws | no |
Wheel rims | |
Aluminium wheel | no |
Magnesium wheels | no |
Tires | |

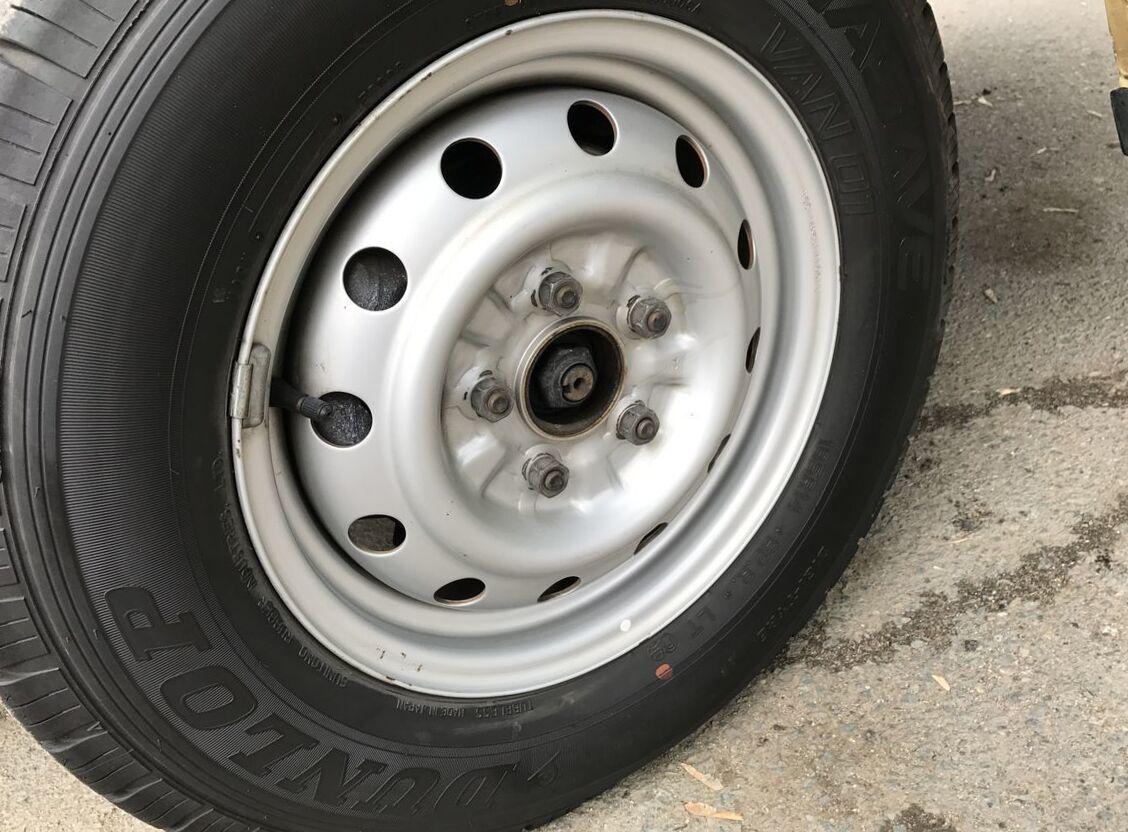

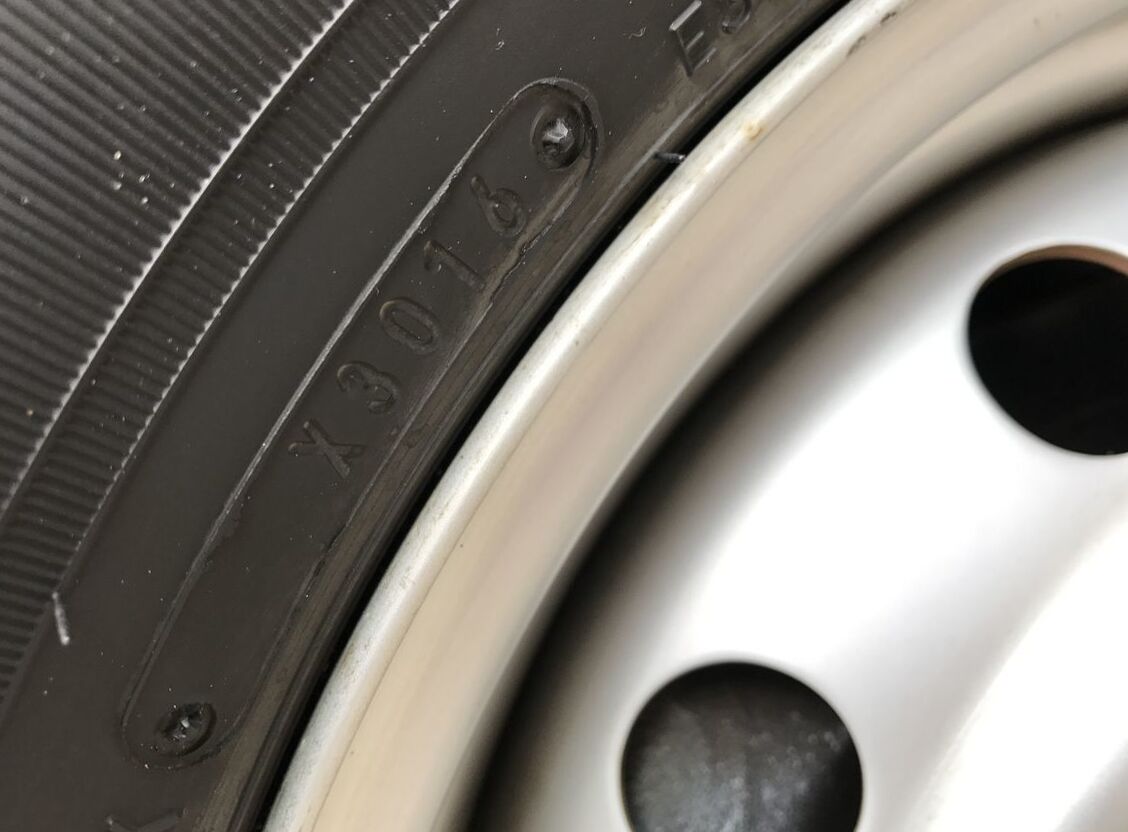

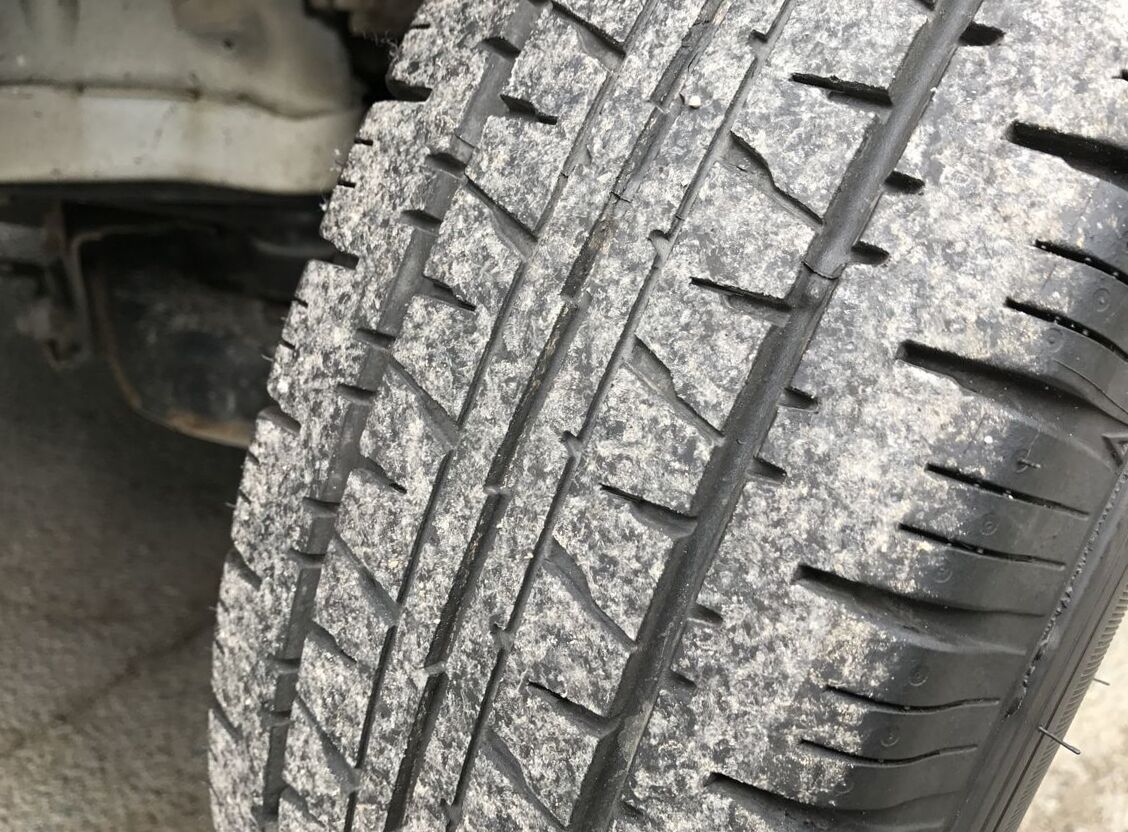

Front wheels | 185R14-6PRLT |
Rear wheels | 185R14-6PRLT |
Run flat tires | no |
Brakes | |
Front brake | Ventilated discs |
Rear brake | drum brakes |
Brakes equipment | no |
Brake front search | 1 |
Rear brake | 2 |
Exterior | |
Headlights | |
Xenon lamps | no |
Head lights washer | no |
Front fog lamps | no |
Rear fog lamps | no |
Rain sensor | no |
Side mirrors | |
autocorrected mirrors | no |
Doors | |
Side sliding door | no |
Sliding doors | yes |
Sliding electric door | no |
Sliding electric doors | no |
Door easy closer | no |
Power rear door | no |
Windows | |
Privacy glass | option |
Ultraviolet glass protection | no |
Roof | |
Sunroof | no |
Big sunroof | no |
T bar roof | no |
Roof equipment | no |
Targa roof | no |
Hard top | no |
Soft top | no |
Metal top | no |
Canvas top | no |
Accessories | |
Roof rail | no |
Front spoiler | no |
Rear spoiler | no |
Body color | |
Colors | 3156 |
Interior | |
Steering wheel and center panel | |
Engine start button | no |
Interior design | |
Water-repellent | no |
Leather seat | no |
Antibacterial repellent | no |
Seats | |
Bucket seat | no |

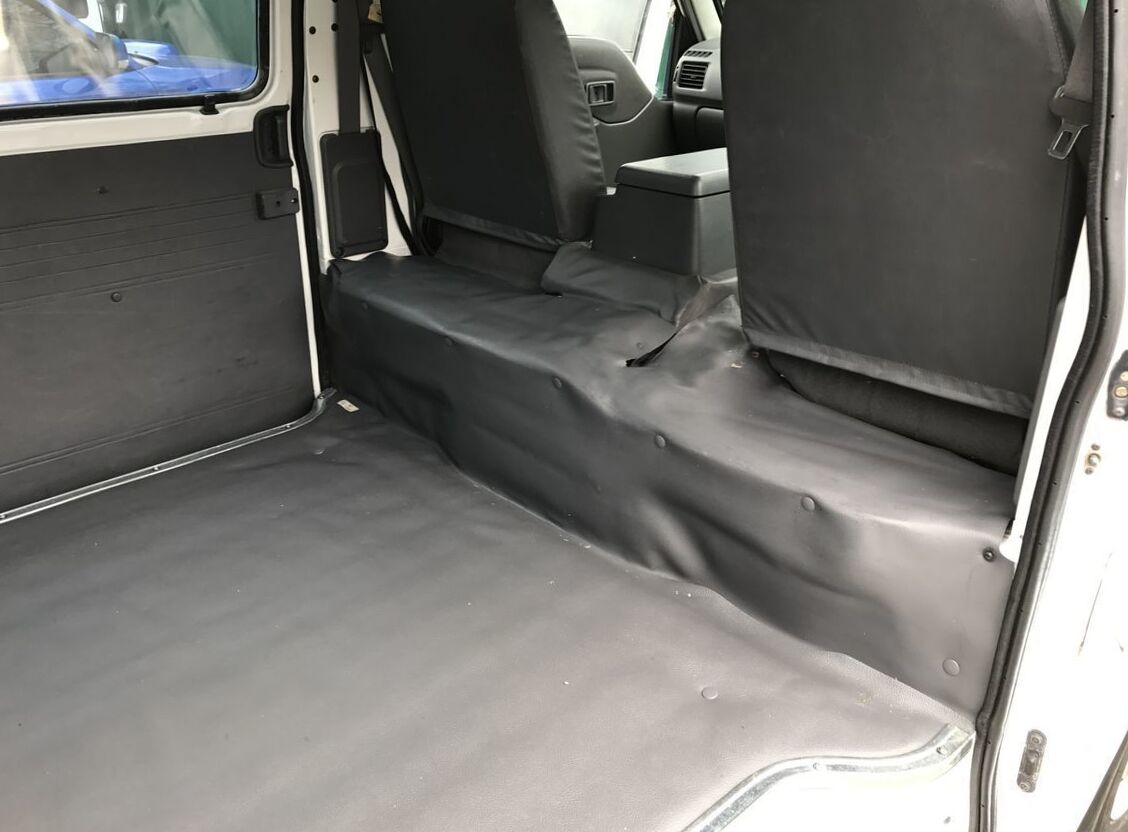

2nd row | foldable, backrest is indivisible |
3nd row | no |
Seat lifter | no |
Full flat seats | no |
Removable seats | no |
Ottoman seat | no |
Front bench seat | no |
Walk throught | no |
2nd row throught | no |
Electric interior package | |
Power adjustable driver seat | no |
Power ajustable front seat | no |
Adjustable 3rd row | no |
Front seat heater | no |
Rear seats heater | no |
Seat position memory | no |
Keyless enter | no |

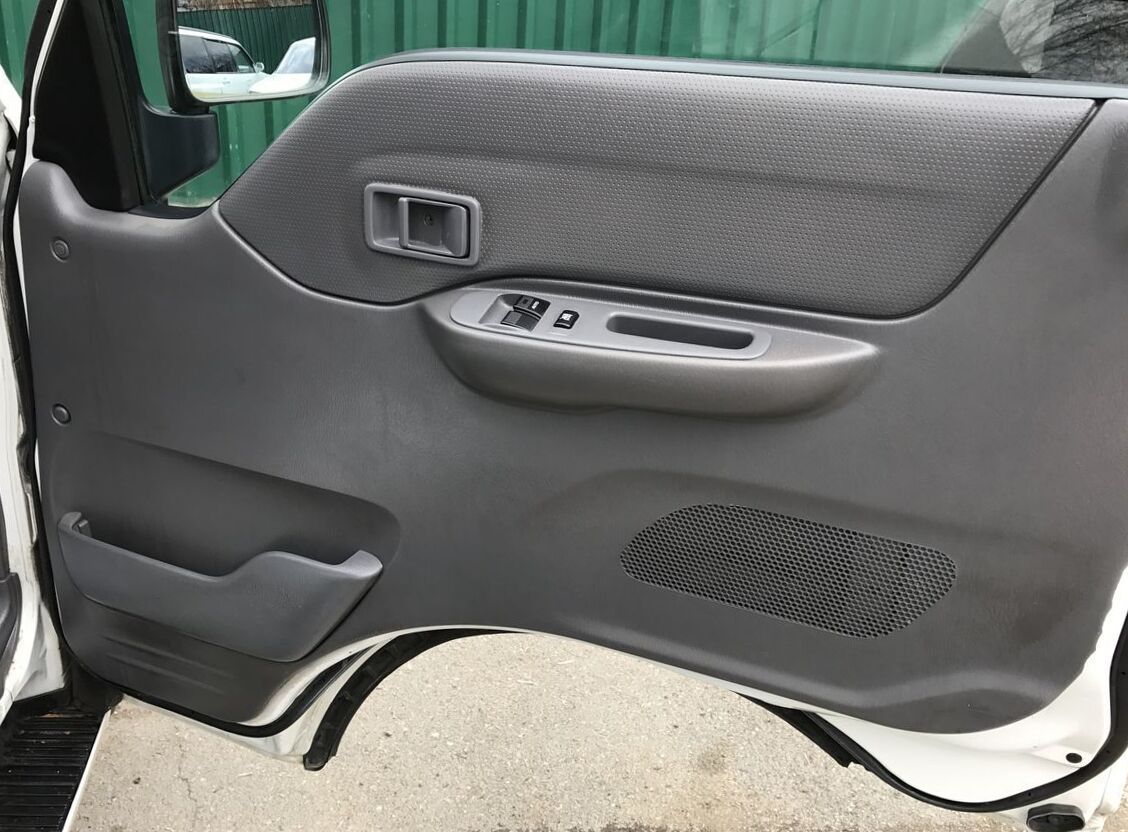

Power window | yes |
Stearing wheel heater | no |
Additional interior equipment | |
AC plug | no |
Safety | |
Airbags | |
Drivers airbag | yes |
Passengers airbag | yes |
Side airbag | no |
Curtain airbags | no |
2 airbags | no |
Children safety | |
isofix bar | no |
Build-in child seat | no |
Active and passive safety | |
Active headrest | no |
Road Service | |
Electronic security and traffic control systems | |
ABS | yes |
Break assist | no |
ESP | no |
traction control | no |
Down hill assist | no |
AYC | no |
SH-4WD | no |
Lane Keep Assist | no |
Cruise control | no |
Distance control system | no |
Intelligent AFS | no |
Night vision | no |
Parktronic | no |
Intelligent parking assist | no |
Collision mitigation system | no |
Amenity | |
Microclimate | |

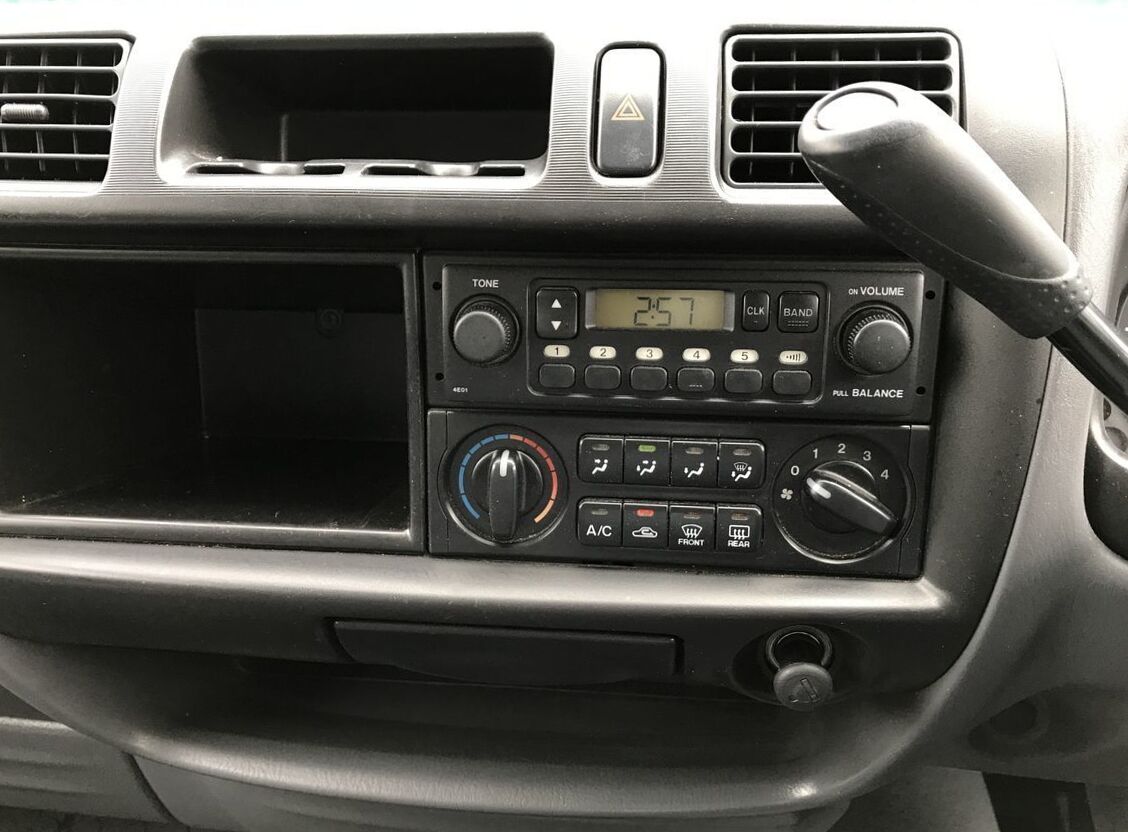

Air conditioner | yes |
Air purifier | no |
Humidifier | no |
Air filter | no |
Odor absorber | no |
Audio systems | |
Radio | yes |
Autoreverse casette | no |
CD player | no |
DVD-audio | no |
MD palyer | no |
Audio HDD | no |
Speaker | yes |
Rear entertainment system | no |
Navigation and video equipment | |
Full color LCD display | no |
Navigation system | no |
Optional navigation system | no |
Parking assist system | no |
Front monitor | no |
Sides monitors | no |
Back monitor | no |
Additional amenities | |
Lagage box | no |
Etc | no |
Car safety | |
Alarm system | no |
Security alarm | no |
2011 Mazda Bongo IV ABF-SKP2M 1.8 DX low floor high roof 4WD (5 door 5 seat) (102 Hp) specs
|
The next Bongo van appeared in 1978. It was a mid-engine rear wheel drive vehicle. Ford sold this version of the van as the Ford Econovan, while Mazda sold it for export as the E1300, E1400, and E1600, depending on engine size. Engines:
The Bongo was redesigned for 1983 with new engines. A new long-wheelbase version known as the Bongo Brawny was introduced. Engines:
The SS platform Bongo lasted from 1989 until 1998. This van was also sold by Nissan as the Vanette. The SG platform Bongo Friendee was introduced in 1995. Ford began selling the Friendee in the Japanese home market as the Ford Freda. Petrol Engines:
Diesel Engines: » Read More About Mazda Bongo |
