2006 Mazda AZ-Offroad 660 XC

2006 Mazda AZ-Offroad ABA-JM23W 660 XC (64 Hp)
AZ-Offroad ABA-JM23W 660 XC (64 Hp)
2006 AZ-Offroad ABA-JM23W 660 XC (64 Hp)
Mazda AZ-Offroad ABA-JM23W 660 XC (64 Hp)
2006 Mazda AZ-Offroad ABA-JM23W 660 XC (64 Hp)
AZ-Offroad ABA-JM23W 660 XC (64 Hp)
2006 AZ-Offroad ABA-JM23W 660 XC (64 Hp)
Mazda AZ-Offroad ABA-JM23W 660 XC (64 Hp)

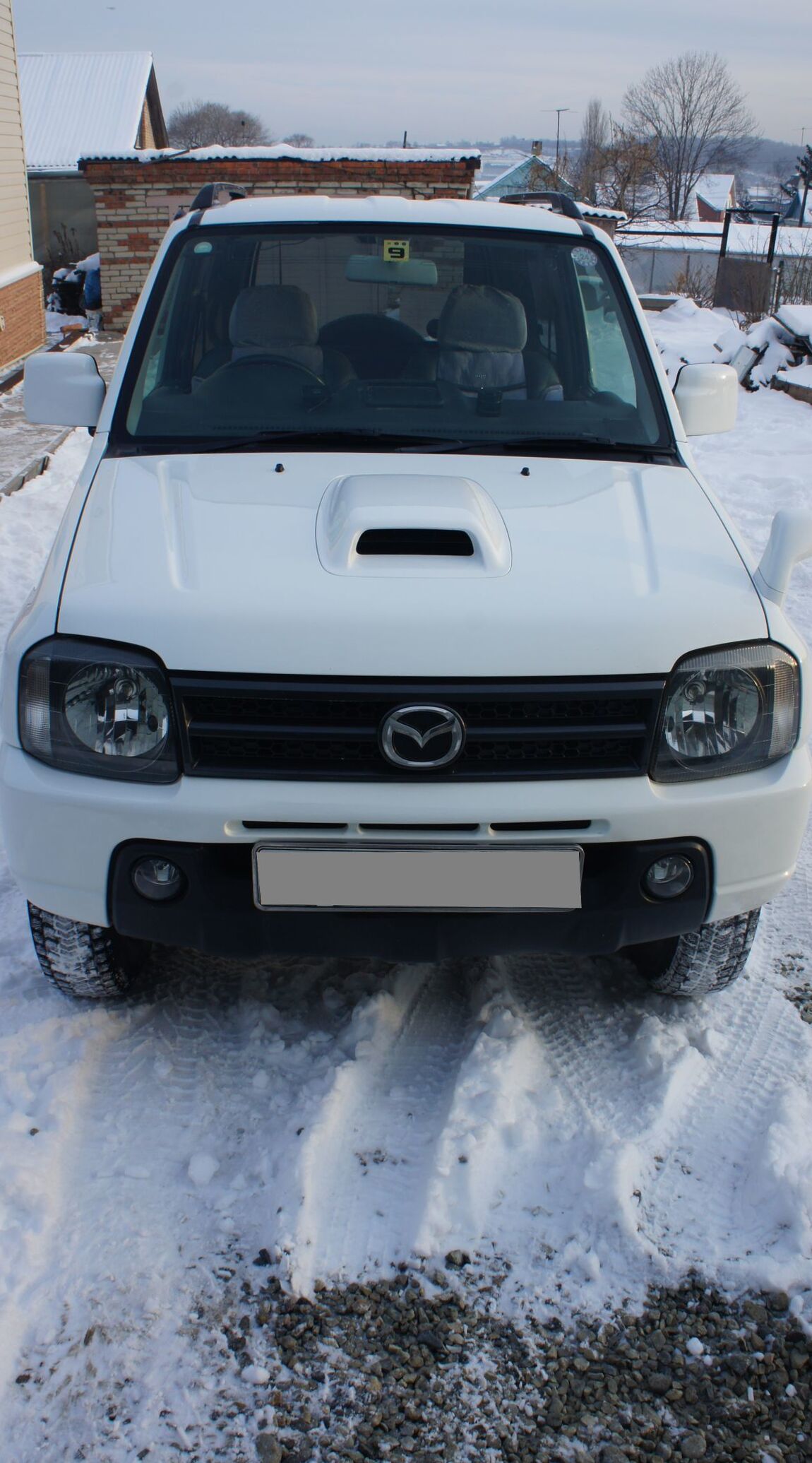

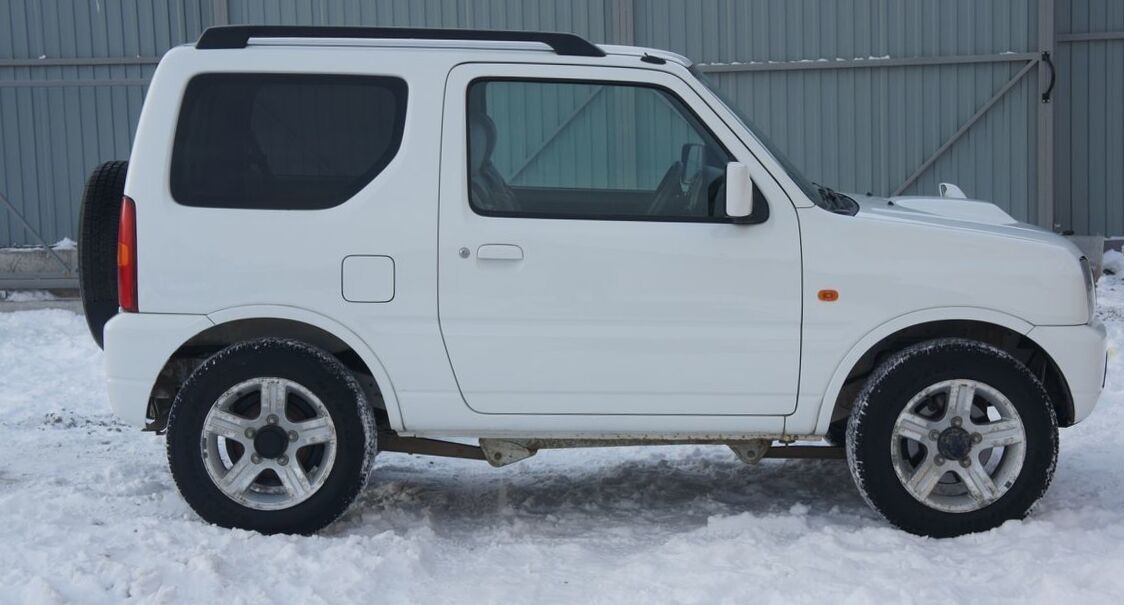

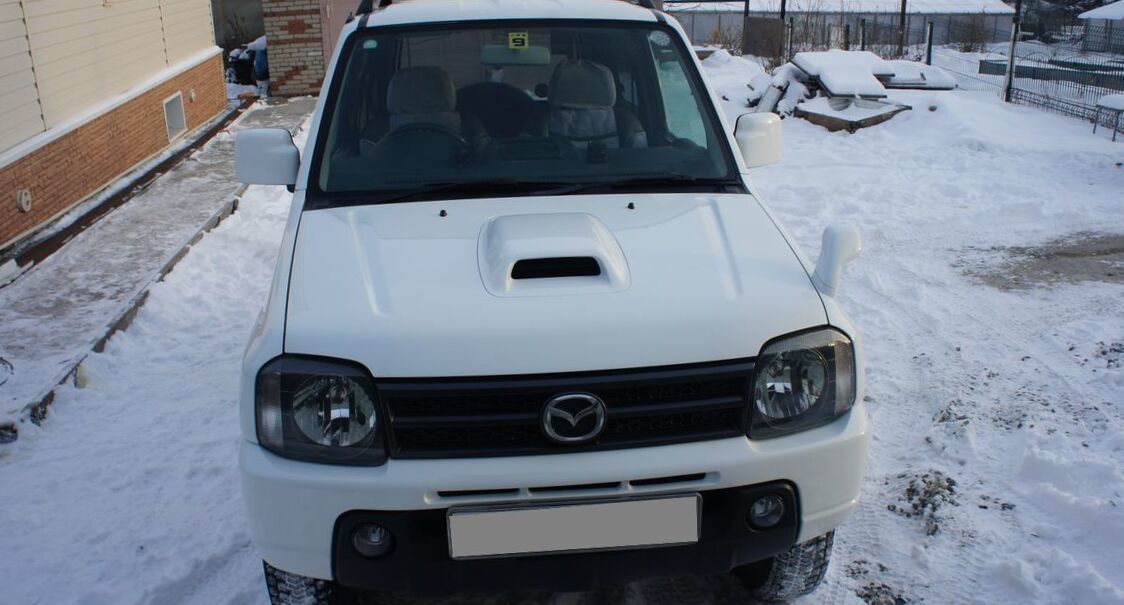

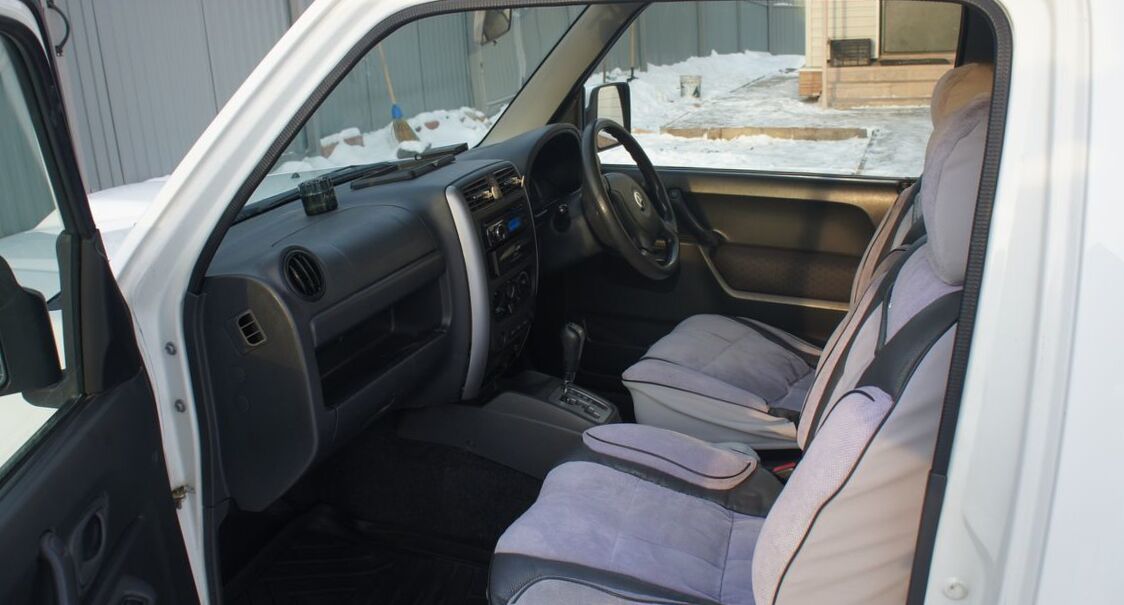

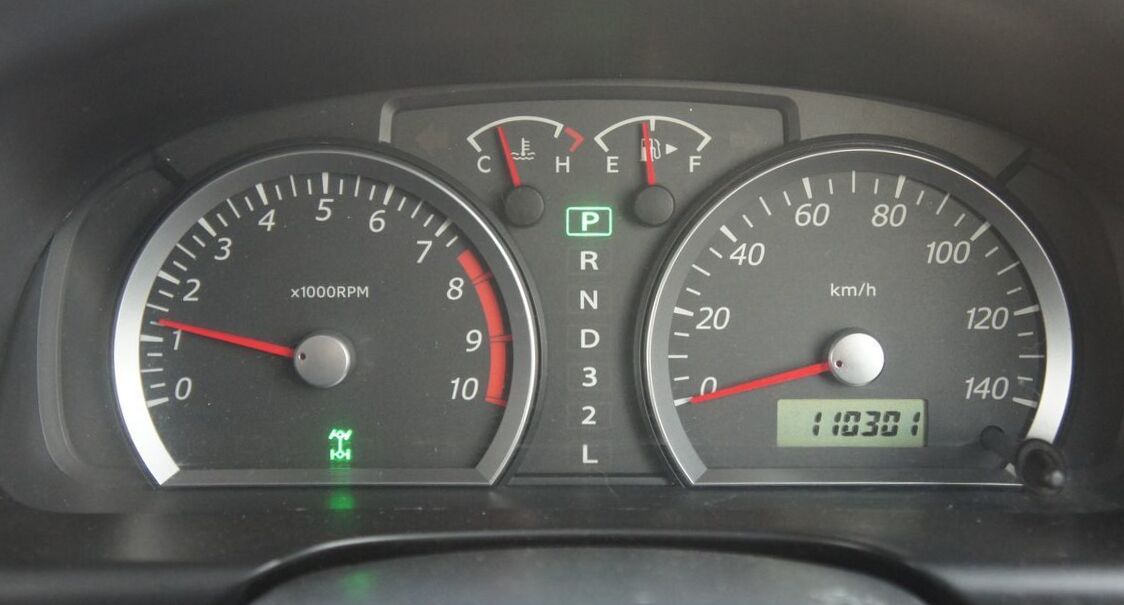

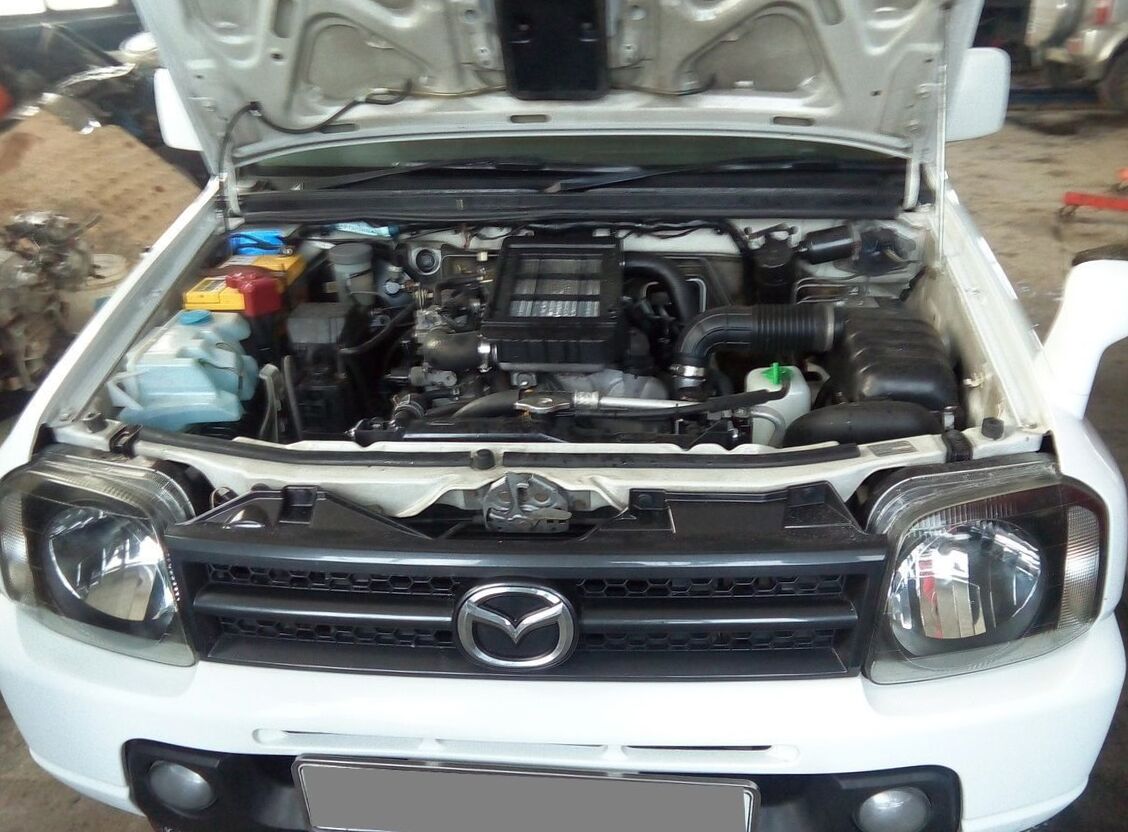

More photos of Mazda AZ-Offroad

Body typeSUV 3 Doors
Power64 Hp
Engine Displacement700 cm3 or 0.7L or 42.7 cu-in
Transmission GearboxAutomatic
Fuel TypeGasoline
Drive wheel4WD
Mileage68537 Miles
Price (out of date)$6134

Frequently Asked Questions

What is the body type, Mazda AZ-Offroad SUV 2006?SUV, 4 Seats, 3 Doors
How much power, Mazda AZ-Offroad ABA-JM23W 2006?64 Hp
What is the engine size, 2006 Mazda AZ-Offroad 660 XC?0.7L or 658cm3
How many gears, What type is the gearbox, Mazda AZ-Offroad 2006 SUV 660 XC (64 Hp)?Automatic transmission 4
What is the drivetrain, 2006 Mazda AZ-Offroad SUV 660 XC (64 Hp)?All wheel drive (4x4)
How long is this vehicle, Mazda AZ-Offroad SUV 2006?3395 mm
How wide is the vehicle, Mazda AZ-Offroad ABA-JM23W 2006?1475 mm

Mazda AZ-Offroad ABA-JM23W 660 XC (64 Hp) 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 Specs

General information

Complectation name660 XC
Production start year2004
Price of new car in Tokyo, yen1625400
Drive typeAll wheel drive (4x4)
Frame typeSUV
Transmission typeAutomatic transmission 4
Engine volume, cc658
Frame nameABA-JM23W
Clearance, mm200
Manufacturing countryJapan
Right hand driveyes
Left hand driveno

Vehicle generation

Generation nameJM
Generation number1
Facelift number1
Production start year2002
Production end year2014

Engine, transmission and steering specs

Engine specs

Engine nameK6A
FuelPetrol (Gasoline)
Engine typeIn-line, 3-cylinder
Has turboyes
Turbo typeTurbine
Max power, hp64
Max power RPM, rpm6500
Max power, hp (kWt) / rpm64 (47) / 6500
Max torque, N*m103
Max torque RPM, rpm3500
Max torque, N*m (kg*m) / rpm103 (11) / 3500
Valves per cylinder4
Compression ratio8.4
Bore, mm68
Stroke, mm60.4
Actuator valvesDOHC
LEV2005 exhaust emission standards conformity

Fuel consumption

Fuel consumption (10/15 mode), l/100km6.8


1st gear ratio2.875
2nd gear ratio1.568
3rd gear ratio1
4th fear ratio0.696
Rear gear ratio2.3


Power steeringyes


Frame dimensions

Exterior length, mm3395
Exterior width, mm1475
Exterior height, mm1715

Interior dimensions

Seat rows2
Interior length, mm1660
Interior width, mm1220
Interior height, mm1210

Chassis dimensions

Wheel base, mm2250
Front axle length, mm1265
Rear axle length, mm1275
Turning radius, m4.8
Wheel spacing front1265
Wheel spacing rear1275

Weight and permissible load

Mass, kg1000


Fuel tank capacity, l40

Suspension specs

Suspension specs

Front stabilizeryes
Front suspensionDependent, spring loaded
Rear stablilizerno
Rear suspensionDependent, spring loaded

Wheel rims

Aluminium wheelyes


Front wheels175/80R16 91Q
Rear wheels175/80R16 91Q


Front brakeDiscs
Rear brakedrum brakes
Brake front search1
Rear brake2



Xenon lampsno
Front fog lampsyes
Rear fog lampsno
Additional stop lightno
Cornering lampsno

Side mirrors

Power adjustable door mirrorsyes


Ultraviolet glass protectionyes


Tilt sunroofno
Twin sunroofno


Roof railyes
Front spoilerno
Rear spoilerno
Back wiperyes

Body color

Colors8 6


Steering wheel and center panel

Leather windingno
Telescopic steeringno
Tilt steeringno

Interior design

Leather seatno
Wood panelno


Reclining seatsno
Removable seatsyes
Turning seatsno

Electric interior package

Power adjustable driver seatno
Power ajustable front seatno
Power ajustable back seatno
Centralized door lockyes
Keyless enteryes
Power windowyes
Central power window controlyes



Drivers airbagyes
Passengers airbagyes
Side airbagno

Children safety

Child car restraintsyes

Active and passive safety

Durable frameyes
Side impact baryes
3 point safety beltyes
Safety belt pretensioneryes
Safety belt limiteryes

Electronic security and traffic control systems

Break assistno
traction controlno
Cruise controlno



Automatic air conditioningno
Twin conditioning systemno
Air purifierno

Audio systems

Autoreverse casetteno
CD playeryes
CD changerno
MD palyerno
MD changerno

Navigation and video equipment

Parking assist systemno

2006 Mazda AZ-Offroad ABA-JM23W 660 XC (64 Hp) specs

The Mazda AZ-Offroad is a mini SUV, a rebadged Suzuki Jimny. The AZ in the name refers to Autozam, Mazda's ill-fated small car marque. The AZ-Offroad was introduced in October, 1998 as a 1999 model. The engine is a turbocharged 660 cc DOHC Suzuki K6A. All wheel drive is standard and an automatic transmission is optional. The AZ continues to be sold in Japan.
