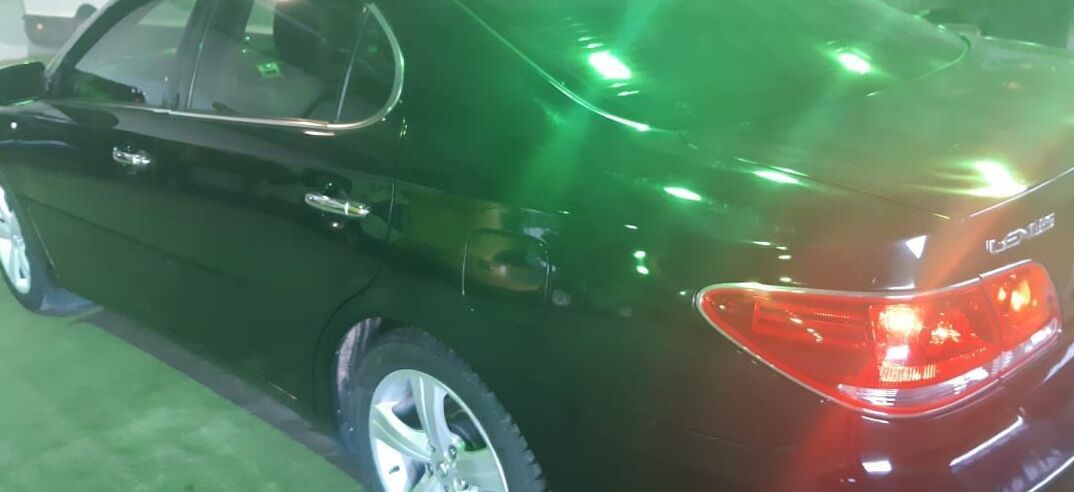

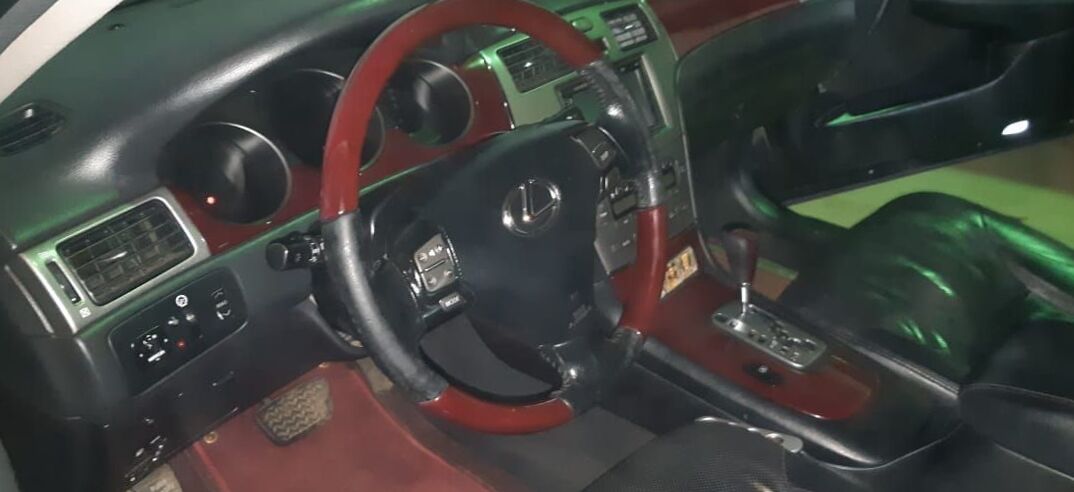

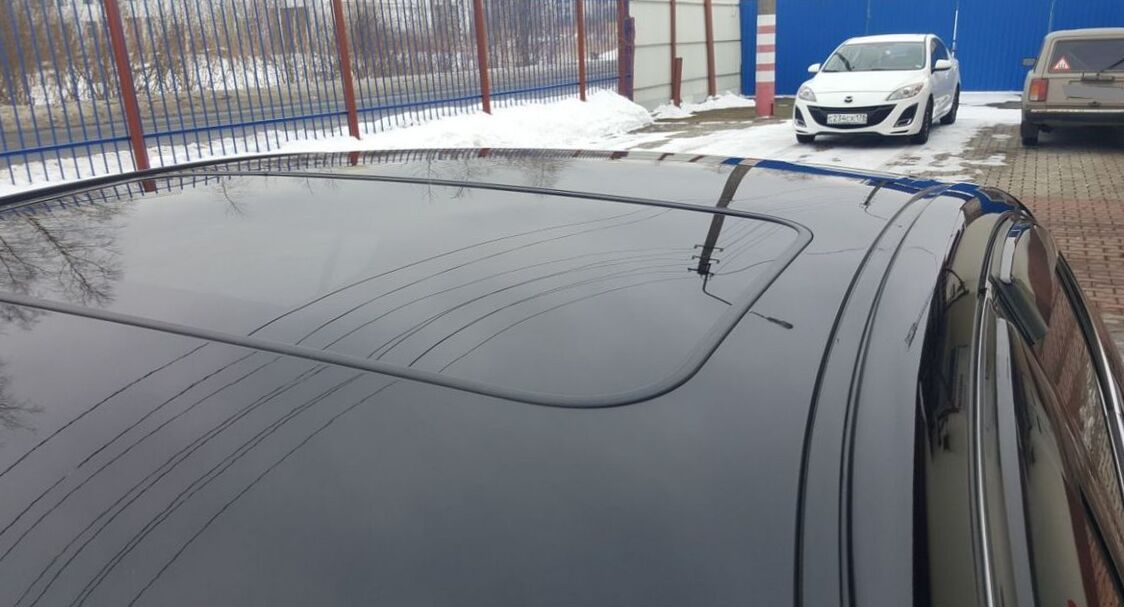

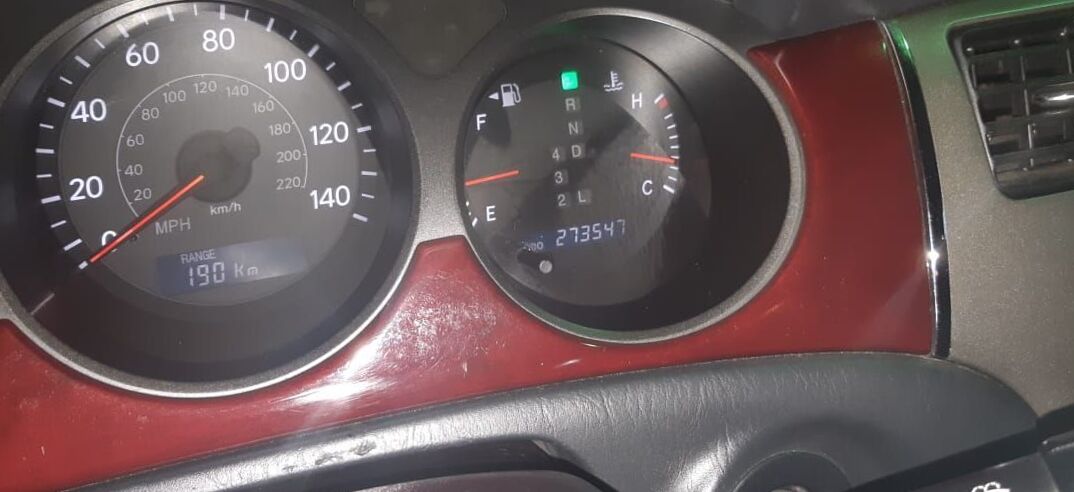

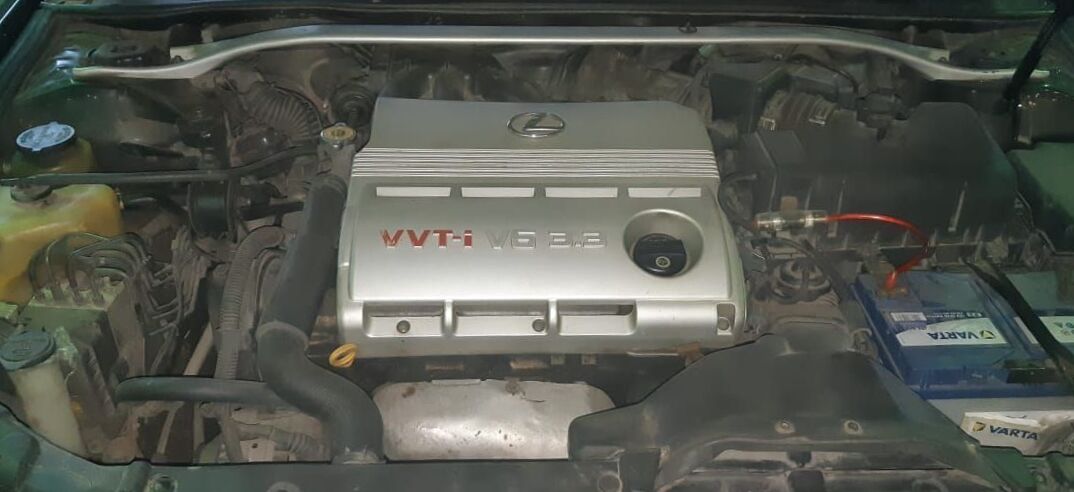

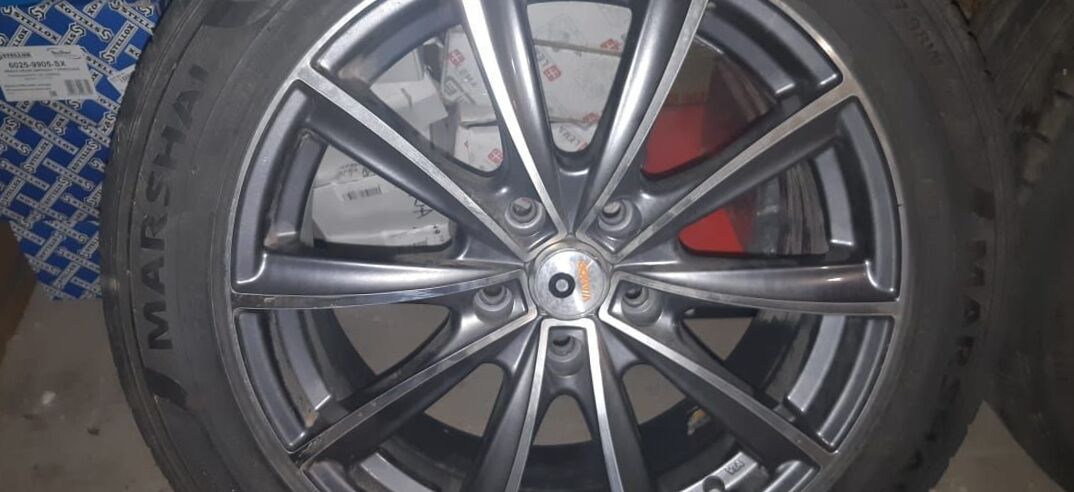

More photos of Lexus ES330

Body typeSedan
Power225 Hp
Engine Displacement3300 cm3 or 3.3L or 201.3 cu-in
Transmission GearboxAutomatic
Fuel TypeGasoline
Drive wheelFF
Mileage171215 Miles
Price (out of date)$8969

Frequently Asked Questions

What is the body type, 2005 Lexus ES330 IV?Sedan, 5 Seats, 4 Doors
What is the fuel economy, Lexus ES330 Sedan 2005?9.8 l/100 km
How fast is the car, Lexus ES330 MCV31 2005?230 km/h, 0-100 km/h: 7.2 sec
How much power, 2005 Lexus ES330 3.3 AT?225 Hp
What is the engine size, Lexus ES330 IV 2005 Sedan 3.3 AT (225 Hp)?3.3L or 3310cm3
How many gears, What type is the gearbox, 2005 Lexus ES330 Sedan 3.3 AT (225 Hp)?Automatic transmission 5
What is the drivetrain, 2005 Lexus ES330 IV?Front
How long is this vehicle, Lexus ES330 Sedan 2005?4854 mm
How wide is the vehicle, Lexus ES330 MCV31 2005?1811 mm
What is the gross weigh, 2005 Lexus ES330 3.3 AT?2035 kg
How much trunk (boot) space, Lexus ES330 IV 2005 Sedan 3.3 AT (225 Hp)?411 l

Lexus ES330 IV MCV31 3.3 AT (225 Hp) 2004, 2005, 2006 Specs

General information

Complectation name3.3 AT
Production start year2004
Production end year2006
Drive typeFront
Frame typeSedan
Transmission typeAutomatic transmission 5
Engine volume, cc3310
Frame nameMCV31
0 to 100 time7.2
Max speed230
Clearance, mm155
Manufacturing countryJapan
Left hand driveyes

Vehicle generation

Generation nameXV30
Generation number4
Production start year2004
Production end year2006

Engine, transmission and steering specs

Engine specs

Engine name3MZ-FE
FuelPetrol (Gasoline)
Engine typeV6
Has turbono
Max power, hp225
Max power RPM, rpm5600
Max power, hp (kWt) / rpm225 (165) / 5600
Max torque, N*m325
Max torque RPM, rpm3600
Max torque, N*m (kg*m) / rpm325 (33) / 3600
Valves per cylinder4
Compression ratio10.8
Bore, mm92
Stroke, mm83
Actuator valvesDOHC
Engine additional infoDistributed fuel injection, VVT-i

Fuel consumption

Country side8.1


1st gear ratio4.235
2nd gear ratio2.36
3rd gear ratio1.517
4th fear ratio1.047
5th gear ratio0.756
Rear gear ratio3.378
Main gear ratio3.29


Power steeringyes
Electric power steeringno
Steereing gear typeGear rail
Steering wheel turn3.1


Frame dimensions

Exterior length, mm4854
Exterior width, mm1811
Exterior height, mm1455

Interior dimensions

Seat rows2
Interior length, mm2025
Interior width, mm1510
Interior height, mm1185

Chassis dimensions

Wheel base, mm2720
Turning radius, m5.6
Wheel spacing front1550
Wheel spacing rear1535

Weight and permissible load

Mass, kg1570
Max capacity465
Max. weight2035


Fuel tank capacity, l70
Trunk volume411


Aerodynamic drag0.28
AddinfoChrome side window surrounds, Exhaust pipe with chrome tips, Chrome grille, Eyewear case, Power rear window sunblind (optional)

Suspension specs

Suspension specs

Front stabilizeryes
Front suspensionIndependent, Spring McPherson
Rear stablilizeryes
Rear suspensionIndependent, Spring McPherson

Wheel rims

Aluminium wheelyes


Front wheels215/60 R16
Rear wheels215/60 R16


Front brakeVentilated discs
Rear brakeDiscs
Parking brake new firstFoot



Halogen headlightsyes
Xenon lampsoption
Front fog lampsyes
Rear fog lampsyes
Additional stop lightyes
Light sensorno
Rain sensoroption

Side mirrors

Exterior mirrors in body coloryes
Side mirrors with repeaters indicatorsno
Power adjustable door mirrorsyes
Door mirrors heatingyes


Door handles in body colorno
Chrome door handlesyes


Ultraviolet glass protectionyes
Rear glass heatyes


Tilt sunroofyes
Panoramic roofno


Rear spoilerno
Bumperspainted in body color

Body color

Metallic paint Bodyyes


Steering wheel and center panel

Leather windingoption
Adjustable steeringyes
Telescopic steeringyes
Tilt steeringyes
Audio control on steering wheelyes
Utility color displayno
Env tempyes
Engine start buttonno

Interior design

Cloth upholsteryno
Leather upholsteryyes
Wood panelyes


Front seats ajustDriver's seat is adjustable in 10 directions, passenger's - in 8 directions
2nd row60/40 ratio fold seat
Loin relianceyes
Separating armrest frontyes
Separating armrest rearyes
Seats pocketsyes

Electric interior package

Power adjustable driver seatyes
Power ajustable front seatyes
Front seat heateroption
Front seats ventilationoption
Rear seats heaterno
Seat position memoryoption
Centralized door lockyes
Keyless enteryes
Power window frontyes
Power window rearyes

Additional interior equipment

AC plugyes



Drivers airbagyes
Passengers airbagyes
Side airbagyes
Curtain airbagsyes
Airbag for the driver's kneesno
Knee airbag passengerno

Children safety

Child car restraintsyes

Active and passive safety

Durable frameyes
Side impact baryes
3 point safety beltyes
Safety belt pretensioneryes
Safety belt limiteryes

Electronic security and traffic control systems

Electronic Brake Distributionyes
Break assistyes
traction controloption
Damping Control Systemno
Cruise controlyes
Distance control systemno
System tire pressure monitoringno
Front sonarno
Rear sonarsno
Collision mitigation systemno



Air conditioneryes
Automatic air conditioningyes
Part climat equipment2 zones

Audio systems

Autoreverse casetteyes
CD playeryes
CD changeroption
MP3 Supportno
Hands freeno
Additional sound equipmentLexus premium audio system, 7 speakers
Additional sound equipment opt.Mark Levinson premium audio system

Navigation and video equipment

Full color LCD displayoption
Navigation systemoption
Back monitorno

Additional amenities

Antidazzle rearview mirroryes
Anti-glare effectno
Mirrors in sunshieldsyes
Illumination in the cabin during landingyes
Onboard computeryes
LightBackground illumination of the interior

Car safety

Security alarmyes

Driver Kit

Spare tireyes

2005 Lexus ES330 IV MCV31 3.3 AT (225 Hp) specs

Lexus (Japanese: レクサス,, Rekusasu?) is the luxury vehicle division of Japanese automaker Toyota Motor Corporation. First introduced in the United States, where Lexus has become the highest-selling make of luxury car, today Lexus brand name vehicles are available throughout the world. In 2005, the Lexus marque launched in Japan, marking the continued global expansion of the luxury division.

Lexus originated from a clandestine flagship sedan project that began in 1983. This effort developed into the original Lexus LS, which was the first vehicle to wear the Lexus marque upon its launch in 1989. In subsequent years, Lexus added sedan, coupe, and SUV models. Hybrid drivetrains arrived in 2005, and the F marque performance division debuted in 2007. From the start of production, Lexus vehicles have been consistently produced in Japan, with manufacturing centered in the Chūbu and Kyūshū regions. Assembly of the first Lexus built outside the country, the Ontario, Canada-produced RX, began in 2003.

Since 1989, Lexus has developed a reputation for vehicle reliability and customer service, as measured by independent surveys. In 2008, consumer ratings firm J.D. Power and Associates named Lexus the most reliable brand in the U.S. for the fourteenth year, based on its Vehicle Dependability Survey, a measure of over 53,000 vehicle owners and problems experienced in the first three years of vehicle ownership. Through 2008, Consumer Reports has also named Lexus among the top five most reliable brands in its Annual Car Reliability Surveys of over one million vehicles across the U.S.

The Lexus slogan is The Pursuit of Perfection.
