General information |
|---|
| Complectation name | 1.6 MT Norma A2D 7 seats |
|---|
| Production start year | 2012 |
|---|
| Production end year | 2015 |
|---|
| Drive type | Front |
|---|
| Frame type | Universal |
|---|
| Transmission type | 5 speed Manual |
|---|
| Engine volume, cc | 1598 |
|---|
| Frame name | R90 |
|---|
| Max speed | 156 |
|---|
| Clearance, mm | 145 |
|---|
| Manufacturing country | Russia |
|---|
| Diler name | Norma RS015-41-02U 7 seats |
|---|
| Doors | 5 |
|---|
| Winter complectation | no |
|---|
| Warranty | 3 years or 50,000 km |
|---|
Engine, transmission and steering specs |
|---|
Engine specs |
|---|
| Engine name | K7M |
|---|
| Fuel | Petrol (Gasoline) |
|---|
| Engine type | In-line, 4-cylinder |
|---|
| Has turbo | no |
|---|
| Max power, hp | 84 |
|---|
| Max power RPM, rpm | 5500 |
|---|
| Max power, hp (kWt) / rpm | 84 (62) / 5500 |
|---|
| Max torque, N*m | 124 |
|---|
| Max torque RPM, rpm | 3000 |
|---|
| Max torque, N*m (kg*m) / rpm | 124 (13) / 3000 |
|---|
| Valves per cylinder | 2 |
|---|
| Engine additional info | Electronically controlled distributed injection |
|---|
Fuel consumption |
|---|
| Combined | 8.2 |
|---|
Transmission |
|---|
| Main gear ratio | 4.2 |
|---|
Steering |
|---|
| Power steering | yes |
|---|
| Steereing gear type | Gear rail |
|---|
Dimensions |
|---|
Frame dimensions |
|---|
| Exterior length, mm | 4470 |
|---|
| Exterior width, mm | 1750 |
|---|
| Exterior height, mm | 1636 |
|---|
Interior dimensions |
|---|
| Capacity | 7 |
|---|
| Seat rows | 3 |
|---|
Chassis dimensions |
|---|
| Wheel base, mm | 2905 |
|---|
| Wheel spacing front | 1469 |
|---|
| Wheel spacing rear | 1466 |
|---|
| Front overhang | 795 |
|---|
| Rear overhang | 770 |
|---|
Weight and permissible load |
|---|
| Mass, kg | 1330 |
|---|
| Max capacity | 480 |
|---|
| Max. weight | 1810 |
|---|
| Trailer max weight wobrakes | 650 |
|---|
| Trailer max weight wbrakes | 1300 |
|---|
Volumes |
|---|
| Fuel tank capacity, l | 50 |
|---|
| Trunk volume | 135 |
|---|
Other |
|---|
| Addinfo | Door moldings |
|---|
Suspension specs |
|---|
Suspension specs |
|---|
| Front stabilizer | yes |
|---|
| Front suspension | Independent, Spring McPherson |
|---|
| Rear suspension | Semi-independent, torsion bar |
|---|
Wheel rims |
|---|
| Aluminium wheel | no |
|---|
Tires |
|---|
| Front wheels | 185/65 R15 |
|---|
| Rear wheels | 185/65 R15 |
|---|
Brakes |
|---|
| Front brake | Discs |
|---|
| Rear brake | drum brakes |
|---|
Exterior |
|---|
Headlights |
|---|
| Halogen headlights | yes |
|---|
| Front fog lamps | no |
|---|
| Additional stop light | yes |
|---|
| Light sensor | no |
|---|
| Rain sensor | no |
|---|
Side mirrors |
|---|
| Exterior mirrors in body color | no |
|---|
| Power adjustable door mirrors | no |
|---|
| Door mirrors heating | no |
|---|
Doors |
|---|
| Door handles in body color | no |
|---|
Windows |
|---|
| Privacy glass | no |
|---|
| Termoglass | yes |
|---|
| Rear glass heat | yes |
|---|
Accessories |
|---|
| Roof rail | no |
|---|
| Bumpers | painted in body color |
|---|
Body color |
|---|
| Metallic paint Body | option |
|---|
Interior |
|---|

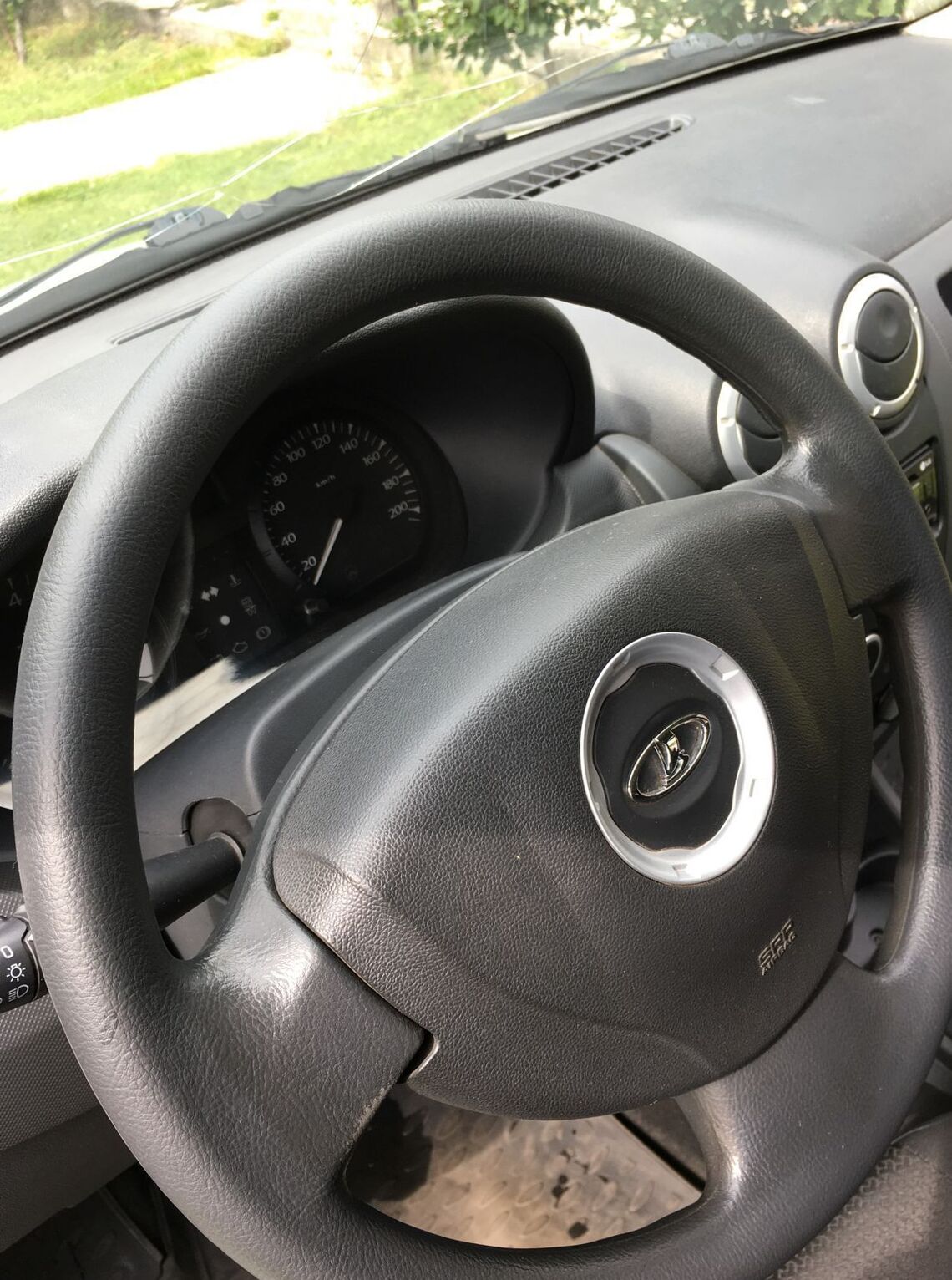

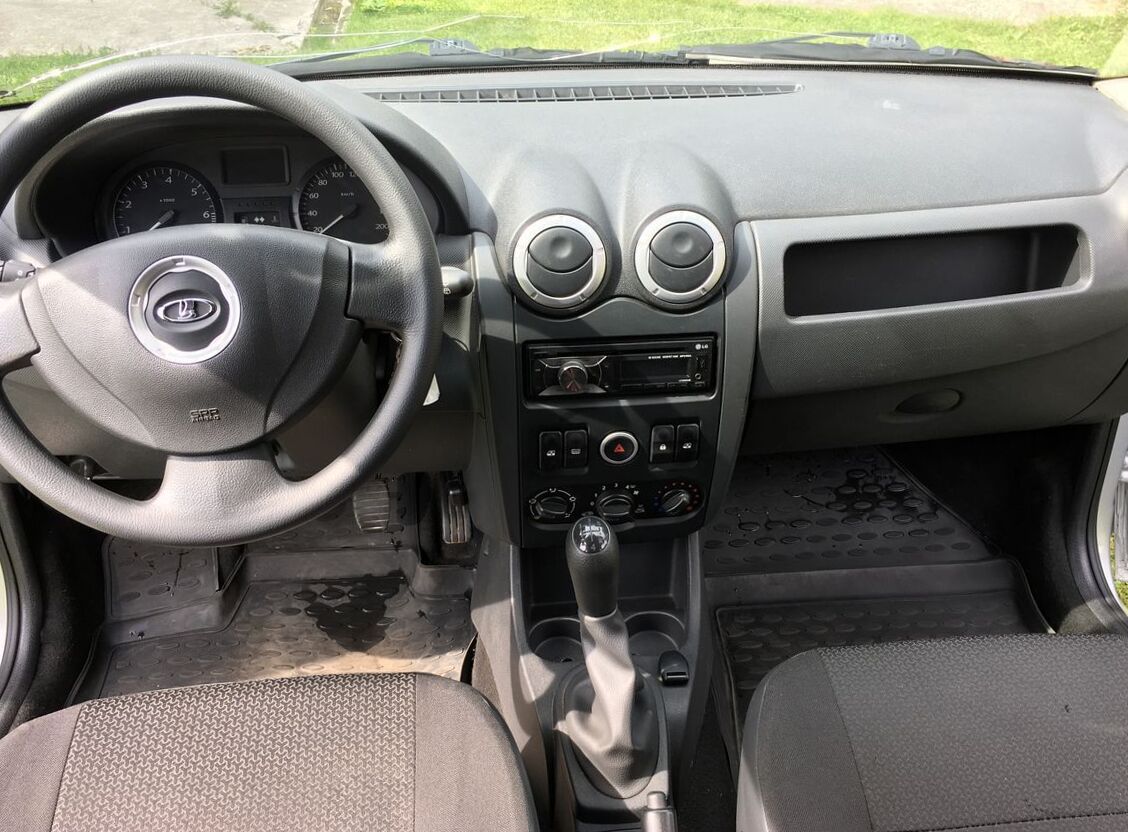

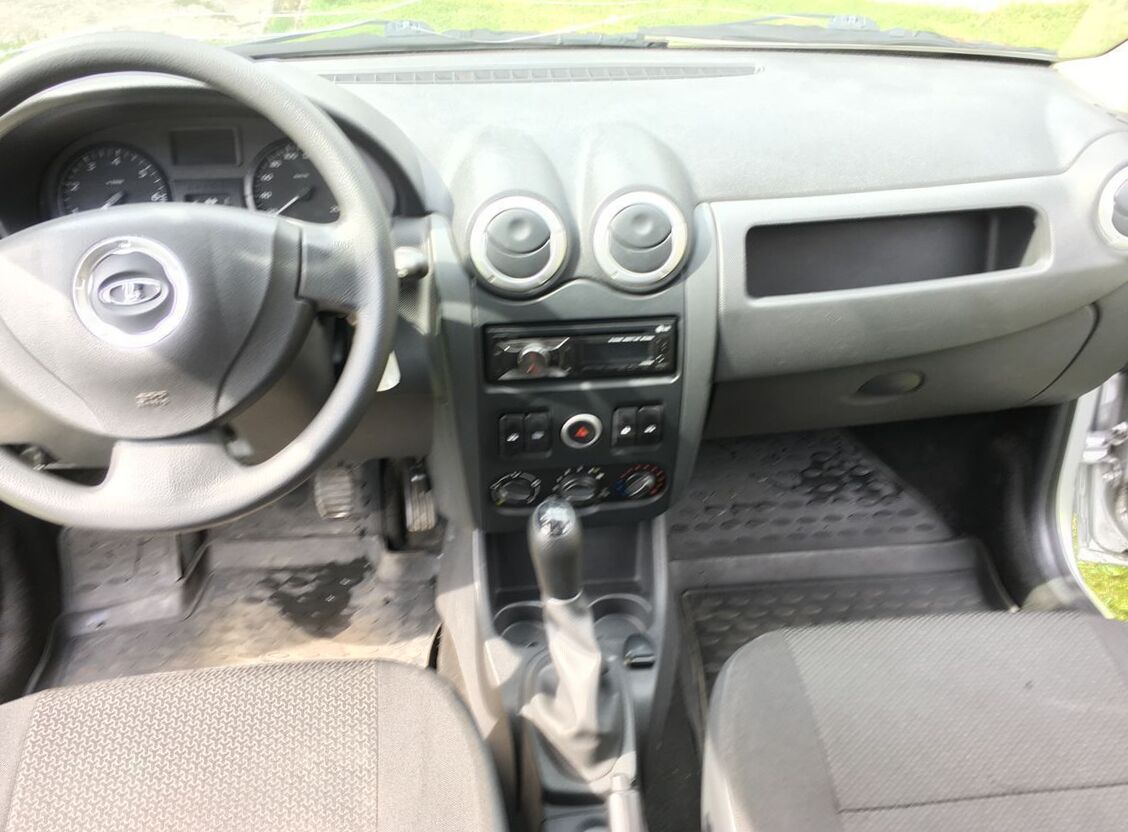

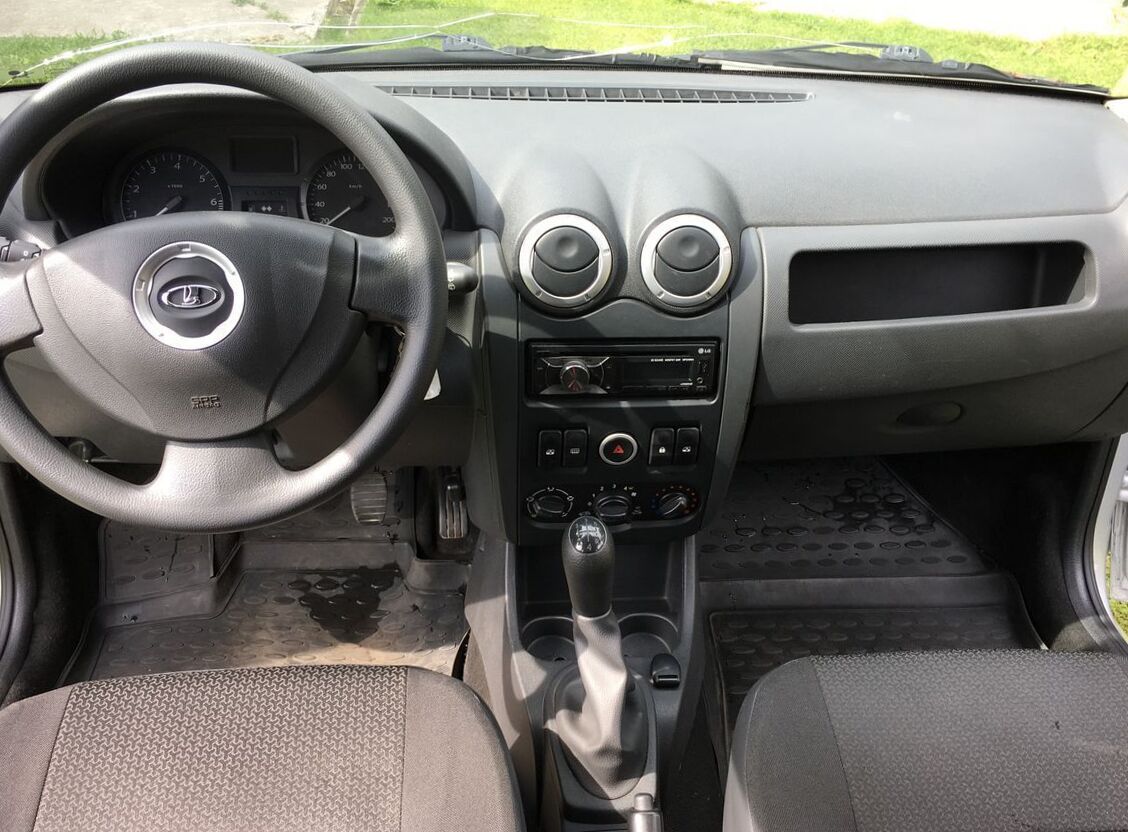

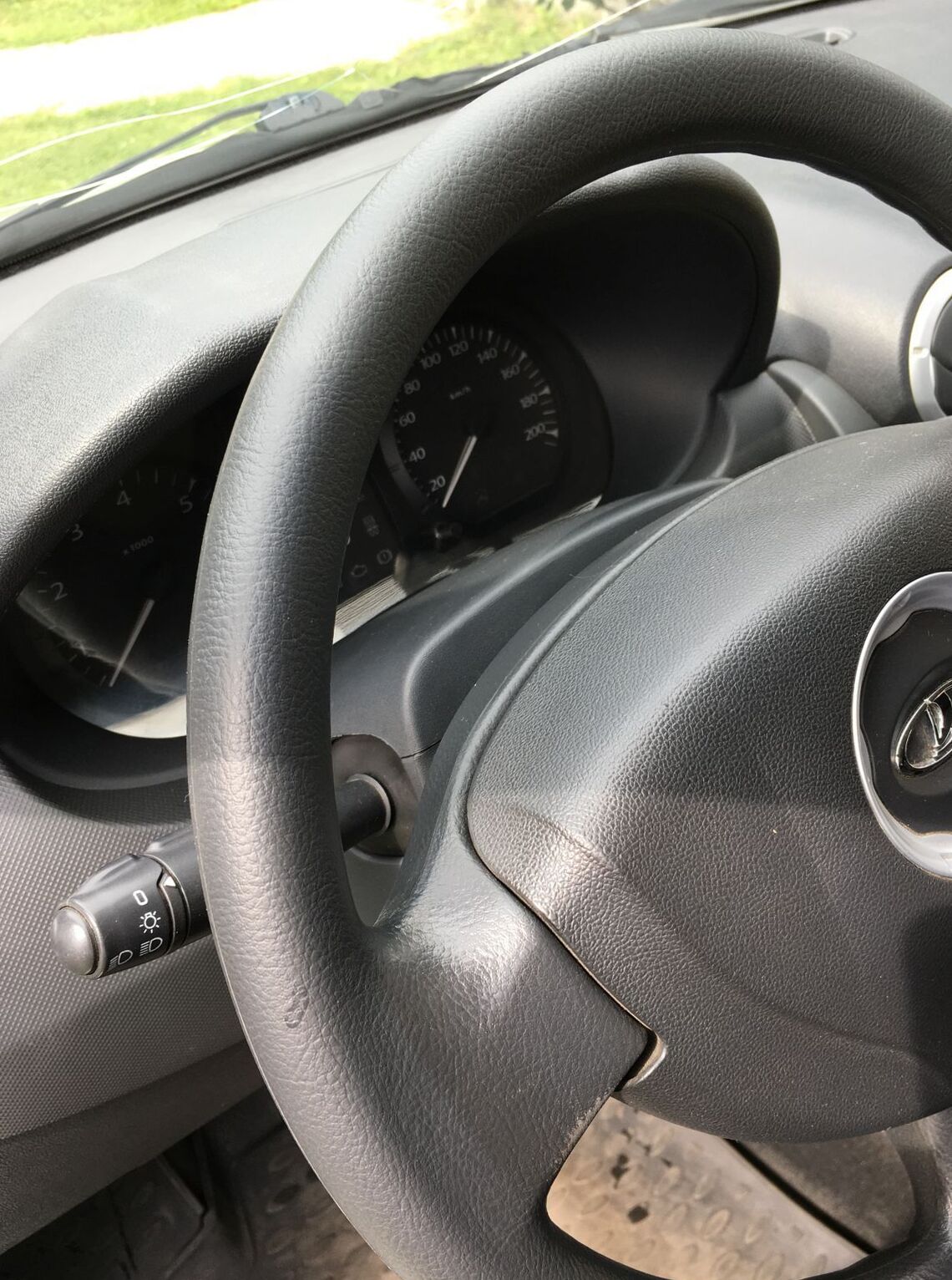

Steering wheel and center panel |
|---|
| Leather winding | no |
|---|
| Adjustable steering | yes |
|---|
| Tilt steering | yes |
|---|
| Audio control on steering wheel | no |
|---|
Interior design |
|---|
| Cloth upholstery | yes |
|---|
| Combined obivka Salon | no |
|---|

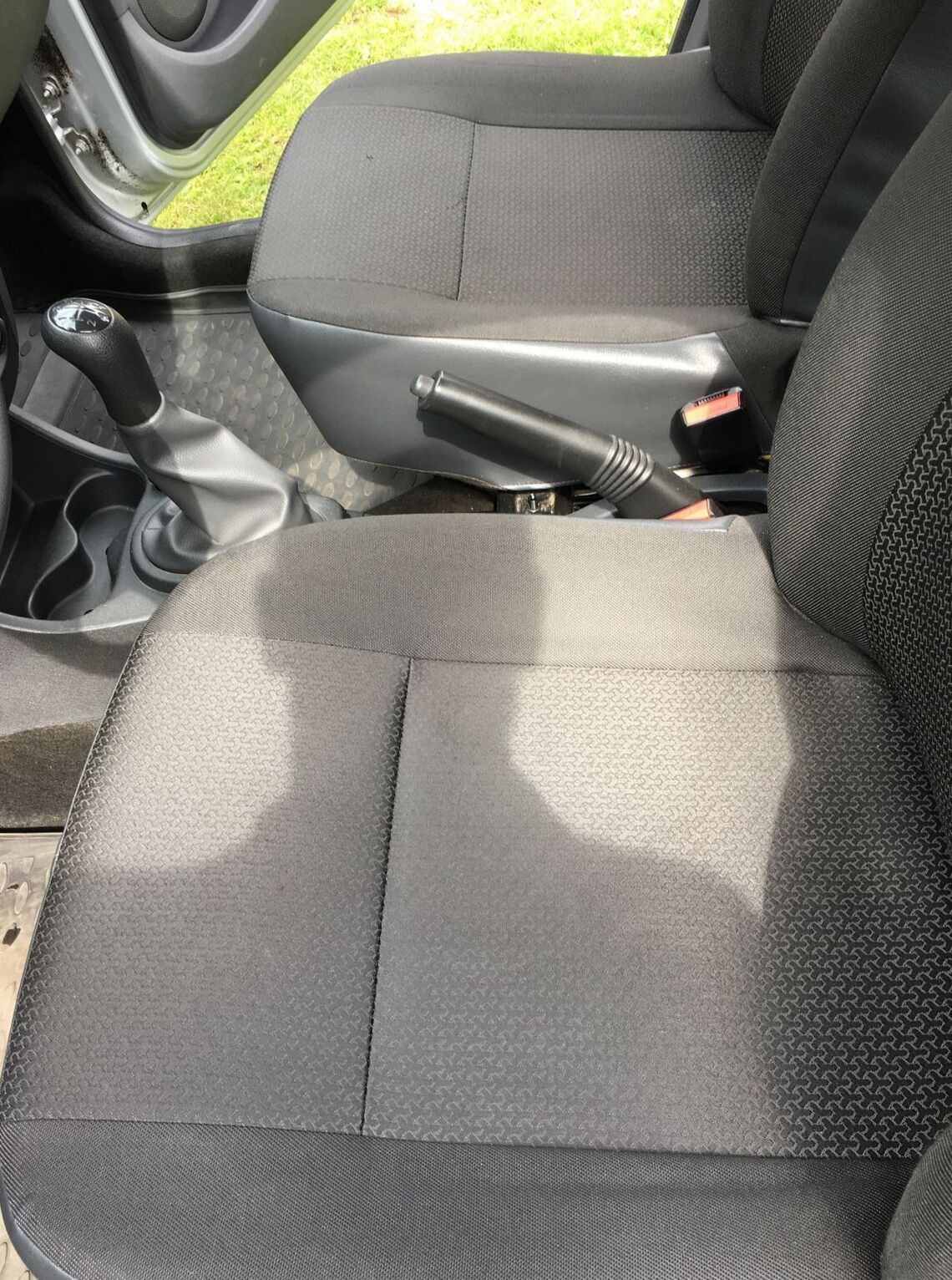

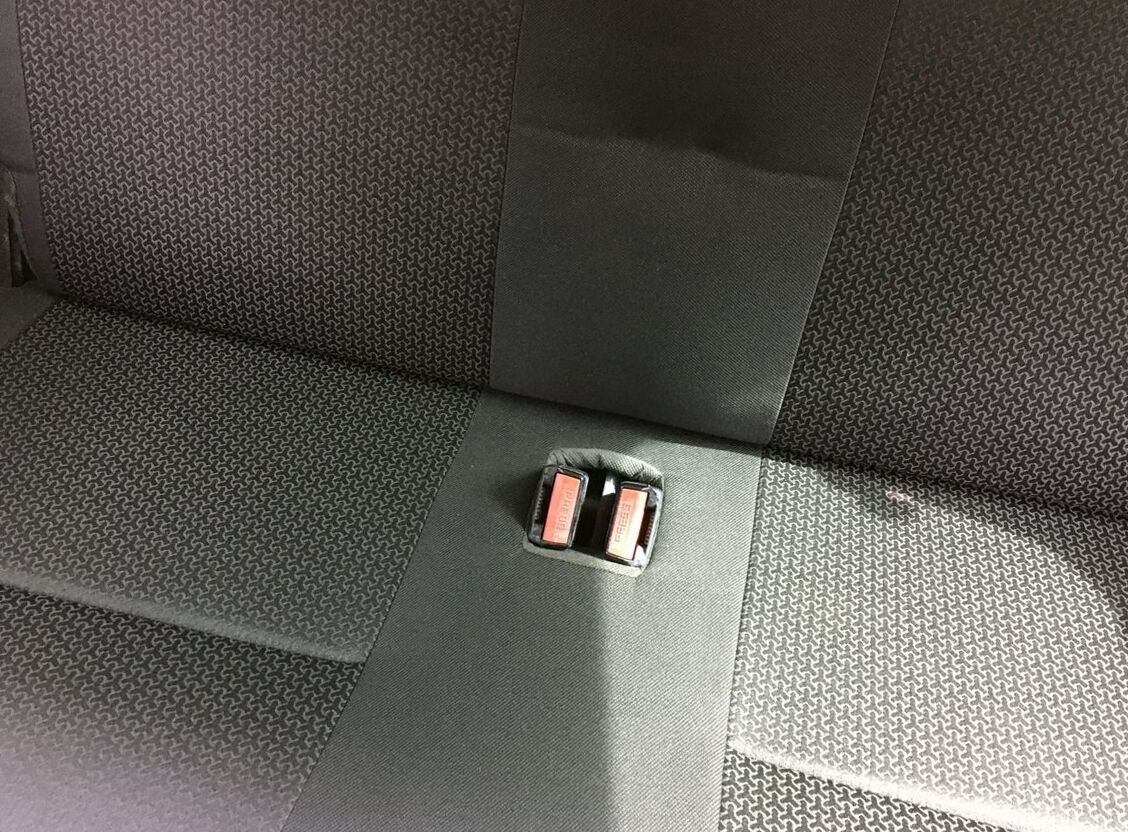

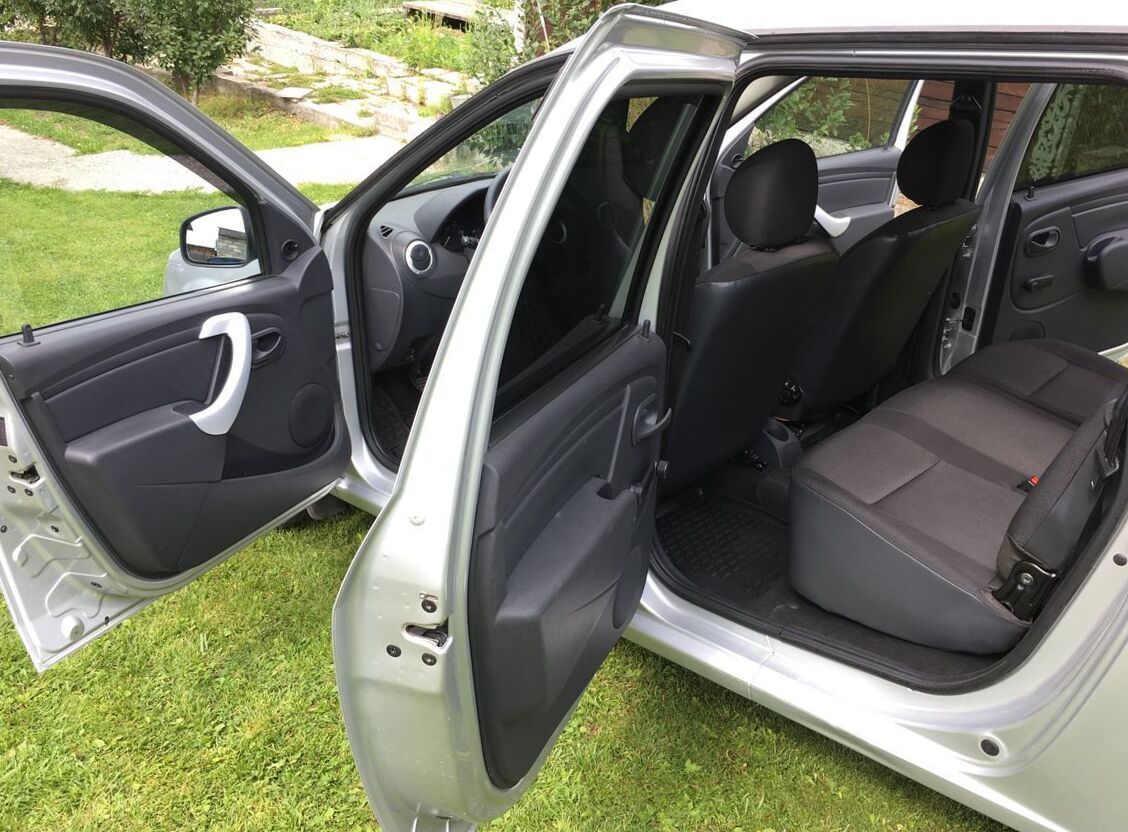

Seats |
|---|
| Front seats ajust | in 4 directions |
|---|
| 2nd row | 60/40 ratio fold seat |
|---|
| 3nd row | foldable, backrest is indivisible |
|---|
| Loin reliance | no |
|---|
| Separating armrest front | no |
|---|
Electric interior package |
|---|
| Front seat heater | yes |
|---|
| Rear seats heater | no |
|---|
| Centralized door lock | yes |
|---|
| Keyless enter | no |
|---|
| Power window front | yes |
|---|
| Power window rear | no |
|---|
| Stearing wheel heater | no |
|---|
| Front sheeld electro heater | no |
|---|
Additional interior equipment |
|---|
| Smokers packet | no |
|---|
| AC plug | yes |
|---|
Safety |
|---|
Airbags |
|---|
| Drivers airbag | yes |
|---|
| Passengers airbag | yes |
|---|
| Passenger airbag deactivation function with | yes |
|---|
Children safety |
|---|
| isofix bar | yes |
|---|
Active and passive safety |
|---|
| Glonass | no |
|---|
| 3 point safety belt | yes |
|---|
Electronic security and traffic control systems |
|---|
| ABS | yes |
|---|
| Electronic Brake Distribution | no |
|---|
| Cruise control | no |
|---|
| Rear sonars | no |
|---|
Amenity |
|---|
Microclimate |
|---|
| Air conditioner | yes |
|---|
| Automatic air conditioning | no |
|---|
| Air filter | yes |
|---|

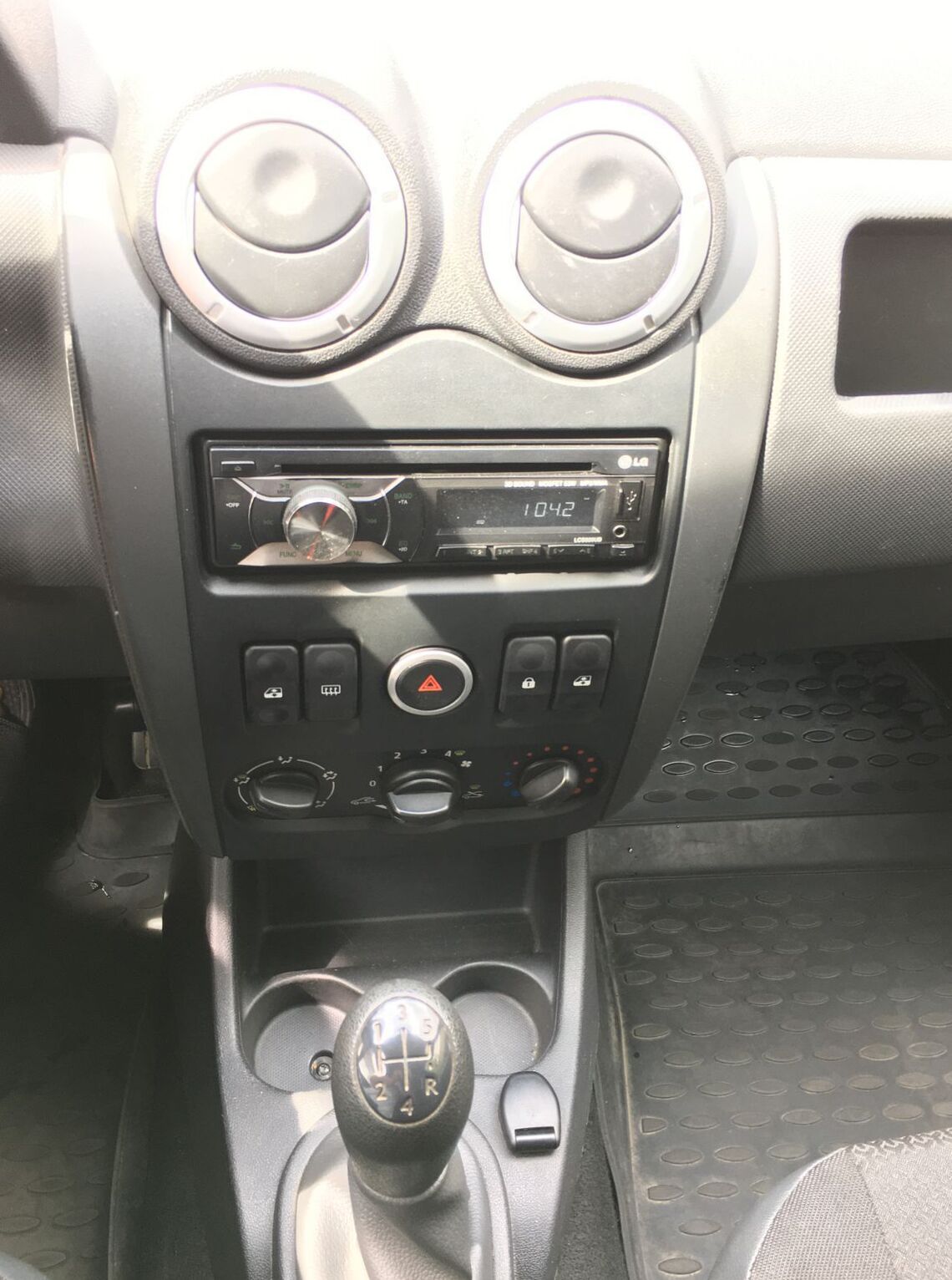

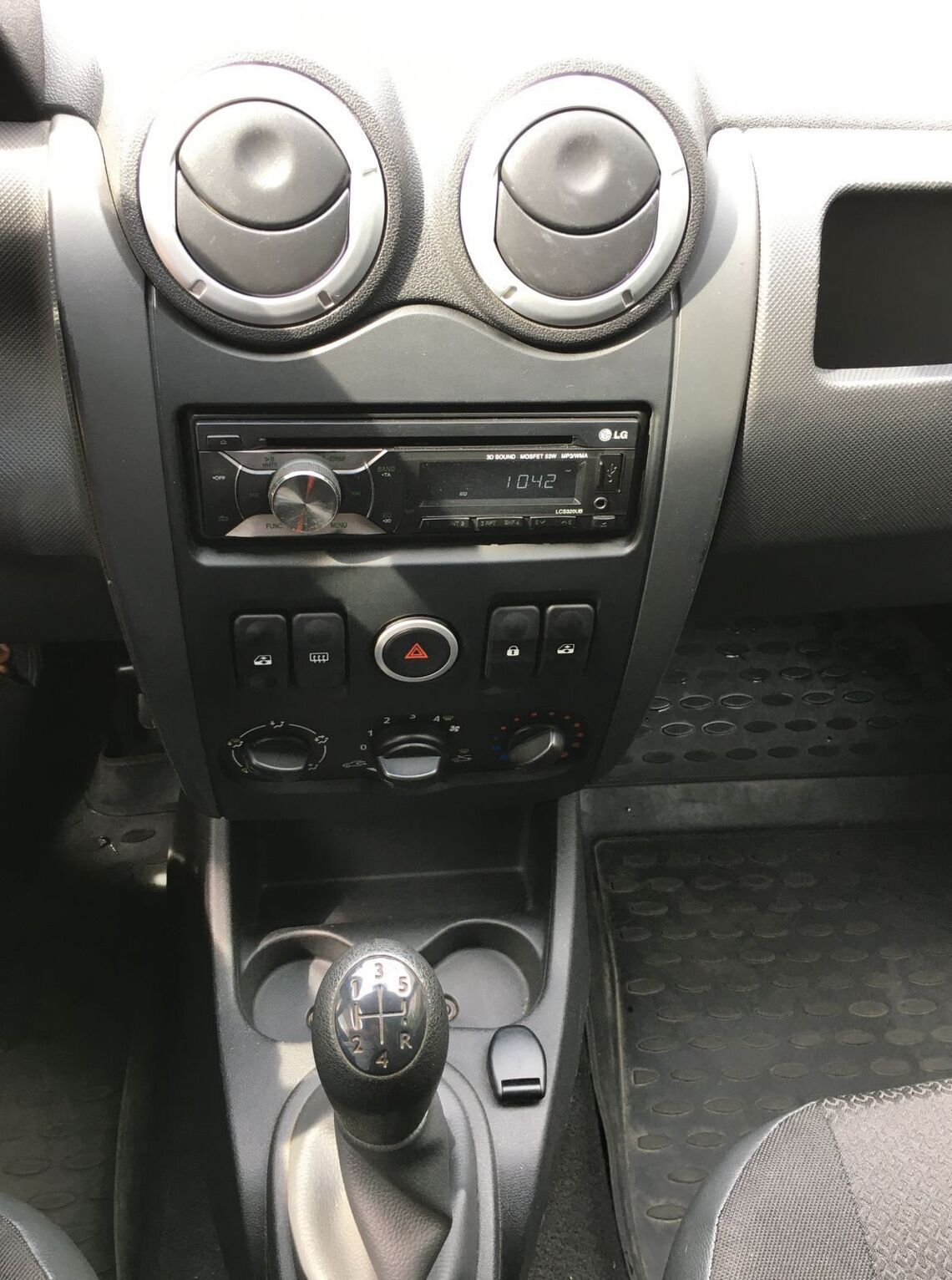

Audio systems |
|---|
| Radio | yes |
|---|
| CD player | yes |
|---|
| MP3 Support | yes |
|---|
| Hands free | yes |
|---|
| Additional sound equipment | 2 speakers, AUX, USB |
|---|
Navigation and video equipment |
|---|
| Full color LCD display | no |
|---|
| Navigation system | no |
|---|
| Back monitor | no |
|---|
Additional amenities |
|---|
| Mirrors in sunshields | yes |
|---|
| Blind in luggage compartment | no |
|---|
| Onboard computer | no |
|---|
Car safety |
|---|
| Immobilizer | yes |
|---|
Driver Kit |
|---|
| Spare tire | yes |
|---|
| Spare tyre small | no |
|---|
