General information |
|---|
| Complectation name | 1.7 MT Standard Image Lynx-1 |
|---|
| Production start year | 2017 |
|---|
| Production end year | 2019 |
|---|
| Drive type | All wheel drive (4x4) |
|---|
| Frame type | SUV |
|---|
| Transmission type | 5 speed Manual |
|---|
| Engine volume, cc | 1690 |
|---|
| Frame name | 2121 |
|---|
| 0 to 100 time | 18 |
|---|
| Max speed | 137 |
|---|
| Clearance, mm | 240 |
|---|
| Manufacturing country | Russia |
|---|
| Diler name | 1.7, MT, Standard Image 21214-52-070 Bronto |
|---|
| Doors | 3 |
|---|
| Warranty | 2 years or 50,000 km |
|---|
Engine, transmission and steering specs |
|---|
Engine specs |
|---|
| Engine name | VAZ-21214 |
|---|
| Fuel | Petrol (Gasoline) |
|---|
| Engine type | In-line, 4-cylinder |
|---|
| Has turbo | no |
|---|
| Max power, hp | 83 |
|---|
| Max power RPM, rpm | 5000 |
|---|
| Max power, hp (kWt) / rpm | 83 (61) / 5000 |
|---|
| Max torque, N*m | 129 |
|---|
| Max torque RPM, rpm | 4000 |
|---|
| Max torque, N*m (kg*m) / rpm | 129 (13) / 4000 |
|---|
| Valves per cylinder | 2 |
|---|
| Engine additional info | distributed fuel injection |
|---|
Fuel consumption |
|---|
| Combined | 12 |
|---|
Transmission |
|---|
| Main gear ratio | 4.1 |
|---|
Steering |
|---|
| Power steering | yes |
|---|
| Steereing gear type | Worm gear |
|---|
Dimensions |
|---|
Frame dimensions |
|---|
| Exterior length, mm | 3740 |
|---|
| Exterior width, mm | 1713 |
|---|
| Exterior height, mm | 1900 |
|---|
Interior dimensions |
|---|
| Capacity | 4 |
|---|
| Seat rows | 2 |
|---|
Chassis dimensions |
|---|
| Wheel base, mm | 2200 |
|---|
| Wheel spacing front | 1478 |
|---|
| Wheel spacing rear | 1468 |
|---|
| Front overhang | 665 |
|---|
| Rear overhang | 815 |
|---|
Weight and permissible load |
|---|
| Mass, kg | 1285 |
|---|
| Max capacity | 325 |
|---|
| Max. weight | 1610 |
|---|
| Trailer max weight wobrakes | 300 |
|---|
| Trailer max weight wbrakes | 600 |
|---|
Volumes |
|---|
| Fuel tank capacity, l | 42 |
|---|
| Trunk volume | 265 |
|---|
Other |
|---|

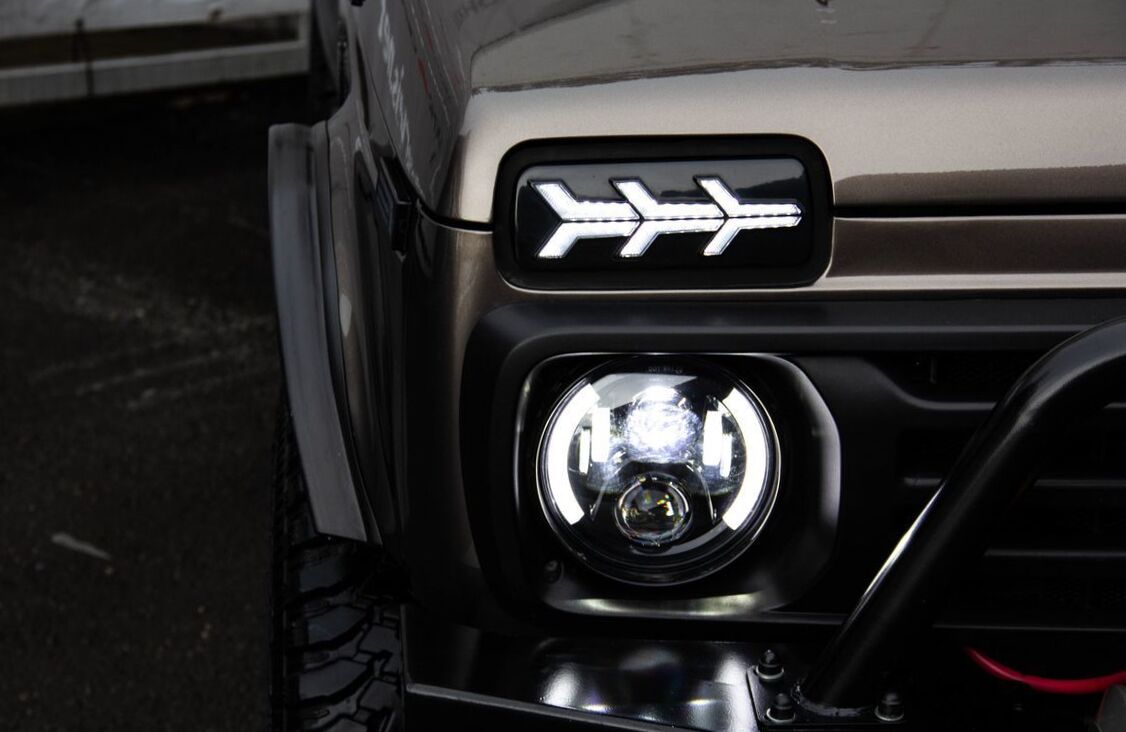

| Special equipment | Daytime running lights, upgraded suspension, universal jointed shafts |
|---|

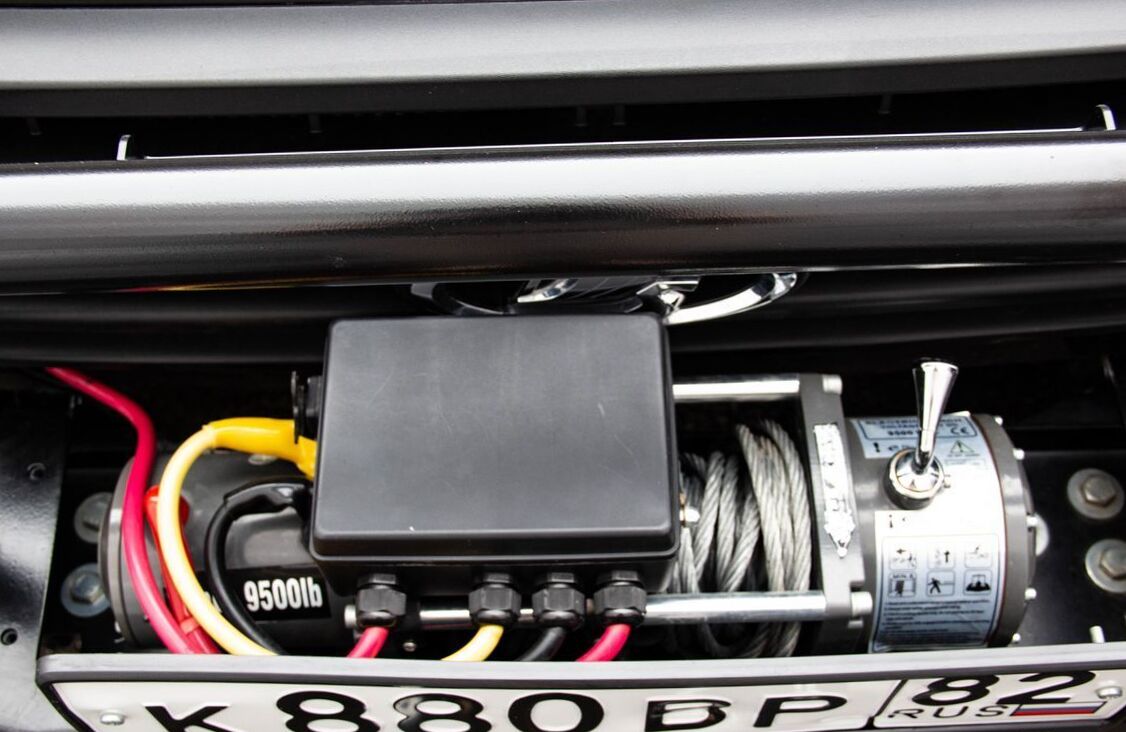

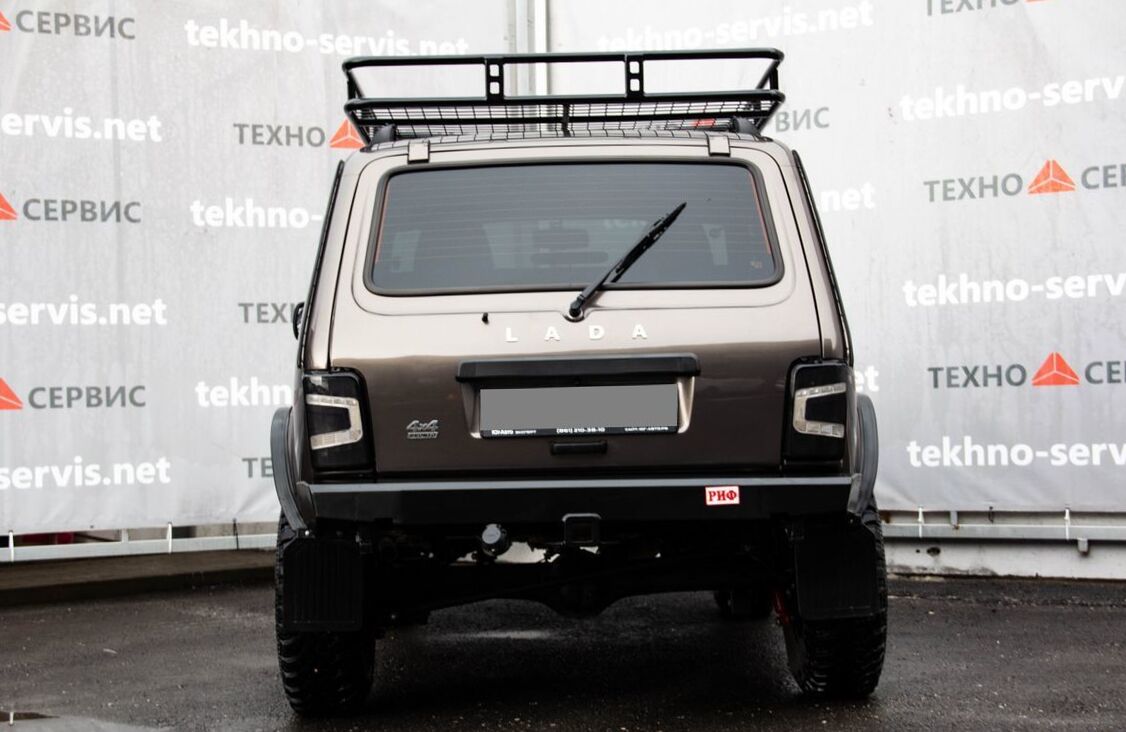

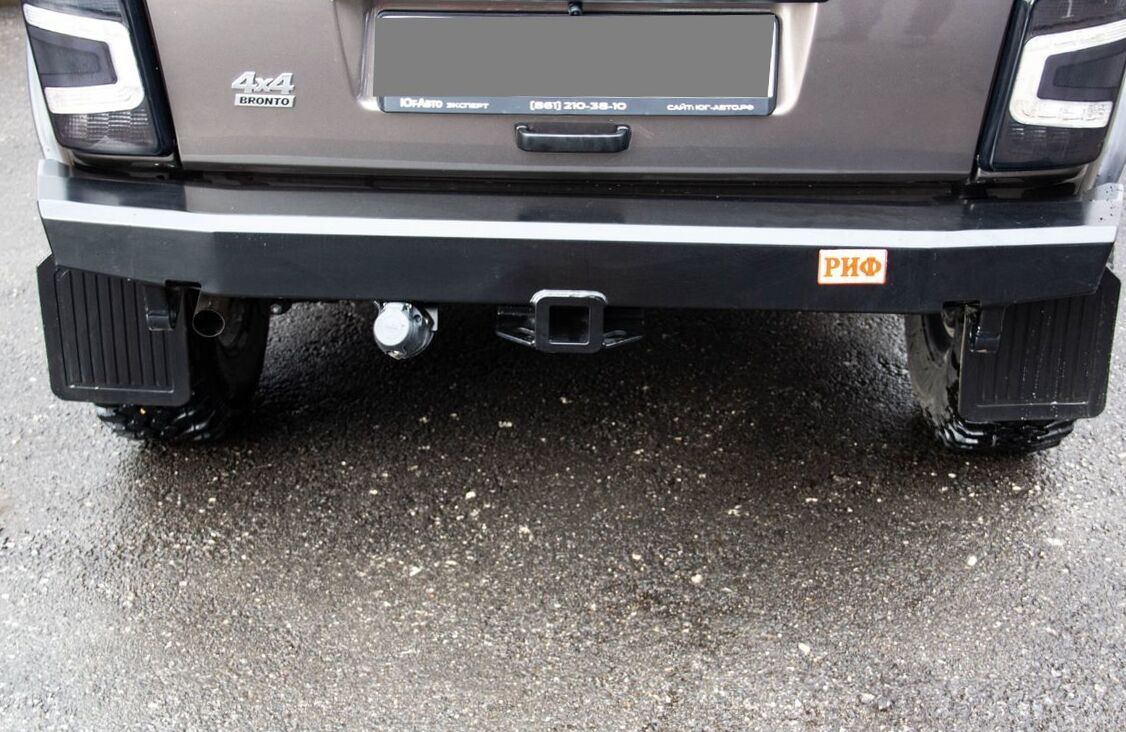

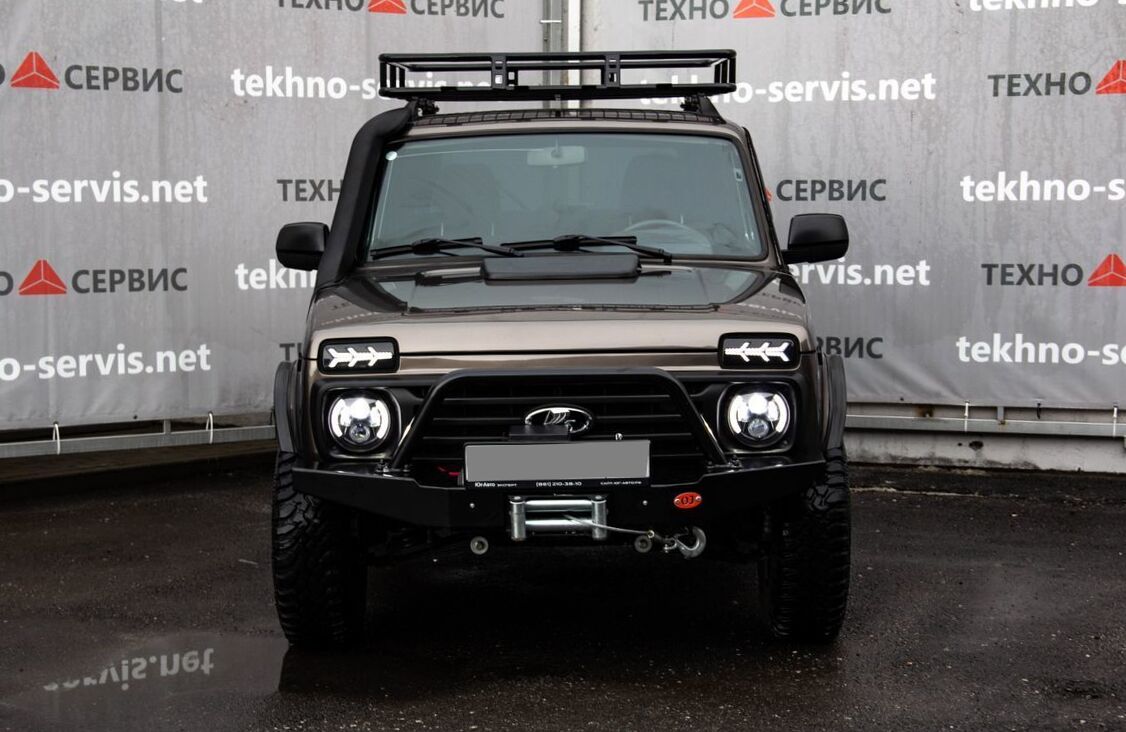

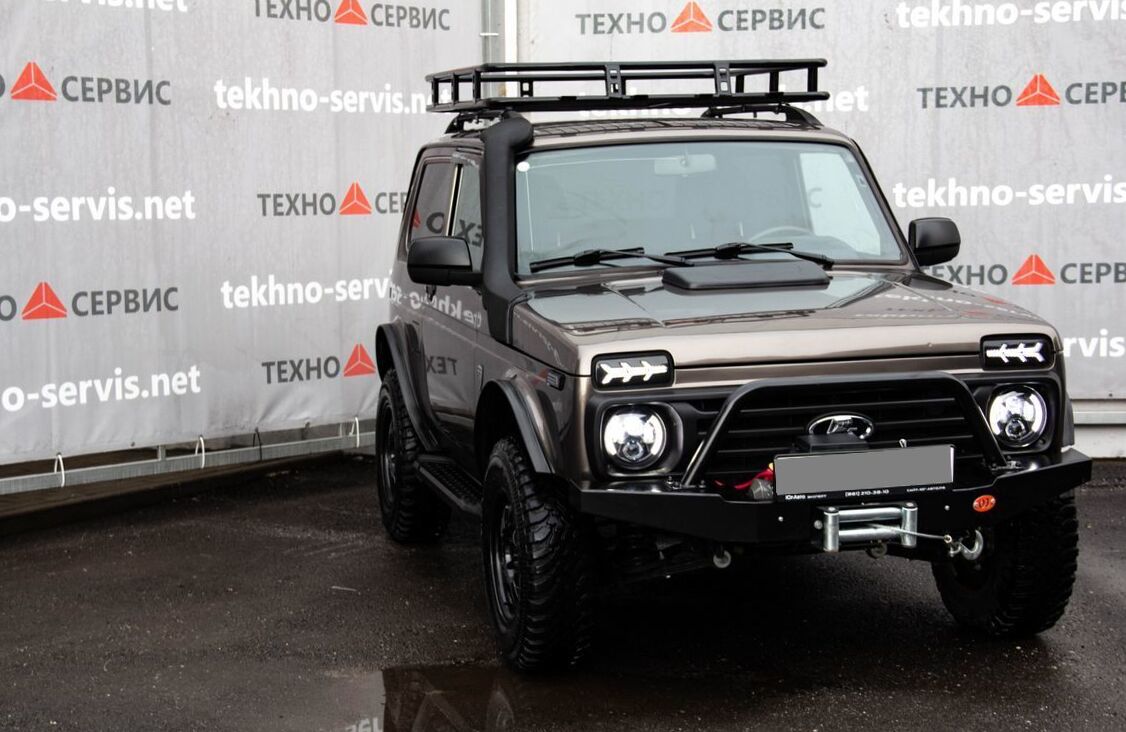

| Addinfo | Black hubcaps, wheel arch extensions, sill plates, running boards, additional anticorrosive and noise insulation, hitch points, removable winch, expeditionary luggage rack with additional lights (optional), spare wheel bracket on the luggage rack (optional) |
|---|
Suspension specs |
|---|
Suspension specs |
|---|
| Front stabilizer | yes |
|---|
| Front suspension | Independent on double wishbones |
|---|
| Rear stablilizer | yes |
|---|
| Rear suspension | Dependent, spring loaded |
|---|
| Suspension about | Reinforced springs and shock absorbers, reinforced rear axle |
|---|
| Cenral diff lock | yes |
|---|
Wheel rims |
|---|
| Aluminium wheel | yes |
|---|
Tires |
|---|

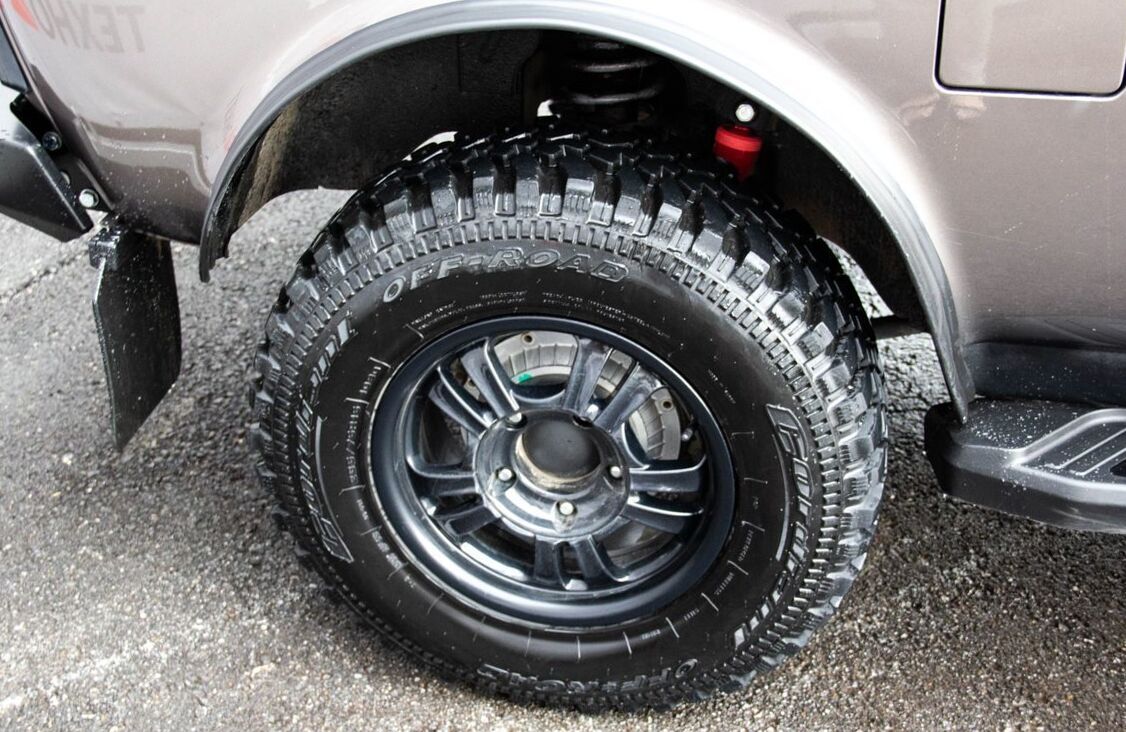

| Front wheels | 235/75 R15 |
|---|
| Rear wheels | 235/75 R15 |
|---|
Brakes |
|---|
| Front brake | Discs |
|---|
| Rear brake | drum brakes |
|---|
Exterior |
|---|
Headlights |
|---|
| Halogen headlights | yes |
|---|
| Front fog lamps | no |
|---|
| Additional stop light | yes |
|---|
Side mirrors |
|---|
| Exterior mirrors in body color | no |
|---|

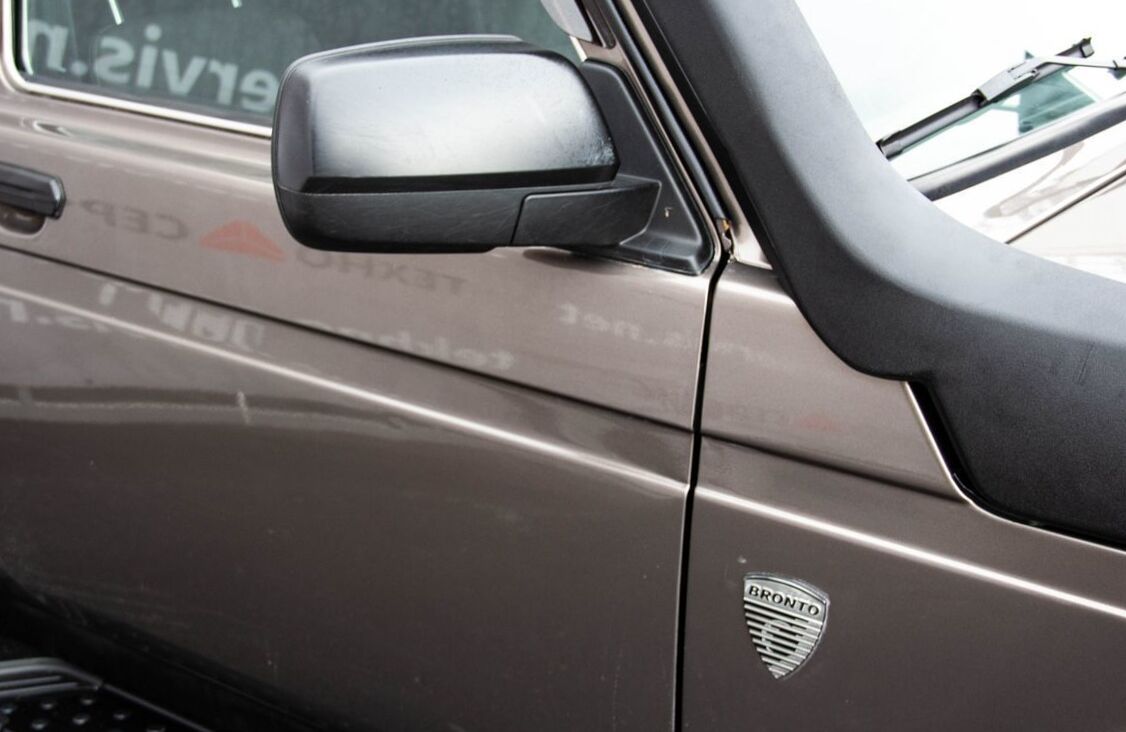

| Power adjustable door mirrors | yes |
|---|
| Door mirrors heating | yes |
|---|
Doors |
|---|
| Door handles in body color | no |
|---|
| Chrome door handles | no |
|---|
Windows |
|---|
| Termoglass | yes |
|---|
| Rear glass heat | yes |
|---|
Accessories |
|---|
| Roof rail | yes |
|---|
| Back wiper | yes |
|---|
Body color |
|---|
| Metallic paint Body | no |
|---|
Interior |
|---|
Steering wheel and center panel |
|---|
| Leather winding | no |
|---|
| Adjustable steering | no |
|---|
Interior design |
|---|
| Cloth upholstery | yes |
|---|
| Leather upholstery | no |
|---|
| Combined obivka Salon | no |
|---|
Seats |
|---|
| Front seats ajust | Four-way adjustable front seats |
|---|
| 2nd row | foldable, backrest is indivisible |
|---|
| Headrests for seats | 2 |
|---|
| Separating armrest front | no |
|---|
| Separating armrest rear | no |
|---|
| Seats pockets | no |
|---|
| Mats | no |
|---|
Electric interior package |
|---|
| Front seat heater | yes |
|---|
| Centralized door lock | no |
|---|
| Keyless enter | no |
|---|
| Power window front | yes |
|---|
Additional interior equipment |
|---|
| Smokers packet | option |
|---|
| AC plug | yes |
|---|
Safety |
|---|
Airbags |
|---|
| Drivers airbag | no |
|---|
| Passengers airbag | no |
|---|
| Side airbag | no |
|---|
Children safety |
|---|
| isofix bar | yes |
|---|
Active and passive safety |
|---|
| Glonass | yes |
|---|
| 3 point safety belt | yes |
|---|
Electronic security and traffic control systems |
|---|
| ABS | yes |
|---|
| Electronic Brake Distribution | yes |
|---|
| Break assist | yes |
|---|
Amenity |
|---|
Microclimate |
|---|
| Air conditioner | yes |
|---|
Audio systems |
|---|
| Radio | no |
|---|
| Additional sound equipment | audio equipment, 2 speakers |
|---|
Additional amenities |
|---|
| Mirrors in sunshields | no |
|---|
| Blind in luggage compartment | yes |
|---|
Car safety |
|---|
| Security alarm | no |
|---|
Driver Kit |
|---|
| Spare tire | no |
|---|
| Spare tyre small | yes |
|---|
