General information |
|---|
| Complectation name | 1.7 MT Lynx-1 |
|---|
| Production start year | 2012 |
|---|
| Production end year | 2017 |
|---|
| Drive type | All wheel drive (4x4) |
|---|
| Frame type | SUV |
|---|
| Transmission type | 5 speed Manual |
|---|
| Engine volume, cc | 1690 |
|---|
| Frame name | 2121 |
|---|
| 0 to 100 time | 18 |
|---|
| Max speed | 142 |
|---|
| Clearance, mm | 240 |
|---|
| Manufacturing country | Russia |
|---|
| Diler name | Standard 212140-070-20 Lynx-1 |
|---|
| Doors | 3 |
|---|
| Warranty | 2 years or 35,000 km |
|---|
Vehicle generation |
|---|
| Generation name | Lynx-1 |
|---|
| Generation number | 1 |
|---|
| Production start year | 2009 |
|---|
| Production end year | 2017 |
|---|
Engine, transmission and steering specs |
|---|
Engine specs |
|---|
| Engine name | VAZ-21214 |
|---|
| Fuel | Petrol (Gasoline) |
|---|
| Engine type | In-line, 4-cylinder |
|---|
| Has turbo | no |
|---|
| Max power, hp | 83 |
|---|
| Max power RPM, rpm | 5000 |
|---|
| Max power, hp (kWt) / rpm | 83 (61) / 5000 |
|---|
| Max torque, N*m | 129 |
|---|
| Max torque RPM, rpm | 4000 |
|---|
| Max torque, N*m (kg*m) / rpm | 129 (13) / 4000 |
|---|
| Valves per cylinder | 2 |
|---|
| Engine additional info | distributed fuel injection |
|---|
| Eco type | Euro-4 |
|---|
Fuel consumption |
|---|
| City | 12.1 |
|---|
| Country side | 8.3 |
|---|
| Combined | 9.9 |
|---|
Transmission |
|---|
| Main gear ratio | 4.1 |
|---|
Steering |
|---|
| Power steering | yes |
|---|
| Steereing gear type | Worm gear |
|---|
Dimensions |
|---|
Frame dimensions |
|---|
| Exterior length, mm | 3740 |
|---|
| Exterior width, mm | 1713 |
|---|
| Exterior height, mm | 1665 |
|---|
Interior dimensions |
|---|
| Capacity | 4 |
|---|
| Seat rows | 2 |
|---|
Chassis dimensions |
|---|
| Wheel base, mm | 2200 |
|---|
| Wheel spacing front | 1478 |
|---|
| Wheel spacing rear | 1468 |
|---|
| Front overhang | 705 |
|---|
| Rear overhang | 835 |
|---|
Weight and permissible load |
|---|
| Mass, kg | 1210 |
|---|
| Max capacity | 400 |
|---|
| Max. weight | 1610 |
|---|
Volumes |
|---|
| Fuel tank capacity, l | 42 |
|---|
| Trunk volume | 265 |
|---|
Other |
|---|
| Special equipment | Arc with additional lights (optional) |
|---|
| Addinfo | Rubber wheel arch extenders, removable winch front and rear (optional), expeditionary luggage rack with headlights (optional), anti-corrosion treatment of the body (optional) |
|---|
Suspension specs |
|---|
Suspension specs |
|---|
| Front stabilizer | yes |
|---|
| Front suspension | Independent on double wishbones |
|---|
| Rear stablilizer | yes |
|---|
| Rear suspension | Dependent, spring loaded |
|---|
| Suspension about | Self-locking screw-type differentials in the front and rear axles, front and rear shock absorbers with increased travel, reinforced springs, reinforced rear axle beam |
|---|
| Cenral diff lock | yes |
|---|
Wheel rims |
|---|
| Aluminium wheel | yes |
|---|

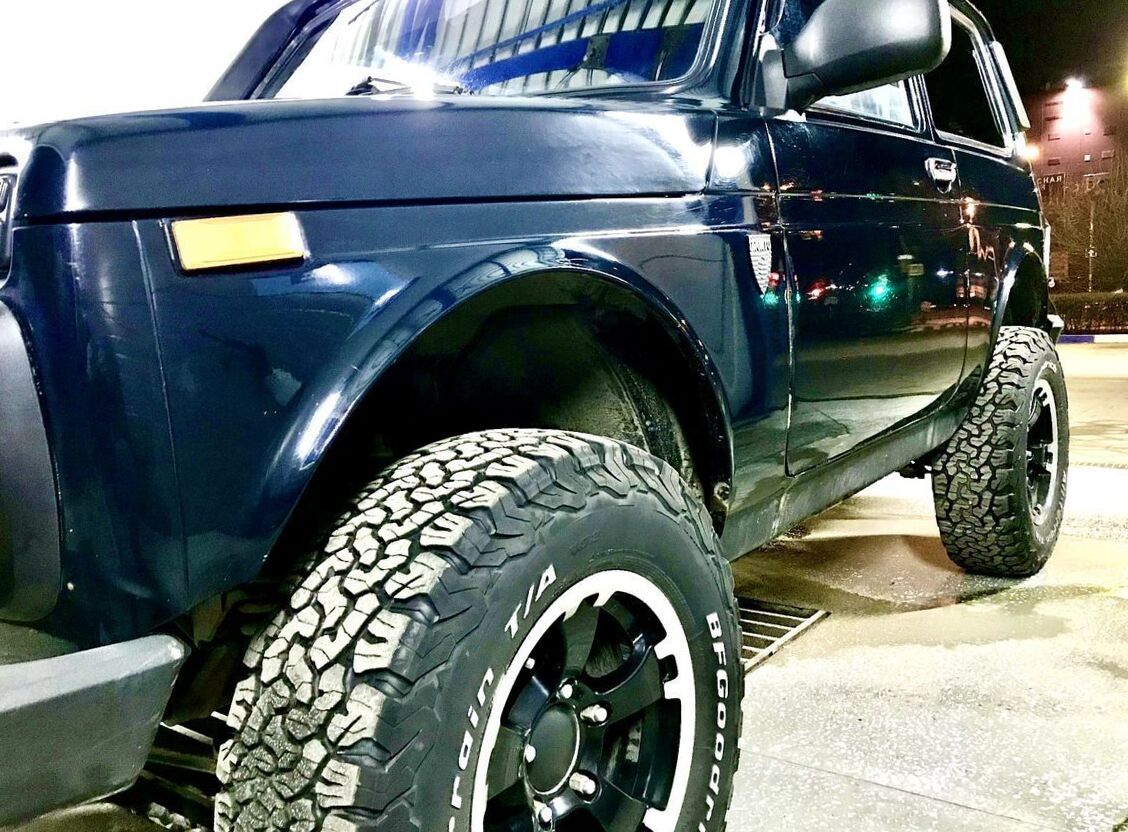

Tires |
|---|
| Front wheels | 235/75 R15 |
|---|
| Rear wheels | 235/75 R15 |
|---|
Brakes |
|---|
| Front brake | Discs |
|---|
| Rear brake | drum brakes |
|---|
Exterior |
|---|
Headlights |
|---|
| Halogen headlights | yes |
|---|
| Front fog lamps | option |
|---|
| Additional stop light | yes |
|---|
Side mirrors |
|---|
| Exterior mirrors in body color | no |
|---|
| Power adjustable door mirrors | option |
|---|
| Door mirrors heating | option |
|---|
Doors |
|---|
| Door handles in body color | no |
|---|
Windows |
|---|
| Termoglass | no |
|---|
| Rear glass heat | yes |
|---|
Roof |
|---|
| Tilt sunroof | option |
|---|
Accessories |
|---|
| Roof rail | option |
|---|
| Back wiper | yes |
|---|
Body color |
|---|
| Option interior colors | Camouflage |
|---|
| Metallic paint Body | no |
|---|
Interior |
|---|
Steering wheel and center panel |
|---|
| Leather winding | no |
|---|
| Adjustable steering | no |
|---|
Interior design |
|---|
| Cloth upholstery | no |
|---|
| Leather upholstery | no |
|---|
| Combined obivka Salon | yes |
|---|

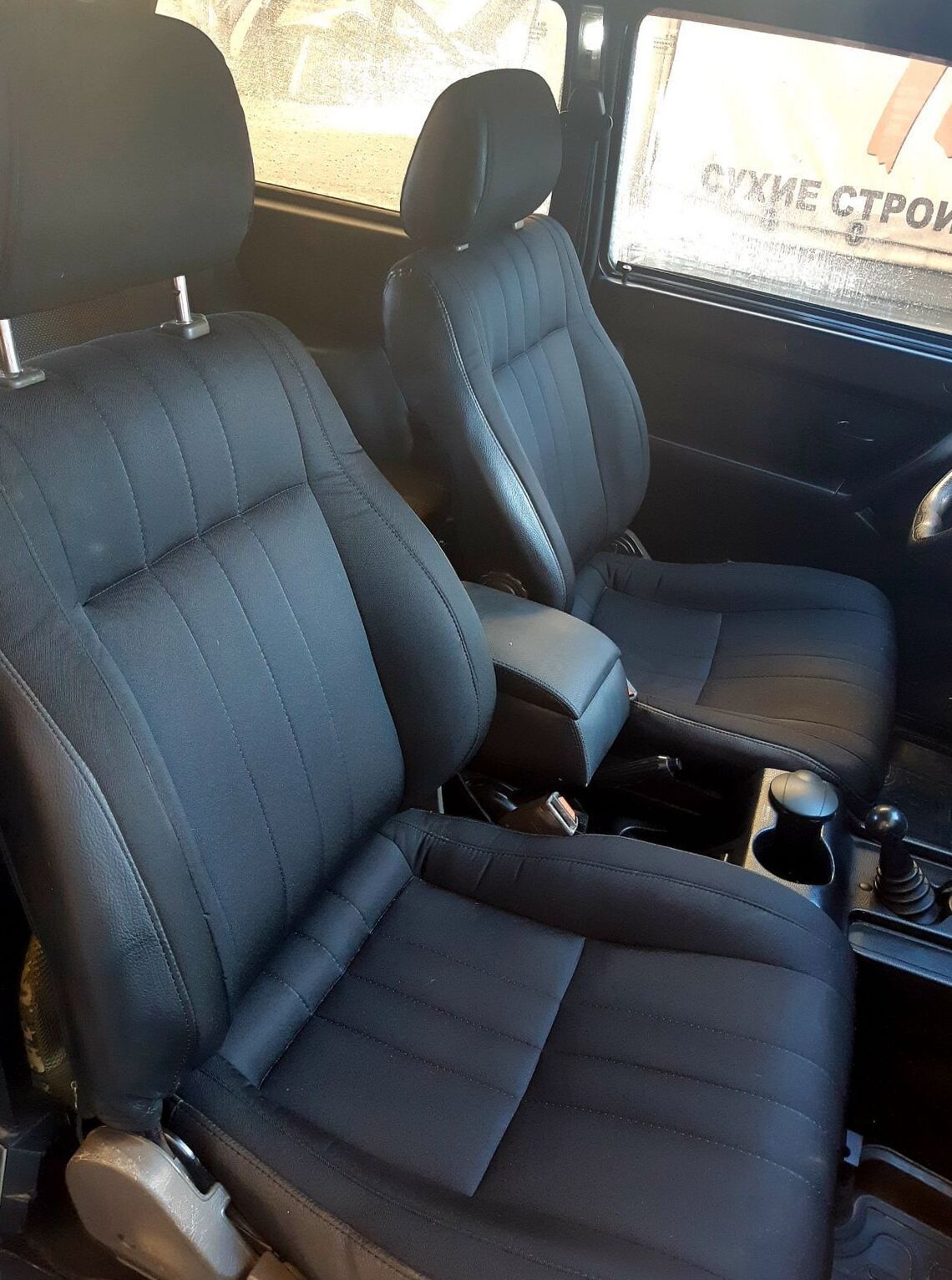

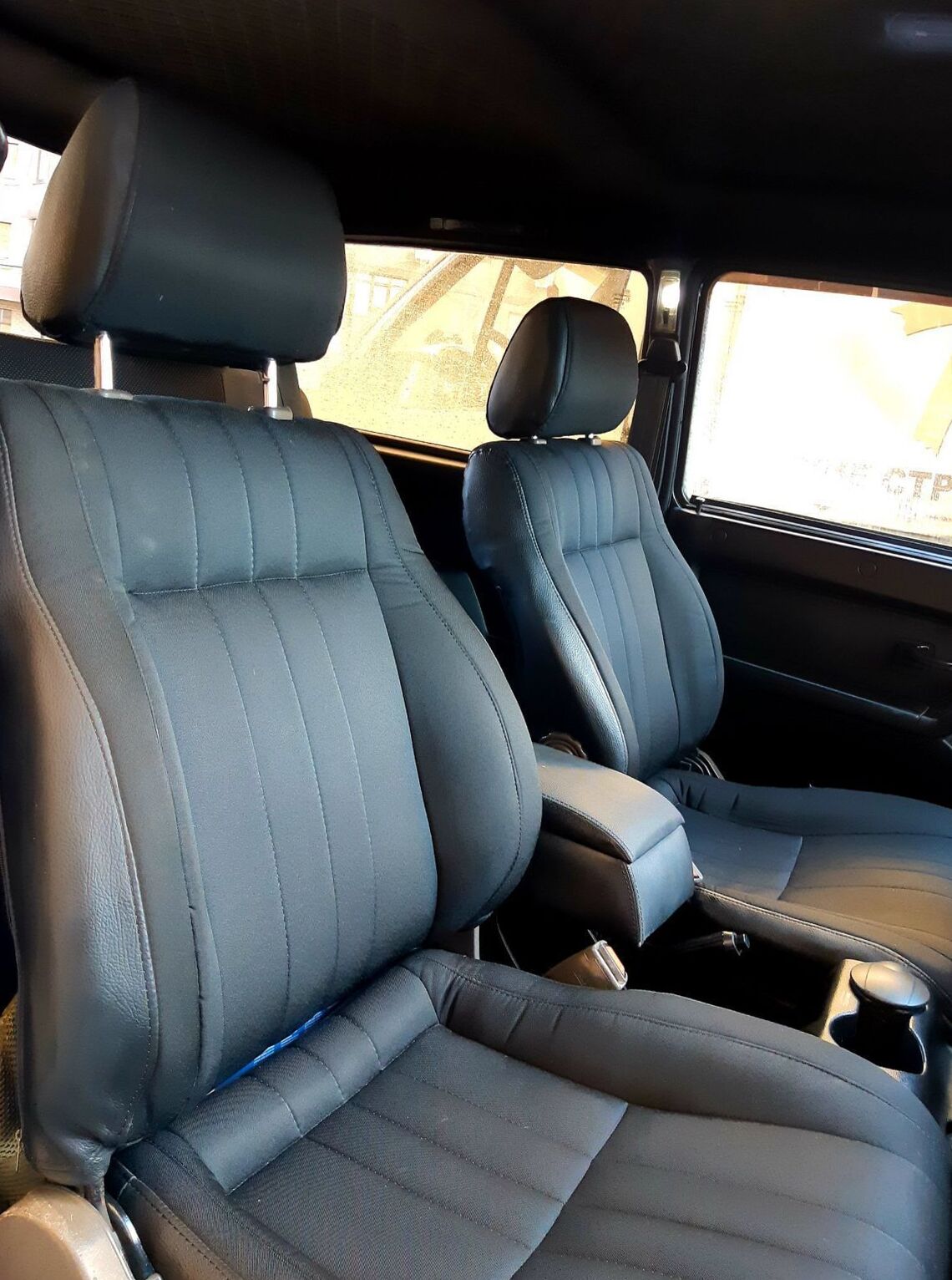

Seats |
|---|
| Front seats ajust | Four-way adjustable front seats |
|---|

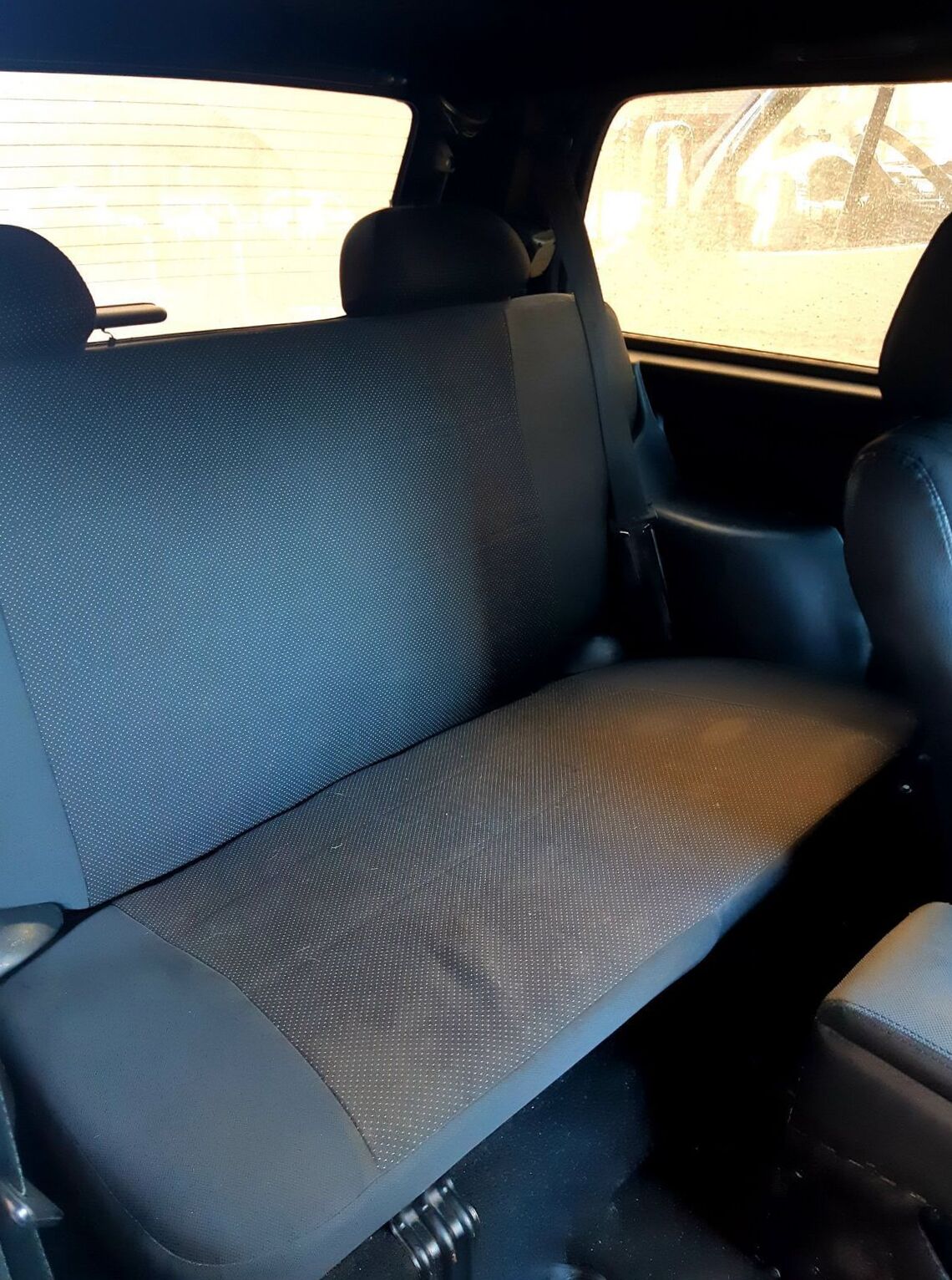

| 2nd row | foldable, backrest is indivisible |
|---|
| opt. | 60/40 ratio fold seat |
|---|
| Headrests for seats | 2 |
|---|
| Separating armrest front | no |
|---|
| Separating armrest rear | no |
|---|
| Seats pockets | no |
|---|
| Mats | no |
|---|
Electric interior package |
|---|
| Front seat heater | no |
|---|
| Centralized door lock | no |
|---|
| Keyless enter | no |
|---|
| Power window front | yes |
|---|
| Power window rear | no |
|---|
Additional interior equipment |
|---|
| Smokers packet | option |
|---|
| AC plug | yes |
|---|
Safety |
|---|
Airbags |
|---|
| Drivers airbag | no |
|---|
| Passengers airbag | no |
|---|
| Side airbag | no |
|---|
Children safety |
|---|
| isofix bar | no |
|---|
Active and passive safety |
|---|
| Glonass | no |
|---|
| 3 point safety belt | yes |
|---|
Electronic security and traffic control systems |
|---|
| ABS | no |
|---|
| Electronic Brake Distribution | no |
|---|
| Break assist | no |
|---|
Amenity |
|---|
Microclimate |
|---|
| Air conditioner | option |
|---|
Audio systems |
|---|
| Radio | no |
|---|

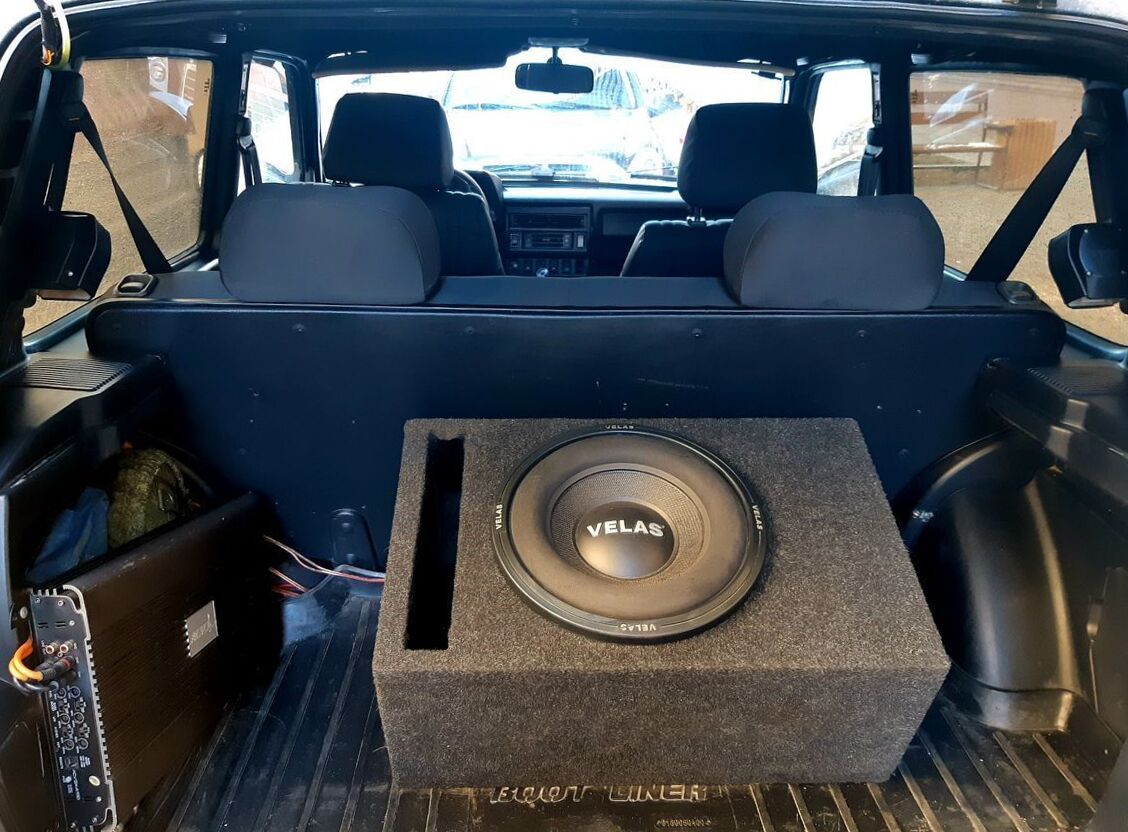

| Additional sound equipment | Audio Prep |
|---|
Additional amenities |
|---|
| Mirrors in sunshields | no |
|---|
| Blind in luggage compartment | yes |
|---|
Car safety |
|---|
| Security alarm | no |
|---|
Driver Kit |
|---|
| Spare tire | option |
|---|
| Spare tyre small | no |
|---|
