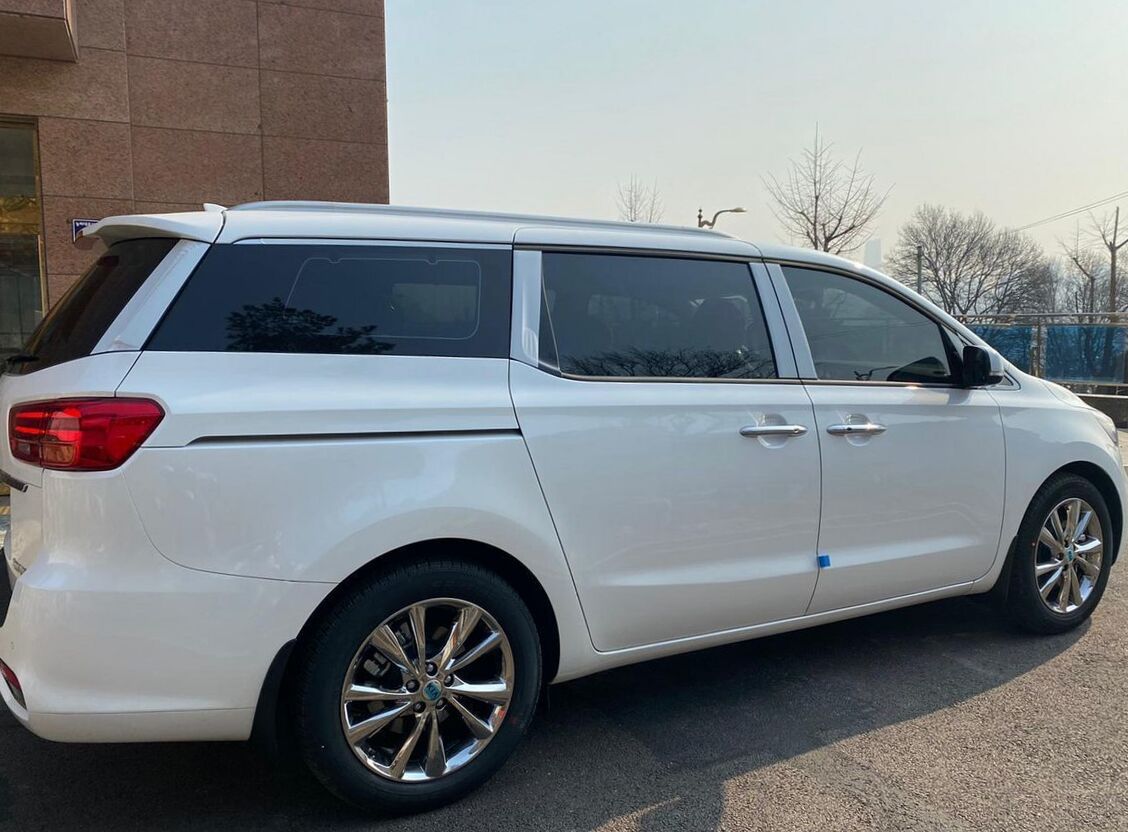

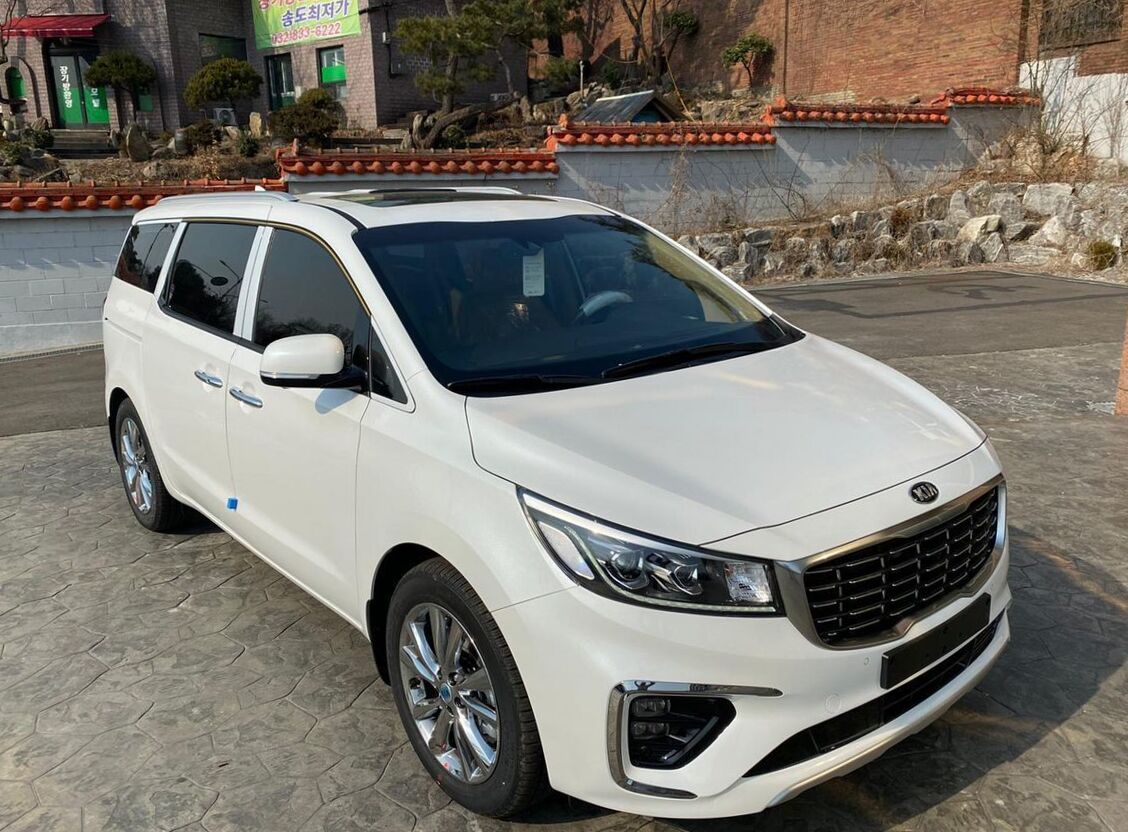

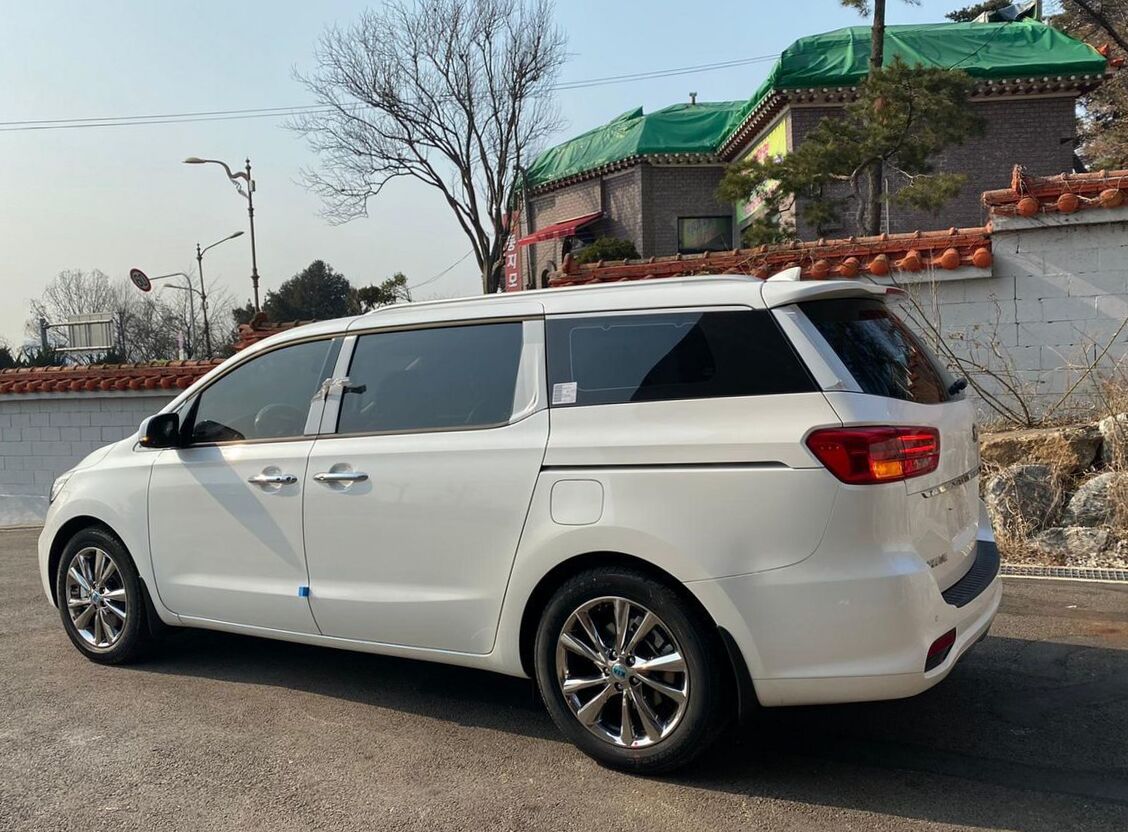

2020 Kia Carnival III 2.2 CRDi AT 7 seats
Kia Carnival Problems
Engen problem
2003, Hello KIA I overoll the car 2020 then
after that, car switch off while moving,it
doesn&...
Oil leak
2002, Oil leak.leaking oil badly.Leaving a pool
of oil on stopping..I'm trying to locate...
Kia grand carnival petrol
2007, Problem: Under heavy exceleration, the
car starts physically shaking , and when the
requ...
| Body type | Minivan |
|---|---|
| Power | 202 Hp |
| Engine Displacement | 2200 cm3 or 2.2L or 134.2 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Diesel |
| Drive wheel | FF |
| Vin | 676*** |
| Price (out of date) | $43985 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2020 Kia Carnival III? | Minivan, 7 Seats, 5 Doors |
| What is the fuel economy, Kia Carnival Minivan 2020? | 8.8 l/100 km |
| How fast is the car, Kia Carnival YP 2020? | 190 km/h, 0-100 km/h: 13.6 sec |
| How much power, 2020 Kia Carnival 2.2 CRDi AT 7 seats? | 202 Hp |
| What is the engine size, Kia Carnival III 2020 Minivan 2.2 CRDi AT 7 seats (202 Hp)? | 2.2L or 2199cm3 |
| How many gears, What type is the gearbox, 2020 Kia Carnival Minivan 2.2 CRDi AT 7 seats (202 Hp)? | Automatic transmission 6 |
| What is the drivetrain, 2020 Kia Carnival III? | Front |
| How long is this vehicle, Kia Carnival Minivan 2020? | 5115 mm |
| How wide is the vehicle, Kia Carnival YP 2020? | 1985 mm |
Kia Carnival III YP 2.2 CRDi AT 7 seats (202 Hp) 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Specs
General information | |
|---|---|
| Complectation name | 2.2 CRDi AT 7 seats |
| Production start year | 2014 |
| Drive type | Front |
| Frame type | Minivan |

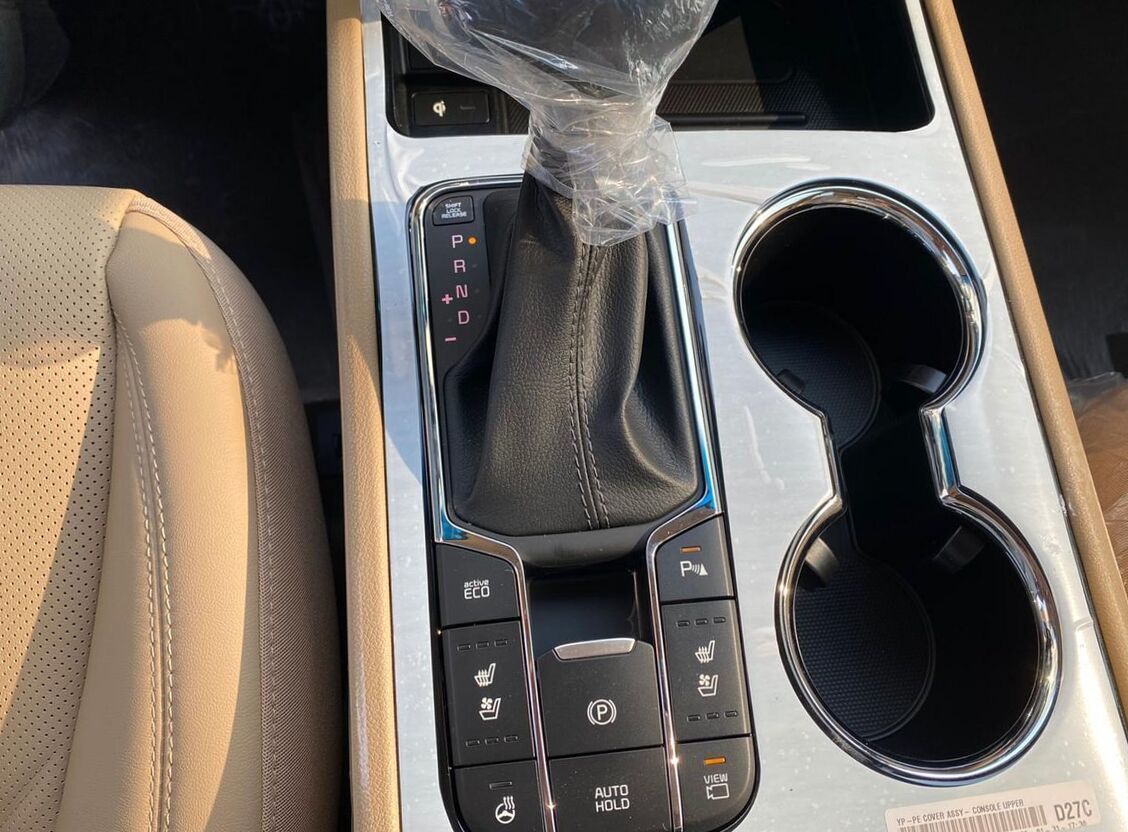

| Transmission type | Automatic transmission 6 |
| Engine volume, cc | 2199 |
| Frame name | YP |
| 0 to 100 time | 13.6 |
| Max speed | 190 |
| Clearance, mm | 170 |
| Manufacturing country | South Korea |
| Doors | 5 |
Vehicle generation | |
| Generation name | YP |
| Generation number | 3 |
| Production start year | 2014 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | D4HB |
| Fuel | Diesel |
| Engine type | In-line, 4-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 202 |
| Max power RPM, rpm | 3800 |
| Max torque, N*m | 441 |
| Max torque RPM, rpm | 1750 |
| Valves per cylinder | 4 |
Fuel consumption | |
| Combined | 8.8 |
Steering | |
| Power steering | no |
| Electric power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5115 |
| Exterior width, mm | 1985 |
| Exterior height, mm | 1740 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
Chassis dimensions | |
| Wheel base, mm | 3060 |
| Wheel spacing front | 1740 |
| Wheel spacing rear | 1747 |
| Front overhang | 955 |
| Rear overhang | 1100 |
Weight and permissible load | |
| Mass, kg | 2030 |
Volumes | |
| Fuel tank capacity, l | 80 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Independent, spring multi-link |
Wheel rims | |
| Aluminium wheel | yes |

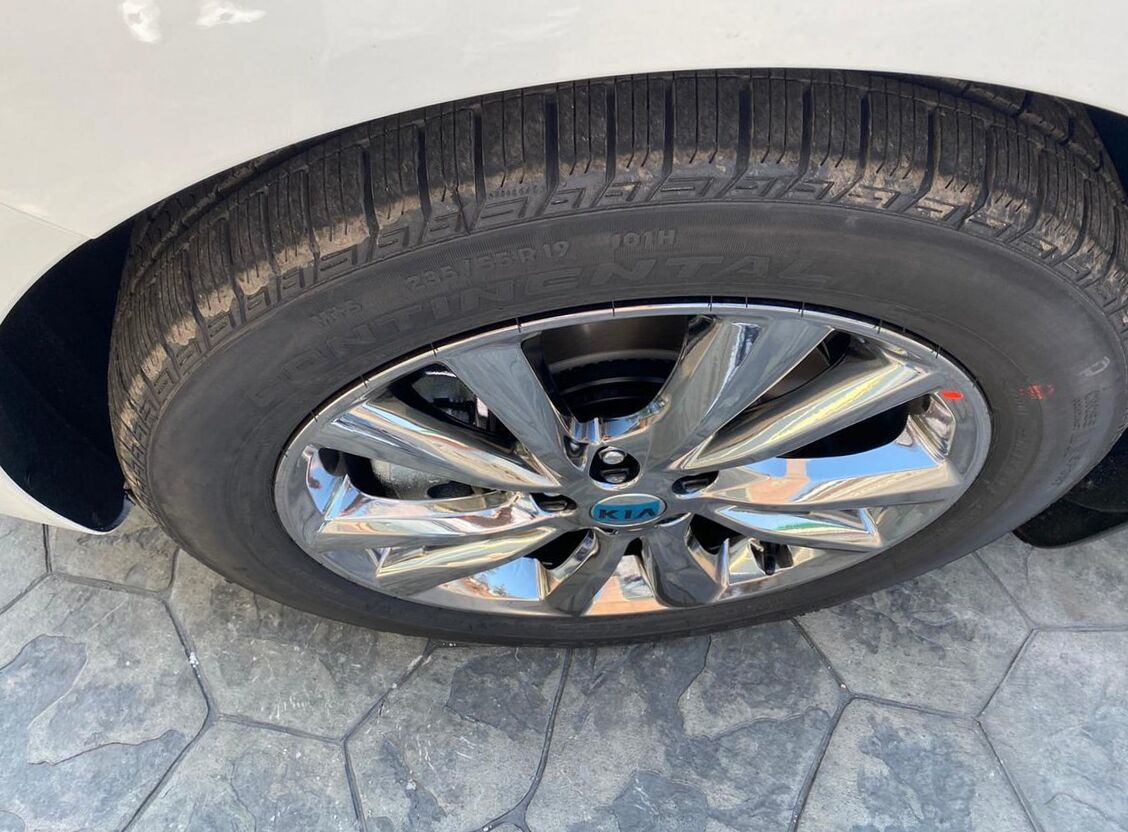

Tires | |
| Front wheels | 235/55 R19 |
| Rear wheels | 235/55 R19 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Led lights | option |
| Led backlights | yes |
Side mirrors | |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Sliding doors | yes |

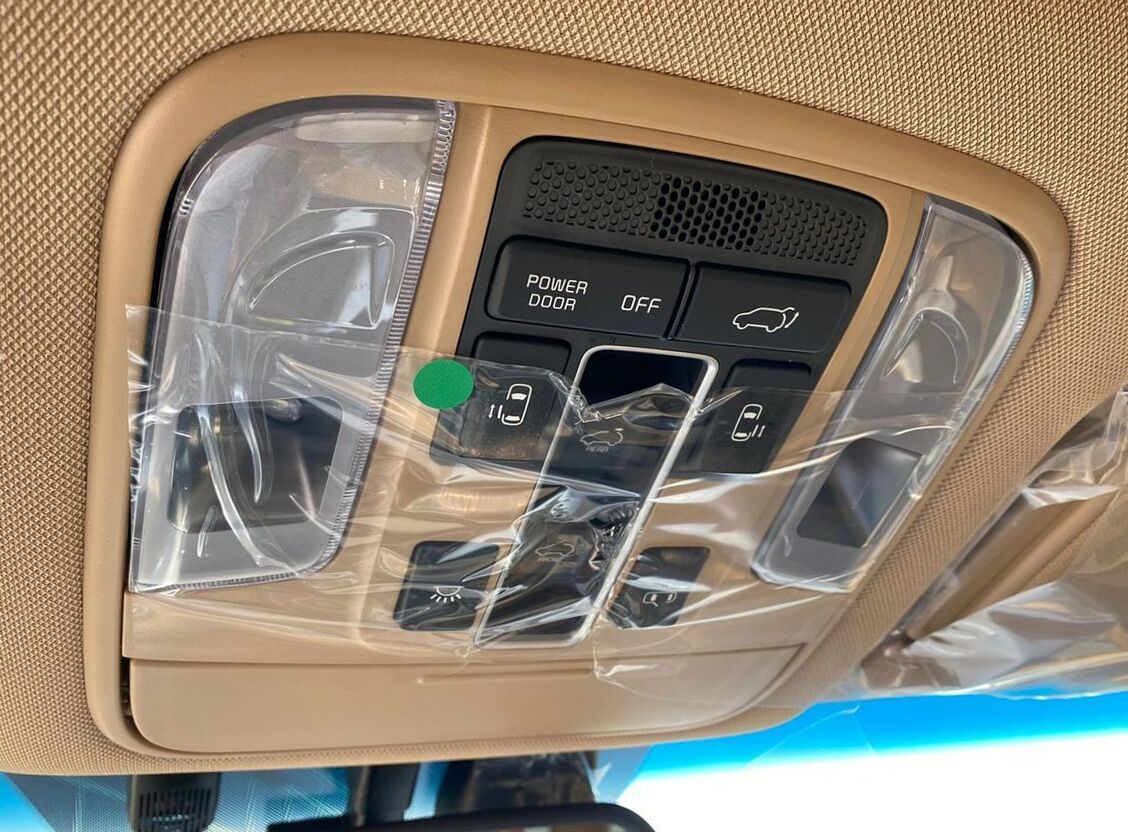

| Sliding electric doors | option |
| Power rear door | yes |
| Keyless rear door | option |
Windows | |
| Rear glass heat | yes |
Roof | |

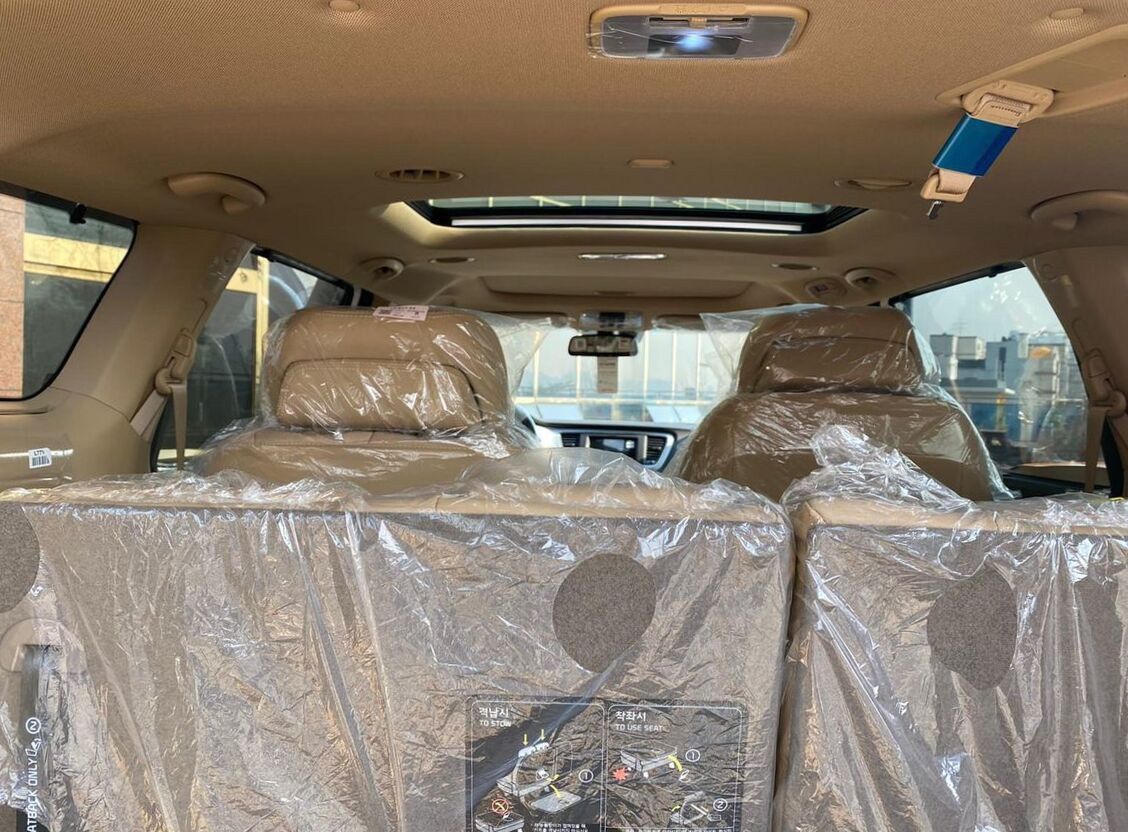

| Tilt sunroof | option |
Interior | |
Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Audio control on steering wheel | yes |
| Utility color display | 3.5" |
| Engine start button | yes |
Interior design | |

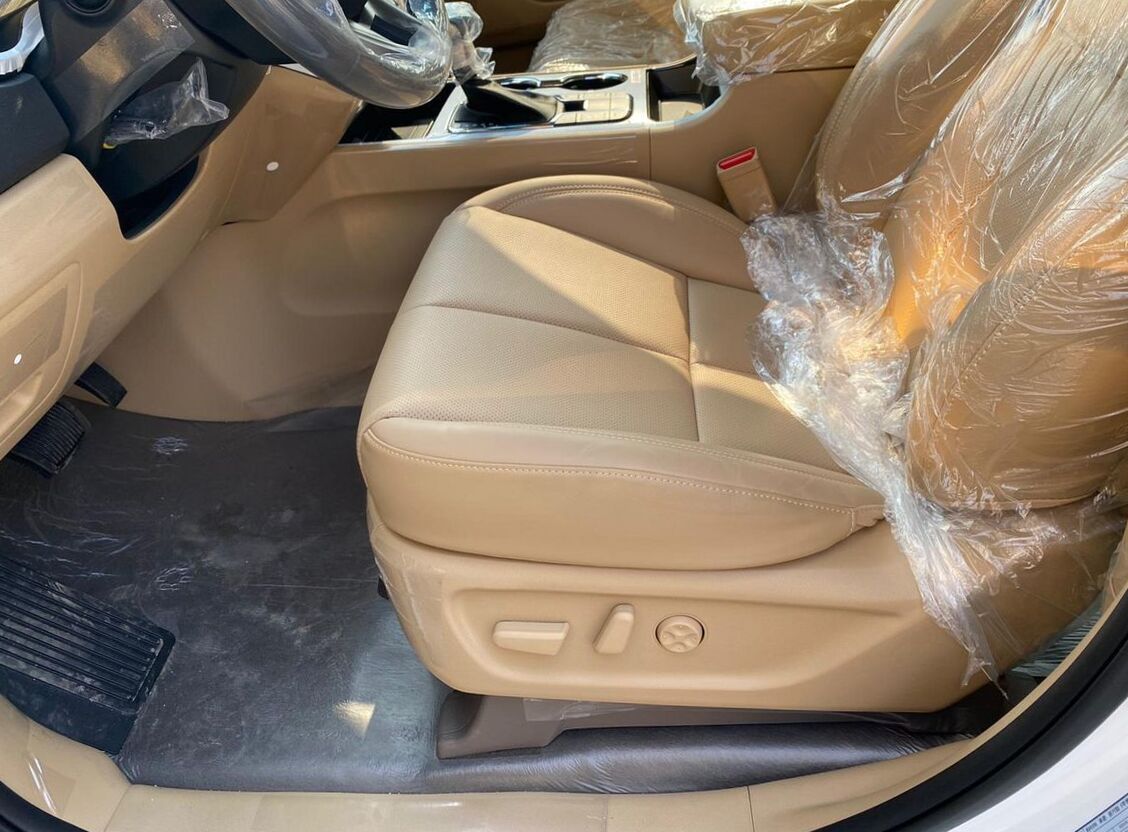

| Leather upholstery | yes |

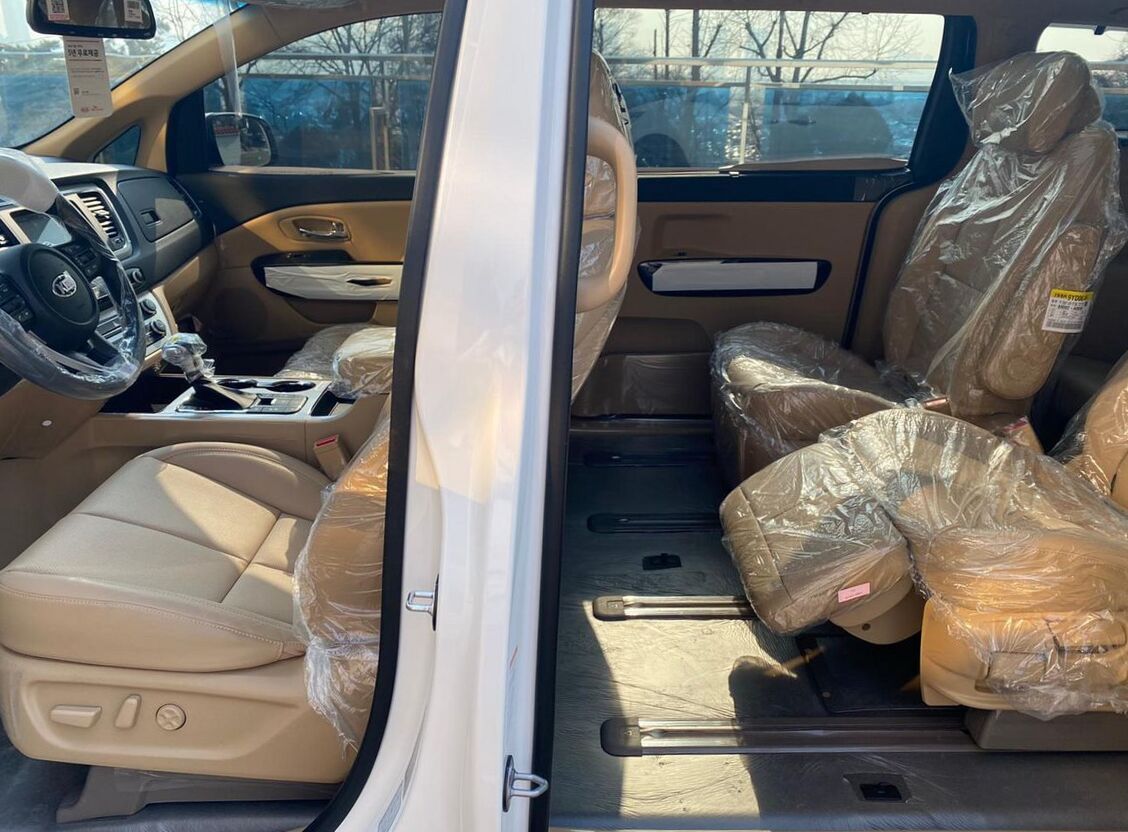

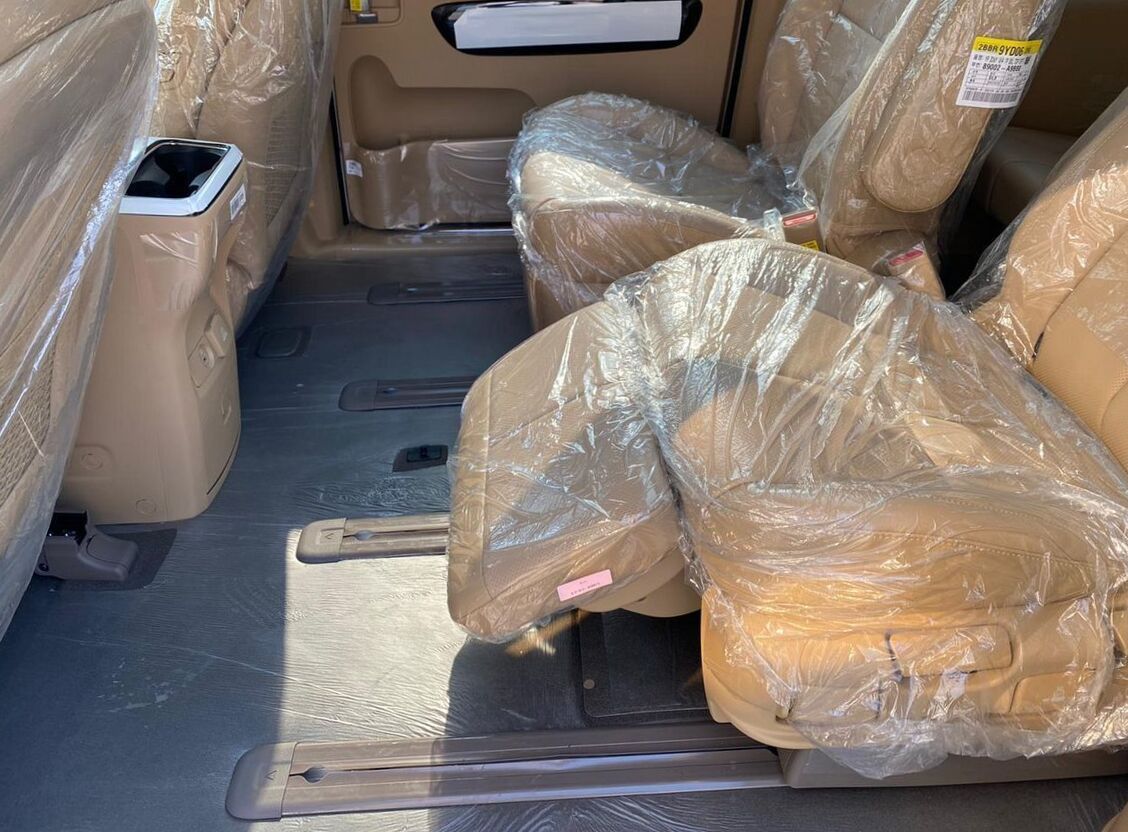

Seats | |
| 2nd row | two individual seats |
| 3nd row | 60/40 ratio fold seat |
Electric interior package | |
| Front seat heater | yes |
| Rear seats heater | option |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
| Power window rear | yes |
| Stearing wheel heater | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| Cruise control | yes |
| Front sonar | yes |
| Rear sonars | yes |
Amenity | |

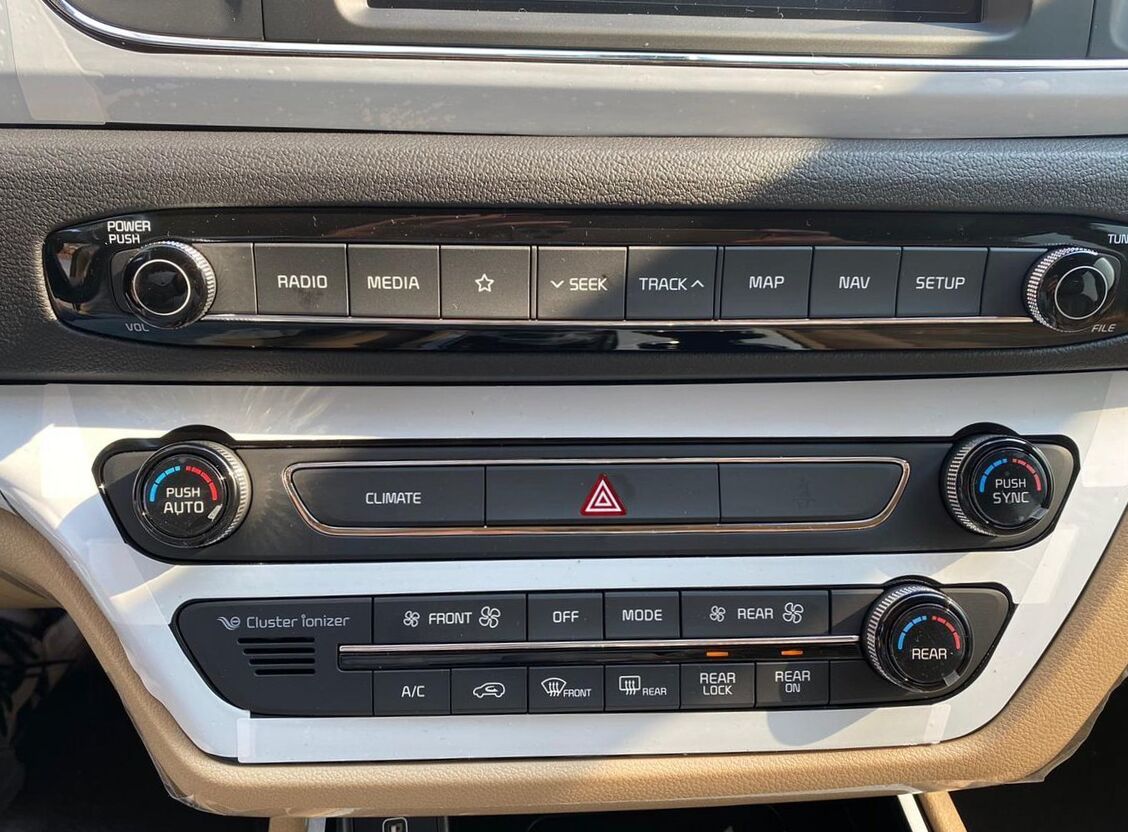

Audio systems | |
| Additional sound equipment | 6 speakers |
Navigation and video equipment | |

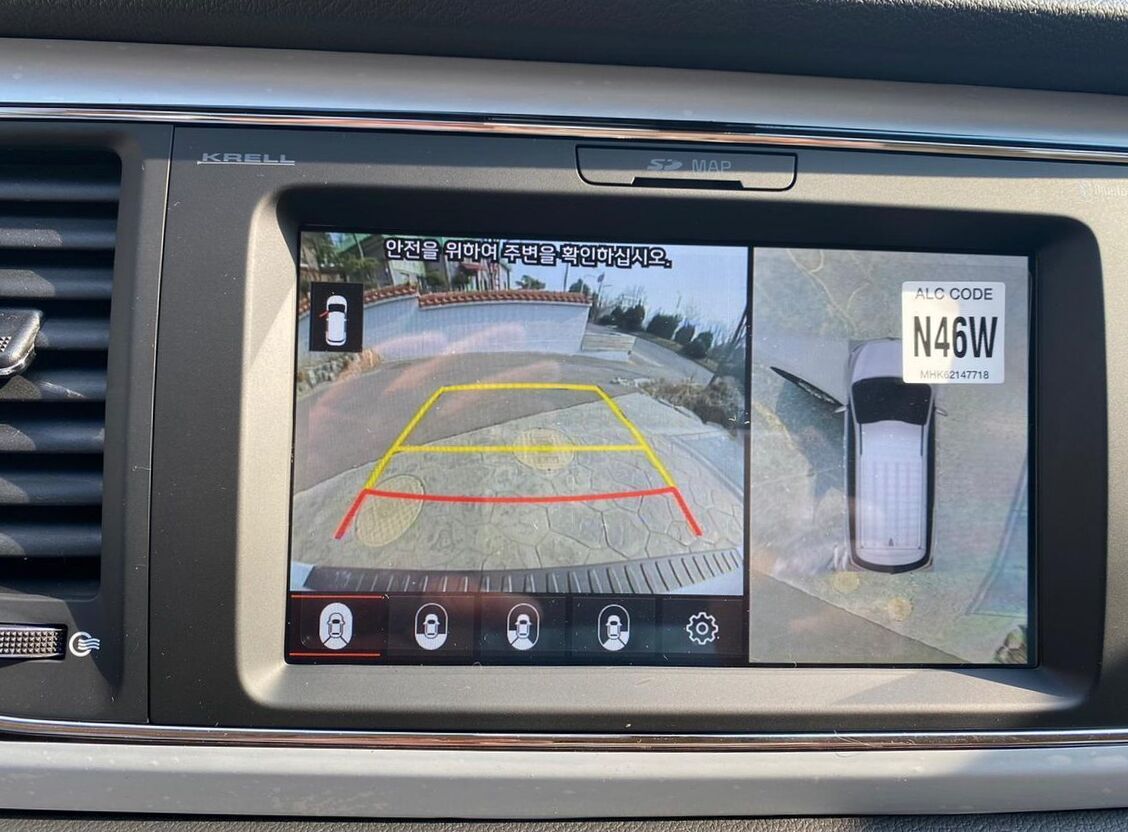

| Full color LCD display | 7" |
Additional amenities | |
| Onboard computer | yes |
2020 Kia Carnival III YP 2.2 CRDi AT 7 seats (202 Hp) specs
|
In the United States, it is available in a base short-wheel base model, a long-wheelbase mid-level LX model and a top of the line long-wheelbase EX model. The Sedona/ Carnival is rebadged and sold as the Naza Ria in Malaysia. This allows the van to qualify for National Car incentives within Malaysia. The Carnival is produced for the Chinese market by the Dongfeng Yueda Kia Automobile Company, a joint venture with Kia. The Kia Sedona (codename LS) was a new model from Kia to compete with the minivan segment of Toyota Sienna, Honda Odyssey, and the Chrysler minivans. It had a 3.5L V6 engine making 195hp (145kW). It was mated to a 5-speed automatic transmission. The Sedona lacked features that other minivans had such as power sliding doors and power liftgate, a fold flat third row seat, navigation system, rear-view camera, and backup sensors. Early Sedonas were rated at 15.6 L/ 100 km (15.1 mpg) (city) and 10.9 L/ 100 km (21.6 mpg) (highway), but the numbers improved slightly to 14.8 L/ 100 km (15.9 mpg) (city) and 9.6 L/ 100 km (24.5 mpg) (highway) for 2005 models. Nevertheless, the Sedona takes in more gasoline per kilometre than its competitors, some of which also had more power to boot. » Read More About Kia Carnival |
