2001 Kia Carnival 2.9 MT LS/GS
Kia Carnival Problems
Engen problem
2003, Hello KIA I overoll the car 2020 then
after that, car switch off while moving,it
doesn&...
Oil leak
2002, Oil leak.leaking oil badly.Leaving a pool
of oil on stopping..I'm trying to locate...
Kia grand carnival petrol
2007, Problem: Under heavy exceleration, the
car starts physically shaking , and when the
requ...
| Body type | Minivan |
|---|---|
| Power | 126 Hp |
| Engine Displacement | 2900 cm3 or 2.9L or 176.9 cu-in |
| Color | black |
| Transmission Gearbox | Manual |
| Fuel Type | Diesel |
| Drive wheel | FF |

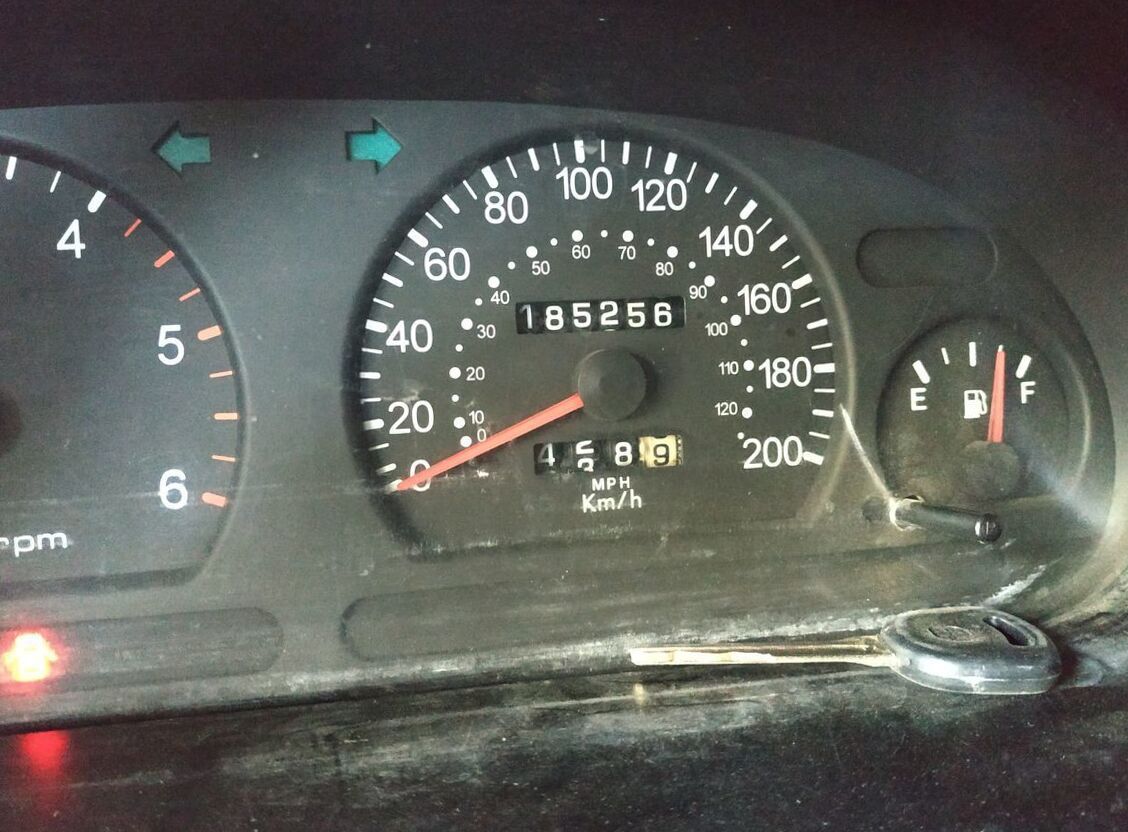

| Mileage | 115264 Miles |

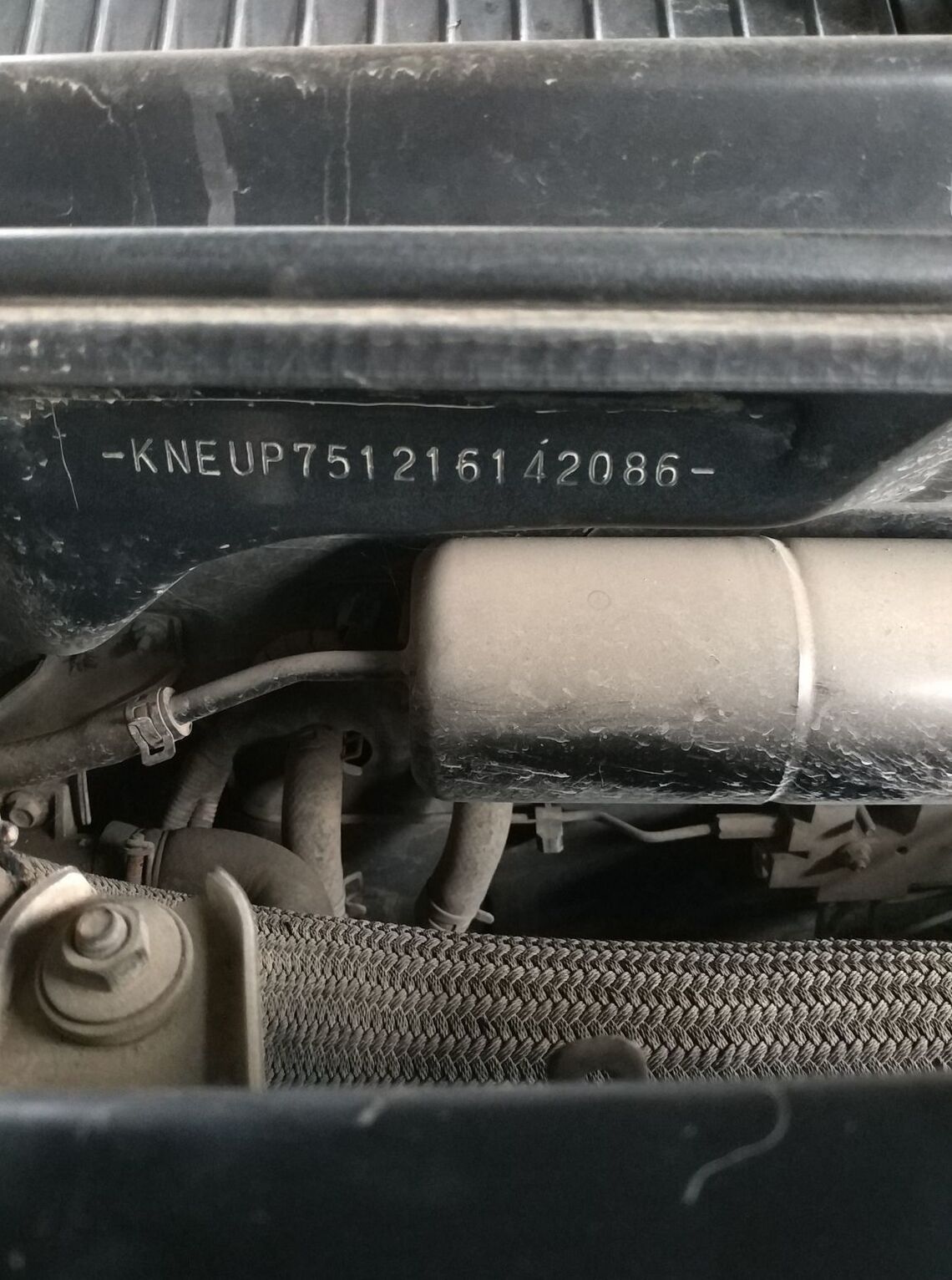

| Vin | KNEUP751216****86 |
| Price (out of date) | $5889 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2001 Kia Carnival 2.9 MT LS/GS? | Minivan, 7 Seats, 5 Doors |
| What is the fuel economy, Kia Carnival 2001 Minivan 2.9 MT LS/GS (126 Hp)? | 7.9 l/100 km |
| How fast is the car, 2001 Kia Carnival Minivan 2.9 MT LS/GS (126 Hp)? | 168 km/h |
| How much power, 2001 Kia Carnival 2.9 MT LS/GS? | 126 Hp |
| What is the engine size, Kia Carnival 2001 Minivan 2.9 MT LS/GS (126 Hp)? | 2.9L or 2902cm3 |
| How many gears, What type is the gearbox, 2001 Kia Carnival Minivan 2.9 MT LS/GS (126 Hp)? | 5 speed Manual |
| What is the drivetrain, 2001 Kia Carnival 2.9 MT LS/GS? | Front |
| How long is this vehicle, Kia Carnival 2001 Minivan 2.9 MT LS/GS (126 Hp)? | 4890 mm |
| How wide is the vehicle, 2001 Kia Carnival Minivan 2.9 MT LS/GS (126 Hp)? | 1900 mm |
| What is the gross weigh, 2001 Kia Carnival 2.9 MT LS/GS? | 2545 kg |
| How much trunk (boot) space, Kia Carnival 2001 Minivan 2.9 MT LS/GS (126 Hp)? | 2556 l |
Kia Carnival 2.9 MT LS/GS (126 Hp) 1998, 1999, 2000, 2001, 2002 Specs
General information | |
|---|---|
| Complectation name | 2.9 MT LS/GS |
| Production start year | 1998 |
| Production end year | 2002 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 2902 |
| Max speed | 168 |
| Clearance, mm | 170 |
| Manufacturing country | South Korea |
| Doors | 5 |
Vehicle generation | |
| Generation name | UP/GQ |
| Generation number | 1 |
| Production start year | 1998 |
| Production end year | 2002 |
Engine, transmission and steering specs | |
Engine specs | |

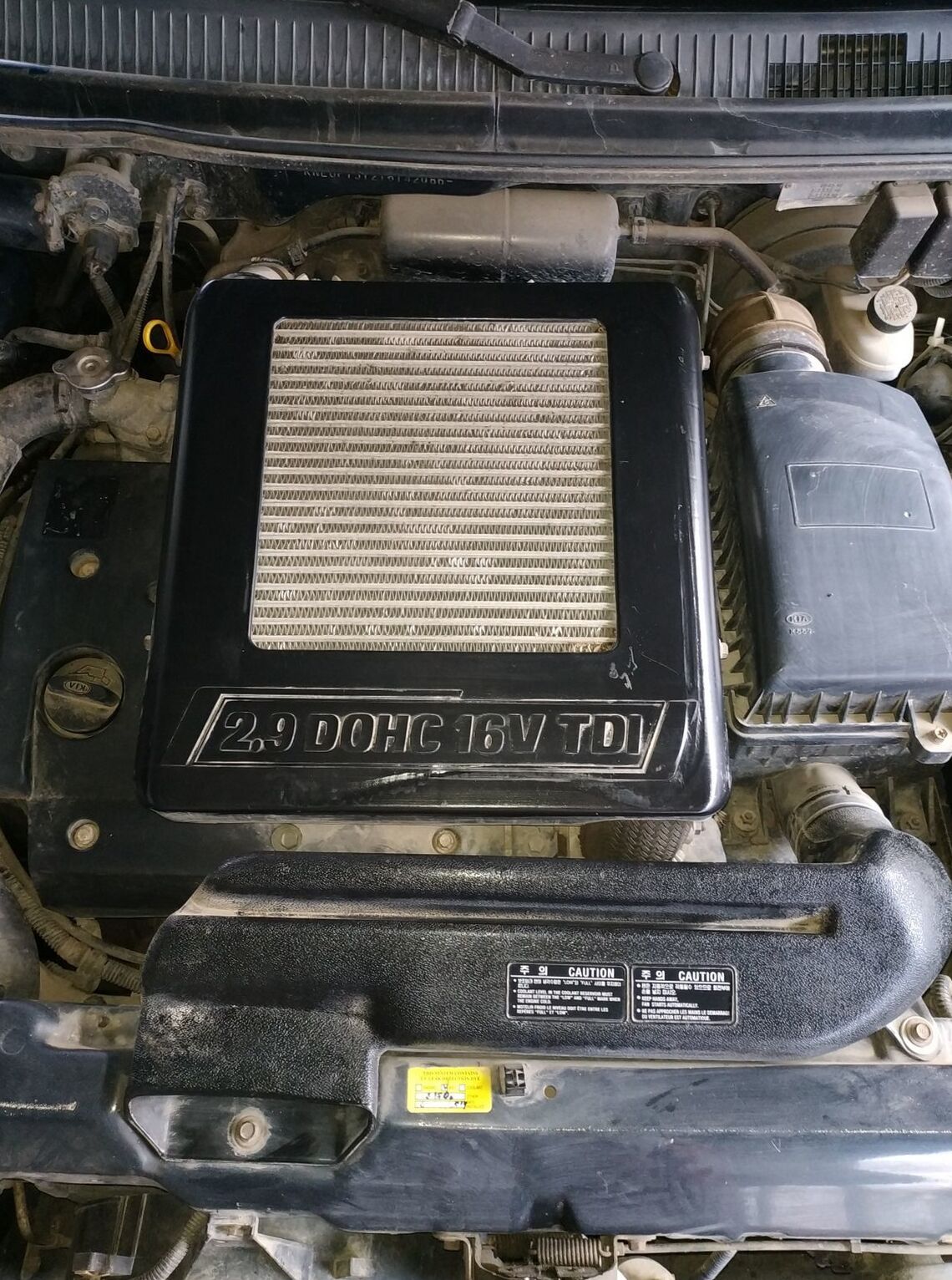

| Engine name | J3 |
| Fuel | Diesel |
| Engine type | 4 cylinder DOHC |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 126 |
| Max power RPM, rpm | 3600 |
| Max power, hp (kWt) / rpm | 126 (93) / 3600 |
| Max torque, N*m | 331 |
| Max torque RPM, rpm | 2000 |
| Max torque, N*m (kg*m) / rpm | 331 (34) / 2000 |
| Valves per cylinder | 4 |
| Bore, mm | 97.1 |
| Stroke, mm | 98 |
Fuel consumption | |
| City | 10.3 |
| Country side | 6.6 |
| Combined | 7.9 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4890 |
| Exterior width, mm | 1900 |
| Exterior height, mm | 1735 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
Chassis dimensions | |
| Wheel base, mm | 2905 |
| Turning radius, m | 6.5 |
| Wheel spacing front | 1625 |
| Wheel spacing rear | 1600 |
| Front overhang | 960 |
| Rear overhang | 1025 |
Weight and permissible load | |
| Mass, kg | 1855 |
| Max. weight | 2545 |
Volumes | |
| Fuel tank capacity, l | 75 |
| Trunk volume | 2556 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Independent, spring multi-link |
Wheel rims | |
| Front wheel disk | 15x6J |
| Rear wheel disk | 15x6J |
Tires | |
| Front wheels | 215/65 R15 |
| Rear wheels | 215/65 R15 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
Exterior | |
Headlights | |
| Front fog lamps | yes |
| Rear fog lamps | yes |
Side mirrors | |
| Power adjustable door mirrors | option |
Doors | |

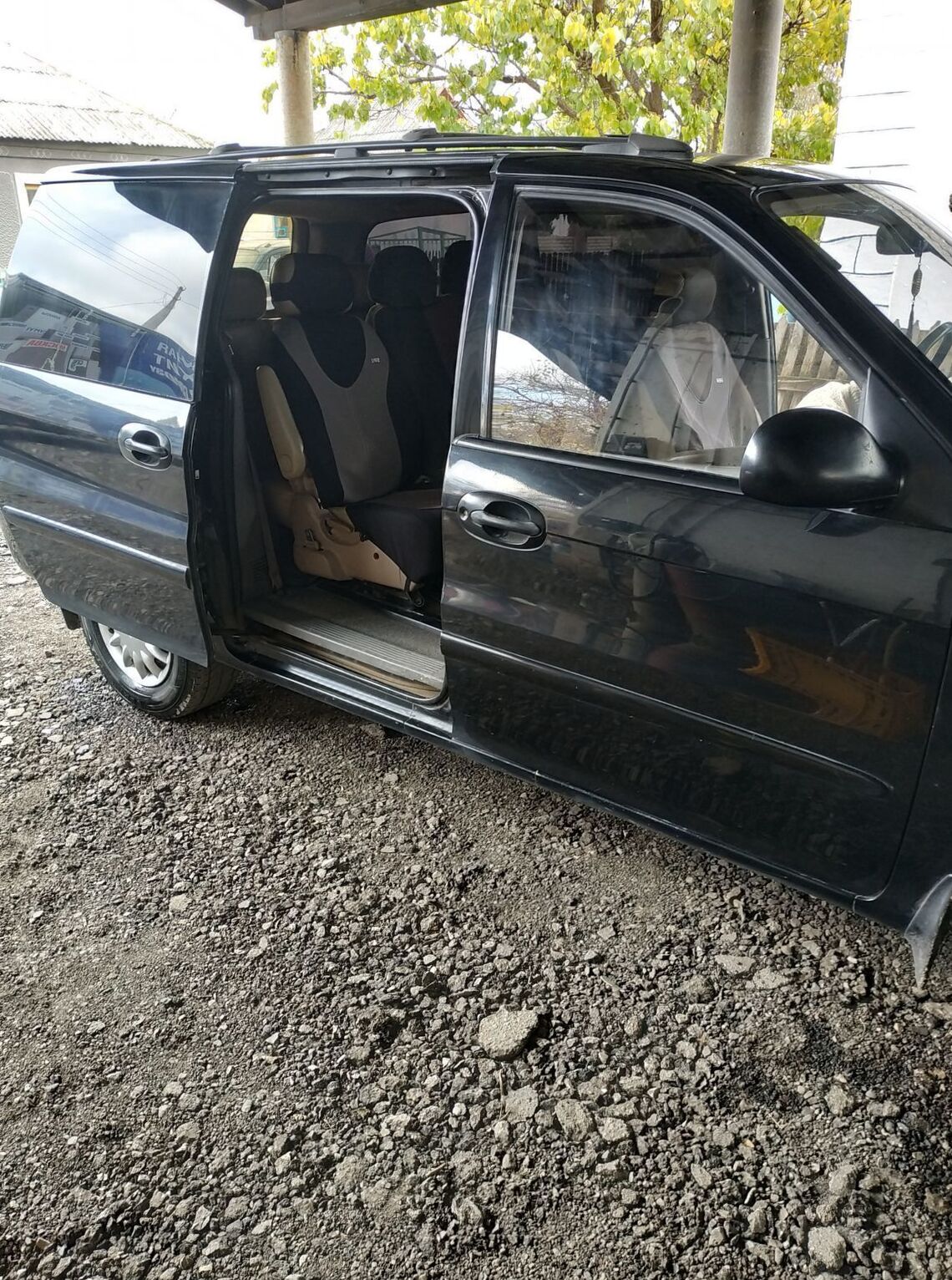

| Sliding doors | yes |
Accessories | |
| Back wiper | yes |
Interior | |
Electric interior package | |
| Power window front | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
Electronic security and traffic control systems | |
| ABS | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
2001 Kia Carnival 2.9 MT LS/GS (126 Hp) specs
|
In the United States, it is available in a base short-wheel base model, a long-wheelbase mid-level LX model and a top of the line long-wheelbase EX model. The Sedona/ Carnival is rebadged and sold as the Naza Ria in Malaysia. This allows the van to qualify for National Car incentives within Malaysia. The Carnival is produced for the Chinese market by the Dongfeng Yueda Kia Automobile Company, a joint venture with Kia. The Kia Sedona (codename LS) was a new model from Kia to compete with the minivan segment of Toyota Sienna, Honda Odyssey, and the Chrysler minivans. It had a 3.5L V6 engine making 195hp (145kW). It was mated to a 5-speed automatic transmission. The Sedona lacked features that other minivans had such as power sliding doors and power liftgate, a fold flat third row seat, navigation system, rear-view camera, and backup sensors. Early Sedonas were rated at 15.6 L/ 100 km (15.1 mpg) (city) and 10.9 L/ 100 km (21.6 mpg) (highway), but the numbers improved slightly to 14.8 L/ 100 km (15.9 mpg) (city) and 9.6 L/ 100 km (24.5 mpg) (highway) for 2005 models. Nevertheless, the Sedona takes in more gasoline per kilometre than its competitors, some of which also had more power to boot. » Read More About Kia Carnival |
