1994 Isuzu Gemini IV 1.6 G/G
Isuzu Gemini Problems
Jt600 engine is no good, body is no good
1988, my car is 1988 jt600 full oction but now
engine has under compreces. body also not so ...
Alternator
1988, my car is Isuzu gemini jt600. It has
alternator problem. please help me after start
the...
PARTS ENQUIRY
1986, ISUZU MOTOR VEHICLE CHASSIS / VIN: JAB
JT 150 NL 700097 MD JTR 69 AG/TJ ENGINE #
LN6 ...
| Body type | Sedan |
|---|---|
| Power | 130 Hp |
| Engine Displacement | 1600 cm3 or 1.6L or 97.6 cu-in |
| Color | silver |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Vin | WJ11****34 |
| Price (out of date) | $1504 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 1994 Isuzu Gemini IV? | Sedan, 5 Seats, 4 Doors |
| How much power, Isuzu Gemini Sedan 1994? | 130 Hp |
| What is the engine size, Isuzu Gemini E-MJ1 1994? | 1.6L or 1590cm3 |
| How many gears, What type is the gearbox, 1994 Isuzu Gemini 1.6 G/G? | Automatic transmission 4 |
| What is the drivetrain, Isuzu Gemini IV 1994 Sedan 1.6 G/G (130 Hp)? | Front |
| How long is this vehicle, 1994 Isuzu Gemini Sedan 1.6 G/G (130 Hp)? | 4415 mm |
| How wide is the vehicle, 1994 Isuzu Gemini IV? | 1695 mm |
Isuzu Gemini IV E-MJ1 1.6 G/G (130 Hp) 1993, 1994, 1995 Specs
General information | |
|---|---|
| Complectation name | 1.6 G/G |
| Production start year | 1993 |
| Production end year | 1995 |
| Price of new car in Tokyo, yen | 1729000 |
| Drive type | Front |
| Frame type | Sedan |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 1590 |
| Frame name | E-MJ1 |
| Clearance, mm | 150 |
| Manufacturing country | Japan |
| Doors | 4 |
| Right hand drive | yes |
| Left hand drive | no |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | ZC |
| Fuel | Petrol (Gasoline) |
| Engine type | water cooling 4 cylinder SOHC |
| Has turbo | no |
| Max power, hp | 130 |
| Max power RPM, rpm | 6600 |
| Max power, hp (kWt) / rpm | 130 (96) / 6600 |
| Max torque, N*m | 145 |
| Max torque RPM, rpm | 5200 |
| Max torque, N*m (kg*m) / rpm | 145 (15) / 5200 |
| Compression ratio | 9.2 |
| Bore, mm | 75 |
| Stroke, mm | 90 |
Fuel consumption | |
| Fuel consumption (10/15 mode), l/100km | 7.5 |
| Fuel consumption (60 km/h mode), l/100km | 4.6 |
Transmission | |
| 1st gear ratio | 2.6 |
| 2nd gear ratio | 1.393 |
| 3rd gear ratio | 0.926 |
| 4th fear ratio | 0.673 |
| Rear gear ratio | 1.954 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4415 |
| Exterior width, mm | 1695 |
| Exterior height, mm | 1390 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior length, mm | 1840 |
| Interior width, mm | 1365 |
| Interior height, mm | 1145 |
Chassis dimensions | |
| Wheel base, mm | 2620 |
| Front axle length, mm | 1475 |
| Rear axle length, mm | 1465 |
| Turning radius, m | 5 |
| Wheel spacing front | 1475 |
| Wheel spacing rear | 1465 |
Weight and permissible load | |
| Mass, kg | 1080 |
Volumes | |
| Fuel tank capacity, l | 45 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear stablilizer | yes |
| Rear suspension | Independent on double wishbones |
| LSD | no |
Wheel rims | |
| Aluminium wheel | option |
Tires | |
| Front wheels | 175/65R14 82H |
| Rear wheels | 175/65R14 82H |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Front fog lamps | no |
| Rear fog lamps | no |
| Additional stop light | yes |
| Cornering lamps | no |
Side mirrors | |
| Power adjustable door mirrors | yes |
Windows | |
| Ultraviolet glass protection | no |
Roof | |
| Sunroof | no |
| Tilt sunroof | option |
| Twin sunroof | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
| Back wiper | no |
Body color | |
| Colors | 7 25 12 6 |
Interior | |
Steering wheel and center panel | |
| Leather winding | no |
| Telescopic steering | no |
| Tilt steering | yes |

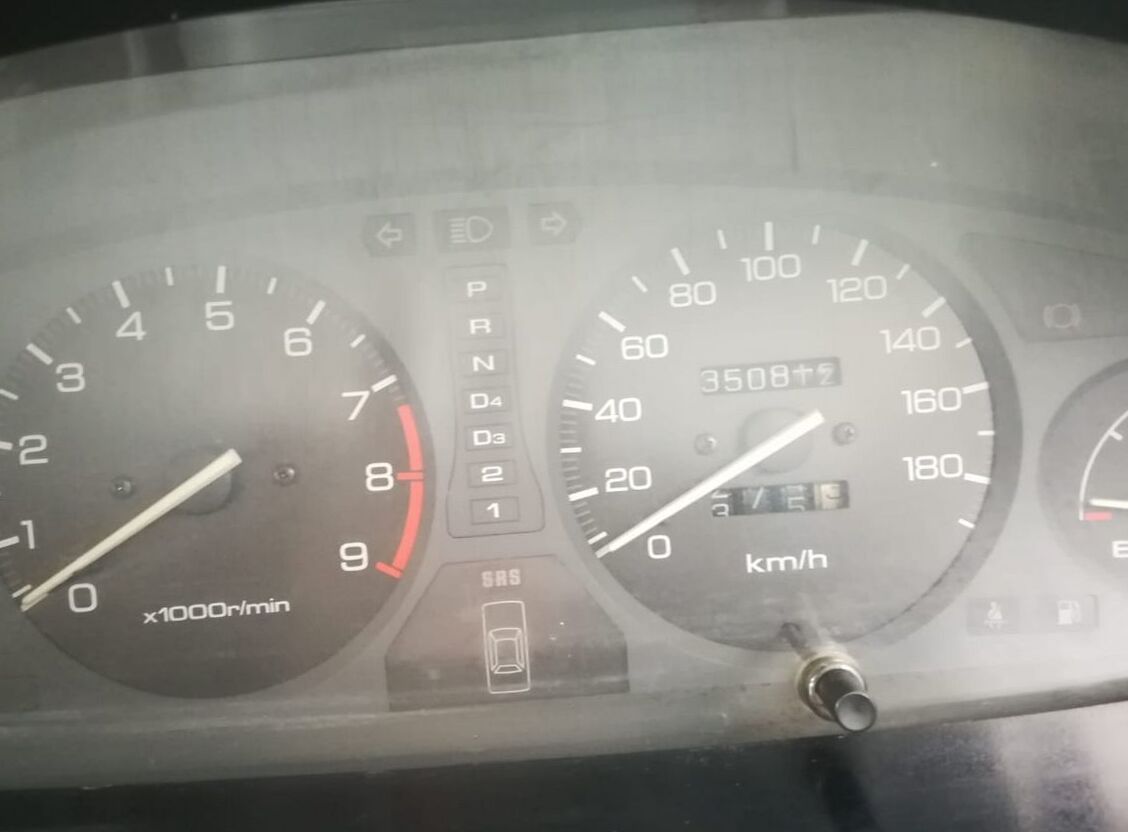

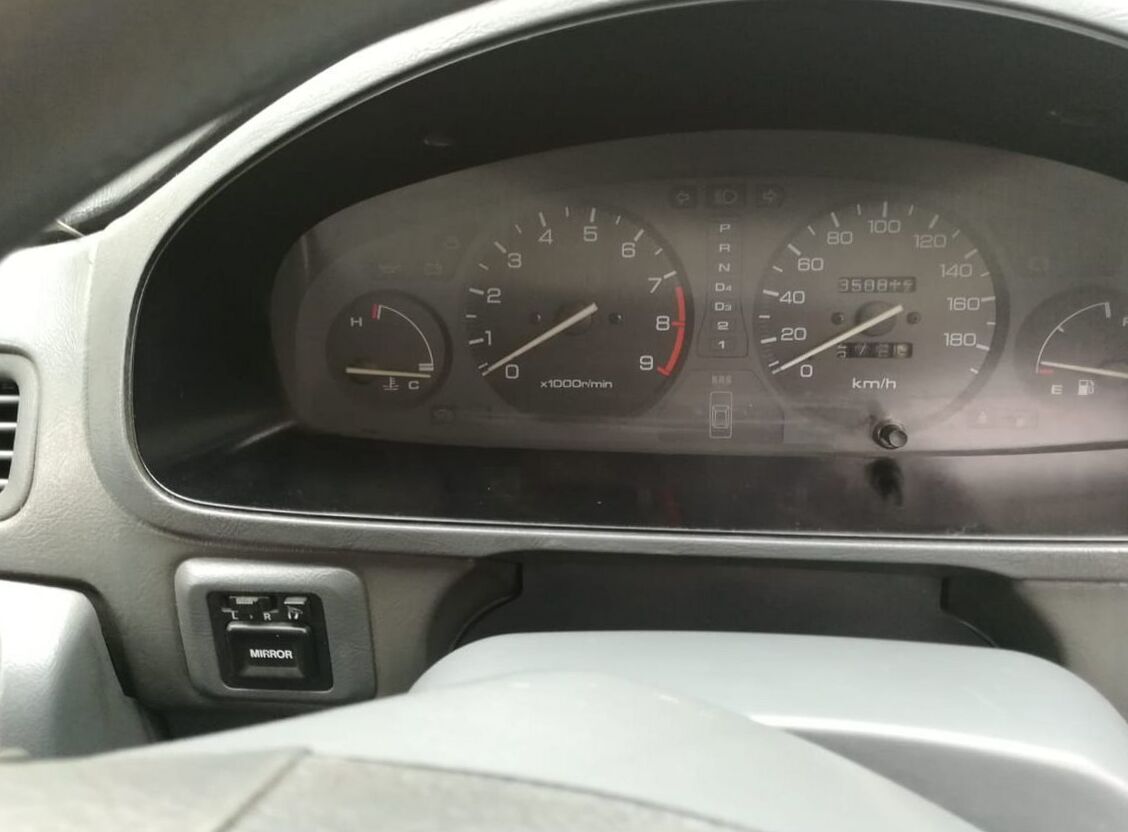

| Tachometer | yes |
Interior design | |
| Leather seat | no |
| Wood panel | yes |
Seats | |
| Reclining seats | no |
| Removable seats | no |
| Turning seats | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Power ajustable back seat | no |
| Centralized door lock | yes |
| Keyless enter | no |
| Power window | yes |
| Central power window control | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | option |
| Side airbag | no |
Children safety | |
| Child car restraints | yes |
Active and passive safety | |
| Durable frame | no |
| Side impact bar | yes |
| 3 point safety belt | yes |
| Safety belt pretensioner | no |
| Safety belt limiter | no |
Electronic security and traffic control systems | |
| Break assist | no |
| traction control | no |
| Cruise control | no |
Amenity | |
Microclimate | |
| Cooler | no |
| Automatic air conditioning | yes |
| Twin conditioning system | no |
| Air purifier | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | yes |
| CD player | no |
| CD changer | no |
| MD palyer | no |
| MD changer | no |
Navigation and video equipment | |
| Parking assist system | no |
1994 Isuzu Gemini IV E-MJ1 1.6 G/G (130 Hp) specs
|
The first Gemini was the 1974 Bellett Gemini. It was based on the third-generation Opel Kadett on the General Motors T-car platform and came in four-door sedan and two-door coupe body styles. In addition, Holden in Australia offered the Gemini as a 3 door station wagon and van, which were derived from the Vauxhall Chevette wagon, with Gemini front panels. The Gemini was Wheels magazine's Car of the Year for 1975. The Australian Holden Gemini was fitted with an Isuzu G161Z engine, although some models were available with a diesel variant of an Isuzu G180 engine. The more common G161Z was a 1.6-liter 8 valve SOHC fed by a Nikki carburettor. In Europe, the 1976 Gemini was equipped with a 1.3-liter engine known as the 1g13c, which was adopted by Opel in Germany for their Opel Kadett. In Japan, sports models were available under the names ZZ/ R and ZZ/ T. These were equipped with an Isuzu G180W 8-valve DOHC 1.8-liter engine, most commonly fuel injected, producing 97kW at the flywheel. It is rumoured that these models also came with a factory LSD and a shortened shift throw on manual models. » Read More About Isuzu Gemini |
