More photos of Isuzu D-MAX

Isuzu D-MAX Problems
Auto g/box
2002, gearbox acts weird drops out of top gear
then wont change up and flashes check trans on ...

Body typePickup
Power177 Hp
Engine Displacement3000 cm3 or 3L or 183 cu-in
Transmission GearboxAutomatic
Fuel TypeDiesel
Drive wheel4WD
Price (out of date)$40925

Frequently Asked Questions

What is the body type, 2019 Isuzu D-MAX II?Pickup, 5 Seats, 4 Doors
What is the fuel economy, Isuzu D-MAX Pickup 2019?8 l/100 km
How fast is the car, Isuzu D-MAX TFR 2019?170 km/h
How much power, 2019 Isuzu D-MAX 3.0D AT Energy?177 Hp
What is the engine size, Isuzu D-MAX II 2019 Pickup 3.0D AT Energy (177 Hp)?3L or 2999cm3
How many gears, What type is the gearbox, 2019 Isuzu D-MAX Pickup 3.0D AT Energy (177 Hp)?Automatic transmission 6
What is the drivetrain, 2019 Isuzu D-MAX II?All wheel drive (4x4)
How long is this vehicle, Isuzu D-MAX Pickup 2019?5295 mm
How wide is the vehicle, Isuzu D-MAX TFR 2019?1860 mm
What is the gross weigh, 2019 Isuzu D-MAX 3.0D AT Energy?3050 kg

Isuzu D-MAX II TFR 3.0D AT Energy (177 Hp) 2019, 2020, 2021 Specs

General information

Complectation name3.0D AT Energy
Production start year2019
Production end year2021
Drive typeAll wheel drive (4x4)
Frame typePickup
Transmission typeAutomatic transmission 6
Engine volume, cc2999
Frame nameTFR
Max speed170
Clearance, mm235
Manufacturing countryThailand
Winter complectationyes
Warranty5 years or 120,000 km of mileage

Vehicle generation

Generation nameRT85
Generation number2
Facelift number1
Production start year2017
Production end year2021

Engine, transmission and steering specs

Engine specs

Engine name4JJ1-TC; 4JJ1-TCX
Engine typeIn-line, 4-cylinder
Has turboyes
Turbo typeTurbine
Max power, hp177
Max power RPM, rpm3600
Max power, hp (kWt) / rpm177 (130) / 3600
Max torque, N*m430
Max torque RPM, rpm2200
Max torque, N*m (kg*m) / rpm430 (44) / 2200
Valves per cylinder4
Actuator valvesDOHC
Engine additional infoCommon Rail
Eco typeEuro-5

Fuel consumption

Country side7.3


Main gear ratio3.727


Power steeringyes
Steereing gear typeGear rail

Battery and alternator

Max generator amper90
Battery volume95


Frame dimensions

Exterior length, mm5295
Exterior width, mm1860
Exterior height, mm1780

Interior dimensions

Seat rows2
Cargo l1485
Cargo w1530
Cargo h465

Chassis dimensions

Wheel base, mm3095
Turning radius, m6.1
Wheel spacing front1570
Wheel spacing rear1570

Weight and permissible load

Mass, kg2075
Max capacity975
Max. weight3050
Trailer max weight wobrakes750
Trailer max weight wbrakes3500


Fuel tank capacity, l76


AddinfoEngine crankcase protection;Transfer case protection;Fuel tank fire protection;Rear underride guard integrated with rear bumper;Cab access handrail in front stanchions;Folding type roof rails in front door area;Folding type roof rails in rear door area;Clothes hooks;2 front towing hooks;Service kit (jack with detachable arm, wheel wrench, wrench set, screwdriver, pliers);Tire repair kit for damaged tire;Child lock in back doors;Roof console with glasses holder;Side running boards

Suspension specs

Suspension specs

Front stabilizeryes
Front suspensionIndependent on double wishbones
Rear suspensionDependent, spring loaded

Wheel rims

Aluminium wheelyes
Front wheel disk18X7J
Rear wheel disk18X7J

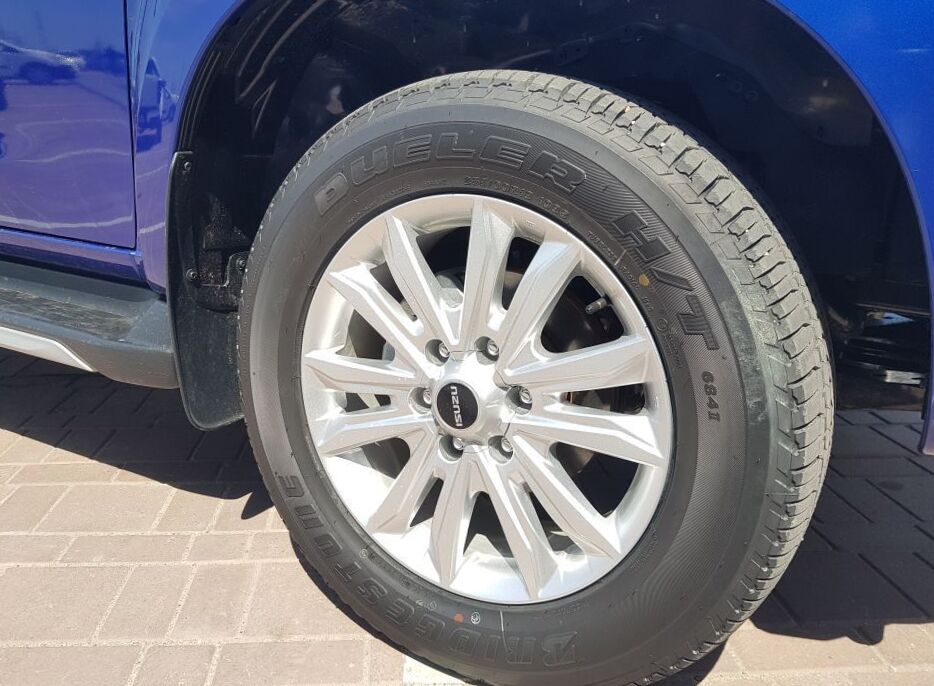

Front wheels255/60 R18
Rear wheels255/60 R18


Front brakeVentilated discs
Rear brakedrum brakes



Halogen headlightsyes
Led lightsoption
Diod head lightsoption
Front fog lampsyes
Led backlightsyes
Rear fog lampsyes
Additional stop lightyes

Side mirrors

Exterior mirrors in body colorno
Side mirrors with repeaters indicatorsyes
Power adjustable door mirrorsyes
Door mirrors heatingyes


Door handles in body colorno
Chrome door handlesyes


Rear glass heatyes

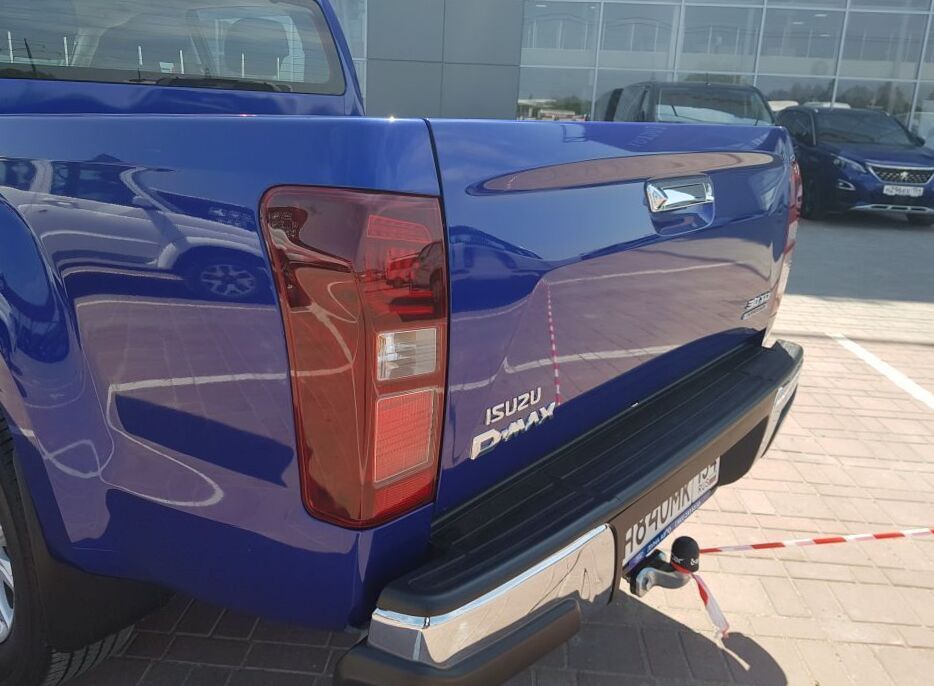

BumpersFront bumper painted in body color. Rear bumper chrome-plated, with central step. Grille in chrome.
Rear mudflapsyes

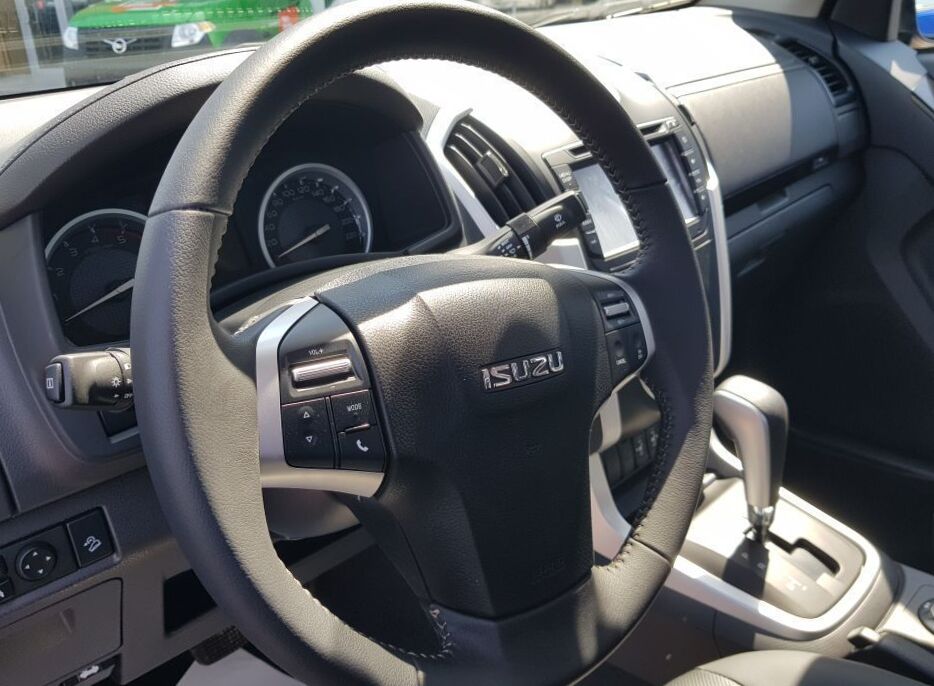

Steering wheel and center panel

Leather windingyes
Adjustable steeringyes
Telescopic steeringno
Tilt steeringyes
Audio control on steering wheelyes
Env tempyes
Engine start buttonyes

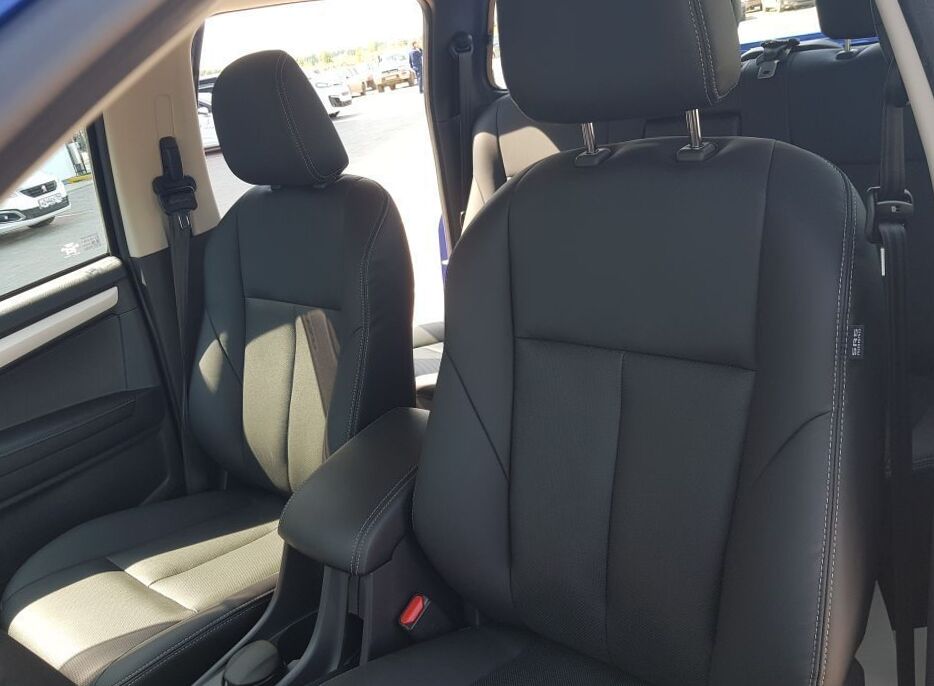

Interior design

Cloth upholsteryno
Leather upholsteryyes
PanelsSilver steering wheel spokes decor, interior handles and door locking keys in silver

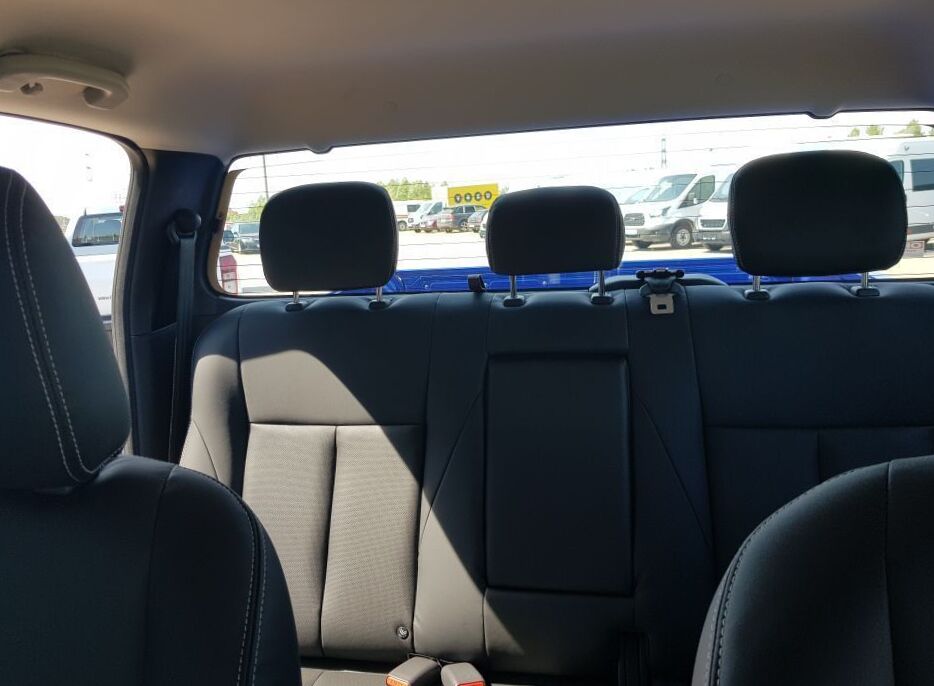

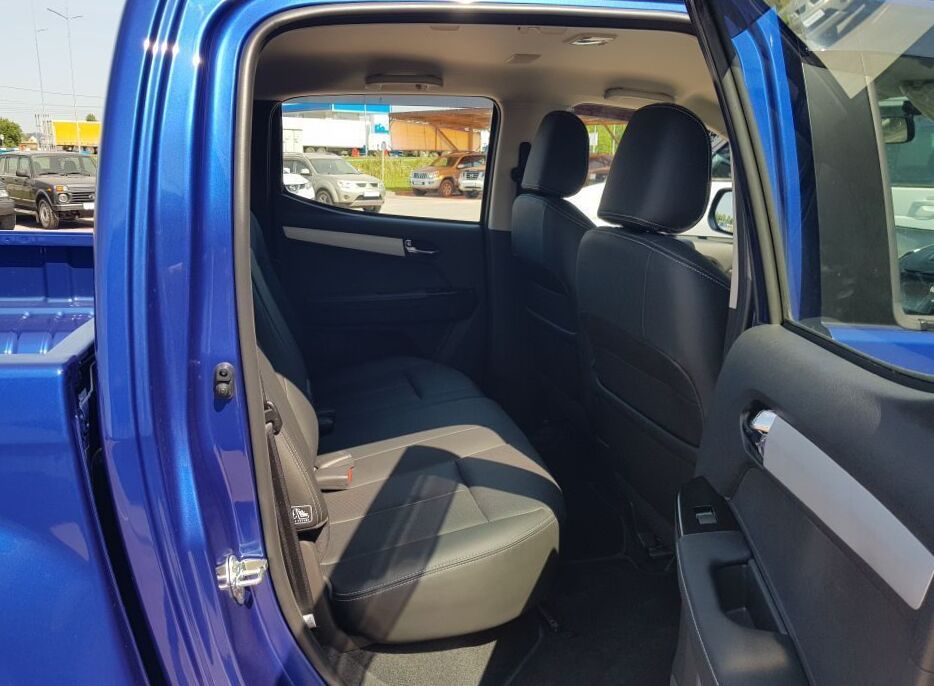

2nd row60/40 ratio fold seat

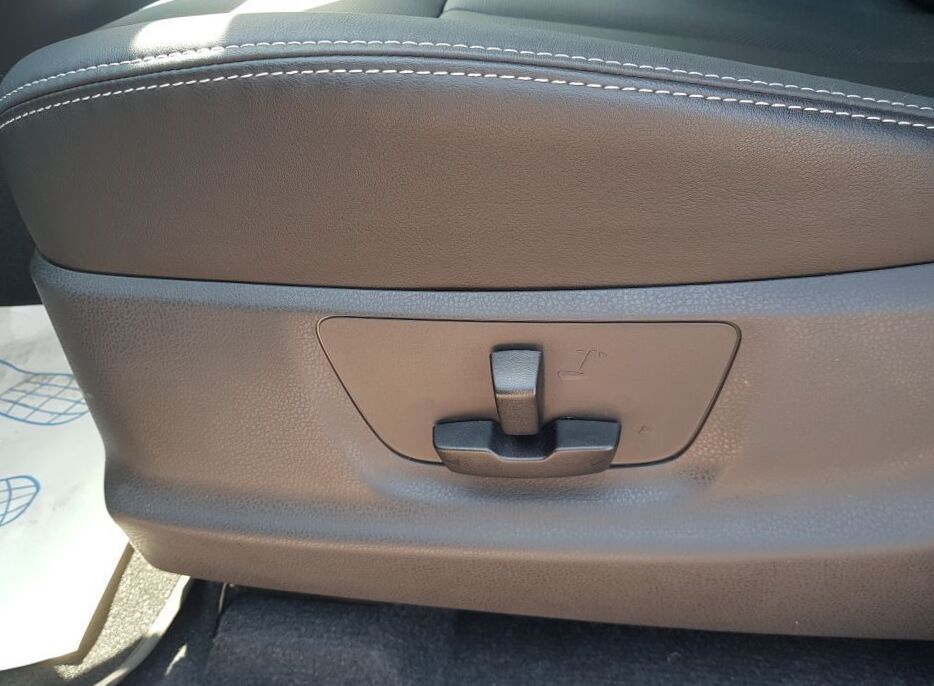

Seat lifteryes
Headrests for seats5
Separating armrest frontyes
Separating armrest rearyes

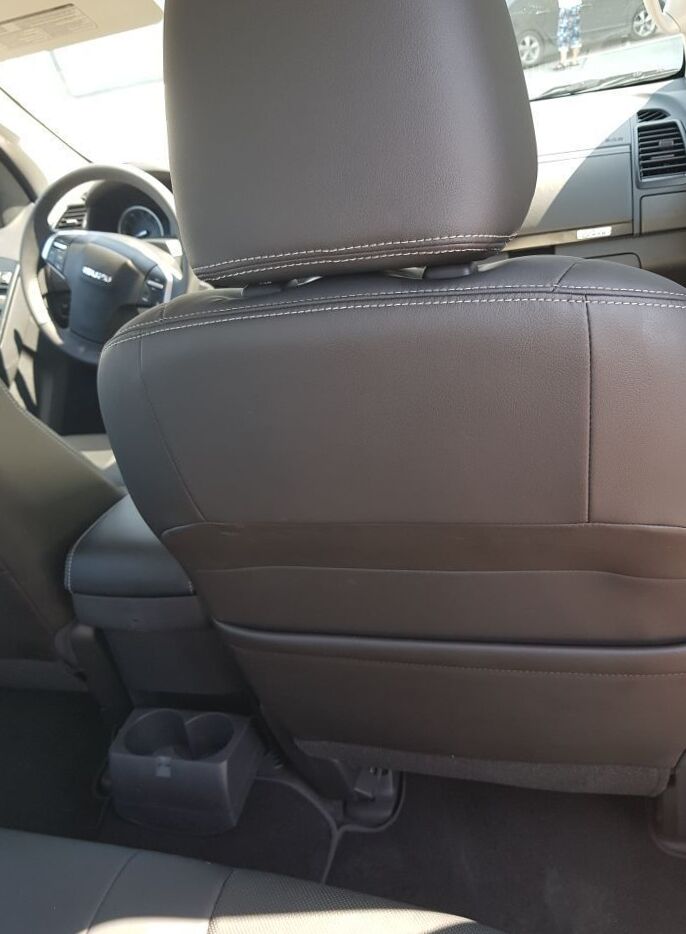

Seats pocketsyes

Electric interior package

Power adjustable driver seatyes
Power ajustable front seatno
Front seat heateryes
Centralized door lockyes

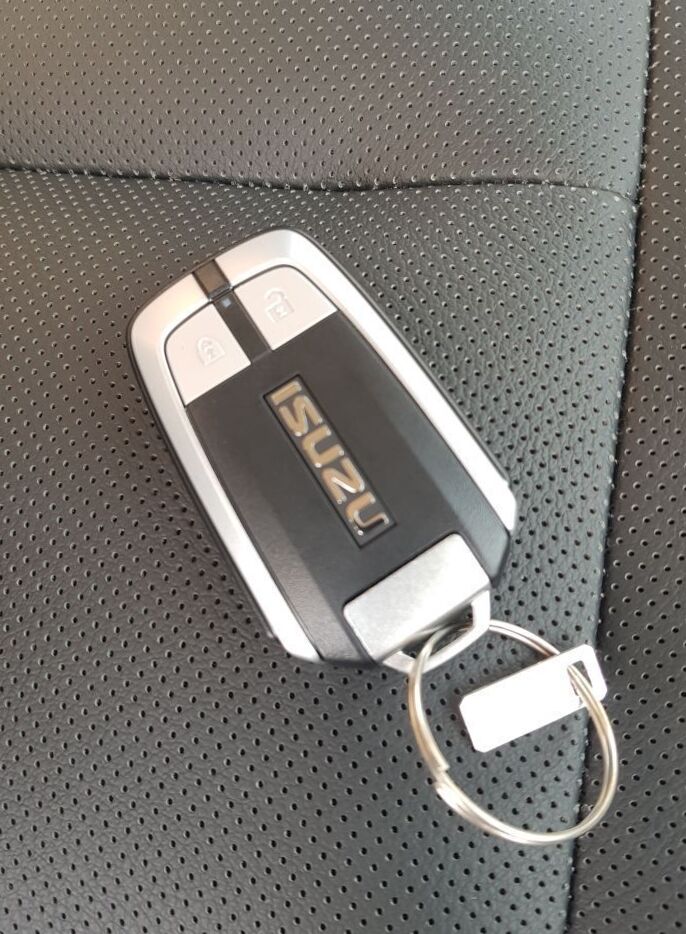

Keyless enteryes
Power window frontyes
Power window rearyes

Additional interior equipment

Smokers packetyes
AC plugyes



Drivers airbagyes
Passengers airbagyes
Side airbagyes
Curtain airbagsyes

Children safety

isofix baryes

Active and passive safety

3 point safety beltyes
Safety belt pretensioneryes
Safety belt limiteryes

Electronic security and traffic control systems

Electronic Brake Distributionyes
Break assistyes
traction controloption
Down hill assistoption
Hill-start assist control systemoption
Cruise controlyes



Air conditioneryes
Automatic air conditioningyes
Air filteryes

Audio systems

CD playeroption
MP3 Supportoption
Hands freeoption
Additional sound equipmentDIN-E audio plug with a recess for small items underneath, antenna, 2 speakers / 8 speakers (optional)

Navigation and video equipment

Full color LCD display7" touchscreen (optional)
Navigation systemoption
Back monitoroption

Additional amenities

Anti-glare effectyes
Mirrors in sunshieldsyes
Onboard computeryes

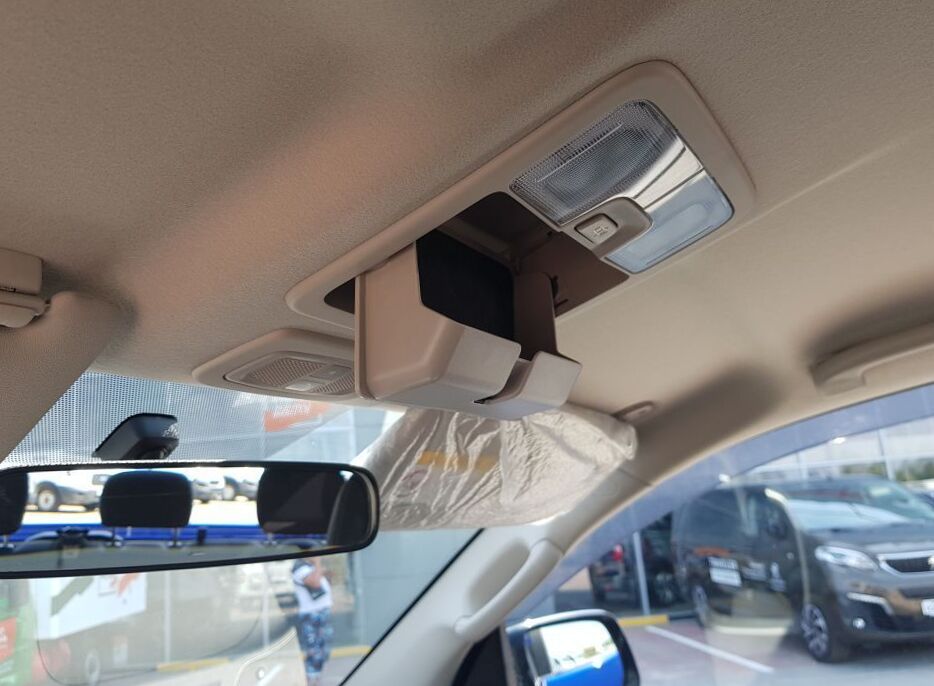

LightLight bulb in the center of the cabin with delayed switch-off function, two lamps for driver and passenger in overhead console with delayed switch-off function

Car safety

Alarm systemyes

Driver Kit

Spare tireno

2019 Isuzu D-MAX II TFR 3.0D AT Energy (177 Hp) specs
