Body typePickup
Power163 Hp
Engine Displacement2500 cm3 or 2.5L or 152.5 cu-in
Transmission GearboxManual
Fuel TypeDiesel
Drive wheel4WD
Mileage34175 Miles
Price (out of date)$31374

Frequently Asked Questions

What is the body type, 2017 Isuzu D-MAX II?Pickup, 5 Seats, 4 Doors
What is the fuel economy, Isuzu D-MAX Pickup 2017?7.3 l/100 km
How fast is the car, Isuzu D-MAX RT85 2017?175 km/h
How much power, 2017 Isuzu D-MAX 2.5 MT Arctic Trucks AT35?163 Hp
What is the engine size, Isuzu D-MAX II 2017 Pickup 2.5 MT Arctic Trucks AT35 (163 Hp)?2.5L or 2499cm3
How many gears, What type is the gearbox, 2017 Isuzu D-MAX Pickup 2.5 MT Arctic Trucks AT35 (163 Hp)?6 speed Manual
What is the drivetrain, 2017 Isuzu D-MAX II?All wheel drive (4x4)
How long is this vehicle, Isuzu D-MAX Pickup 2017?5295 mm
How wide is the vehicle, Isuzu D-MAX RT85 2017?2040 mm
What is the gross weigh, 2017 Isuzu D-MAX 2.5 MT Arctic Trucks AT35?3000 kg

Isuzu D-MAX II RT85 2.5 MT Arctic Trucks AT35 (163 Hp) 2017, 2018, 2019, 2020 Specs

General information

Complectation name2.5 MT Arctic Trucks AT35
Production start year2017
Production end year2020
Drive typeAll wheel drive (4x4)
Frame typePickup
Transmission type6 speed Manual
Engine volume, cc2499
Frame nameRT85
Max speed175
Clearance, mm290
Manufacturing countryThailand
Winter complectationyes
Warranty5 years or 120,000 km of mileage

Vehicle generation

Generation nameRT85
Generation number2
Production start year2012
Production end year2021

Engine, transmission and steering specs

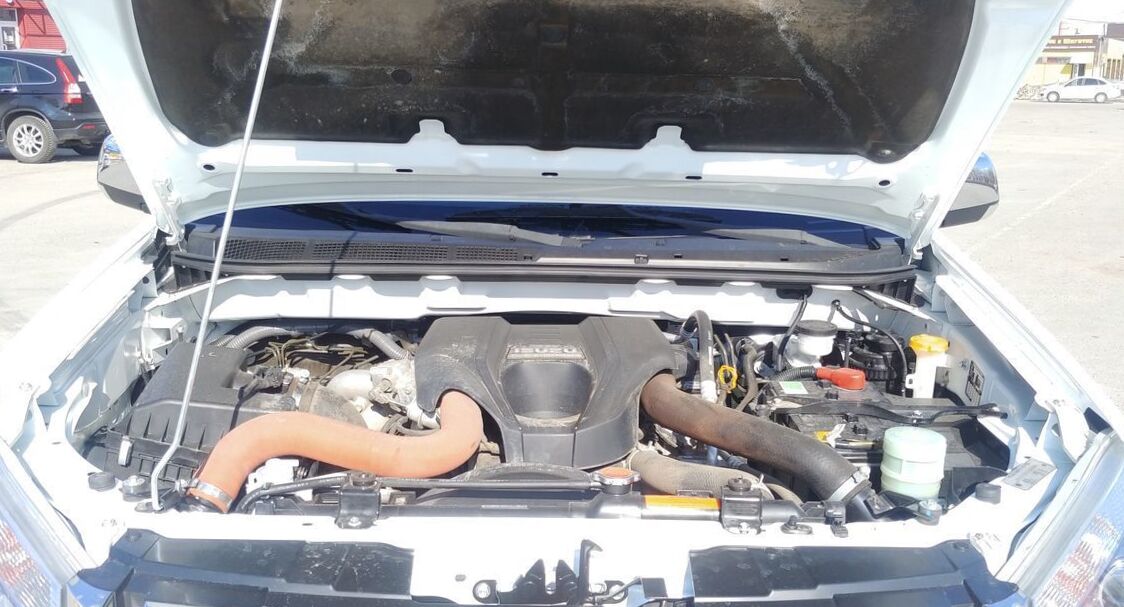

Engine specs

Engine typeIn-line, 4-cylinder
Has turboyes
Turbo typeTurbine
Max power, hp163
Max power RPM, rpm3600
Max power, hp (kWt) / rpm163 (120) / 3600
Max torque, N*m400
Max torque RPM, rpm2000
Max torque, N*m (kg*m) / rpm400 (41) / 2000
Valves per cylinder4
Actuator valvesDOHC
Engine additional infoCommon Rail
Eco typeEuro-5

Fuel consumption

Country side6.5


Main gear ratio3.071


Power steeringyes
Steereing gear typeGear rail

Battery and alternator

Max generator amper90
Battery volume95


Frame dimensions

Exterior length, mm5295
Exterior width, mm2040
Exterior height, mm1910

Interior dimensions

Seat rows2
Cargo l1485
Cargo w1530
Cargo h465

Chassis dimensions

Wheel base, mm3095
Turning radius, m6.3
Wheel spacing front1644
Wheel spacing rear1644

Weight and permissible load

Mass, kg2110
Max capacity890
Max. weight3000
Trailer max weight wobrakes750
Trailer max weight wbrakes3500


Fuel tank capacity, l69


AddinfoEngine crankcase protection; Transfer case protection; Fuel tank protection against fire; Rear underride guard integrated with rear bumper; Handrail for easy access to cab in front stanchions; Roof rails in front door area of folding type; Roof rails in rear door area of folding type; Clothes hooks; 2 front towing hooks; Spares kit (jack with a compound lever, wheel wrench, wrench set, screwdriver, pliers); Repair kit for damaged tire; Child lock in rear doors; Roof console with glasses holder; Side running boards

Suspension specs

Suspension specs

Front stabilizeryes
Front suspensionIndependent on double wishbones
Rear suspensionDependent, spring loaded

Wheel rims

Aluminium wheelyes
Front wheel disk17x10J
Rear wheel disk17x10J


Front wheels315/70 R17
Rear wheels315/70 R17


Front brakeVentilated discs
Rear brakedrum brakes



Halogen headlightsno
Xenon lampsyes
Front fog lampsyes
Rear fog lampsyes
Additional stop lightyes

Side mirrors

Exterior mirrors in body colorno
Side mirrors with repeaters indicatorsyes
Power adjustable door mirrorsyes
Door mirrors heatingyes


Door handles in body colorno
Chrome door handlesyes


Rear glass heatyes


BumpersFront bumper painted in body color. Rear bumper chrome-plated, with central step. Grille in chrome.
Rear mudflapsyes


Steering wheel and center panel

Leather windingyes
Tilt steeringyes
Audio control on steering wheelyes

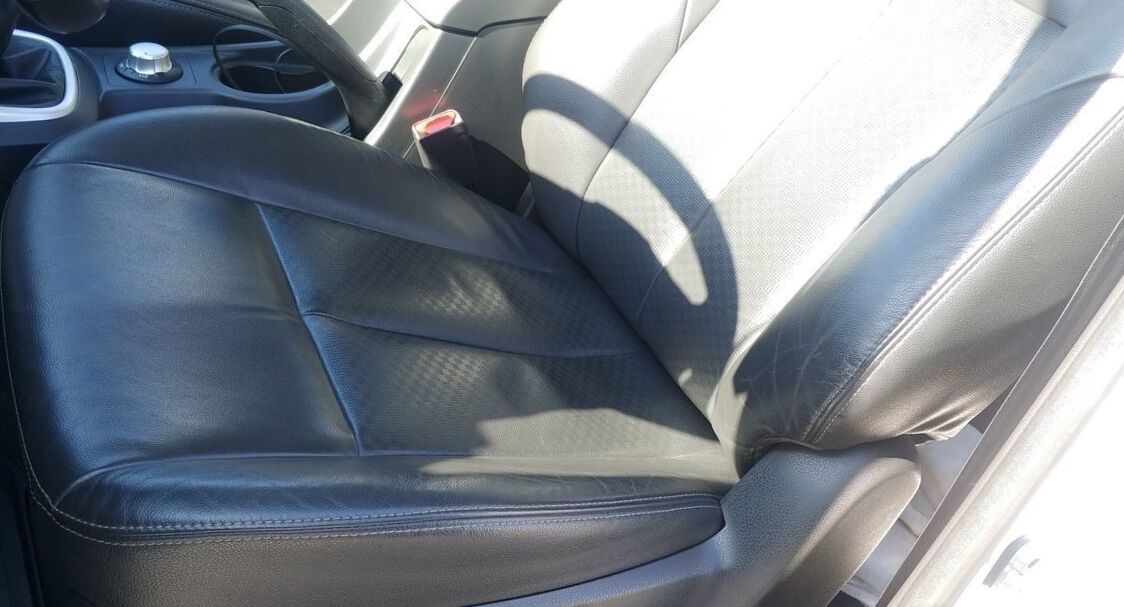

Interior design

Cloth upholsteryno
Leather upholsteryyes
PanelsSilver steering wheel spokes decor, silver-colored interior handles and door locking keys, polyurethane-coated gear lever with decorative inlay

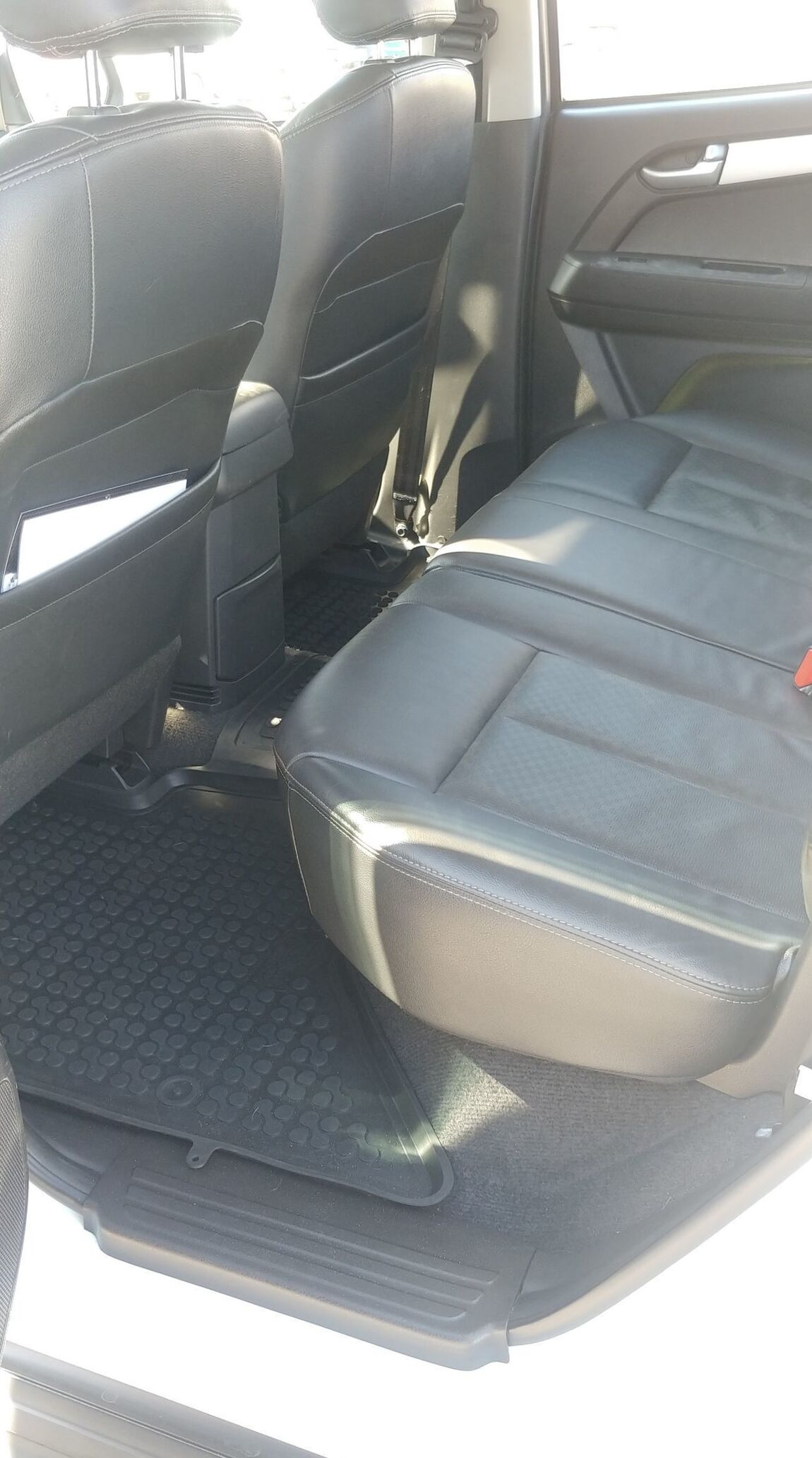

2nd row60/40 ratio fold seat
Headrests for seats5
Separating armrest frontyes
Separating armrest rearyes
Seats pocketsyes

Electric interior package

Power adjustable driver seatyes
Front seat heateryes
Centralized door lockyes
Power window frontyes
Power window rearyes

Additional interior equipment

Smokers packetyes
AC plugyes



Drivers airbagyes
Passengers airbagyes
Side airbagyes
Curtain airbagsyes

Children safety

isofix baryes

Active and passive safety

3 point safety beltyes
Safety belt pretensioneryes
Safety belt limiteryes

Electronic security and traffic control systems

Electronic Brake Distributionyes
Break assistyes
Cruise controlyes



Air conditioneryes
Automatic air conditioningyes
Air filteryes

Audio systems

CD playeryes
Hands freeyes
Additional sound equipment2-DIN audio system: AM-FM, CD, AUX, USB, Ipod, 6 speakers, antenna

Additional amenities

Anti-glare effectyes
Mirrors in sunshieldsyes
Onboard computeryes
LightLight bulb in the center of the cabin with delayed switch-off function, two lamps for driver and passenger in overhead console with delayed switch-off function

Car safety

Alarm systemyes

Driver Kit

Spare tireyes

2017 Isuzu D-MAX II RT85 2.5 MT Arctic Trucks AT35 (163 Hp) specs
