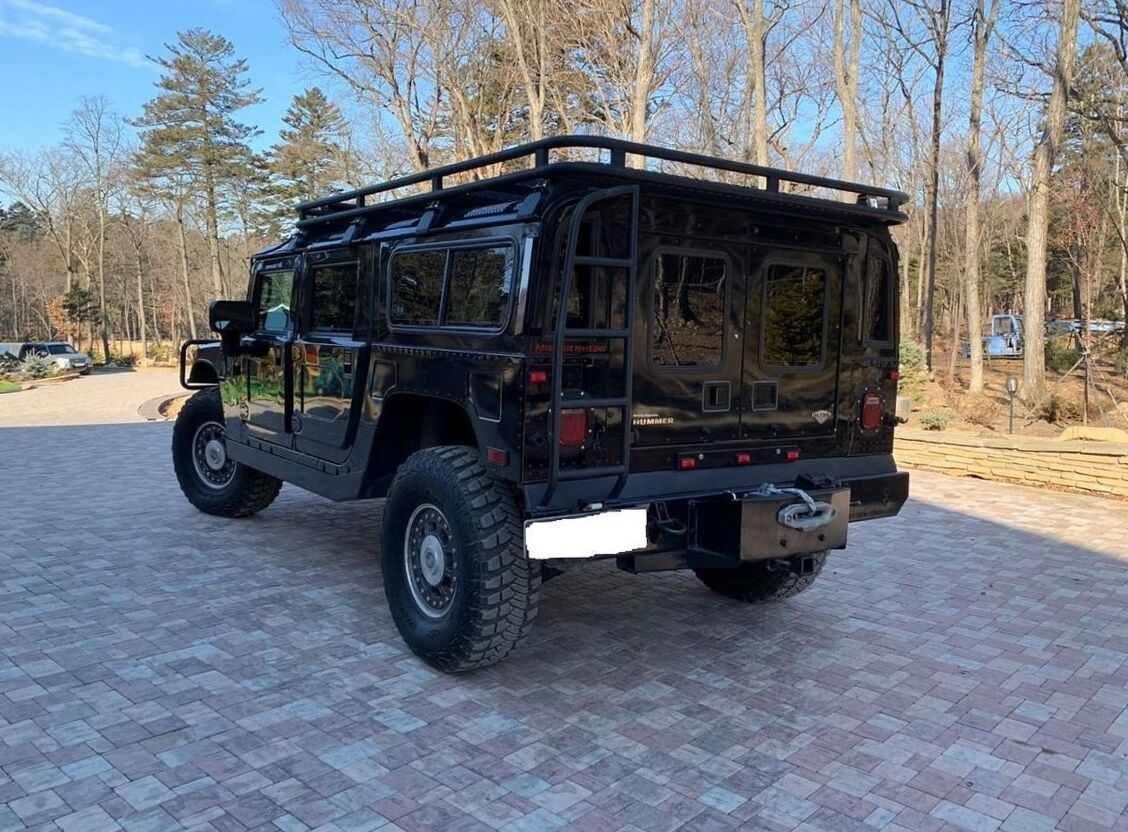

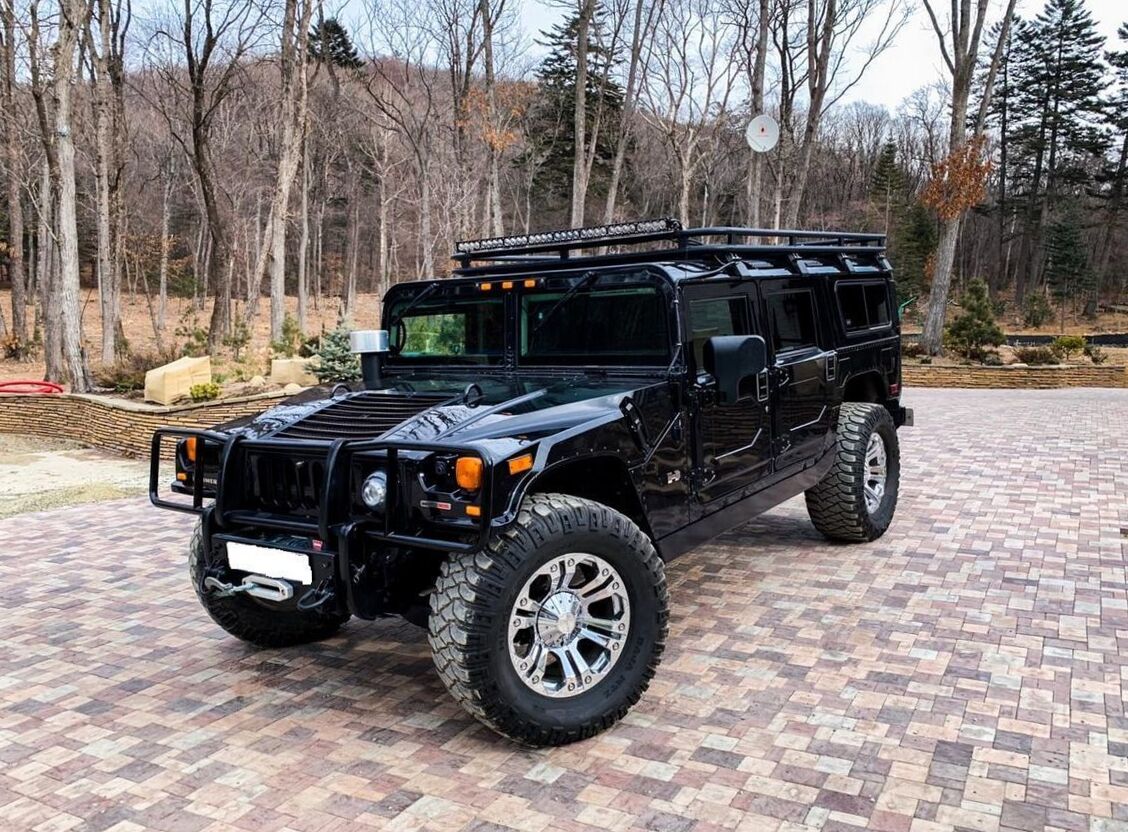

2005 Hummer H1 ALPHA 6.6 TD AT Wagon Alpha


2005 Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
2005 H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
2005 Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
2005 H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
2005 Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
2005 H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
2005 Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
2005 H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
2005 Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)
H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp)

More photos of Hummer H1 ALPHA

Body typeSUV
Power300 Hp
Engine Displacement6600 cm3 or 6.6L or 402.7 cu-in
Colorblack
Transmission GearboxAutomatic
Fuel TypeDiesel
Drive wheel4WD
Mileage30641 Miles
Vin137PH84376E****15
Price (out of date)$109661

Frequently Asked Questions

What is the body type, Hummer H1 ALPHA SUV 2005?SUV, 4 Seats, 5 Doors
What is the fuel economy, Hummer H1 ALPHA HMCS 2005?22 l/100 km
How fast is the car, 2005 Hummer H1 ALPHA 6.6 TD AT Wagon Alpha?134 km/h, 0-100 km/h: 18 sec
How much power, Hummer H1 ALPHA 2005 SUV 6.6 TD AT Wagon Alpha (300 Hp)?300 Hp
What is the engine size, 2005 Hummer H1 ALPHA SUV 6.6 TD AT Wagon Alpha (300 Hp)?6.6L or 6619cm3
How many gears, What type is the gearbox, Hummer H1 ALPHA SUV 2005?Automatic transmission 5
What is the drivetrain, Hummer H1 ALPHA HMCS 2005?All wheel drive (4x4)
How long is this vehicle, 2005 Hummer H1 ALPHA 6.6 TD AT Wagon Alpha?4686 mm
How wide is the vehicle, Hummer H1 ALPHA 2005 SUV 6.6 TD AT Wagon Alpha (300 Hp)?2197 mm
What is the gross weigh, 2005 Hummer H1 ALPHA SUV 6.6 TD AT Wagon Alpha (300 Hp)?4100 kg

Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp) 2005, 2006 Specs

General information

Complectation name6.6 TD AT Wagon Alpha
Production start year2005
Production end year2006
Drive typeAll wheel drive (4x4)
Frame typeSUV
Transmission typeAutomatic transmission 5
Engine volume, cc6619
Frame nameHMCS
0 to 100 time18
Max speed134
Clearance, mm406
Manufacturing countryUSA
Doors5

Engine, transmission and steering specs

Engine specs

Engine nameDuramax-6600
FuelDiesel
Engine typeV8
Has turboyes
Turbo typeTurbine
Max power, hp300
Max power RPM, rpm3000
Max power, hp (kWt) / rpm300 (221) / 3000
Max torque, N*m705
Max torque RPM, rpm1600
Max torque, N*m (kg*m) / rpm705 (72) / 1600
Valves per cylinder2
Compression ratio17
Bore, mm103
Stroke, mm98.9

Fuel consumption

Combined22

Steering

Power steeringyes

Dimensions

Frame dimensions

Exterior length, mm4686
Exterior width, mm2197
Exterior height, mm1955

Interior dimensions

Capacity4
Seat rows2

Chassis dimensions

Wheel base, mm3302
Turning radius, m8.1
Wheel spacing front1819
Wheel spacing rear1819

Weight and permissible load

Mass, kg3680
Max capacity991
Max. weight4100

Volumes

Fuel tank capacity, l95

Suspension specs

Suspension specs

Front suspensionIndependent on double wishbones
Rear suspensionIndependent on double wishbones

Wheel rims

Aluminium wheelyes

Tires

Front wheels320/80 R17
Rear wheels320/80 R17
Run flat tiresyes

Brakes

Front brakeDiscs
Rear brakeDiscs

Exterior

Headlights

Halogen headlightsyes

Roof

Soft topyes

Interior

Interior design

Cloth upholsteryyes
Leather upholsteryno

Electric interior package

Front seat heaterno
Centralized door lockyes
Power window frontyes
Power window rearyes

Safety

Electronic security and traffic control systems

ABSyes
Cruise controlno

Amenity

Microclimate

Air conditioneryes

Audio systems

Radioyes


2005 Hummer H1 ALPHA HMCS 6.6 TD AT Wagon Alpha (300 Hp) specs

The Hummer H1 is a civilian off-road vehicle based on the M998 High Mobility Multipurpose Wheeled Vehicle (HMMWV, or Humvee), which was created by AM General. The vehicle was produced from 1992 through 2006, and was the first of what became the Hummer line.


Originally released in the civilian market in 1992, the Hummer H1 owed its birth to the popularity of photos from Operation Desert Storm and the enthusiastic campaign from actor Arnold Schwarzenegger, who personally owns several variants of Hummer vehicles. GM announced that 2006 would be the last model year for the Hummer H1, with production winding down in June 2006 due to a new emission law for Diesel engine vehicles which took effect in 2007.

Due to the requirement to meet EPA Tier 2 Bin 5 emissions standards, the cost involving recertification for a low volume civilian variant vehicle was not able to be justified. AM General currently has orders for an excess of 50,000 new HMMWVs to be produced between 2006-2009 for the United States Military. AM General also will continue to produce the H1, just not the Alpha. These vehicles will be sold through fleet sales.

Selling the H1s to friendly foreign governments and US organizations with emissions exemptions will allow AM General to not be subjected to the new 2007 Tier 2 Bin 5 emission rules and regulations. AM General has sufficient fleet orders to produce 600-800 units per year right now. The fleet H1s will end up using the standard 6.5L Turbo Diesel that has been commonplace in GM and commercial applications.
