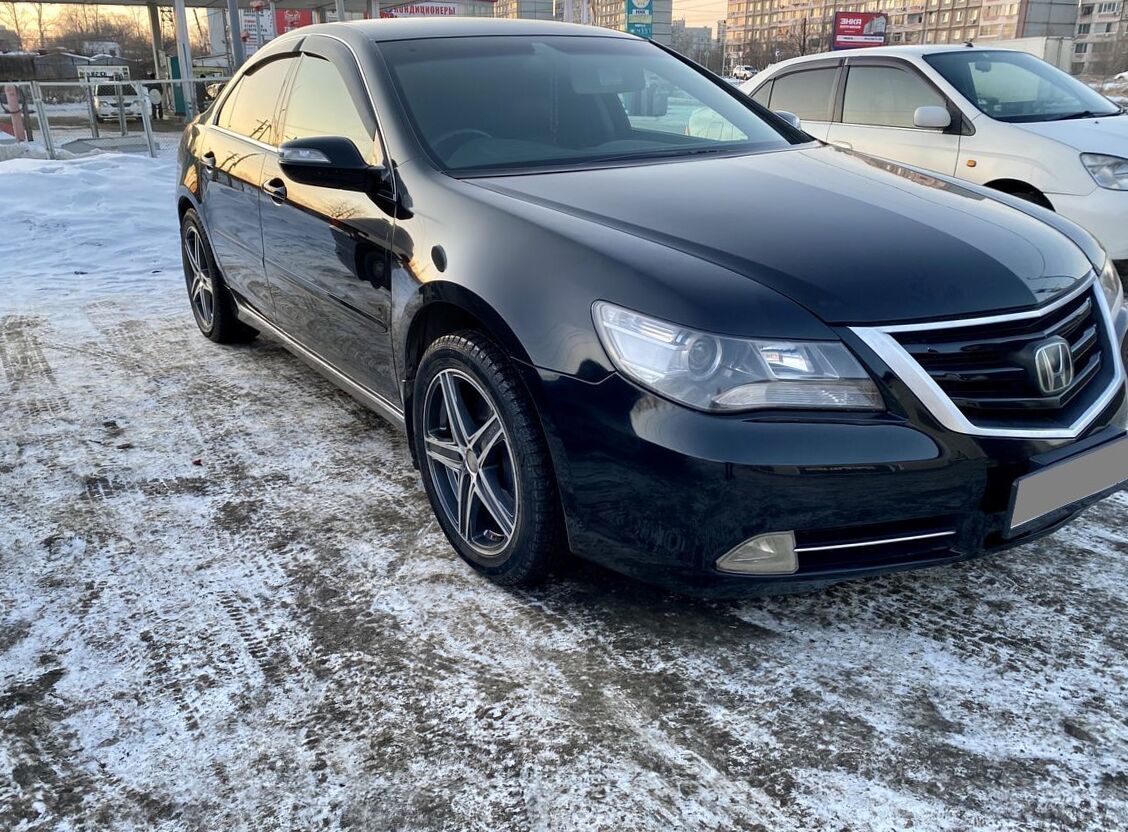

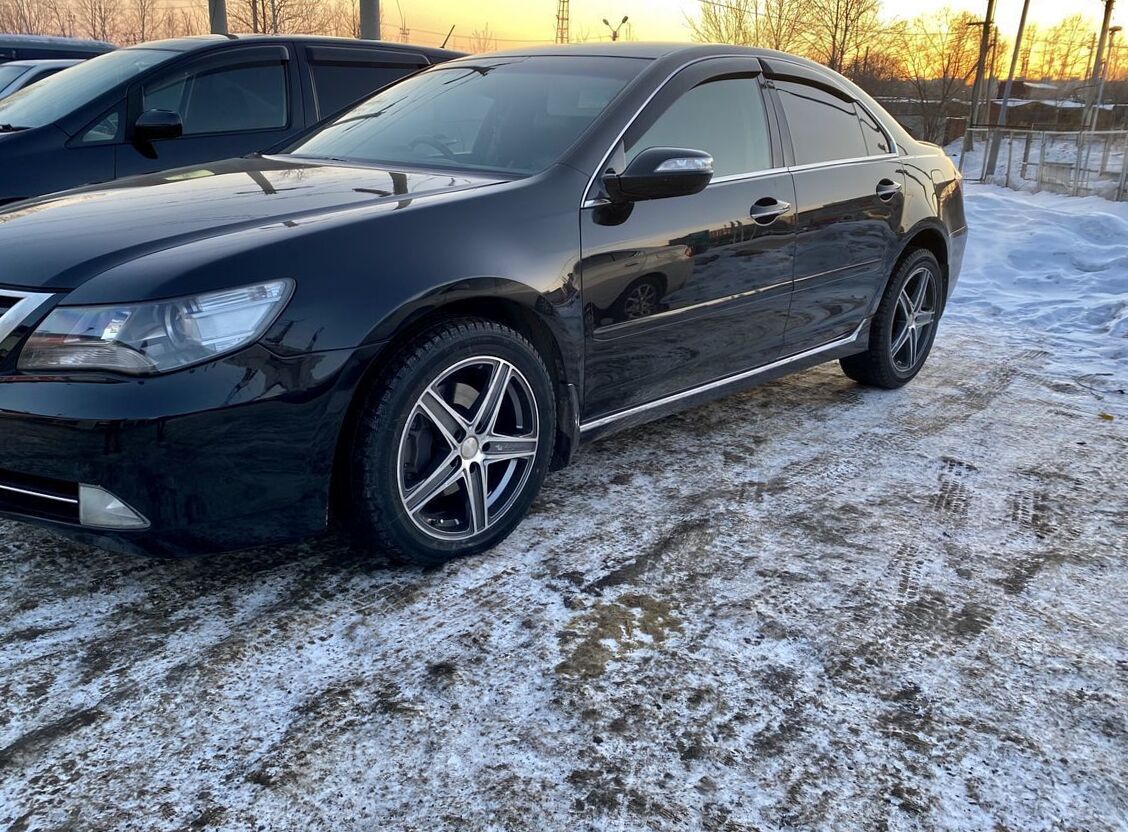

2009 Honda Legend IV 3.7 L 4WD
Honda Legend Problems
Éngine c35a5
2000, I need a complete engine of Honda Legend
manifactured in 2000. My engine is broken becau...
Timig chain problem
1992, i am find it difficult to set the timing
chain of the vehicle, i loosed the engine and i...
High fuel consumption
1993, The car has a problem of high fuel
consumption...
Body type | Sedan |
---|---|
Power | 309 Hp |
Engine Displacement | 3700 cm3 or 3.7L or 225.7 cu-in |
Color | black |
Transmission Gearbox | Automatic |
Fuel Type | Gasoline |
Drive wheel | 4WD |
Mileage | 102526 Miles |
Vin | KB21****37 |
Price (out of date) | $15125 |
Frequently Asked Questions | |
---|---|
What is the body type, 2009 Honda Legend IV? | Sedan, 5 Seats, 4 Doors |
How much power, Honda Legend Sedan 2009? | 309 Hp |
What is the engine size, Honda Legend DBA-KB2 2009? | 3.7L or 3664cm3 |
How many gears, What type is the gearbox, 2009 Honda Legend 3.7 L 4WD? | Automatic transmission 5 |
What is the drivetrain, Honda Legend IV 2009 Sedan 3.7 L 4WD (309 Hp)? | All wheel drive (4x4) |
How long is this vehicle, 2009 Honda Legend Sedan 3.7 L 4WD (309 Hp)? | 4985 mm |
How wide is the vehicle, 2009 Honda Legend IV? | 1845 mm |
Honda Legend IV DBA-KB2 3.7 L 4WD (309 Hp) 2008, 2009, 2010 Specs
General information | |
---|---|
Production start year | 2008 |
Production end year | 2010 |
Drive type | All wheel drive (4x4) |
Frame type | Sedan |
Transmission type | Automatic transmission 5 |
Engine volume, cc | 3664 |
Frame name | DBA-KB2 |
Clearance, mm | 145 |
Manufacturing country | Japan |
Doors | 4 |
Winter complectation | yes |
Steering locaton | right |
Engine, transmission and steering specs | |
Engine specs | |
Engine name | J37A |
Fuel | High octane premium gasoline |
Engine type | V6 |
Has turbo | no |
Max power, hp | 309 |
Max power RPM, rpm | 6300 |
Max power, hp (kWt) / rpm | 309(227)/6300 |
Max torque, N*m | 370 |
Max torque RPM, rpm | 5000 |
Max torque, N*m (kg*m) / rpm | 370 (37.7) / 5000 |
Actuator valves | SOHC |
Variable cylinder system | no |
Max power, kw (ps) / rpm | 227?309?/6300 |
Max torque, N*m (kg*m) / rpm (carsensor) | 370?37.7?/5000 |
Start stop system | no |
Fuel consumption | |
Fuel consumption (10/15 mode), km/l | 8.5 |
Fuel consumption (10/15 mode), l/100km | 11.8 |
Transmission | |

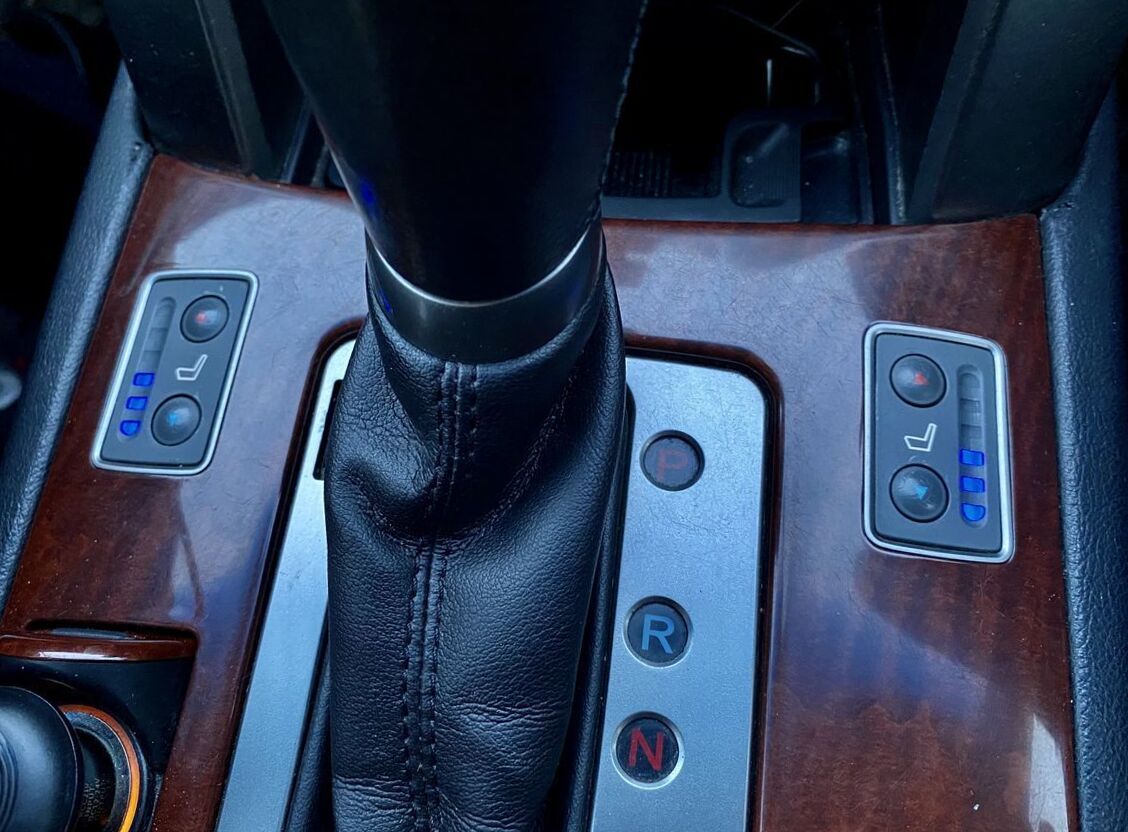

Shifter position | On the floor. |
Steering | |
Power steering | yes |
Electric power steering | option |
Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
Exterior length, mm | 4985 |
Exterior width, mm | 1845 |
Exterior height, mm | 1455 |
Exterior size (L x W x H), mm | 4985x1845x1455?mm? |
Interior dimensions | |
Capacity | 5 |
Seat rows | 2 |
Interior size (L x W x H), mm | 2025x1515x1185?mm? |
Interior length, mm | 2025 |
Interior width, mm | 1515 |
Interior height, mm | 1185 |
Chassis dimensions | |
Wheel base, mm | 2800 |
Front axle length, mm | 1575 |
Rear axle length, mm | 1585 |
Turning radius, m | 5.8 |
Front/rear axis length | 1575/1585?mm? |
Wheel spacing front | 1575 |
Wheel spacing rear | 1585 |
Weight and permissible load | |
Mass, kg | 1840 |
Volumes | |
Fuel tank capacity, l | 73 |
Suspension specs | |
Suspension specs | |
Front suspension | Independent on double wishbones |
Rear suspension | Independent, spring multi-link |
Sport suspension | no |
Low down | no |
Air suspension | no |
Cenral diff lock | no |
LSD | no |
4ws | no |
Wheel rims | |
Aluminium wheel | yes |
Magnesium wheels | no |
Tires | |
Front wheels | 235/50R17 |
Rear wheels | 235/50R17 |
Run flat tires | no |
Brakes | |
Front brake | Ventilated discs |
Rear brake | Ventilated discs |
Brakes equipment | no |
Exterior | |
Headlights | |
Xenon lamps | yes |
Head lights washer | no |
Front fog lamps | yes |
Rear fog lamps | no |
Rain sensor | yes |
Side mirrors | |
autocorrected mirrors | yes |
Doors | |
Side sliding door | no |
Sliding doors | no |
Sliding electric door | no |
Sliding electric doors | no |
Door easy closer | no |
Power rear door | no |
Windows | |
Privacy glass | no |
Ultraviolet glass protection | yes |
Roof | |
Sunroof | option |
Big sunroof | no |
T bar roof | no |
Roof equipment | no |
Targa roof | no |
Hard top | no |
Soft top | no |
Metal top | no |
Canvas top | no |
Accessories | |
Roof rail | no |
Front spoiler | no |
Rear spoiler | no |
Body color | |
Colors | 3083 2501 3082 |
Interior | |
Steering wheel and center panel | |
Engine start button | yes |
Interior design | |
Water-repellent | no |
Leather seat | yes |
Antibacterial repellent | no |
Seats | |
Bucket seat | no |
Seat lifter | yes |
Full flat seats | no |
Removable seats | no |
Ottoman seat | no |
Front bench seat | no |
Walk throught | no |
2nd row throught | no |
Electric interior package | |
Power adjustable driver seat | yes |
Power ajustable front seat | yes |
Adjustable 3rd row | no |

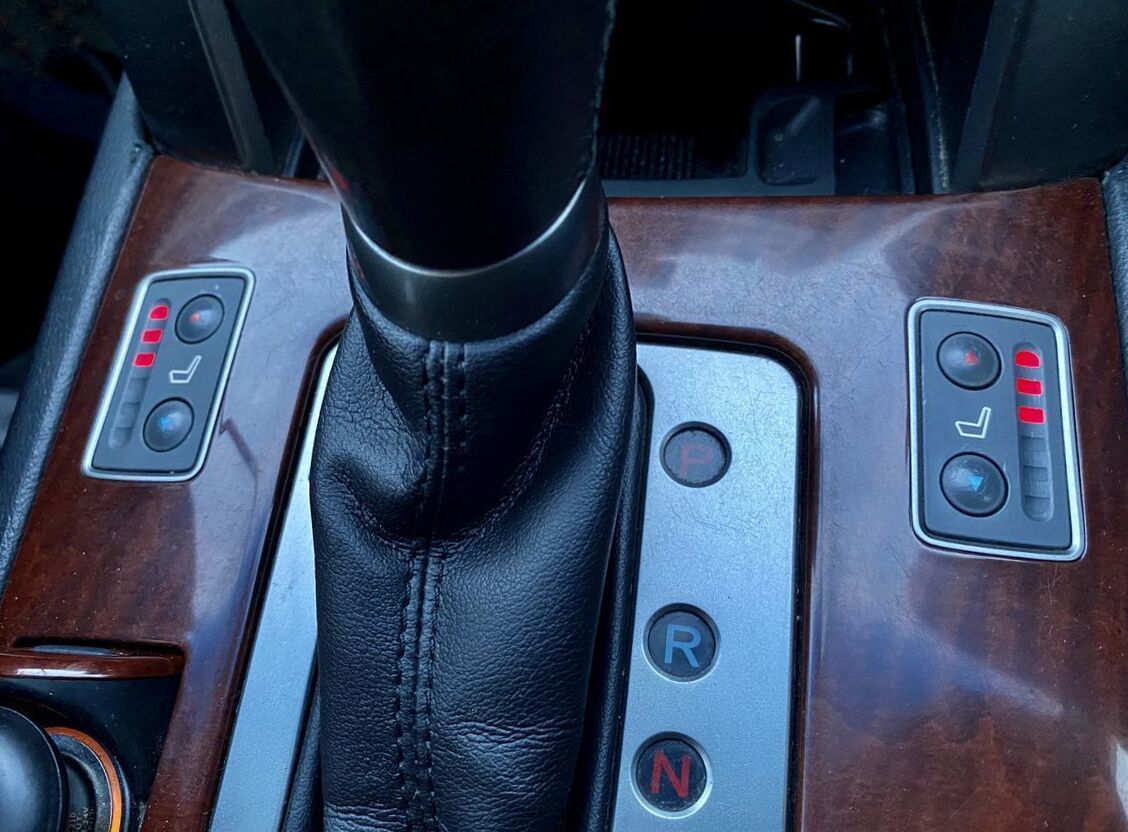

Front seat heater | yes |

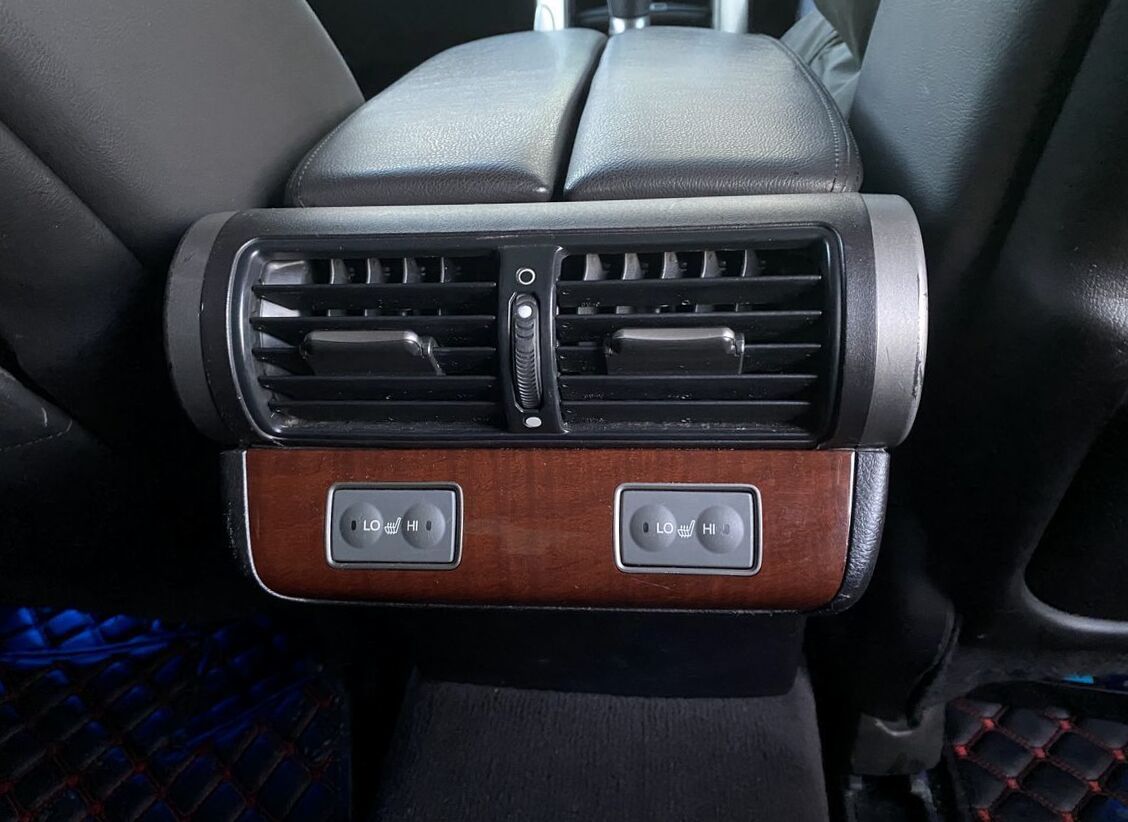

Rear seats heater | yes |
Seat position memory | yes |
Keyless enter | yes |
Power window | yes |
Stearing wheel heater | no |
Additional interior equipment | |
AC plug | no |
Safety | |
Airbags | |
Drivers airbag | yes |
Passengers airbag | yes |
Side airbag | yes |
Curtain airbags | yes |
2 airbags | no |
Children safety | |
isofix bar | yes |
Build-in child seat | no |
Active and passive safety | |
Active headrest | yes |
Road Service | QQ call (standard) |
Electronic security and traffic control systems | |
ABS | yes |
Break assist | yes |
Down hill assist | no |
AYC | no |
SH-4WD | yes |
Lane Keep Assist | no |
Cruise control | yes |
Distance control system | no |
Intelligent AFS | yes |
Night vision | no |
Parktronic | no |
Intelligent parking assist | no |
Collision mitigation system | no |
Amenity | |
Microclimate | |
Air conditioner | yes |
Air purifier | no |
Humidifier | no |
Air filter | yes |
Odor absorber | no |
Audio systems | |
Radio | yes |
Autoreverse casette | no |
CD player | yes |
DVD-audio | yes |
MD palyer | no |
Audio HDD | yes |
Speaker | yes |
Rear entertainment system | no |
Navigation and video equipment | |
Full color LCD display | yes |

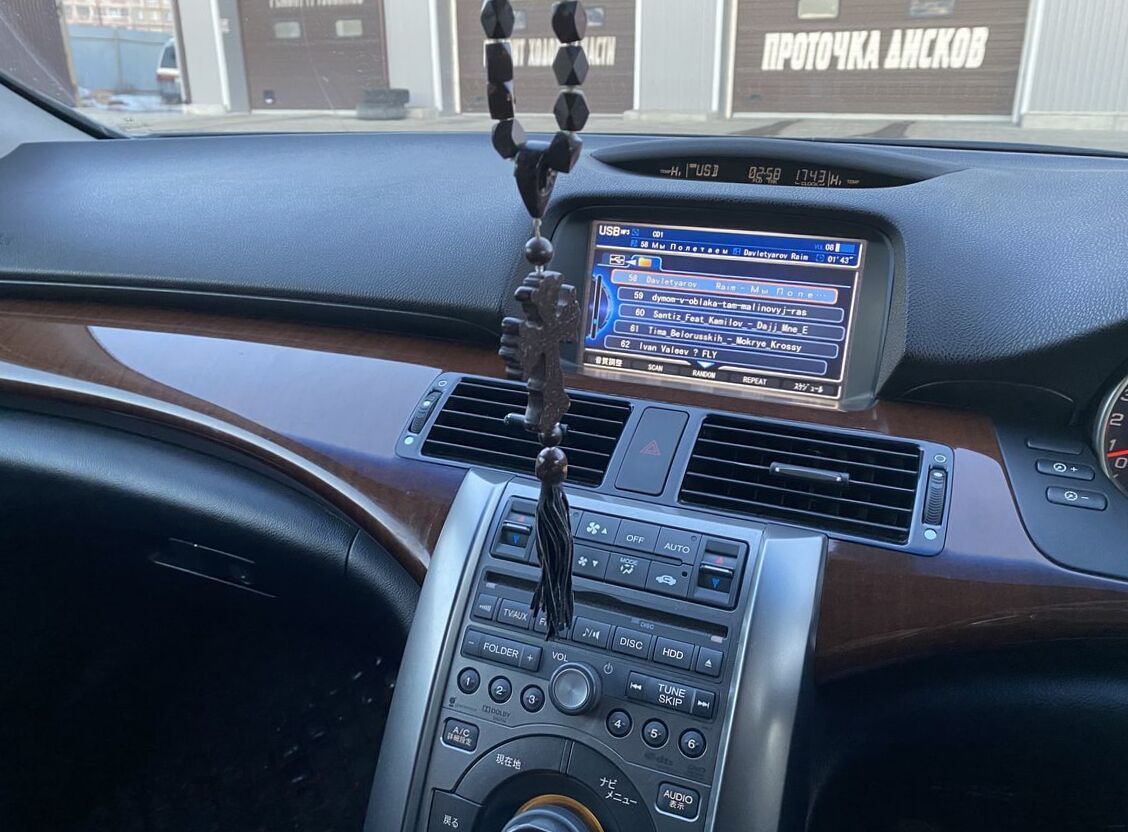

Navigation system | yes |
Optional navigation system | no |
Parking assist system | yes |
Front monitor | no |
Sides monitors | no |
Back monitor | yes |
Additional amenities | |
Lagage box | no |
Etc | yes |
Car safety | |
Alarm system | yes |
Security alarm | yes |
2009 Honda Legend IV DBA-KB2 3.7 L 4WD (309 Hp) specs
|
The Legend was initially a four-door sedan, with a two-door coupĂ© added later. It was the model which launched Honda's upscale Acura brand in the United States. Honda was inspired by the word "legend" to create the first Honda vehicle with a V6. The first and second-generation Honda Legend was known as the Acura Legend in North American markets from 1986-1995, and in 1996 the third-generation was renamed as the Acura RL, while the Legend name is still used in Japan and other markets. Honda introduced the Legend as a flagship sedan to compete with the JDM Nissan Cedric and Nissan Gloria twins, the Toyota Crown, and later the Mazda Luce, and Mitsubishi Debonair. Unlike the Nissan twins and the Crown, the Legend is not used for taxi service. In the USA, the Legend competed with larger rear wheel drive V8 sedans Lexus LS and the Infiniti Q45, however, the Legend was marketed towards the slightly smaller Executive car vehicles that include the BMW 5 series, Audi A6, Mercedes-Benz E-Class, and the Jaguar S-type. » Read More About Honda Legend |
