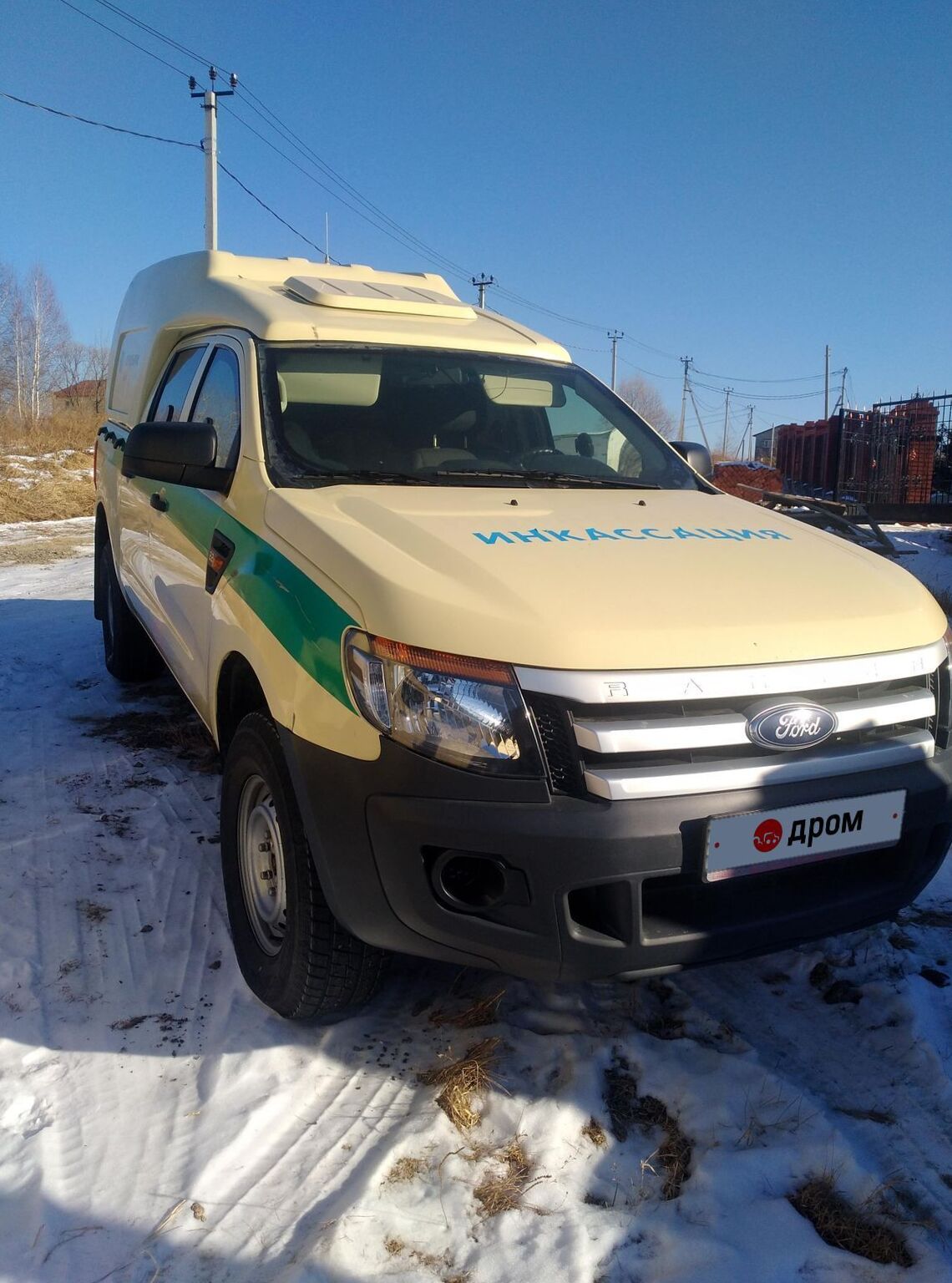

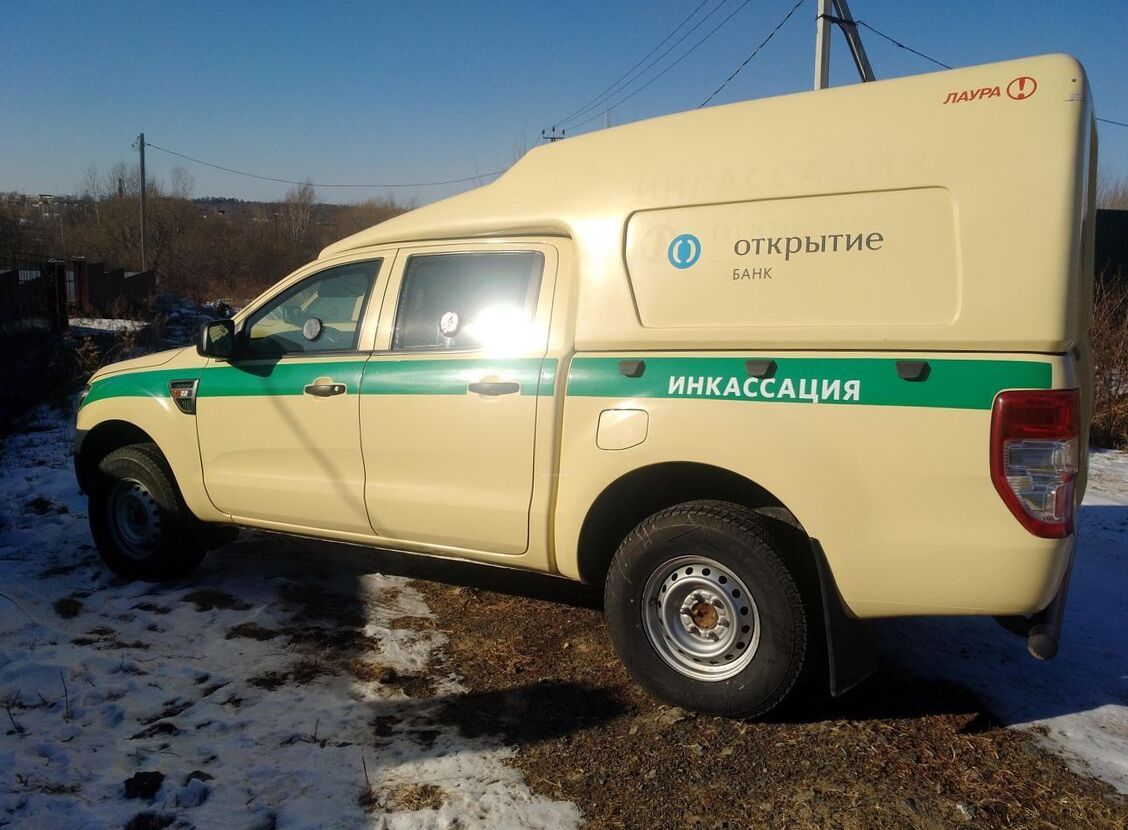

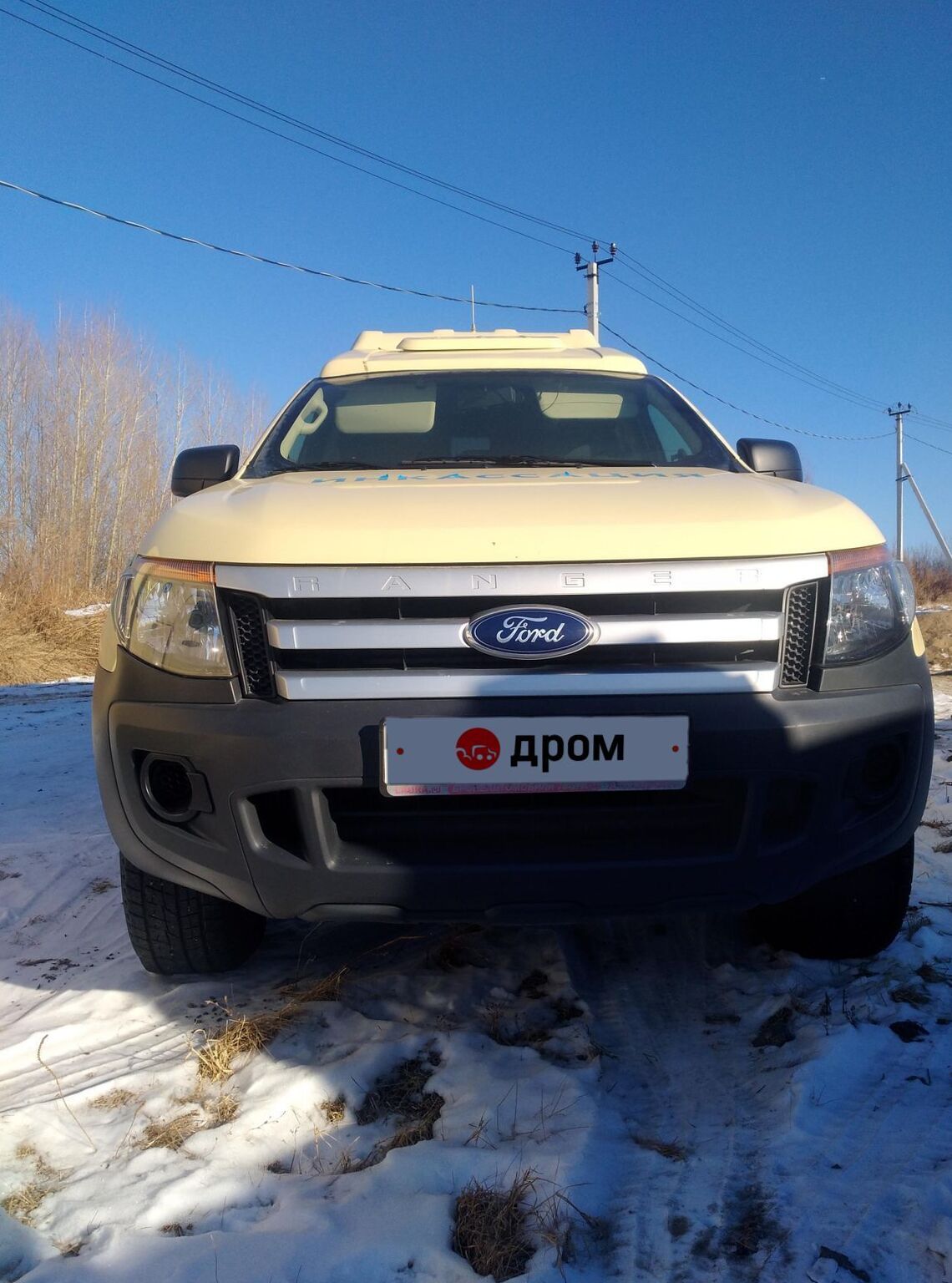

2014 Ford Ranger III 2.2 TDCi MT XL double cab


2014 Ford Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
2014 Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
Ford Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
2014 Ford Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
2014 Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
Ford Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
2014 Ford Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
2014 Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
Ford Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
2014 Ford Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)
2014 Ranger III T6 2.2 TDCi MT XL double cab (150 Hp)

More photos of Ford Ranger

Ford Ranger Problems
Problem finding
2007, Well a red car with a key over it is
flashing and the cluster is dead .and u leave
the e...

Body typePickup
Power150 Hp
Engine Displacement2200 cm3 or 2.2L or 134.2 cu-in
Colorbeige
Transmission GearboxManual
Fuel TypeDiesel
Drive wheel4WD
Mileage42253 Miles
VinXB929B040E0****30
Price (out of date)$12065

Frequently Asked Questions

What is the body type, 2014 Ford Ranger III?Pickup, 5 Seats, 4 Doors
What is the fuel economy, Ford Ranger Pickup 2014?8.5 l/100 km
How fast is the car, Ford Ranger T6 2014?175 km/h, 0-100 km/h: 12.3 sec
How much power, 2014 Ford Ranger 2.2 TDCi MT XL double cab?150 Hp
What is the engine size, Ford Ranger III 2014 Pickup 2.2 TDCi MT XL double cab (150 Hp)?2.2L or 2198cm3
How many gears, What type is the gearbox, 2014 Ford Ranger Pickup 2.2 TDCi MT XL double cab (150 Hp)?6 speed Manual
What is the drivetrain, 2014 Ford Ranger III?All wheel drive (4x4)
How long is this vehicle, Ford Ranger Pickup 2014?5359 mm
How wide is the vehicle, Ford Ranger T6 2014?1850 mm
What is the gross weigh, 2014 Ford Ranger 2.2 TDCi MT XL double cab?3200 kg

Ford Ranger III T6 2.2 TDCi MT XL double cab (150 Hp) 2011, 2012, 2013, 2014, 2015 Specs

General information

Complectation name2.2 TDCi MT XL double cab
Production start year2011
Production end year2015
Drive typeAll wheel drive (4x4)
Frame typePickup

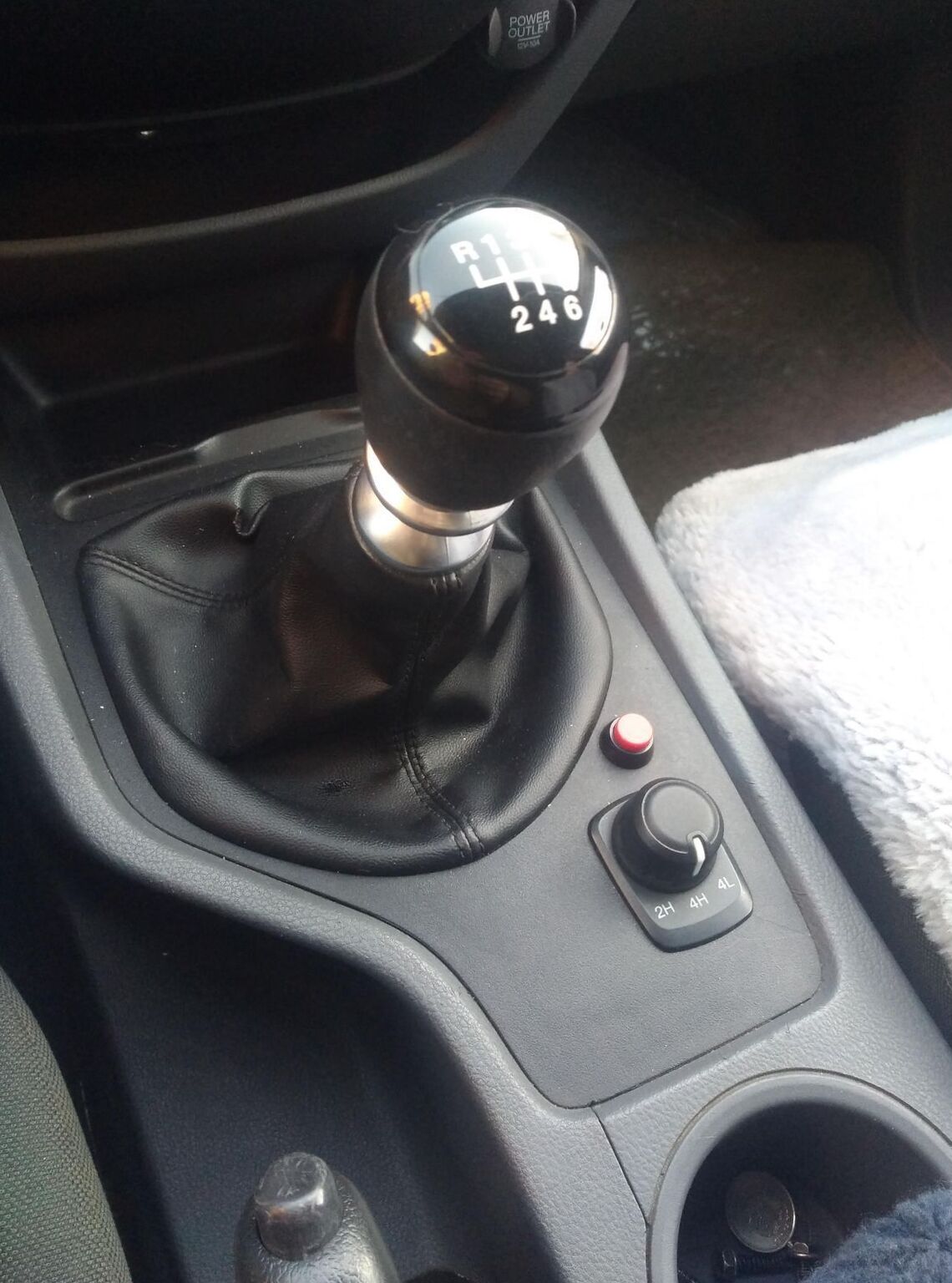

Transmission type6 speed Manual
Engine volume, cc2198
Frame nameT6
0 to 100 time12.3
Max speed175
Clearance, mm229
Manufacturing countryThailand
Doors4
Winter complectationyes
Warranty3 years or 100,000 km of mileage

Engine, transmission and steering specs

Engine specs

Engine nameGBVAJQJ
FuelDiesel
Engine typeIn-line, 4-cylinder
Has turbono
Max power, hp150
Max power RPM, rpm3700
Max power, hp (kWt) / rpm150 (110) / 3700
Max torque, N*m375
Max torque RPM, rpm1500
Max torque, N*m (kg*m) / rpm375 (38) / 1500
Valves per cylinder4

Fuel consumption

City10.1
Country side7.7
Combined8.5

Steering

Power steeringyes

Dimensions

Frame dimensions

Exterior length, mm5359
Exterior width, mm1850
Exterior height, mm1815

Interior dimensions

Capacity5
Seat rows2
Cargo Bay
Cargo l1549
Cargo w1560
Cargo h511

Chassis dimensions

Wheel base, mm3220
Turning radius, m6.2
Wheel spacing front1560
Wheel spacing rear1560

Weight and permissible load

Mass, kg2048
Max capacity1152
Max. weight3200
Loading height835
Front axe load1480
Rear axe load1850

Volumes

Fuel tank capacity, l80

Suspension specs

Suspension specs

Front suspensionIndependent on double wishbones
Rear suspensionDependent, spring loaded

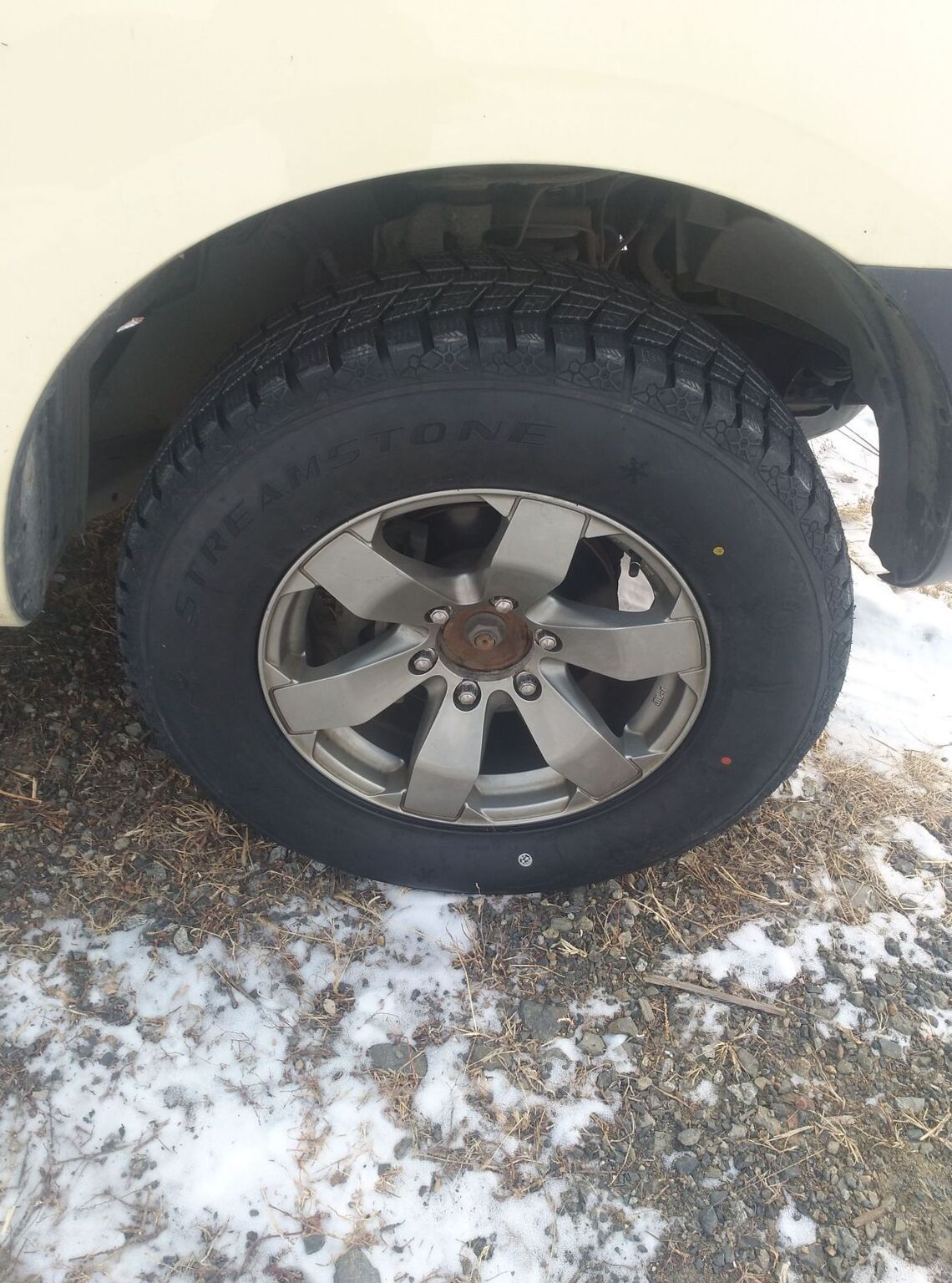

Wheel rims

Aluminium wheelno
Front wheel disk16X7J
Rear wheel disk16X7J

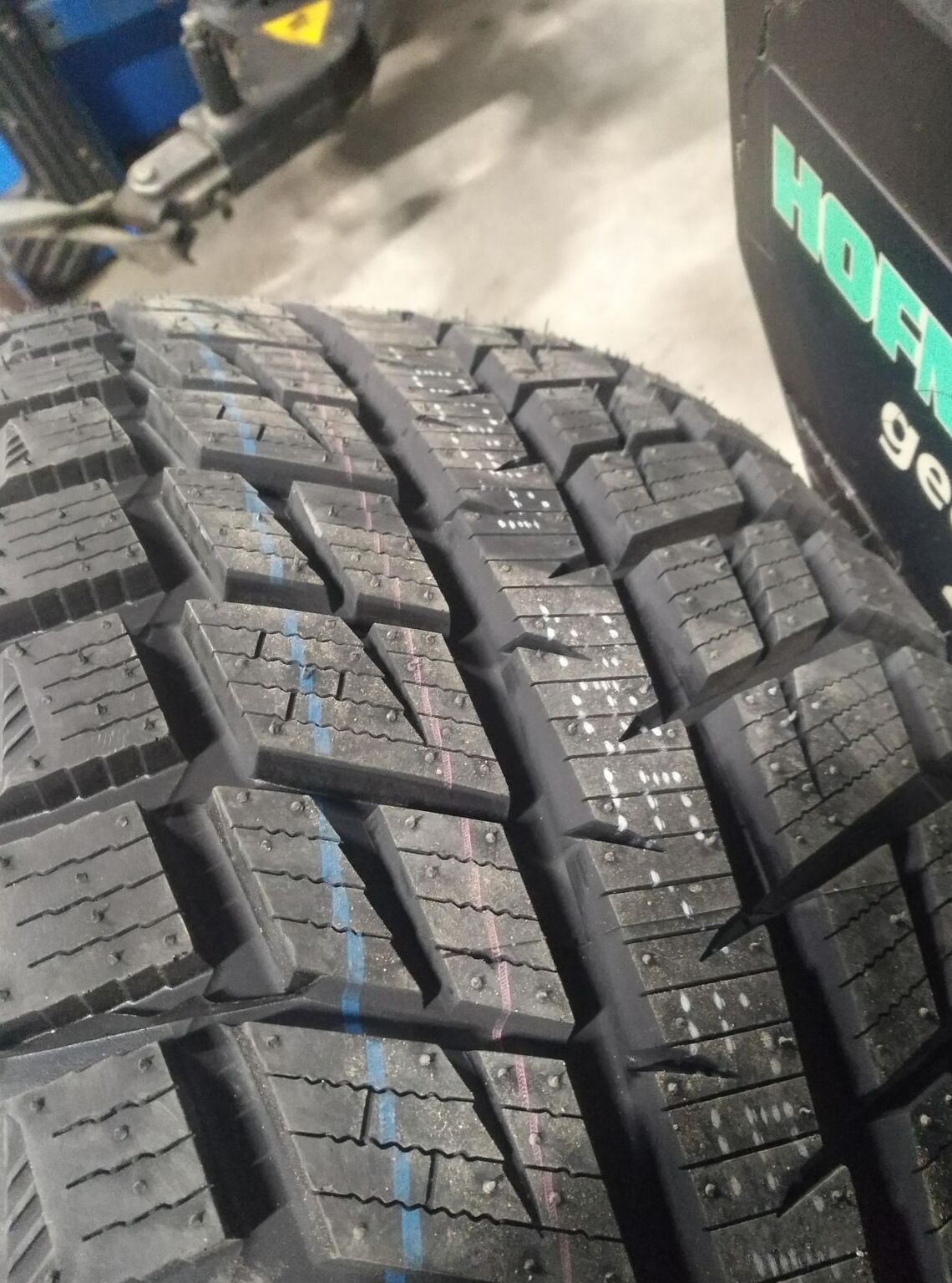

Tires

Front wheels255/70 R16
Rear wheels255/70 R16

Brakes

Front brakeVentilated discs
Rear brakedrum brakes

Exterior

Headlights

Halogen headlightsyes
Front fog lampsno
Rear fog lampsyes
Additional stop lightyes
Light sensorno
Rain sensorno

Side mirrors

Exterior mirrors in body colorno
Side mirrors with repeaters indicatorsno

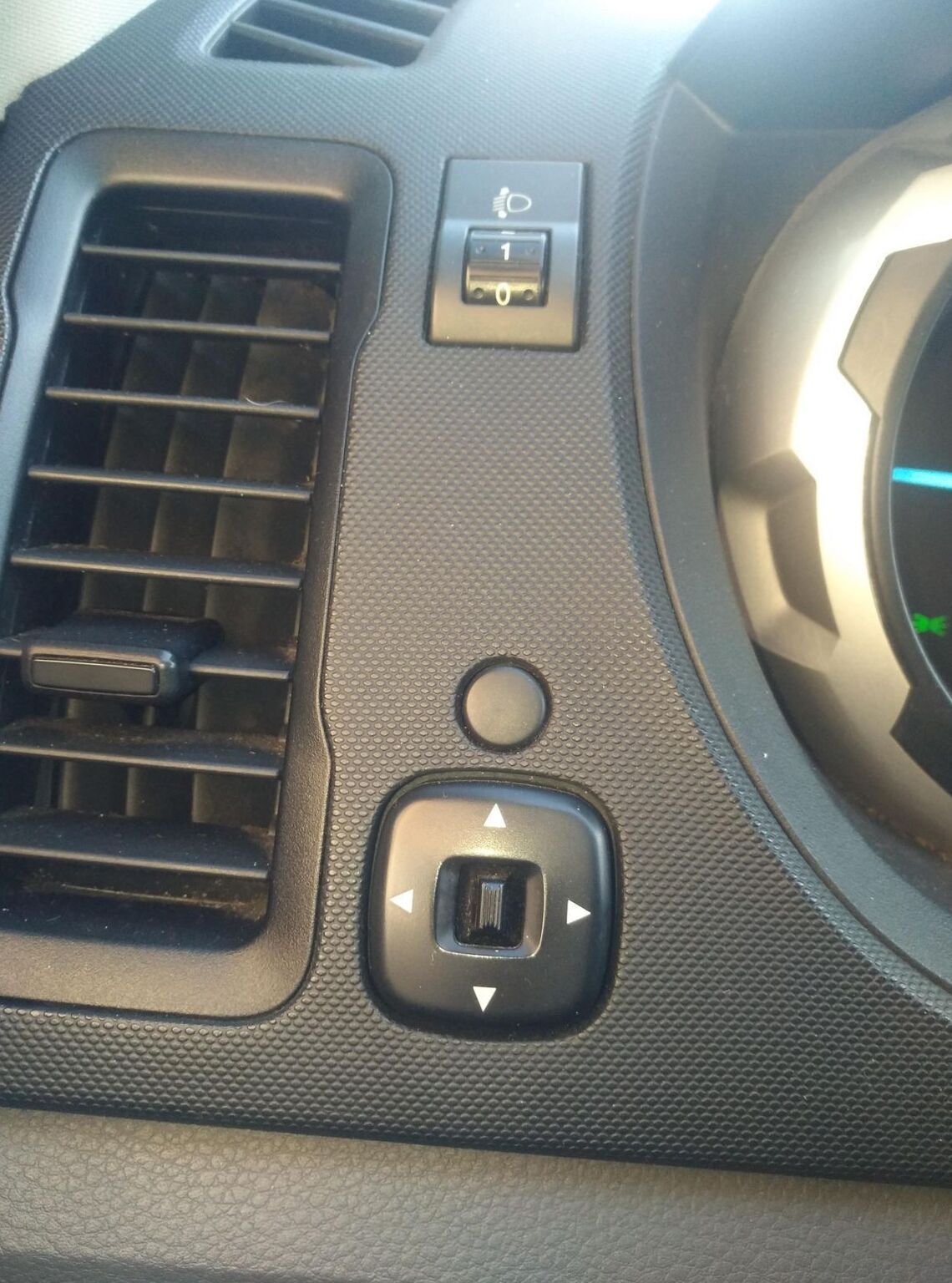

Power adjustable door mirrorsyes
Door mirrors heatingyes

Doors

Door handles in body colorno
Chrome door handlesno

Windows

Privacy glassno
Rear glass heatyes

Accessories

Roof railno
Bumpersunpainted

Body color

Metallic paint Bodyoption

Interior

Steering wheel and center panel

Leather windingno
Telescopic steeringyes
Tilt steeringyes
Audio control on steering wheelyes

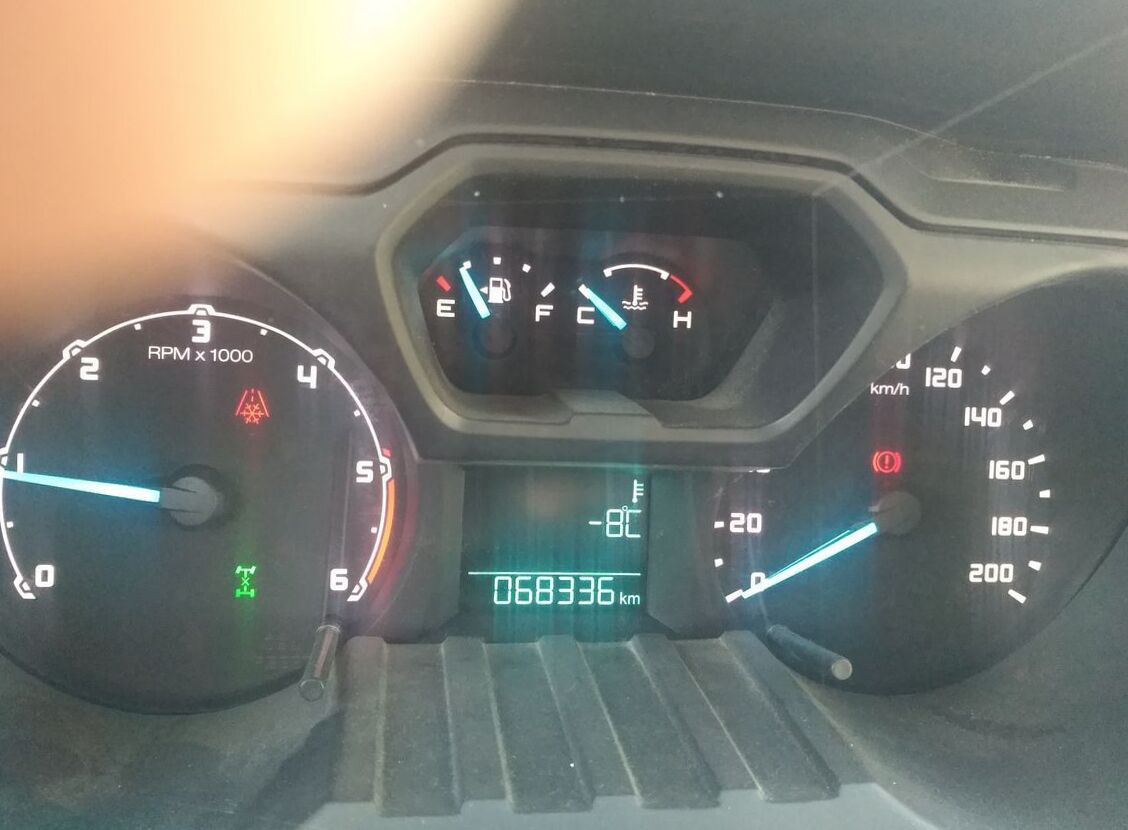

Tachometeryes

Interior design

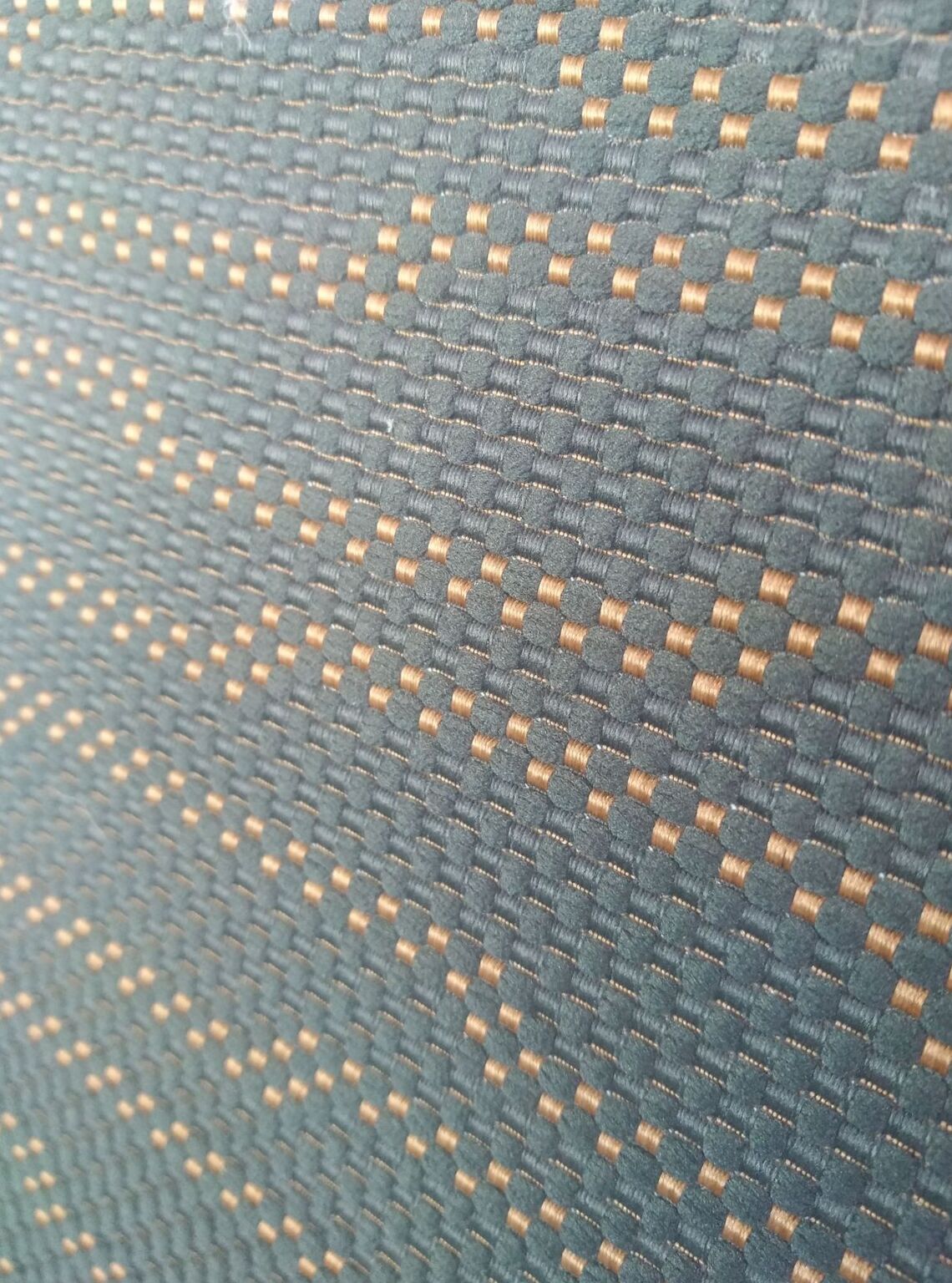

Cloth upholsteryyes
Leather upholsteryno
Combined obivka Salonno

Seats

2nd rowfoldable, backrest is indivisible
Separating armrest frontyes

Electric interior package

Power ajustable front seatno

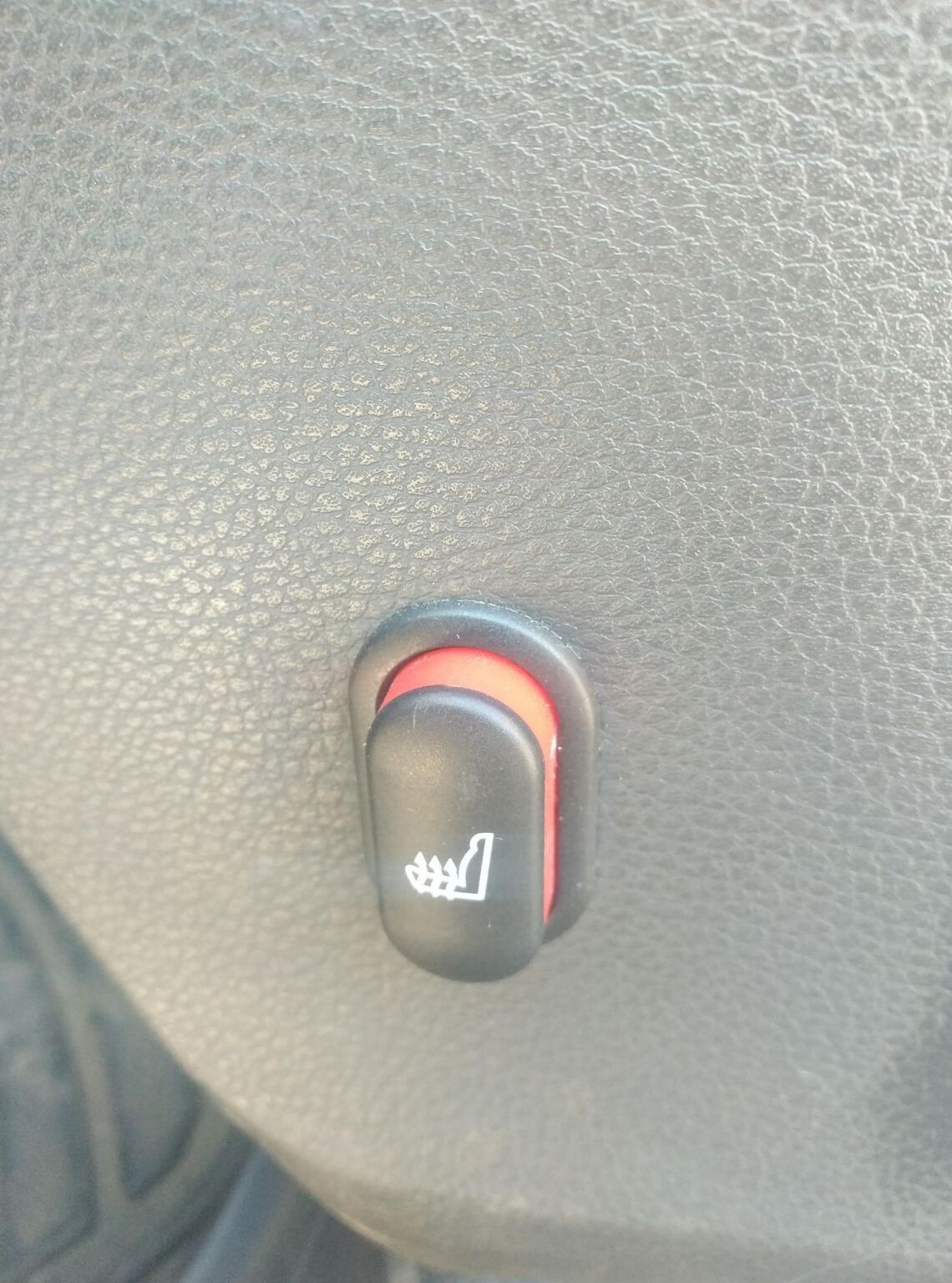

Front seat heateryes
Centralized door lockyes
Power window frontyes
Power window rearyes

Additional interior equipment

Cooled gloveboxoption

Safety

Airbags

Drivers airbagyes
Passengers airbagyes
Side airbagyes
Airbag for the driver's kneesyes

Children safety

isofix baryes

Active and passive safety

Safety belt pretensioneryes

Electronic security and traffic control systems

ABSyes
Electronic Brake Distributionyes
Break assistyes
Automatic activation of alarm in emergency brakingyes
ESPyes
Down hill assistyes
Hill-start assist control systemyes
Cruise controlno
Autolock doorsyes
Parktronicno

Amenity

Microclimate

Air conditioneroption
Automatic air conditioningno

Audio systems

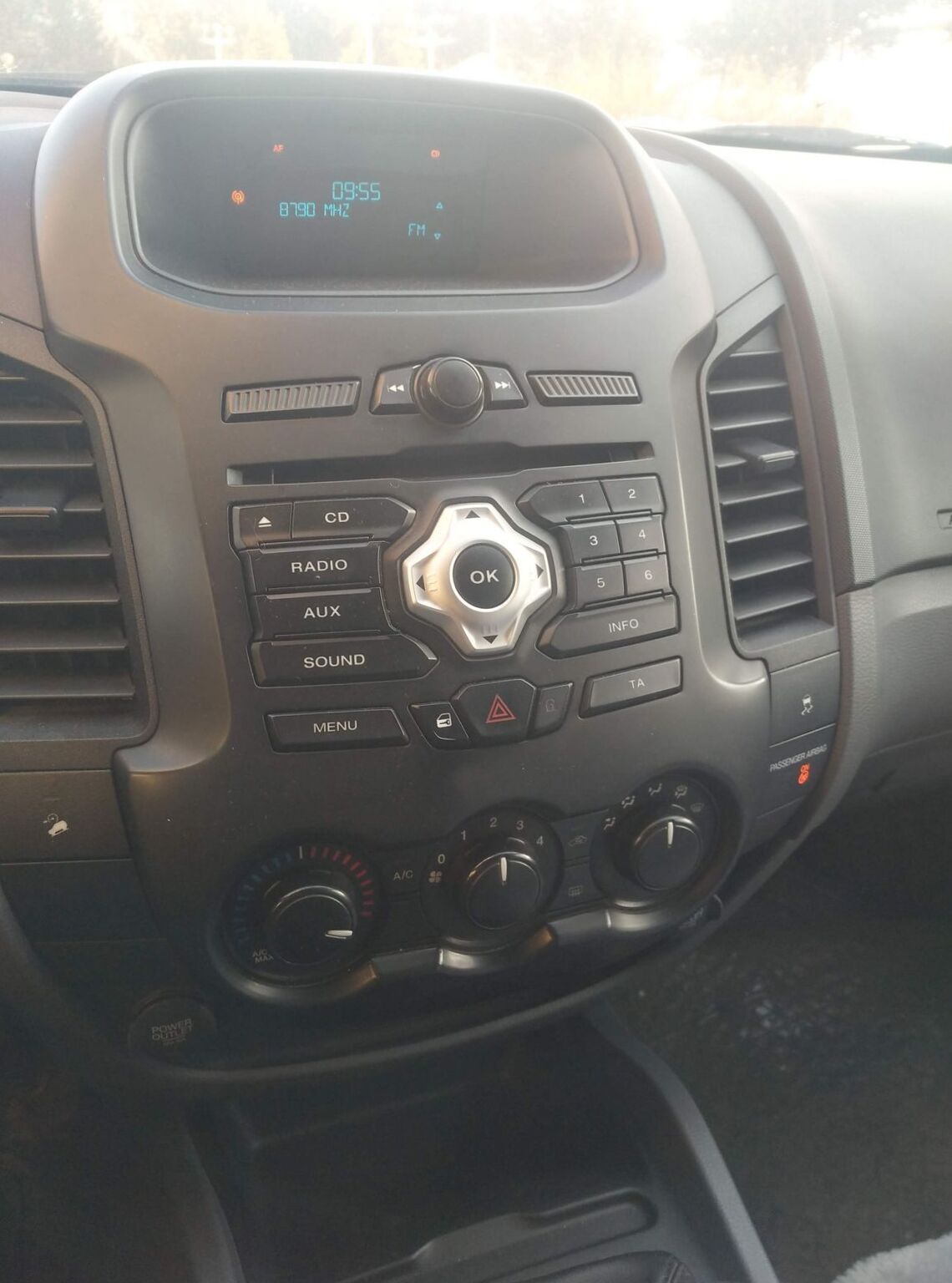

Radioyes
CD playeryes
MP3 Supportyes
Hands freeno
Additional sound equipment4 speakers, AUX

Navigation and video equipment

Full color LCD displayno
Navigation systemno
Back monitorno

Additional amenities

Antidazzle rearview mirrorno
Onboard computeryes

Car safety

Immobilizeryes
Security alarmno
Bolt-cardoption

Driver Kit

Spare tireyes


The Ranger's engine options are; a 119-hp inline-four, a V-6 with 150-hp, or a 160-horsepower 4.0-liter. They are all available in 2 or 4 wheel drive and manual or automatic transmissions. ABS is optional.

2014 Ford Ranger III T6 2.2 TDCi MT XL double cab (150 Hp) specs

Ford Ranger is a name used on two distinct compact pickup truck lines by the Ford Motor Company and by a marketing arrangement with Mazda.

  • A Ford-designed compact pickup truck, which is sold and manufactured in North America as well as Brazil, Chile and Argentina. It is also currently marketed as the Mazda B-Series (North America) by Mazda dealers. In North America it is built in St. Paul, Minnesota.
  • A Mazda-designed compact pickup known as Mazda B-Series (International)) sold in more than 130 countries, and also sold with a Ford Ranger nameplate.

The use of four-wheel drive in light trucks and the Ranger name began in May 1950 when Marmon-Herrington announced a four-wheel drive conversion of a Ford Panel truck with windows cut into it. In 1965, the name "Ranger" was first introduced as a premium styling package for the Ford F-Series full-sized pickup trucks. The name was taken in 1982 for the line of North American compact trucks introduced in mid-1982 as an early 1983 model to replace the Toyo Kogyo (Mazda)-built Ford Courier.


In North America, the Ranger is Ford's compact pickup truck. The Ranger replaced the Ford Courier, an American version of the Mazda B-Series in a segment largely defined by the Toyota and Datsun pickup trucks. The Ranger was the best-selling compact pickup in America from 1987 to 2004.

The Ranger and related Mazda B-Series are manufactured at Ford's Twin Cities Assembly Plant in Saint Paul, Minnesota, which is now scheduled to close in 2008. They were also assembled in Edison, New Jersey until the plant's closing in 2004. It was reported in 2005 that an all-new Ranger, codenamed P273, was in the works to be introduced by 2010. The P273 was slated to be world pickup, presumably to be merged with the Mazda world pickups. A 2007 Ranger for the Thai market based on the Asian 4Trac concept was unveiled, but it is not scheduled to replace the North American truck. According to a recent article in the Car and Driver, there are three alternatives for Ford: 1) to redesign and continue to build the next generation in North America; 2) to import a smaller version from the plant in Thailand; and 3) to discontinue the Ranger line and exit the compact pickup market in North America. There are rumors that Ford's future product plans in the compact pickup market segment will be announced closer to the end of Ford Ranger production at the Highland Park, Minnesota plant in 2008-2009. There are reports that the plant will be sold and redeveloped once the production is ceased.
