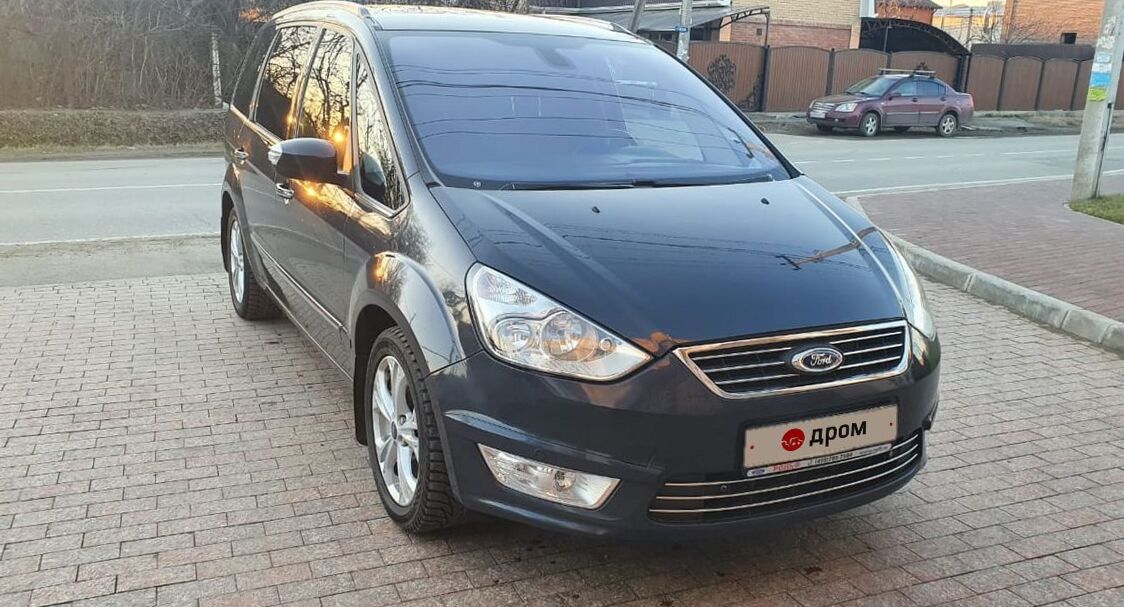

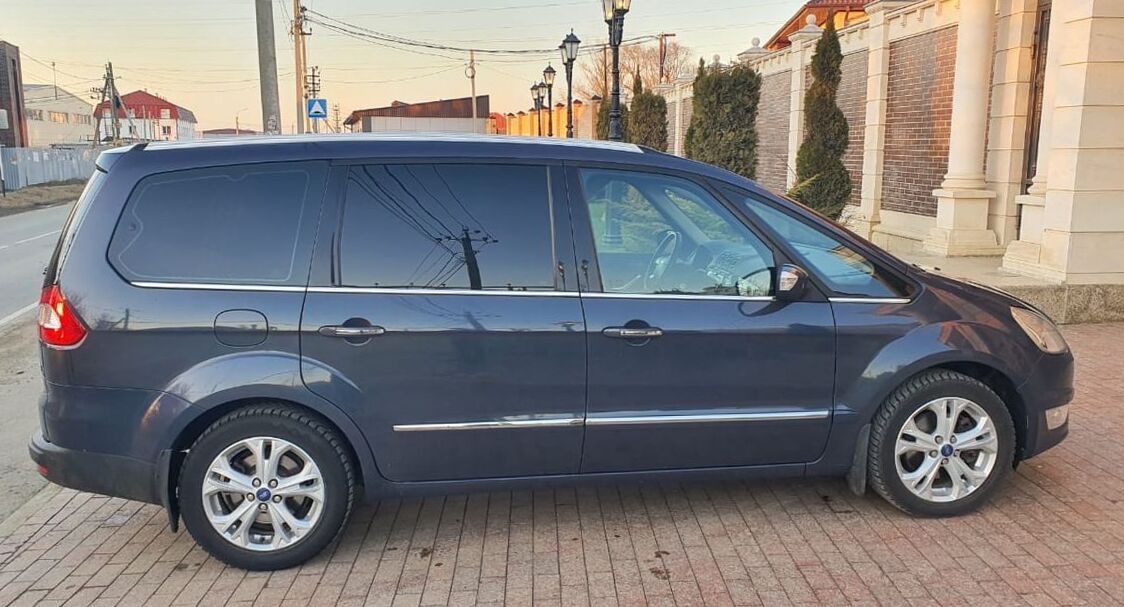

2015 Ford Galaxy II 2.3 AT Trend
More photos of Ford Galaxy
Ford Galaxy Problems
GEAR PROBLEM
1998, My V6 Ford Galaxy has Gearbox problem.
The Gear speed selection is abnormal. It takes
so...
Constant hesitation
1962, i sent heads to machine shop worked
completely new cam and lifters;carb timing set
and a...
AG4 gearbox how much oil should it have to fill
1999, ive replaced the AG4 gearbox on my 1999
ford galaxy zetec automatic, need to know how
mu...
Ford Galaxy Problems
GEAR PROBLEM
1998, My V6 Ford Galaxy has Gearbox problem.
The Gear speed selection is abnormal. It takes
so...
Constant hesitation
1962, i sent heads to machine shop worked
completely new cam and lifters;carb timing set
and a...
AG4 gearbox how much oil should it have to fill
1999, ive replaced the AG4 gearbox on my 1999
ford galaxy zetec automatic, need to know how
mu...
| Body type | Minivan |
|---|---|
| Power | 161 Hp |
| Engine Displacement | 2300 cm3 or 2.3L or 140.3 cu-in |
| Color | gray |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 86991 Miles |
| Vin | 422*** |
| Price (out of date) | $13198 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2015 Ford Galaxy II? | Minivan, 7 Seats, 5 Doors |
| What is the fuel economy, Ford Galaxy Minivan 2015? | 9.8 l/100 km |
| How fast is the car, Ford Galaxy CD340 2015? | 191 km/h, 0-100 km/h: 11.6 sec |
| How much power, 2015 Ford Galaxy 2.3 AT Trend? | 161 Hp |
| What is the engine size, Ford Galaxy II 2015 Minivan 2.3 AT Trend (161 Hp)? | 2.3L or 2261cm3 |
| How many gears, What type is the gearbox, 2015 Ford Galaxy Minivan 2.3 AT Trend (161 Hp)? | Automatic transmission 6 |
| What is the drivetrain, 2015 Ford Galaxy II? | Front |
| How long is this vehicle, Ford Galaxy Minivan 2015? | 4819 mm |
| How wide is the vehicle, Ford Galaxy CD340 2015? | 1884 mm |
| What is the gross weigh, 2015 Ford Galaxy 2.3 AT Trend? | 2465 kg |
| How much trunk (boot) space, Ford Galaxy II 2015 Minivan 2.3 AT Trend (161 Hp)? | 308 l |
Ford Galaxy II CD340 2.3 AT Trend (161 Hp) 2010, 2011, 2012, 2013, 2014, 2015 Specs
General information | |
|---|---|
| Production start year | 2010 |
| Production end year | 2015 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Automatic transmission 6 |
| Engine volume, cc | 2261 |
| Frame name | CD340 |
| 0 to 100 time | 11.6 |
| Max speed | 191 |
| Clearance, mm | 153 |
| Manufacturing country | Russia |
| Doors | 5 |
| Winter complectation | option |
| Warranty | 3 years or 100,000 km |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | Ford Duratec SEWA |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 161 |
| Max power RPM, rpm | 6500 |
| Max power, hp (kWt) / rpm | 161 (118) / 6500 |
| Max torque, N*m | 203 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 203 (21) / 4000 |
| Valves per cylinder | 4 |
| Compression ratio | 10.6 |
| Bore, mm | 87.5 |
| Stroke, mm | 94 |
| Engine additional info | DOHC, MPFI |
| Eco type | Euro-4 |
Fuel consumption | |
| City | 13.8 |
| Country side | 7.5 |
| Combined | 9.8 |
Steering | |
| Power steering | no |
| Electric power steering | no |
| Electro-hydraulic power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4819 |
| Exterior width, mm | 1884 |
| Exterior height, mm | 1764 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
Chassis dimensions | |
| Wheel base, mm | 2850 |
| Turning radius, m | 5.95 |
| Wheel spacing front | 1589 |
| Wheel spacing rear | 1605 |
Weight and permissible load | |
| Mass, kg | 1811 |
| Max. weight | 2465 |
Volumes | |
| Fuel tank capacity, l | 70 |

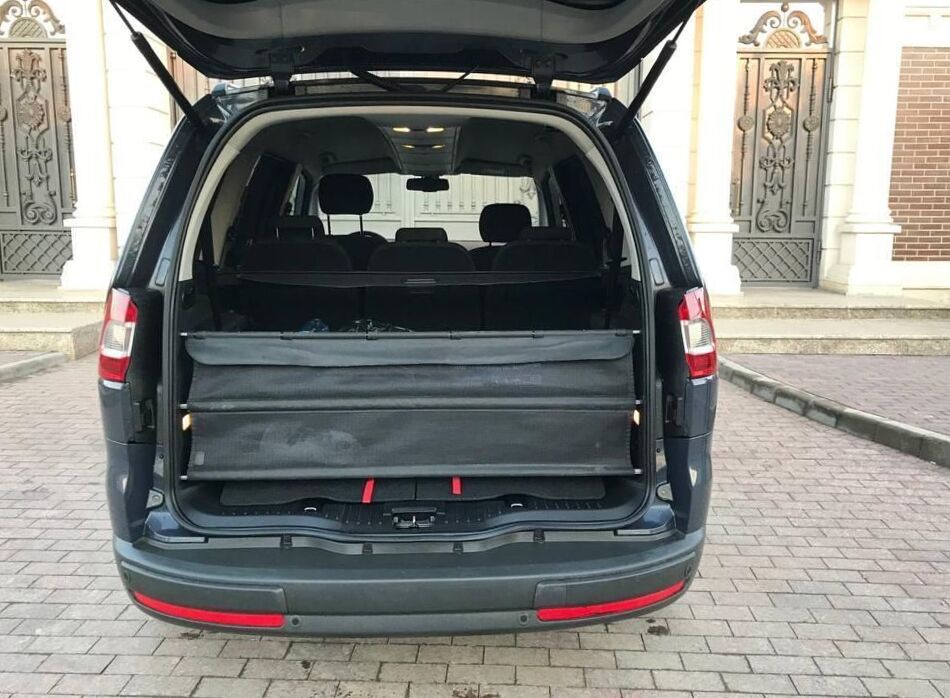

| Trunk volume | 308 |
Other | |
| Aerodynamic drag | 0.32 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Independent, spring multi-link |
| Sport suspension | option |
| Air suspension | option |
Wheel rims | |
| Aluminium wheel | option |
Tires | |
| Front wheels | 215/60 R16 |
| Rear wheels | 215/60 R16 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Brake front search | 1 |
| Rear brake | 1 |
| Parking brake new first | Electronic (optional) |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Bixenon | option |
| Head lights washer | option |
| Front fog lamps | yes |
| Led backlights | yes |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | option |
| Rain sensor | option |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Door handles in body color | yes |
| Chrome door handles | no |
Windows | |
| Privacy glass | option |
| Termoglass | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | option |
| Panoramic roof | option |
Accessories | |
| Roof rail | yes |
| Rear spoiler | no |
| Bumpers | painted in body color, chrome grille |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |
Interior | |

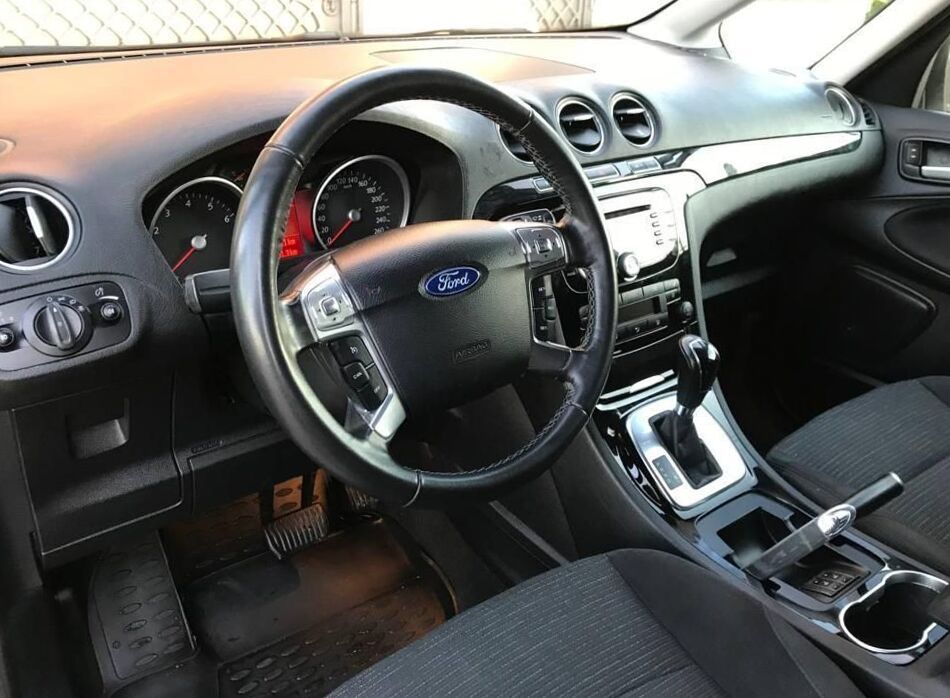

Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
| Utility color display | option |
| Tachometer | yes |
| Env temp | yes |
| Engine start button | no |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | no |
| Combined obivka Salon | no |
| Panels | aluminum inserts |

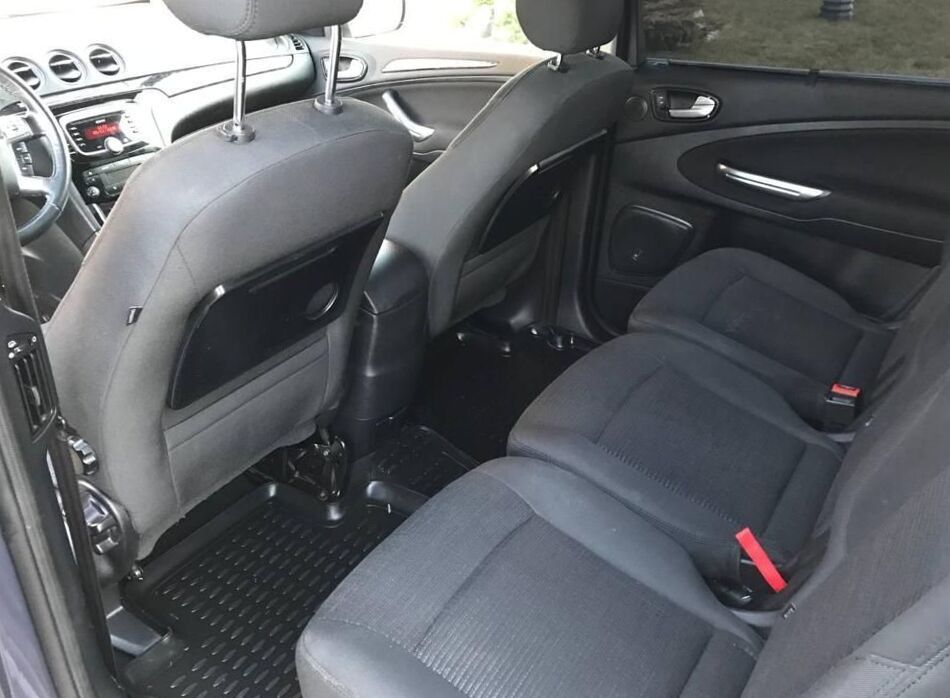

Seats | |
| Bucket seat | no |
| Front seats ajust | In 6 directions / in 8 directions (optional) |

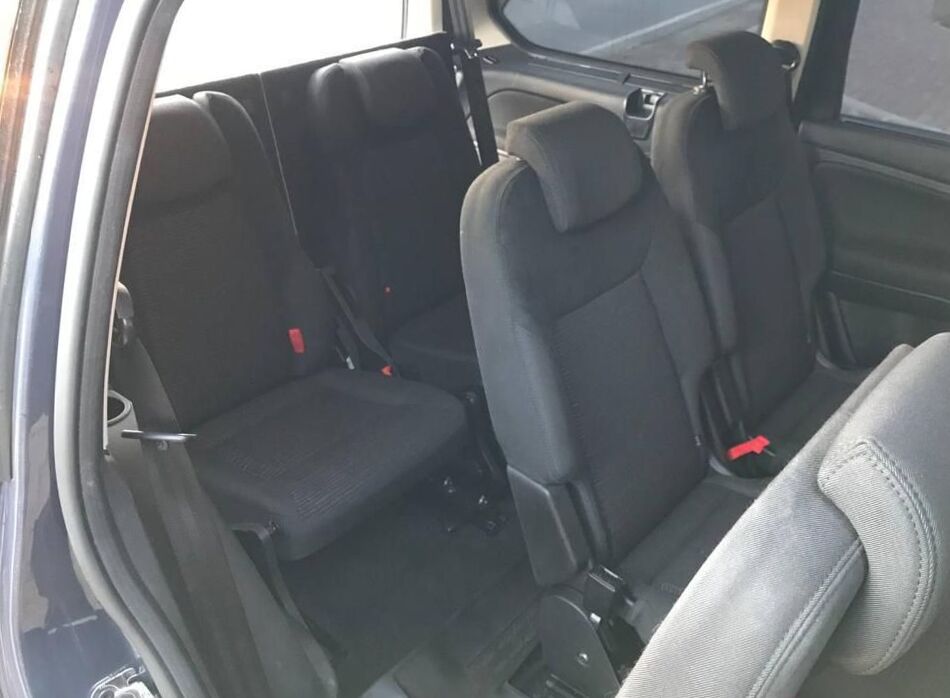

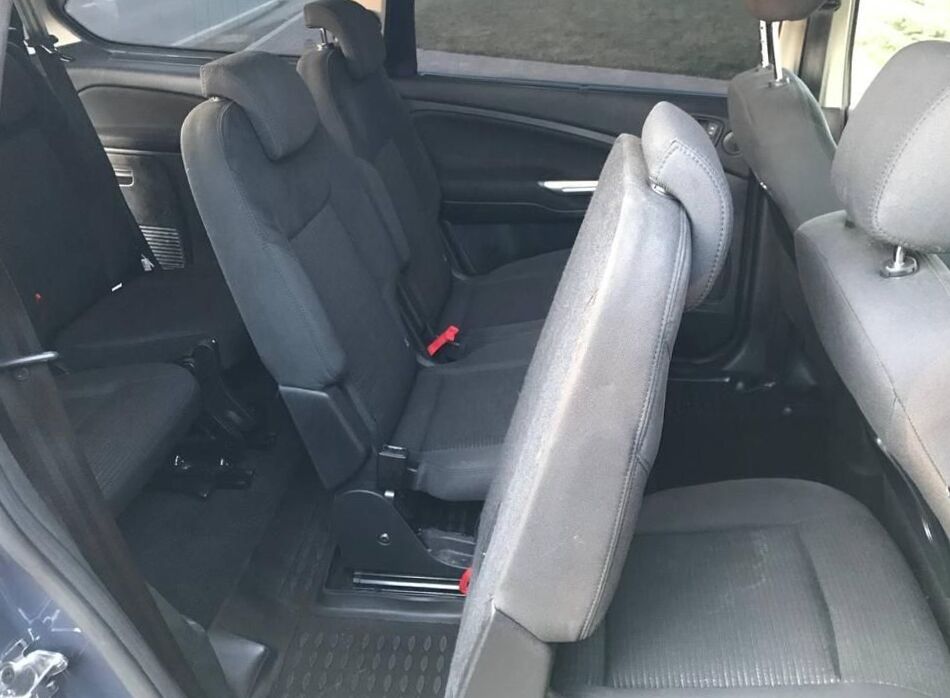

| 2nd row | three individual seats |
| 3nd row | two individual seats |
| Loin reliance | yes |
| Seat lifter | yes |
| Removable seats | no |
| Turning seats | no |
| Headrests for seats | 6 |
| Separating armrest front | yes |
| Separating armrest rear | yes |
| Seats pockets | yes |
| Mats | yes |
Electric interior package | |
| Power adjustable driver seat | yes |
| Power ajustable front seat | option |
| Front seat heater | option |
| Front seats ventilation | option |
| Seat position memory | option |
| Centralized door lock | yes |
| Keyless enter | no |
| Keyless | no |
| Power window front | yes |
| Power window rear | yes |
| Injectors heat | yes |
| Head light managment | yes |
Additional interior equipment | |
| Cooled glovebox | option |
| Smokers packet | yes |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Passenger airbag deactivation function with | option |
| Side airbag | yes |
| Curtain airbags | yes |
| Airbag for the driver's knees | yes |
Children safety | |
| isofix bar | yes |
| Build-in child seat | option |
Active and passive safety | |
| Active headrest | yes |
| Side impact bar | yes |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | option |
| traction control | yes |
| Hill-start assist control system | no |
| Damping Control System | no |
| Lane Keep Assist | option |
| Cruise control | option |
| Distance control system | option |
| Control system of a headlight | option |
| Dynamic cornering light | option |
| Intelligent AFS | option |
| Blind zone monitoring | option |
| System tire pressure monitoring | option |
| Front sonar | option |
| Rear sonars | option |
| Collision mitigation system | option |
| Driver tired system | option |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
| Part climat equipment | 2 zones / 3 zones (optional) |
| Air filter | yes |
Audio systems | |
| Radio | option |
| CD player | option |
| CD changer | option |
| Audio HDD | option |
| MP3 Support | option |
| Hands free | option |
| Rear entertainment system | no |
| Additional sound equipment | Audio Prep |
| Additional sound equipment opt. | 10 speakers, AUX, USB |
Navigation and video equipment | |
| Full color LCD display | no |
| Full color LCD display (option) | 7" touchscreen |
| Navigation system | option |
| Back monitor | option |
Additional amenities | |
| Antidazzle rearview mirror | no |
| Carkey memory | option |
| Mirrors in sunshields | yes |
| Lagage box | yes |
| Blind in luggage compartment | option |
| Onboard computer | yes |
| Light | luggage compartment lighting |
Car safety | |
| Immobilizer | yes |
| Alarm system | option |
| Security alarm | option |
| Bolt-card | no |
Driver Kit | |
| Spare tire | yes |
2015 Ford Galaxy II CD340 2.3 AT Trend (161 Hp) specs
|
Both Ford and Volkswagen's designs were complete way back in 1992, and there are various photographs of the cars, as they appeard in 1995, in a range of magazines dating from 1992. The Galaxy uses predominantly Volkswagen mechanicals, most notably the 2.8-litre VR6 petrol engine from the top versions of the VW Golf, as well as VW's 1.9-litre turbodiesel unit. Initially only the 2.0-litre Straight-4 petrol version used a Ford powerplant - this is derived from the Ford I4 DOHC engine. In later years this unit was supplemented by a 2.3-litre 16-valve version first seen in the facelifted Ford Scorpio. This engine was transversially mounted (as with the MKV Escort RS2000) as opposed to longitudinal mounting like in the Ford Scorpio. All of the VW-sourced engines are supplied with "Ford" rocker covers, despite being of Volkswagen design. All automatic transmissions were VW AG4 boxes, but manual gearboxes on all engines were VXT75 5 speed (modified versions of the trusted Ford MT75 5 speed set-up to suit the transverse engine layout). » Read More About Ford Galaxy |
