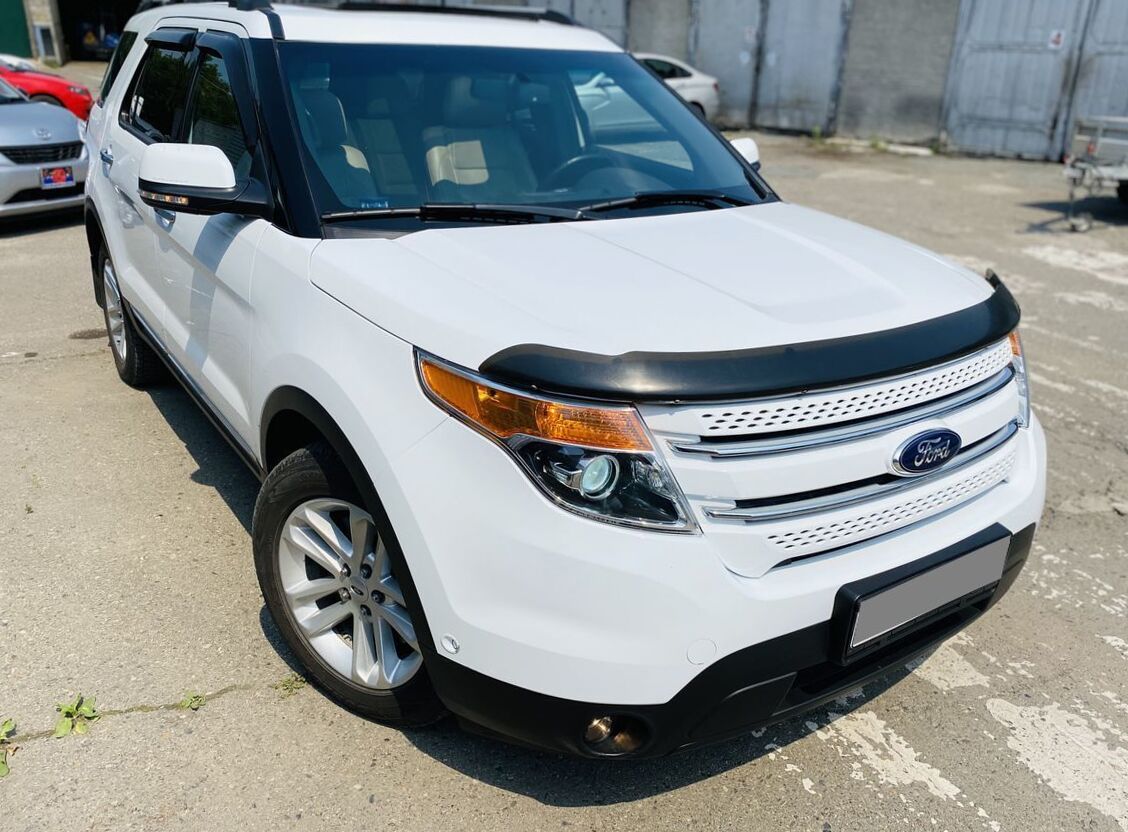

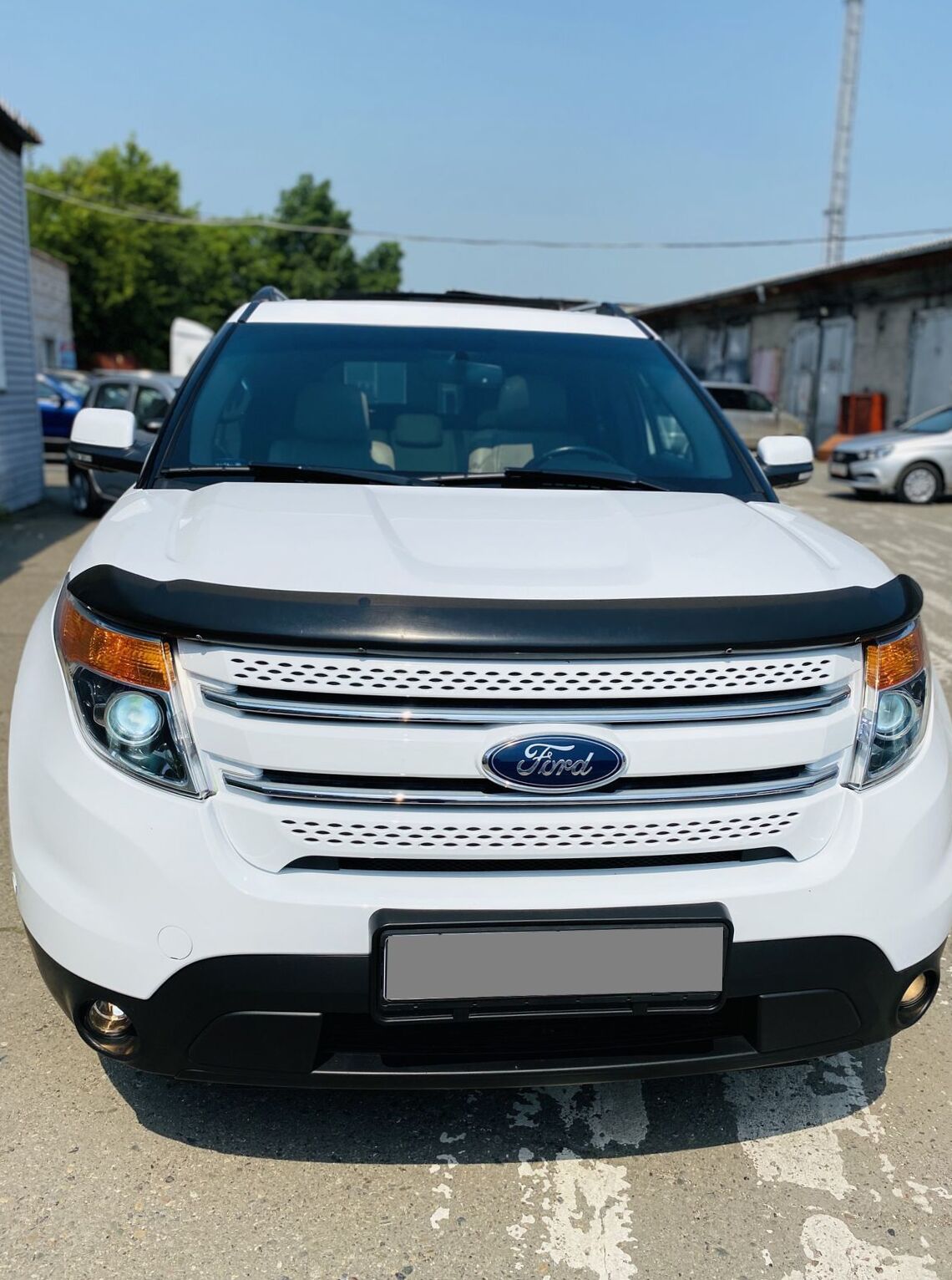

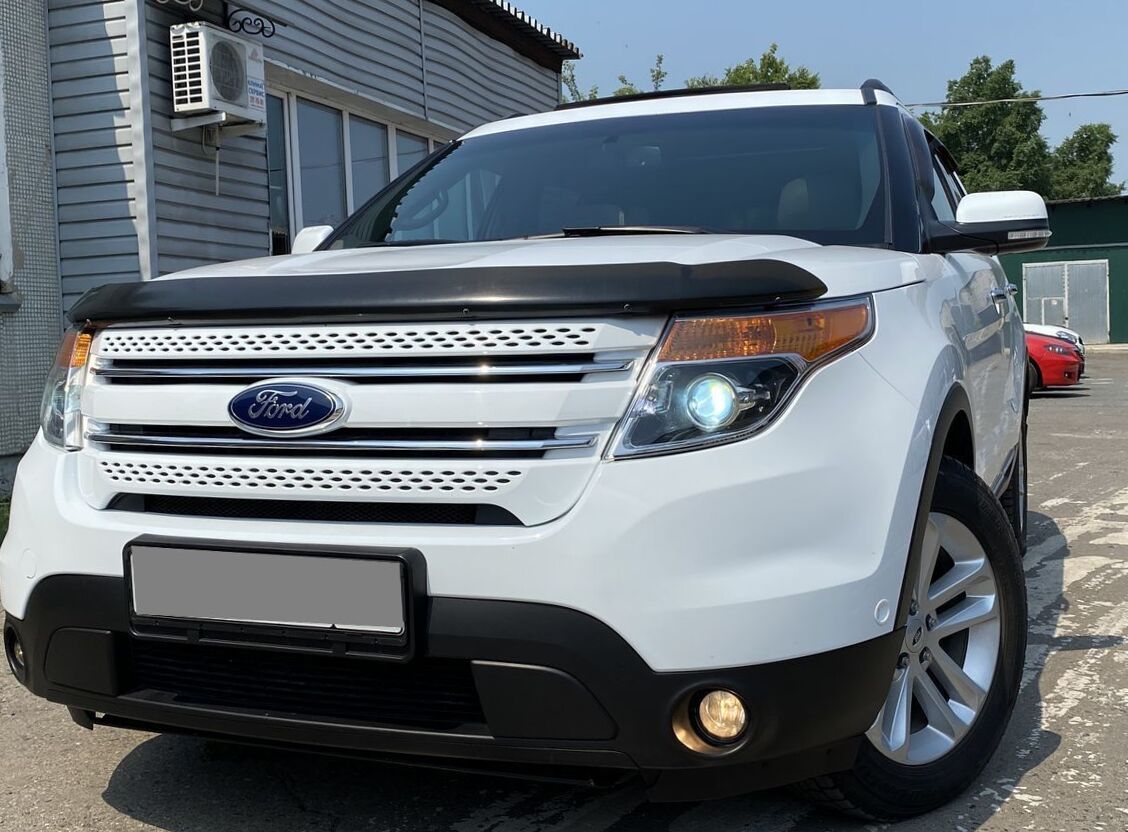

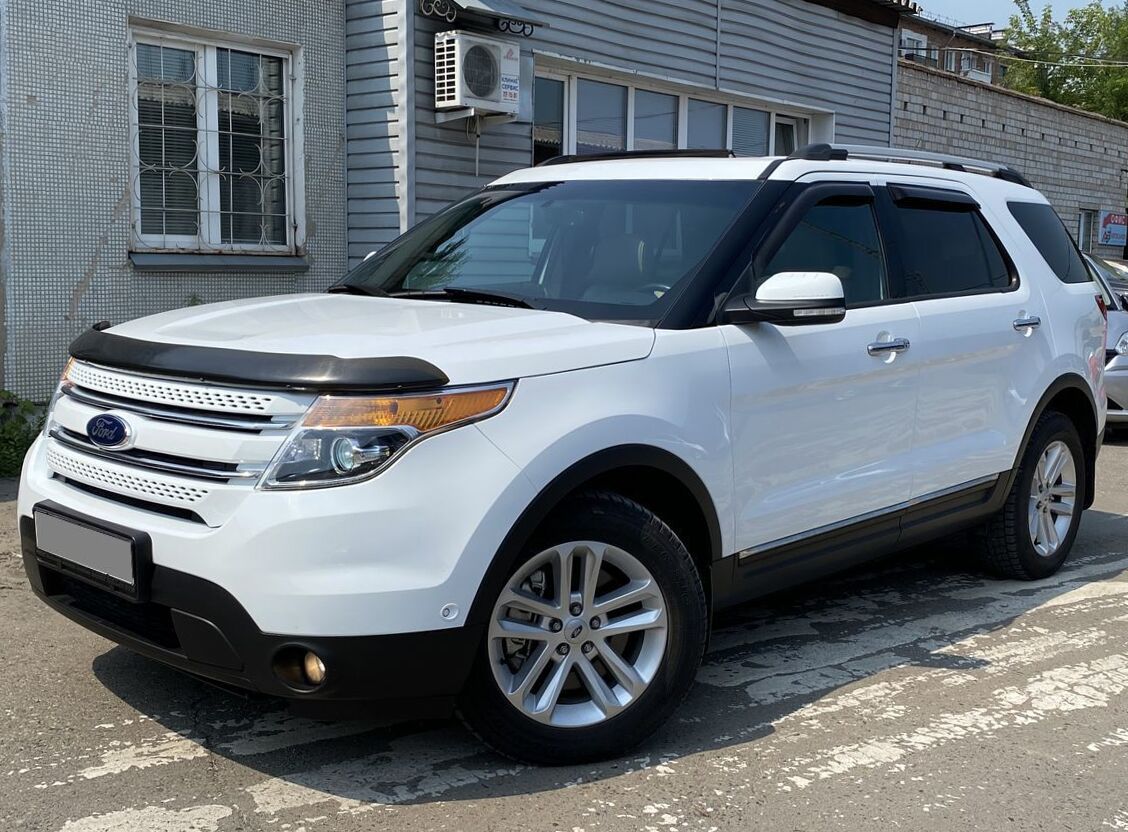

2013 Ford Explorer V 3.5 AT AWD XLT
Ford Explorer Problems
Scratchy windy noise in engine dept &dripps...
1994, #1. a horrible noise by altanator area
like scratchy noise and widy noise getting
worse....
Automatic gearbox
1994, I have the Transmission oil that going in
passes through the engine, although when I the...
Timing
1997, I want to know if any marks to guide me
for timing I want to know the nr one
cylinder ...
| Body type | SUV |
|---|---|
| Power | 290 Hp |
| Engine Displacement | 3500 cm3 or 3.5L or 213.5 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 47845 Miles |
| Vin | Z6FBXXESWBD****21 |
| Price (out of date) | $21135 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2013 Ford Explorer V? | SUV, 7 Seats, 5 Doors |
| What is the fuel economy, Ford Explorer SUV 2013? | 12.4 l/100 km |
| How fast is the car, Ford Explorer U502 2013? | 183 km/h, 0-100 km/h: 8.7 sec |
| How much power, 2013 Ford Explorer 3.5 AT AWD XLT? | 290 Hp |
| What is the engine size, Ford Explorer V 2013 SUV 3.5 AT AWD XLT (290 Hp)? | 3.5L or 3497cm3 |
| How many gears, What type is the gearbox, 2013 Ford Explorer SUV 3.5 AT AWD XLT (290 Hp)? | Automatic transmission 6 |
| What is the drivetrain, 2013 Ford Explorer V? | All wheel drive (4x4) |
| How long is this vehicle, Ford Explorer SUV 2013? | 5006 mm |
| How wide is the vehicle, Ford Explorer U502 2013? | 2004 mm |

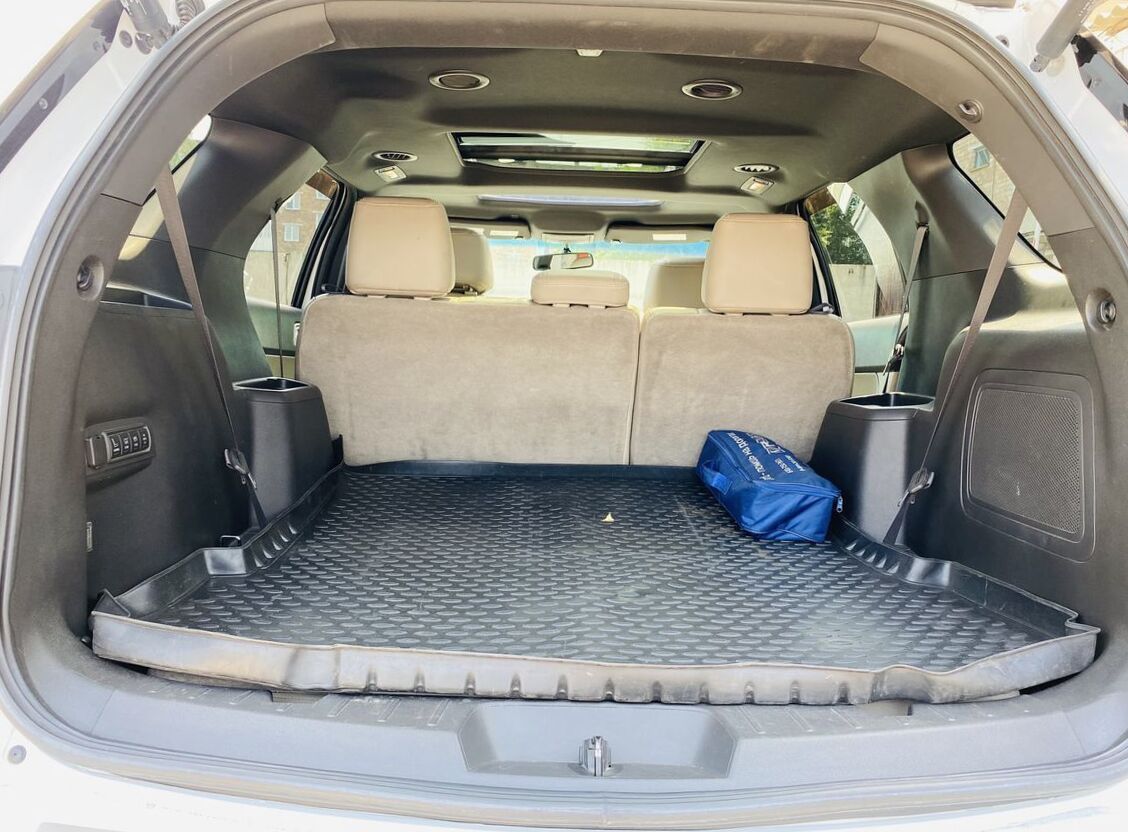

| How much trunk (boot) space, 2013 Ford Explorer 3.5 AT AWD XLT? | 595 l |
Ford Explorer V U502 3.5 AT AWD XLT (290 Hp) 2010, 2011, 2012, 2013, 2014, 2015 Specs
General information | |
|---|---|
| Production start year | 2010 |
| Production end year | 2015 |
| Drive type | All wheel drive (4x4) |
| Frame type | SUV |
| Transmission type | Automatic transmission 6 |
| Engine volume, cc | 3497 |
| Frame name | U502 |
| 0 to 100 time | 8.7 |
| Max speed | 183 |
| Clearance, mm | 211 |
| Manufacturing country | Russia |
| Doors | 5 |
| Winter complectation | yes |
| Warranty | 3 years or 36,000 miles |
Vehicle generation | |
| Generation name | U502 |
| Generation number | 5 |
| Production start year | 2010 |
| Production end year | 2016 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | Duratec 35 |
| Fuel | Petrol (Gasoline) |
| Engine type | V6 |
| Has turbo | no |
| Max power, hp | 290 |
| Max power RPM, rpm | 6500 |
| Max power, hp (kWt) / rpm | 290 (213) / 6500 |
| Max torque, N*m | 345 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 345 (35) / 4000 |
| Valves per cylinder | 4 |
| Compression ratio | 10.8 |
| Bore, mm | 92.5 |
| Stroke, mm | 86.7 |
| Engine additional info | DOHC, Ti-VCT |
| LEV | ULEV-II |
Fuel consumption | |
| City | 13.8 |
| Country side | 10.2 |
| Combined | 12.4 |
Transmission | |
| Manual mode | option |
Steering | |
| Power steering | no |
| Electric power steering | yes |
Battery and alternator | |
| Max generator amper | 58 |
| Battery volume | 175 |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5006 |
| Exterior width, mm | 2004 |
| Exterior height, mm | 1788 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
Chassis dimensions | |
| Wheel base, mm | 2860 |
| Turning radius, m | 5.9 |
| Wheel spacing front | 1701 |
| Wheel spacing rear | 1701 |
Weight and permissible load | |
| Mass, kg | 2130 |
| Trailer max weight wobrakes | 2268 |
| Loading height | 795 |
Volumes | |
| Fuel tank capacity, l | 70 |

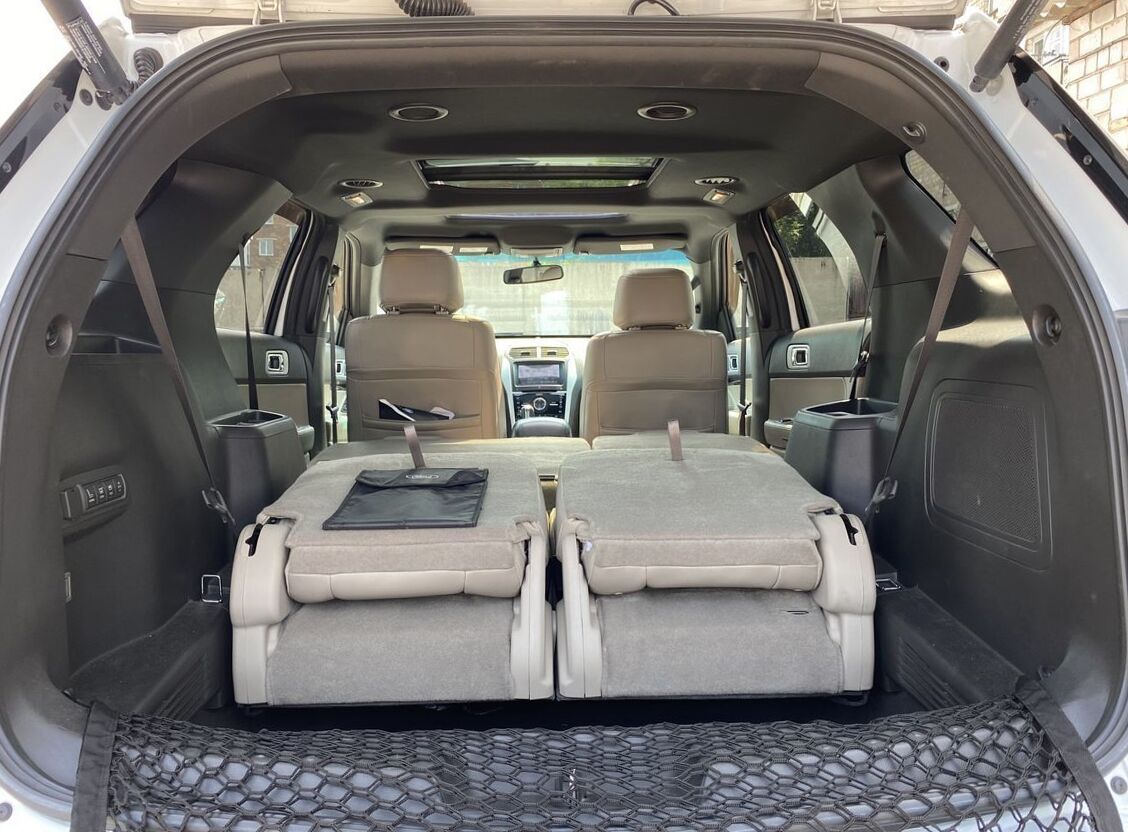

| Trunk volume | 595 |
Other | |
| Aerodynamic drag | 0.35 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Independent, spring multi-link |
| Sport suspension | no |
Wheel rims | |
| Aluminium wheel | yes |
| Front wheel disk | 18X8J |
| Rear wheel disk | 18X8J |
Tires | |

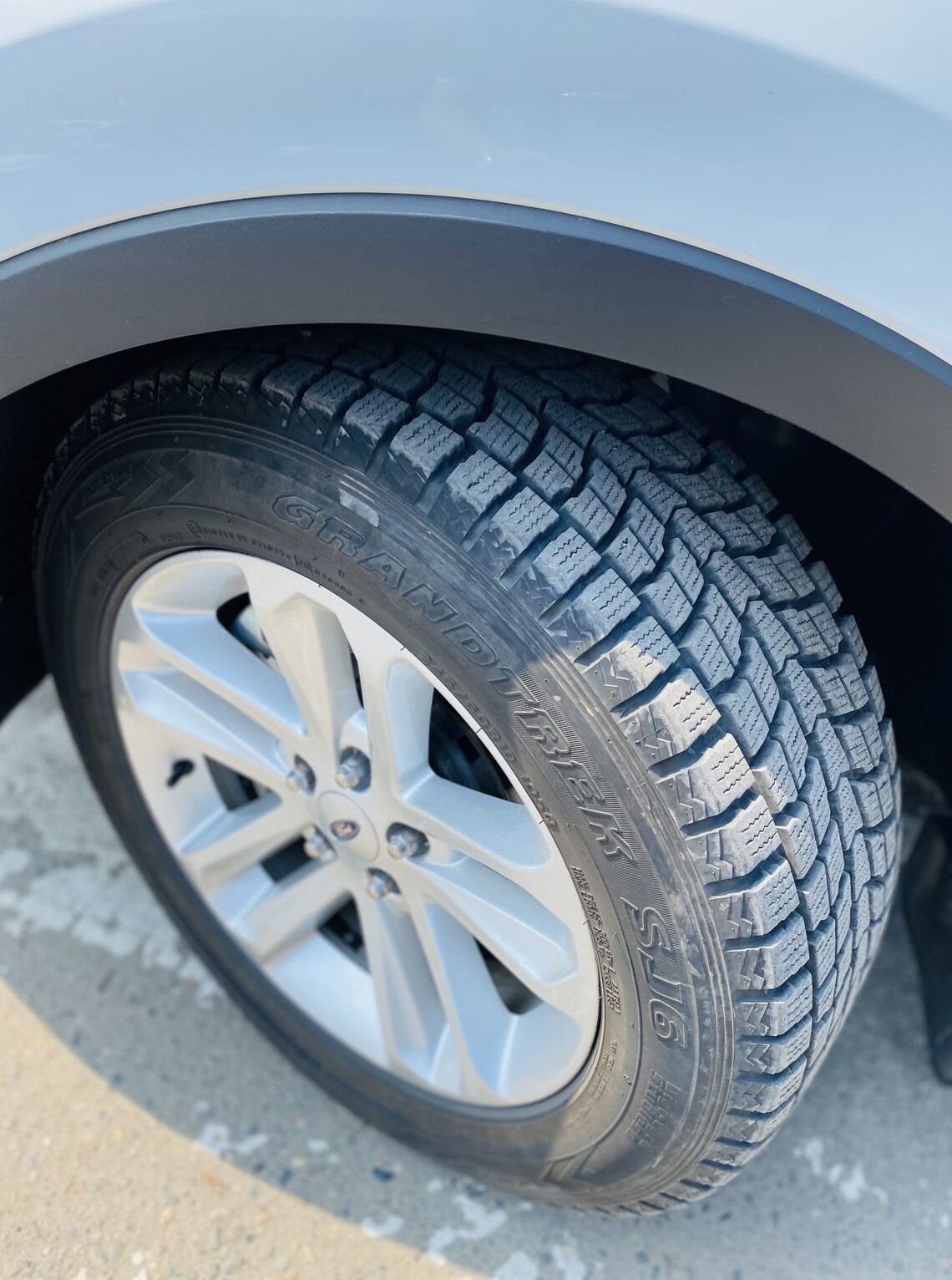

| Front wheels | 245/60 R18 |
| Rear wheels | 245/60 R18 |
Brakes | |
| Front brake | Discs |
| Rear brake | Discs |
| Brake front search | 1 |
| Rear brake | 1 |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Led lights | no |
| Diod head lights | no |
| Front fog lamps | yes |
| Led backlights | yes |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | no |
Side mirrors | |
| Exterior mirrors in body color | no |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |

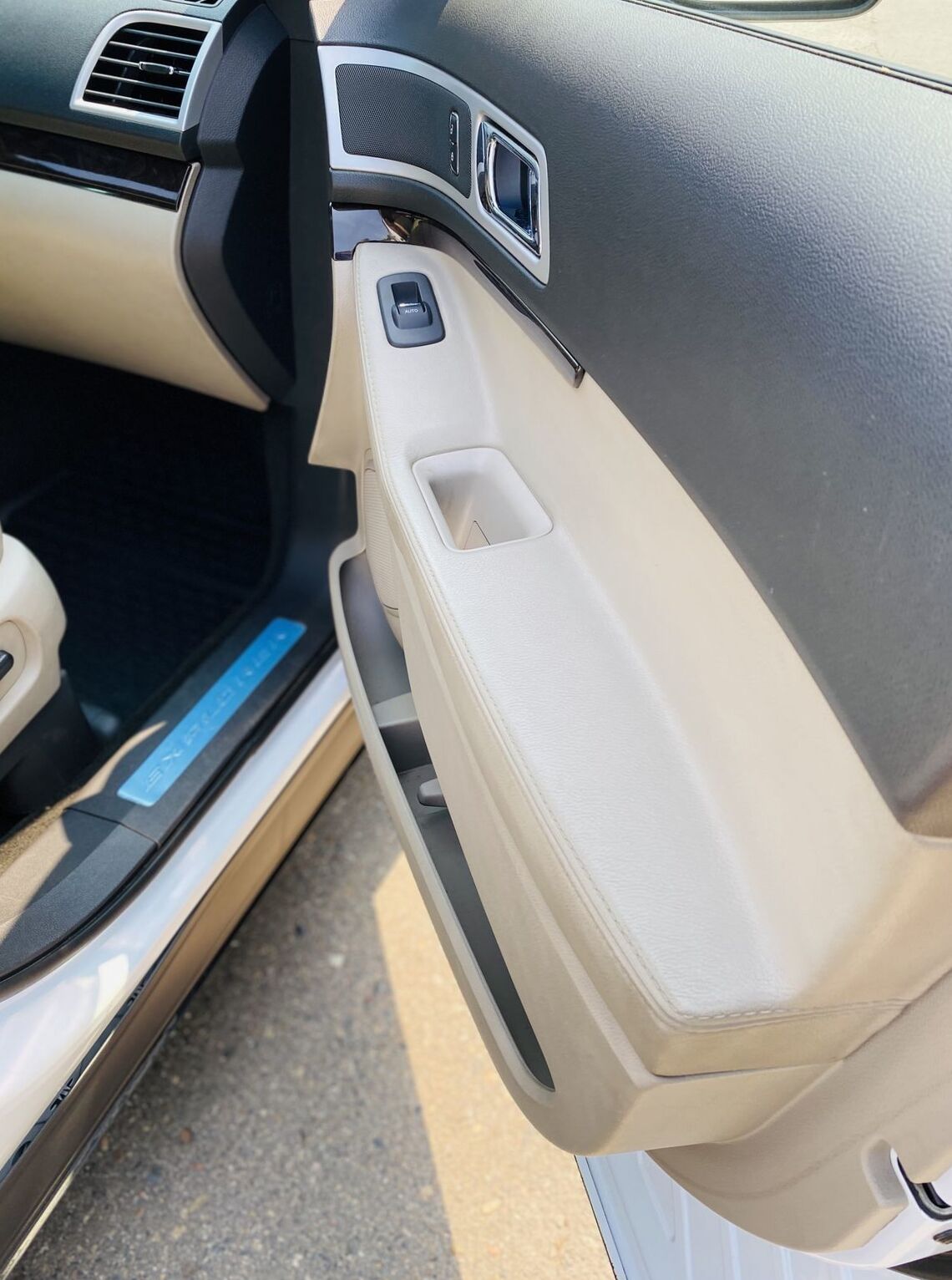

Doors | |
| Door handles in body color | no |
| Chrome door handles | yes |
| Power rear door | option |
Windows | |
| Privacy glass | yes |
| Rear glass heat | yes |
Roof | |

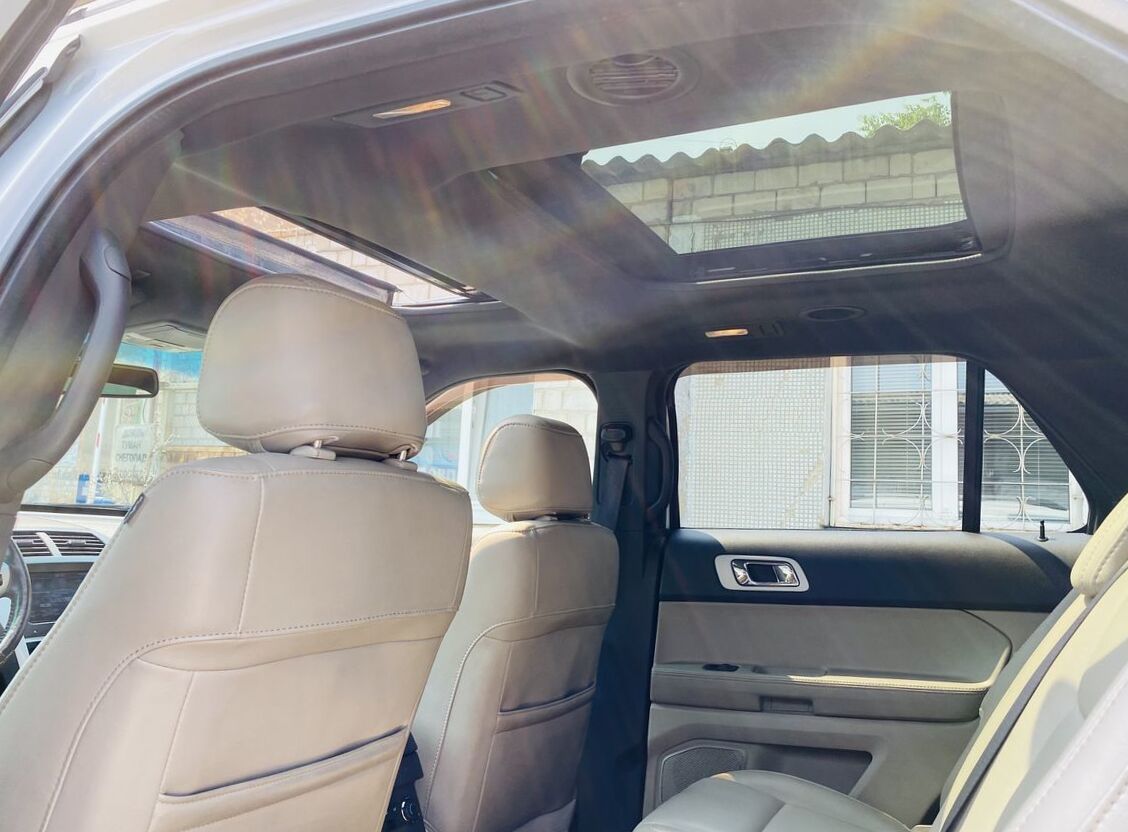

| Twin sunroof | option |
Accessories | |
| Roof rail | yes |
| Rear spoiler | yes |
| Bumpers | painted in body color, silver grille |
| Back wiper | yes |

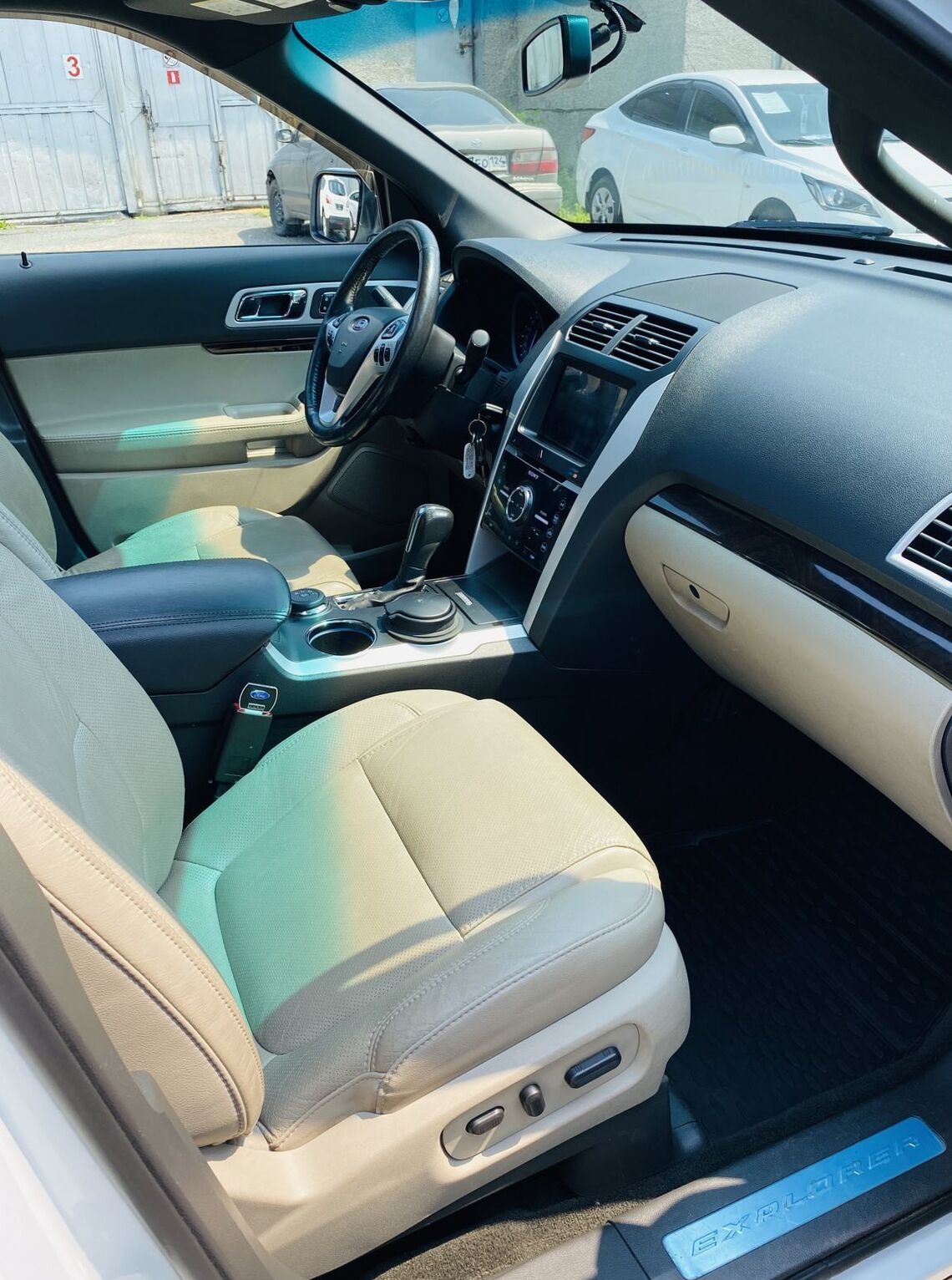

Interior | |

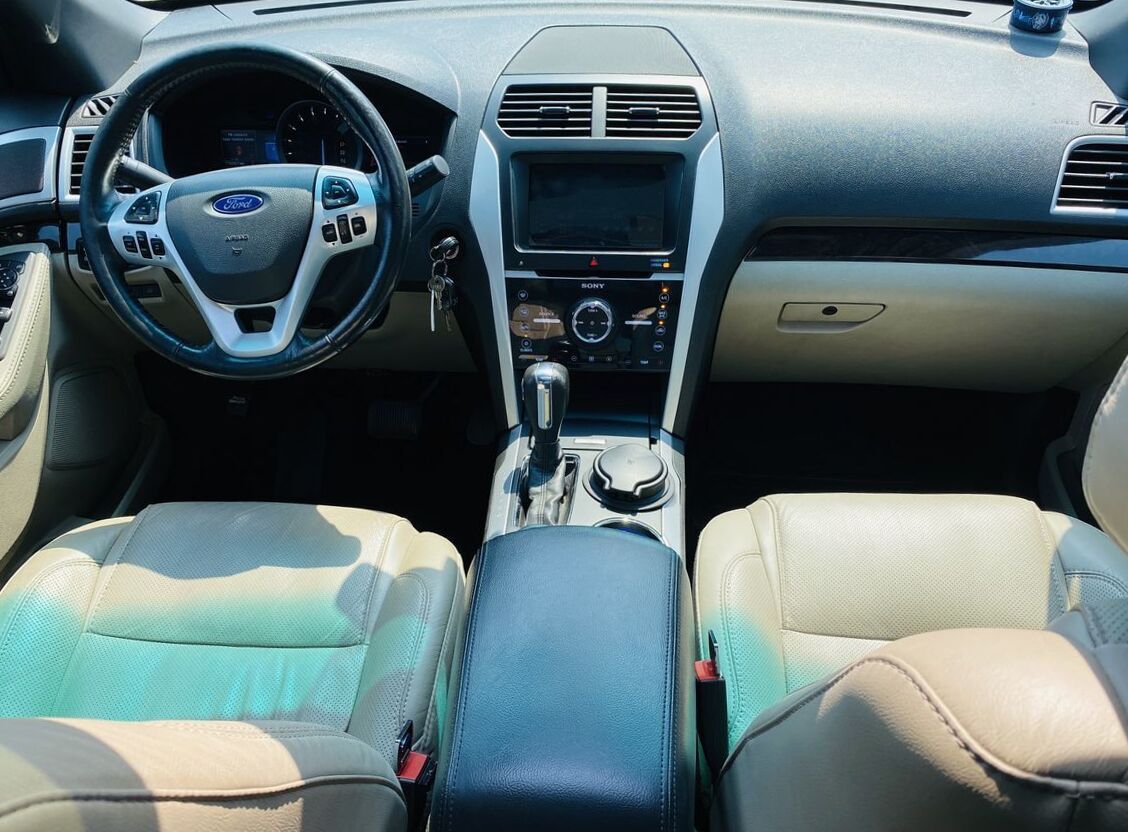

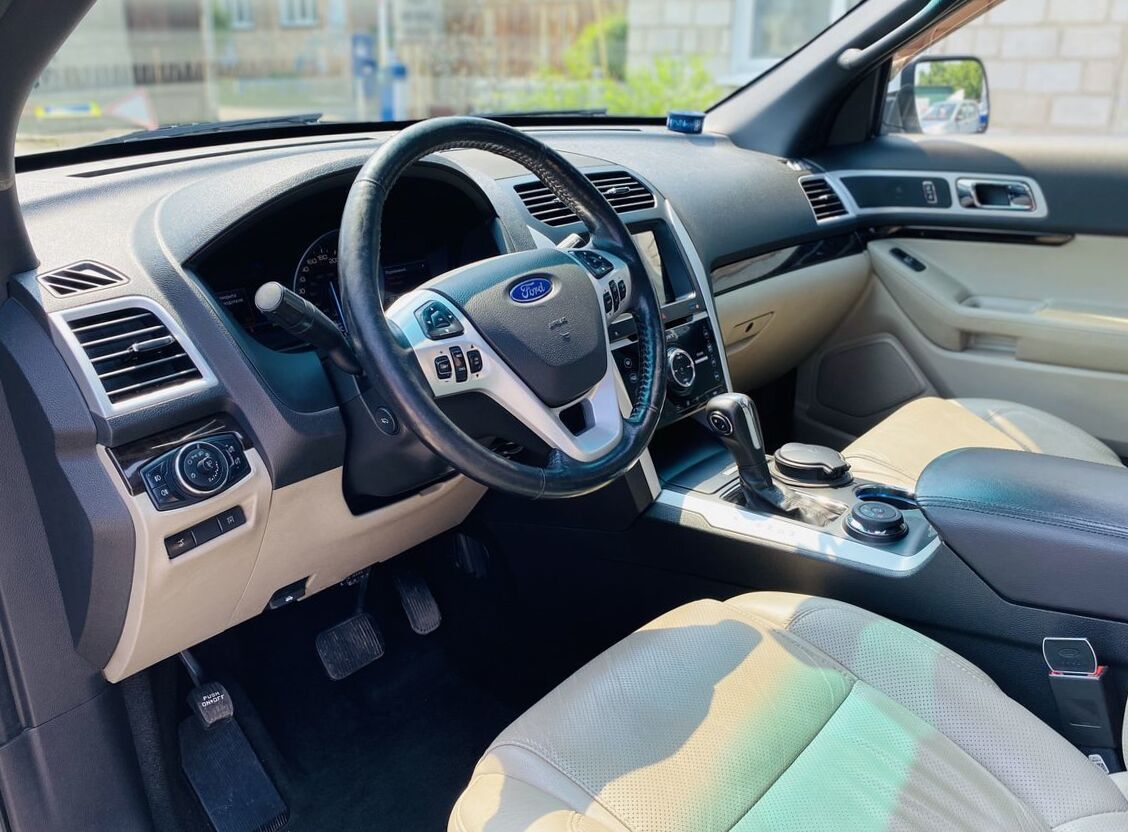

Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |

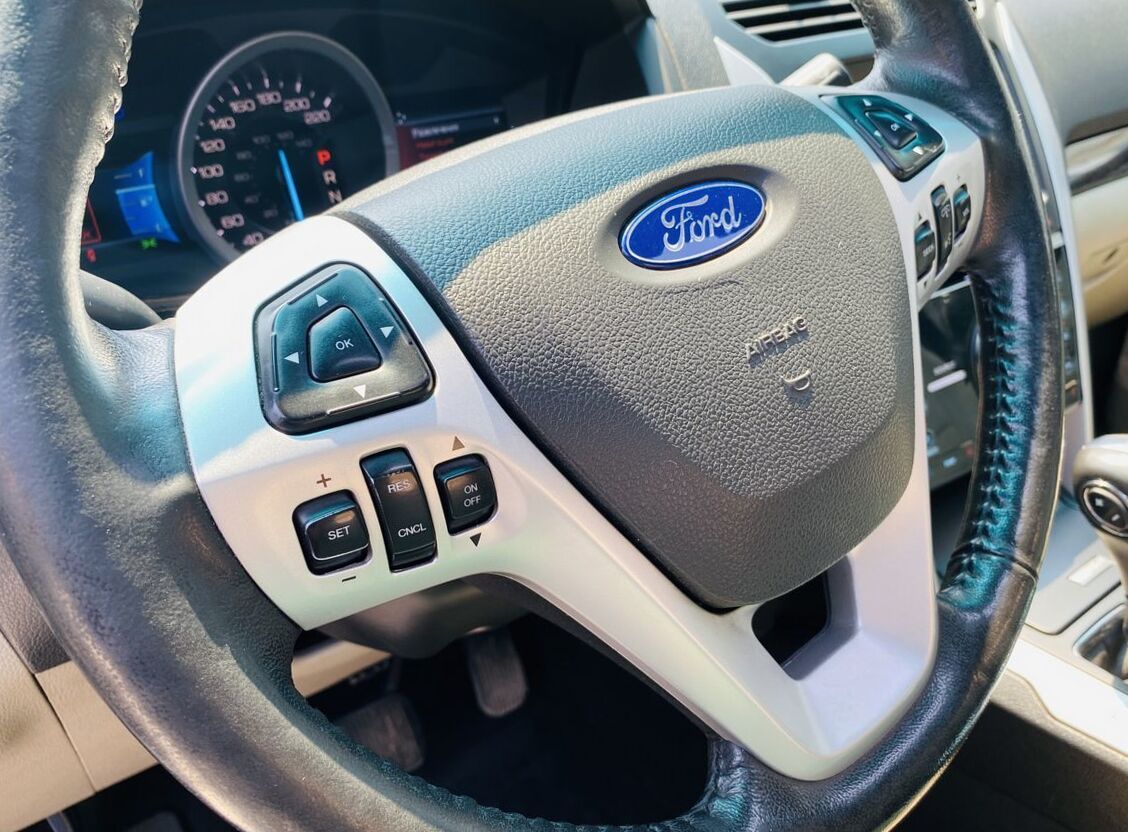

| Audio control on steering wheel | yes |
| Utility color display | 4.2" |

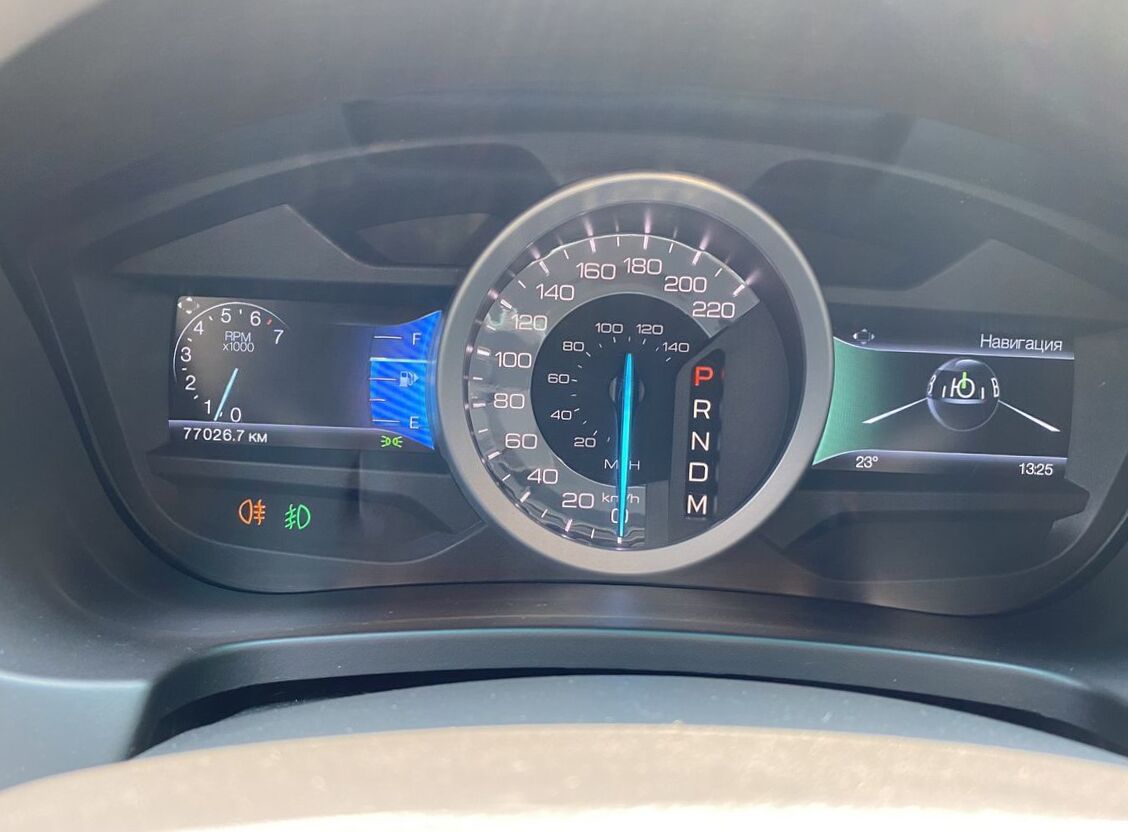

| Tachometer | yes |
| Env temp | yes |
| Engine start button | no |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | option |

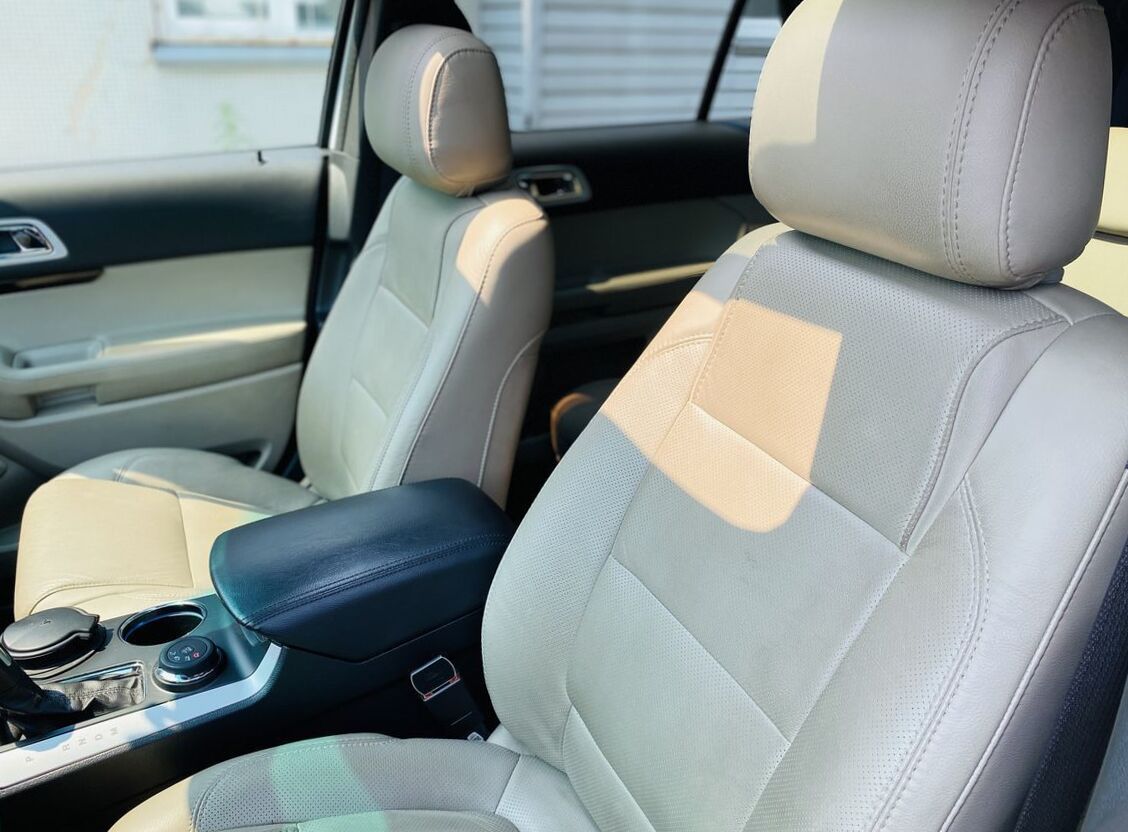

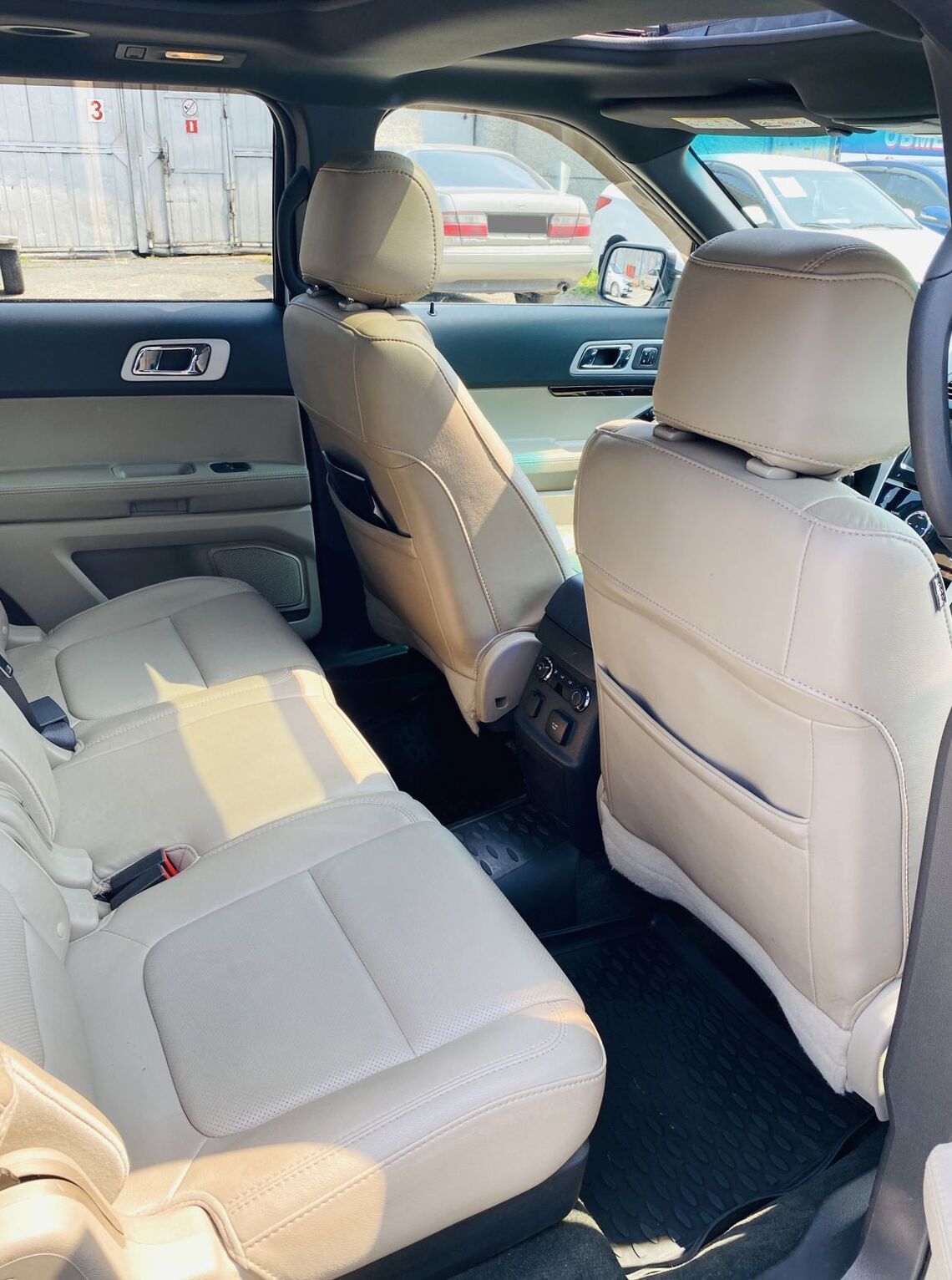

Seats | |
| Front seats ajust | In 6 directions. |

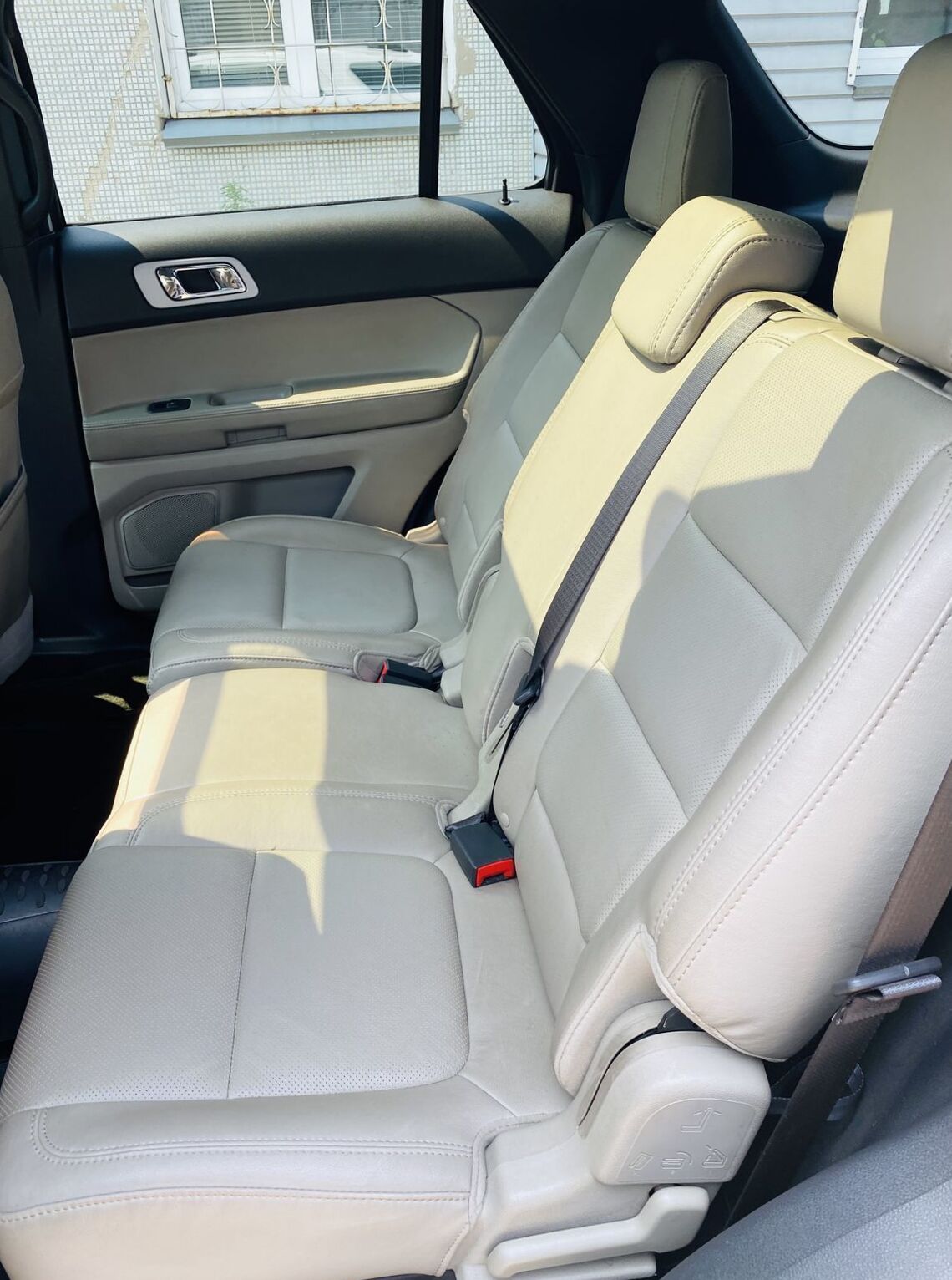

| 2nd row | 60/40 ratio fold seat |

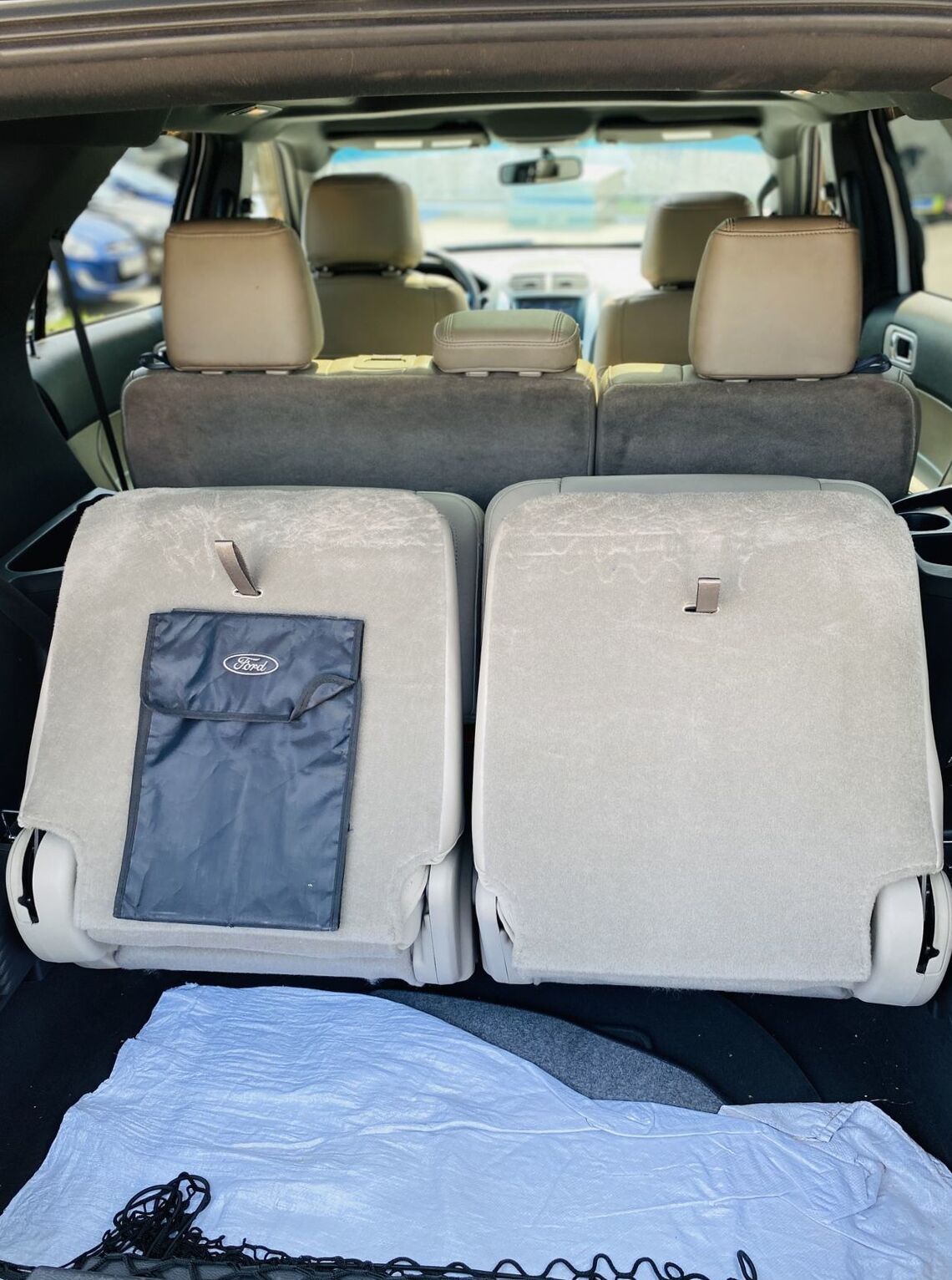

| 3nd row | 50/50 ratio fold seat |
| Loin reliance | yes |
| Separating armrest front | yes |
| Separating armrest rear | no |
| Seats pockets | yes |
Electric interior package | |
| Power adjustable driver seat | yes |
| Power ajustable front seat | yes |
| Adjustable 3rd row | no |
| Front seat heater | option |
| Front seats ventilation | no |
| Rear seats heater | no |
| Seat position memory | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | yes |

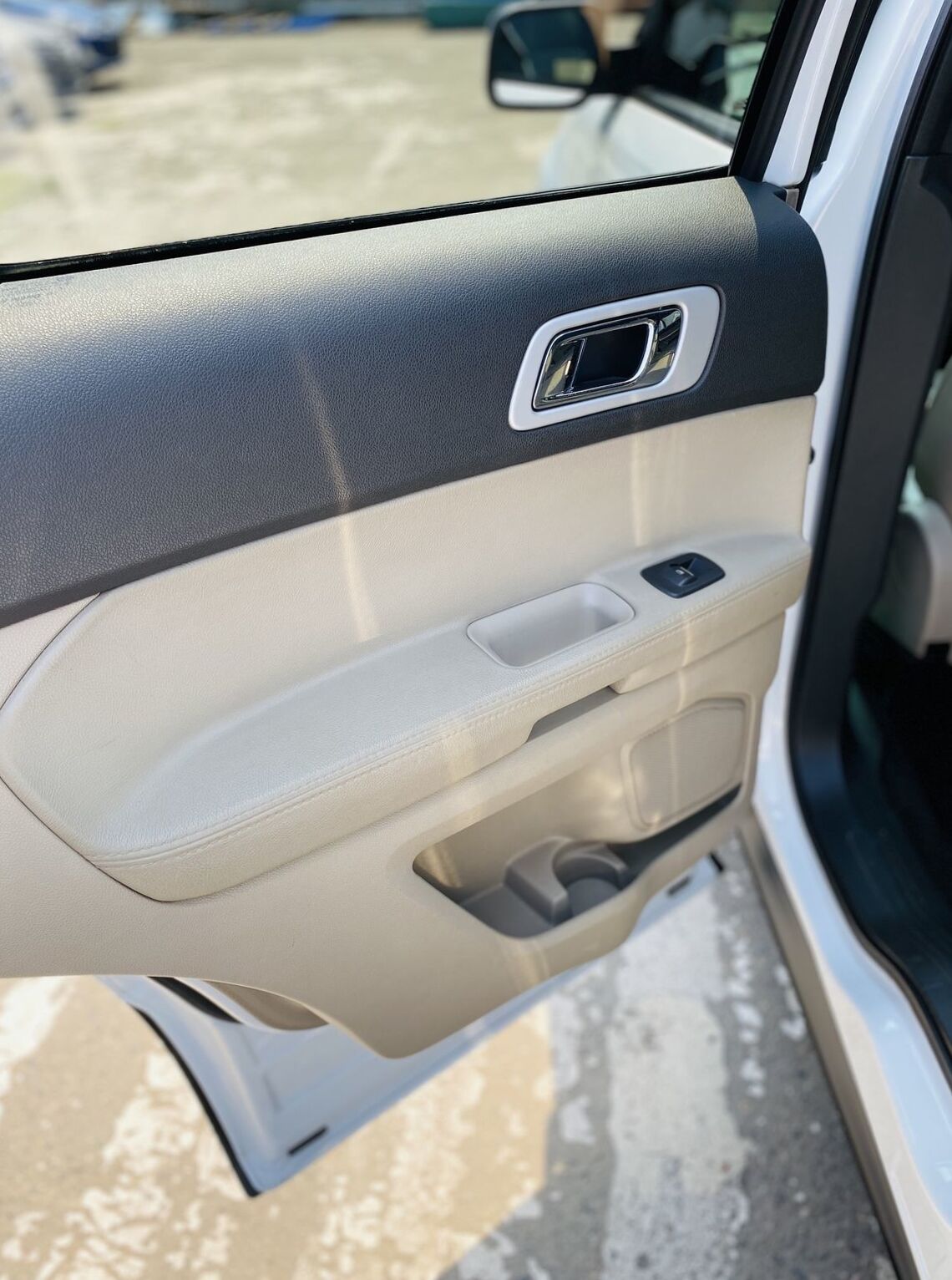

| Power window front | yes |
| Power window rear | yes |
| Stearing wheel heater | no |
| Front sheeld electro heater | no |
Additional interior equipment | |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Passenger airbag deactivation function with | yes |
| Side airbag | yes |
| Curtain airbags | yes |
| Airbag for the driver's knees | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Active headrest | no |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| ESP | yes |
| traction control | yes |
| Down hill assist | option |
| Hill-start assist control system | yes |
| Lane Keep Assist | no |
| Cruise control | yes |
| Distance control system | no |
| Autolock doors | yes |
| Function "Take me home" | yes |
| Intelligent AFS | no |
| Blind zone monitoring | option |
| System tire pressure monitoring | yes |
| Front sonar | no |
| Rear sonars | yes |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
| Part climat equipment | 2 zones (optional) |
| Air filter | yes |
Audio systems | |
| Radio | yes |
| CD player | yes |
| DVD-audio | option |
| MP3 Support | yes |
| Hands free | yes |
| Rear entertainment system | option |
| Additional sound equipment | 6 speakers, AUX, USB |

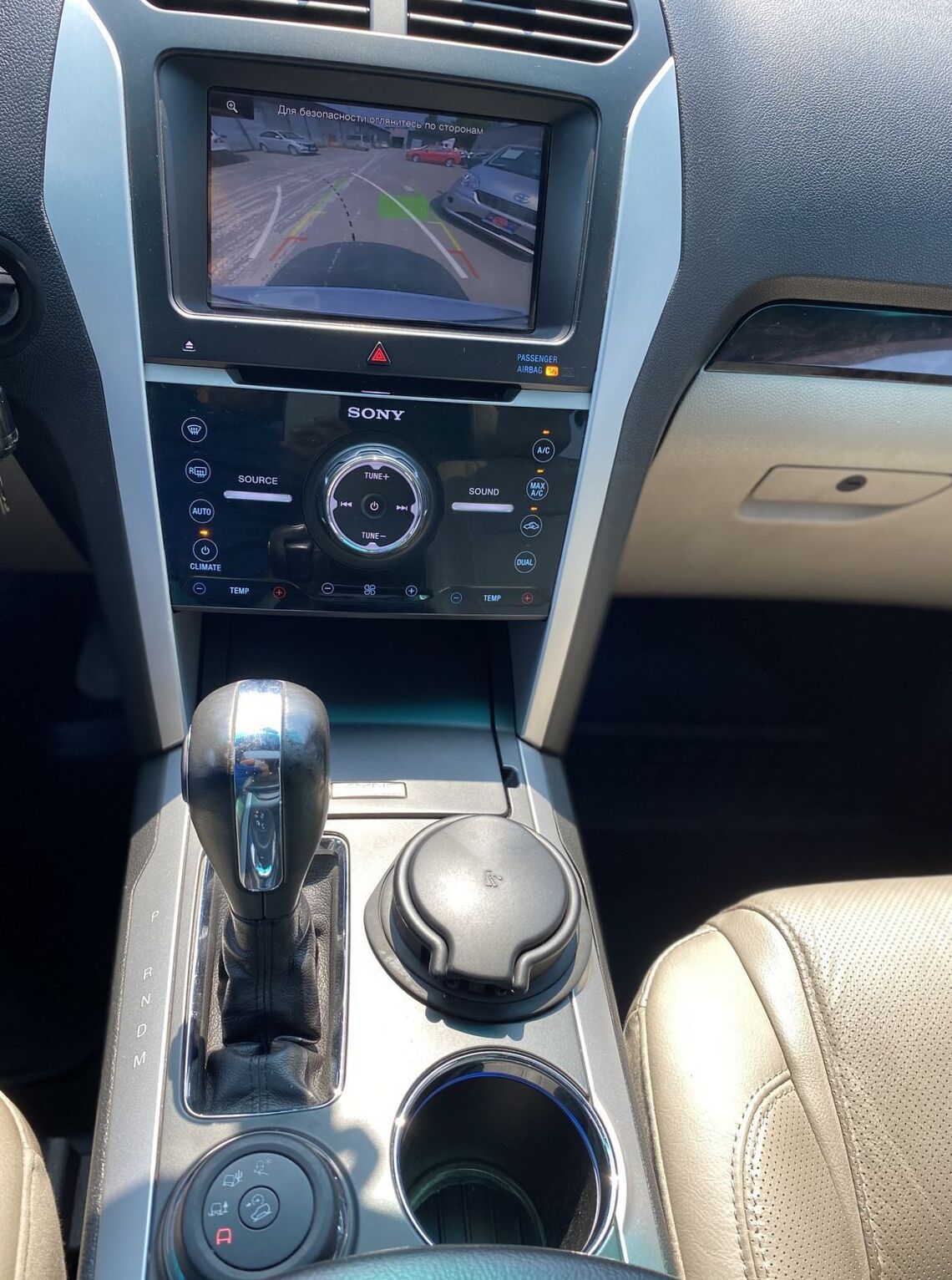

Navigation and video equipment | |
| Full color LCD display | 4.2" / 8" touchscreen (optional) |
| Navigation system | option |
| Front monitor | no |

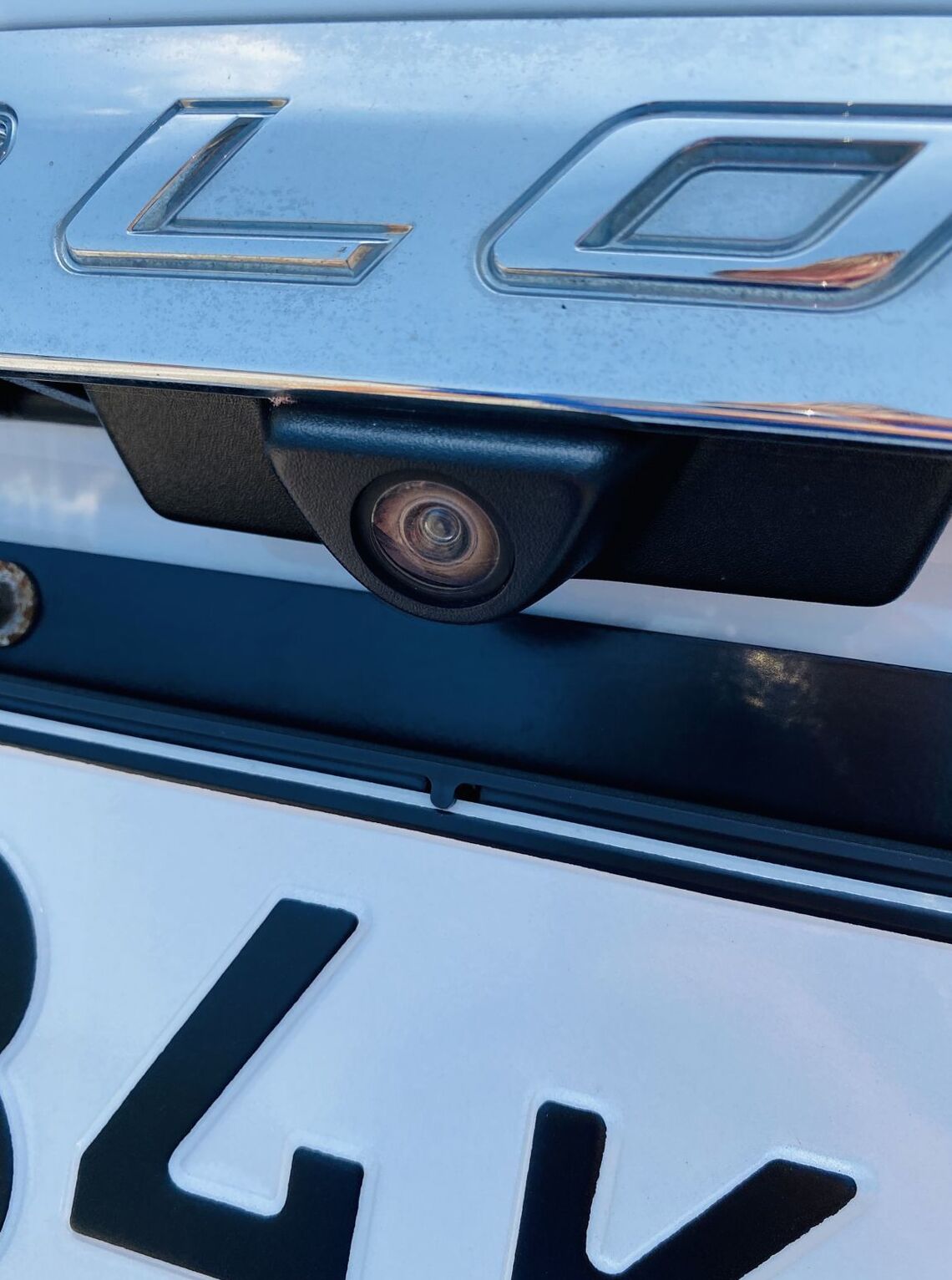

| Back monitor | option |
Additional amenities | |
| Antidazzle rearview mirror | option |
| Mirrors in sunshields | yes |
| Compass | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
| Security alarm | yes |
| Bolt-card | no |
Driver Kit | |

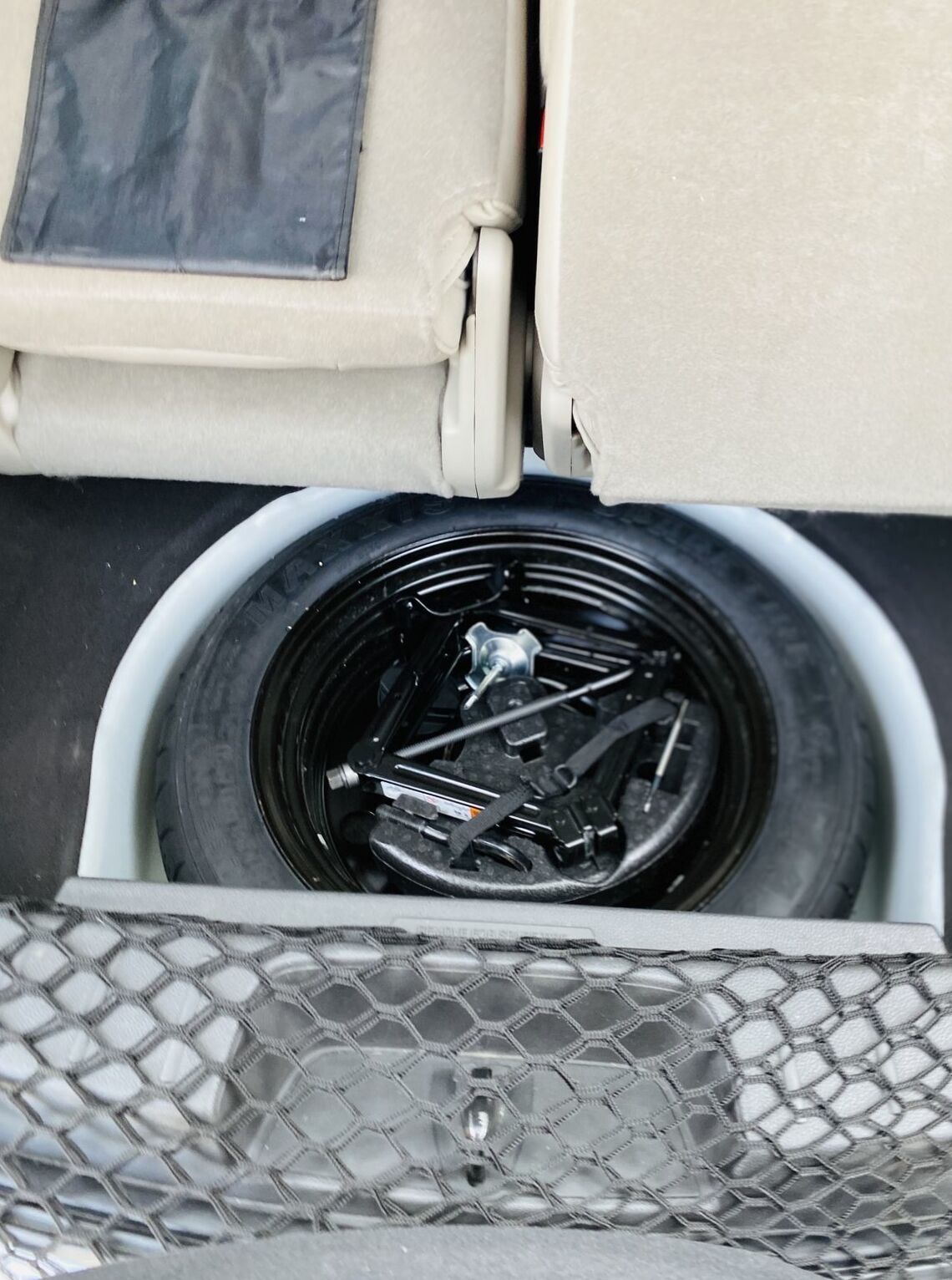

| Spare tyre small | yes |
The Explorer Sport Trac is equipped with a 205 horsepower V6 engine and a 5 speed automatic transmission. A 5 speed manual transmission will be available in fall of 2000. To enhance the truck bed, the option hard tonneau cover and cargo cage are available.
2013 Ford Explorer V U502 3.5 AT AWD XLT (290 Hp) specs
|
The Explorer has also been involved in controversy, after a spate of fatal rollover accidents involving Explorers fitted with Firestone tires. Both two-door Explorer Sport and four-door models of Explorer have been sold. Part-time four-wheel drive is an available option, and since 1995 this has been a 'shift on the fly' system with full protection against being engaged at high speed. A specially modified Special Service Vehicle version is also available from Ford Fleet for law enforcement. Explorer was also the name of a trim package offered on the Ford F-Series trucks from 1968 to 1986. The Ford Explorer Sport was a 2-door version of the Ford Explorer, designed to take the place of the Bronco II in Ford's model line, and was produced from 1991 to 2003. The Sport began as a trim level of the Ford Explorer, but it eventually became its own model. It rode on a 10" shorter wheelbase. There was only one Sport, but there were several other trim levels of the Explorer that were available with 2 doors(edmunds trim levels), such as the XL (1991-1997), the Eddie Bauer (1991-1994), and the Expedition (1995). In 1998 the Explorer Sport became the only 2-door trim level of the Explorer, and in 2001 it became its own model, as the second generation Explorer moved on to a 4-door-only 3rd generation. » Read More About Ford Explorer |
