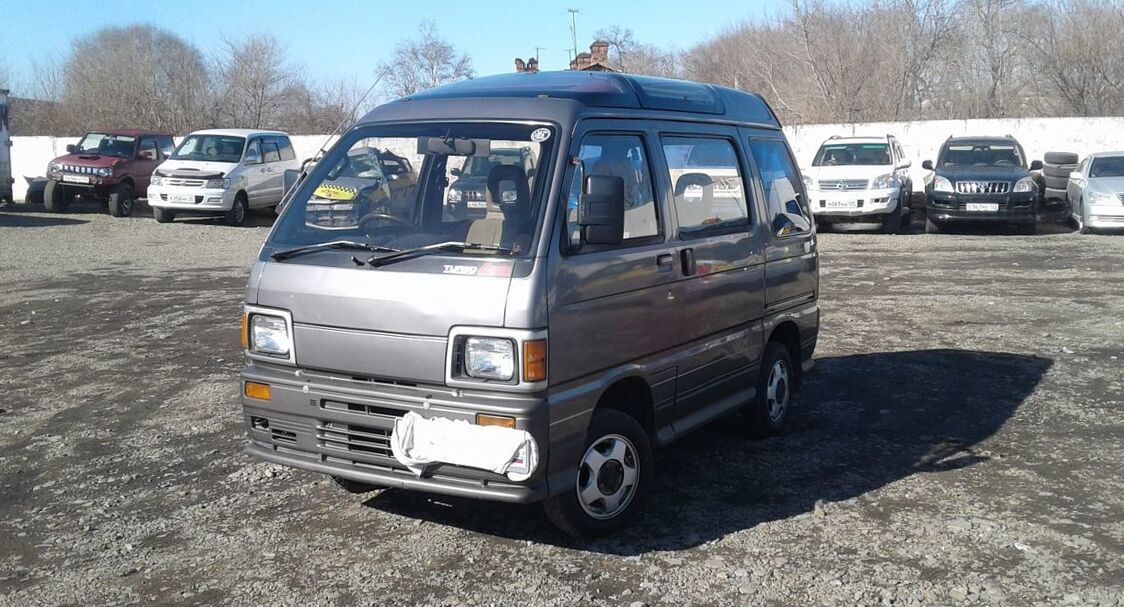

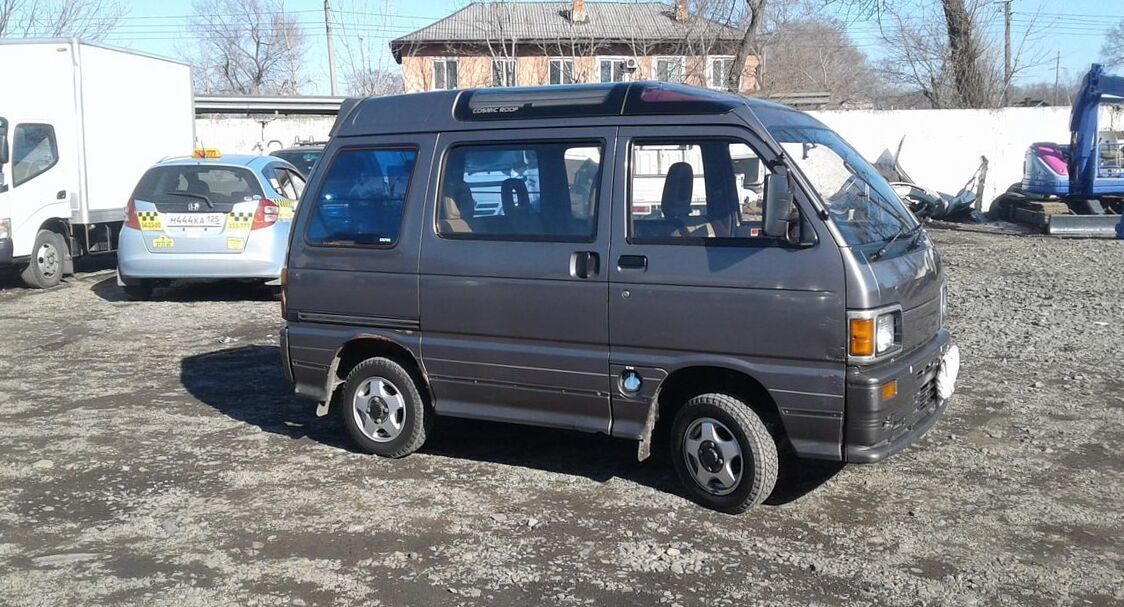

1996 Daihatsu Atrai IV 660 Appare
Daihatsu Atrai Problems
Noise from the engine
2002, l bought the car recently and it had a
noise coming out from the engine. What could be
t...
Prende elchek
2001, saber donde lleva elPRESN SERVO...
| Body type | Minivan |
|---|---|
| Power | 44 Hp |
| Engine Displacement | 700 cm3 or 0.7L or 42.7 cu-in |
| Color | gray |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 51573 Miles |
| Vin | S81V****97 |
| Price (out of date) | $2348 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 1996 Daihatsu Atrai IV? | Minivan, 4 Seats, 5 Doors |
| How much power, Daihatsu Atrai Minivan 1996? | 44 Hp |
| What is the engine size, Daihatsu Atrai V-S130V 1996? | 0.7L or 659cm3 |
| How many gears, What type is the gearbox, 1996 Daihatsu Atrai 660 Appare? | 5 speed Manual |
| What is the drivetrain, Daihatsu Atrai IV 1996 Minivan 660 Appare (44 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 1996 Daihatsu Atrai Minivan 660 Appare (44 Hp)? | 3295 mm |
| How wide is the vehicle, 1996 Daihatsu Atrai IV? | 1395 mm |
Daihatsu Atrai IV V-S130V 660 Appare (44 Hp) 1996, 1997 Specs
General information | |
|---|---|
| Complectation name | 660 Appare |
| Production start year | 1996 |
| Production end year | 1997 |
| Price of new car in Tokyo, yen | 1195000 |
| Drive type | All wheel drive (4x4) |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 659 |
| Frame name | V-S130V |
| Clearance, mm | 160 |
| Manufacturing country | Japan |
| Doors | 5 |
| Right hand drive | yes |
| Left hand drive | no |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | EF-GS |
| Fuel | Petrol (Gasoline) |
| Engine type | water cooling 3 cylinder DOHC12 valve |
| Has turbo | no |
| Max power, hp | 44 |
| Max power RPM, rpm | 5900 |
| Max power, hp (kWt) / rpm | 44 (32) / 5900 |
| Max torque, N*m | 59 |
| Max torque RPM, rpm | 4400 |
| Max torque, N*m (kg*m) / rpm | 59 (6) / 4400 |
| Compression ratio | 10 |
| Bore, mm | 68 |
| Stroke, mm | 60.5 |
Fuel consumption | |
| Fuel consumption (60 km/h mode), l/100km | 4 |
Transmission | |
| 1st gear ratio | 4.059 |
| 2nd gear ratio | 2.389 |
| 3rd gear ratio | 1.636 |
| 4th fear ratio | 1 |
| 5th gear ratio | 0.838 |
| Rear gear ratio | 4.128 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3295 |
| Exterior width, mm | 1395 |
| Exterior height, mm | 1855 |
Interior dimensions | |
| Capacity | 4 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 1900 |
| Front axle length, mm | 1215 |
| Rear axle length, mm | 1220 |
| Turning radius, m | 3.8 |
| Wheel spacing front | 1215 |
| Wheel spacing rear | 1220 |
Weight and permissible load | |
| Mass, kg | 900 |
Volumes | |
| Fuel tank capacity, l | 40 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | no |

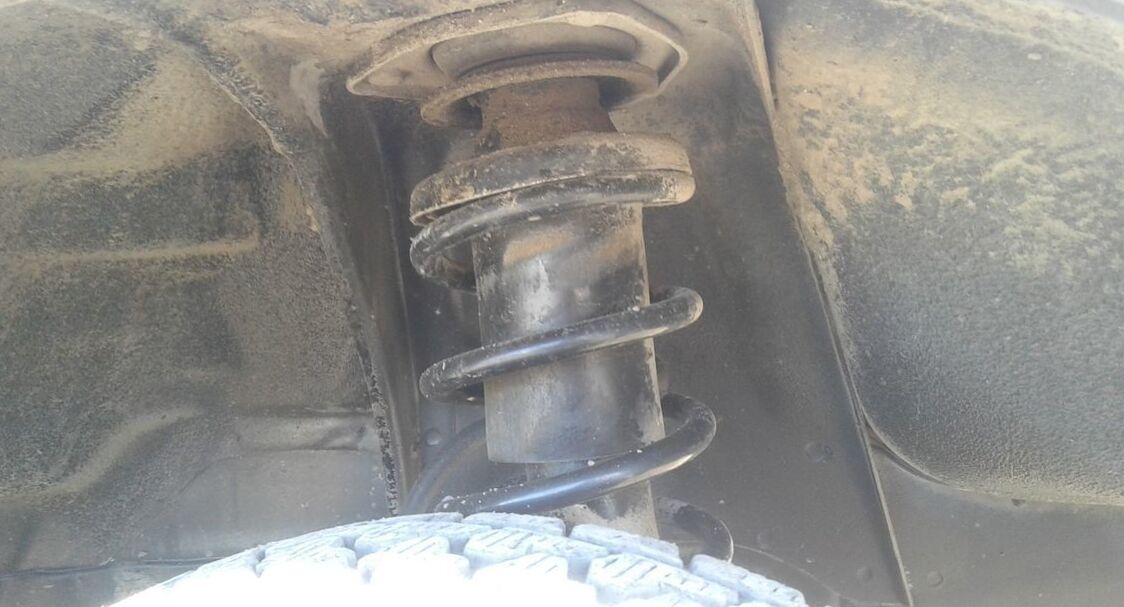

| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | no |
| Rear suspension | Dependent, spring loaded |
| LSD | no |
Wheel rims | |
| Aluminium wheel | no |
Tires | |

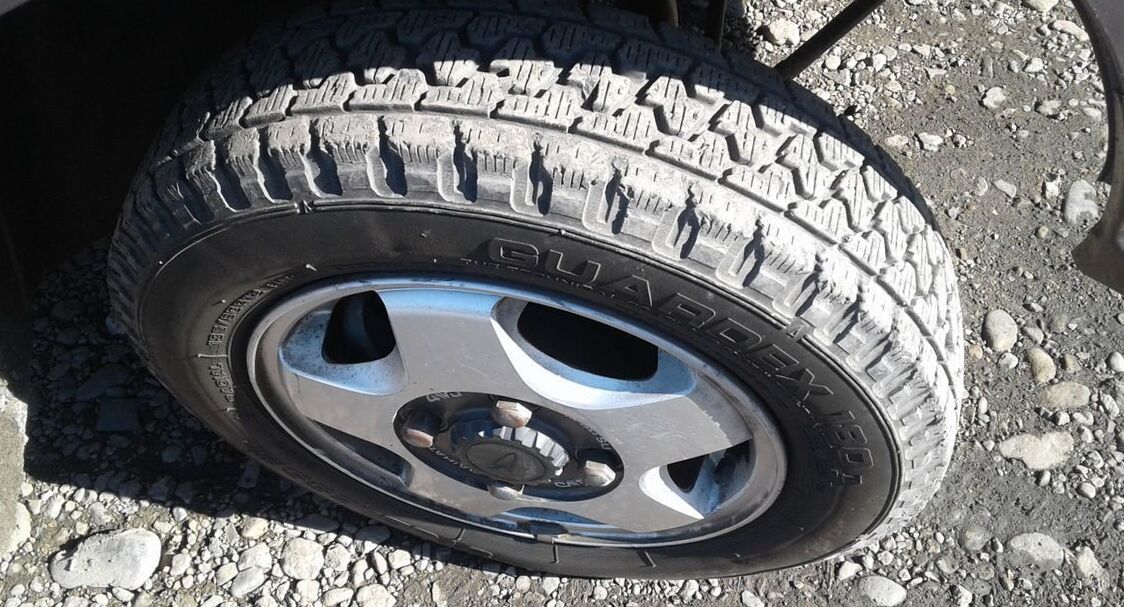

| Front wheels | 155R12-6PRLT |
| Rear wheels | 155R12-6PRLT |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Front fog lamps | no |
| Rear fog lamps | no |
| Additional stop light | option |
| Cornering lamps | no |
Side mirrors | |
| Power adjustable door mirrors | no |
Windows | |
| Ultraviolet glass protection | no |
Roof | |
| Sunroof | no |
| Tilt sunroof | no |
| Twin sunroof | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | option |
| Back wiper | yes |
Body color | |
| Colors | 7 2 25 28 27 29 |
Interior | |
Steering wheel and center panel | |
| Leather winding | no |
| Telescopic steering | no |
| Tilt steering | no |
| Tachometer | no |
Interior design | |
| Leather seat | no |
| Wood panel | no |
Seats | |
| Reclining seats | yes |
| Removable seats | yes |
| Turning seats | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Power ajustable back seat | no |
| Centralized door lock | option |
| Keyless enter | no |
| Power window | option |
| Central power window control | no |
Safety | |
Airbags | |
| Drivers airbag | no |
| Passengers airbag | no |
| Side airbag | no |
Children safety | |
| Child car restraints | no |
Active and passive safety | |
| Durable frame | no |
| Side impact bar | no |
| 3 point safety belt | no |
| Safety belt pretensioner | no |
| Safety belt limiter | no |
Electronic security and traffic control systems | |
| Break assist | no |
| traction control | no |
| Cruise control | no |
Amenity | |
Microclimate | |
| Cooler | no |
| Automatic air conditioning | no |
| Twin conditioning system | no |
| Air purifier | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | yes |
| CD player | no |
| CD changer | no |
| MD palyer | no |
| MD changer | no |
Navigation and video equipment | |
| Parking assist system | no |
1996 Daihatsu Atrai IV V-S130V 660 Appare (44 Hp) specs
|
Available engines for 2006 include the DVVT equipped 660cc EF-VE, making 39kW (52hp) at 7000rpm and 63N·m (46lb·ft) of torque at 4000rpm, and the 660cc EF-SE, making 33kW (44hp) at 5900rpm and 57N·m (42lb·ft) of torque at 3600rpm. The base model is mid-engine, rear drive, but four-wheel drive versions are available. In Japan, a more luxury version of the Hijet is known as the Daihatsu Atrai, which is also powered by a 660cc Turbo engine producing 64bhp (48kW). Hijets sold outside Japan are available with 1.0 and 1.3-litre engines. It is no longer consider a kei car as it is wider and longer. The Hijet Maxx/ Hijet Jumbo is a pick-up truck or chasis cab which can be set up for other uses such as a moving stall. While Daihatsu Zebra a.k.a Daihatsu Citivan/ Devan is a van based body. Perodua Rusa is a rebadged Daihatsu Zebra in Malaysia, released by Perodua. The Piaggio Porter is a licenced version manufactured in Italy, available also with an LPG or electric motor. All of these variants are based on early version of the Hijet which has its front wheel located below the front door (or engine below the front seat). » Read More About Daihatsu Atrai |
