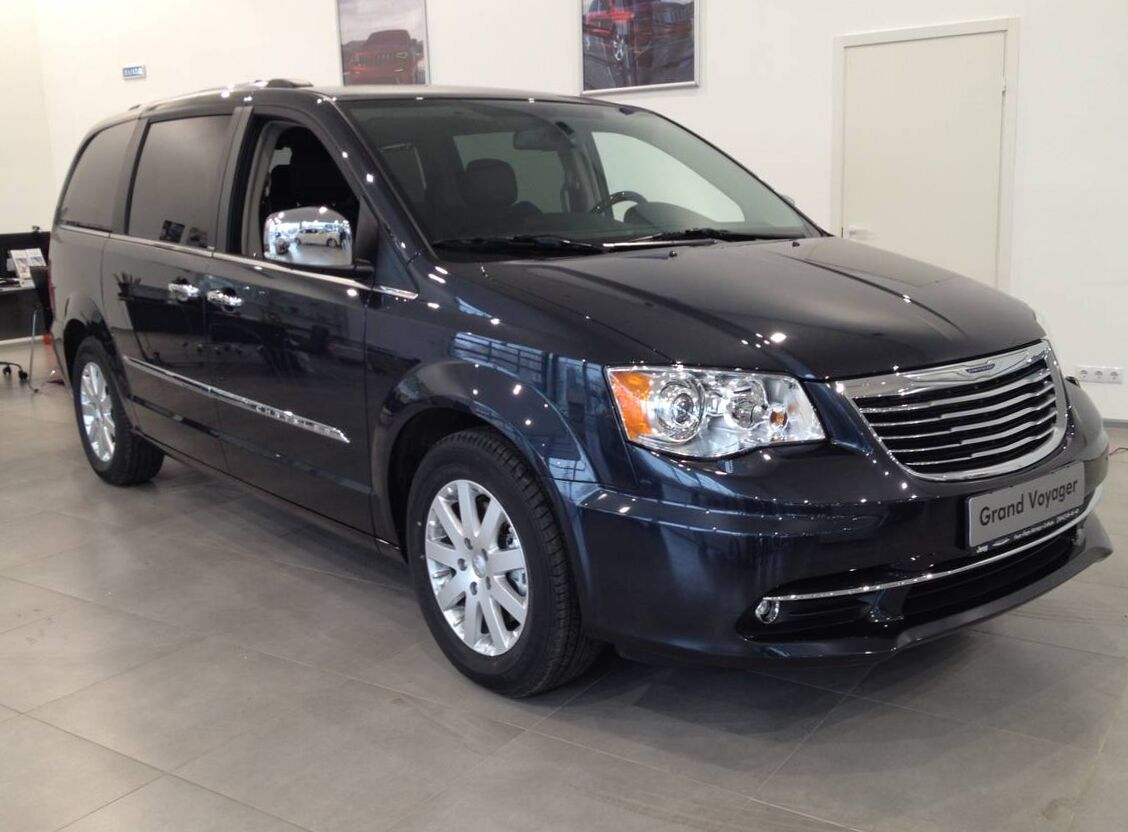

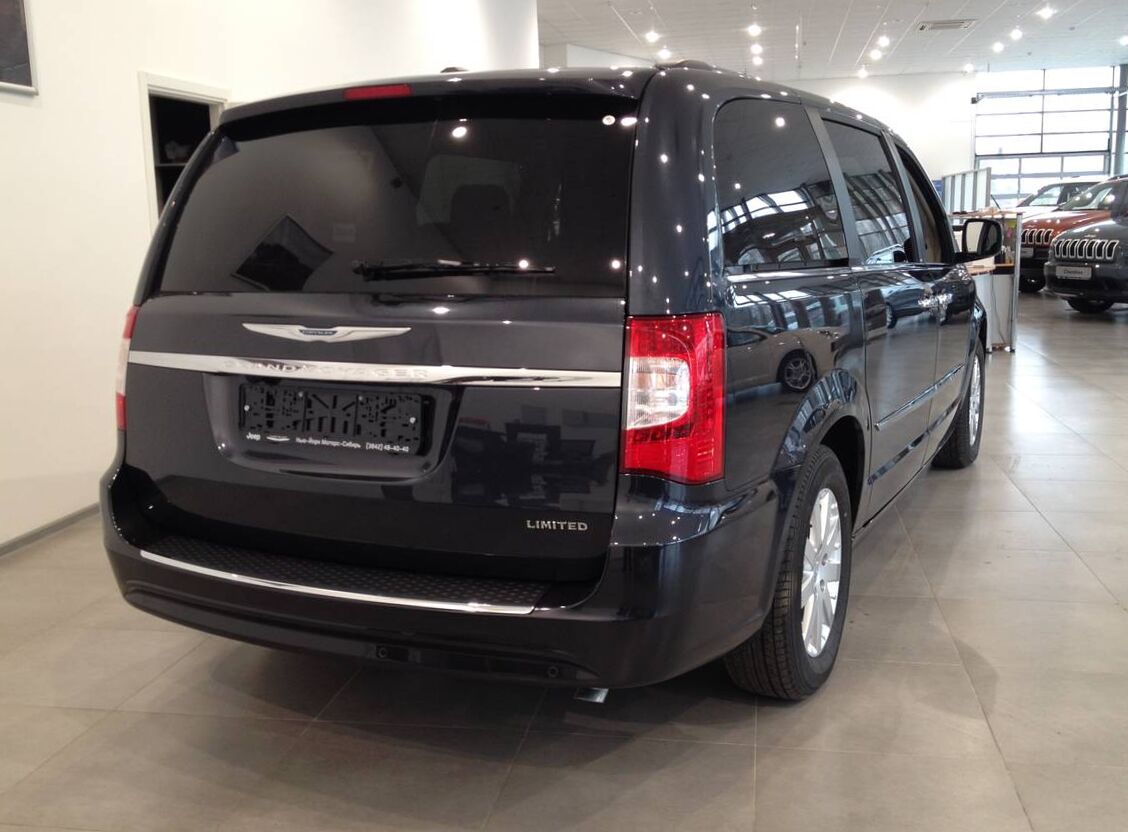

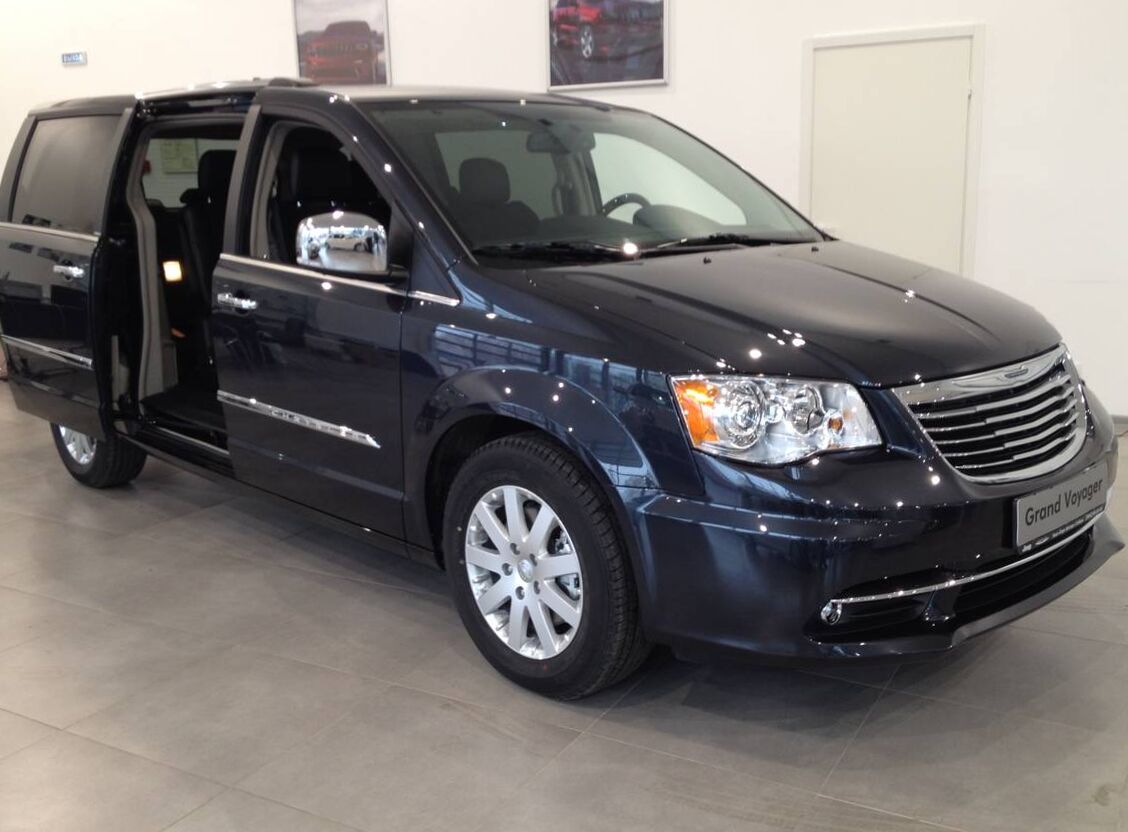

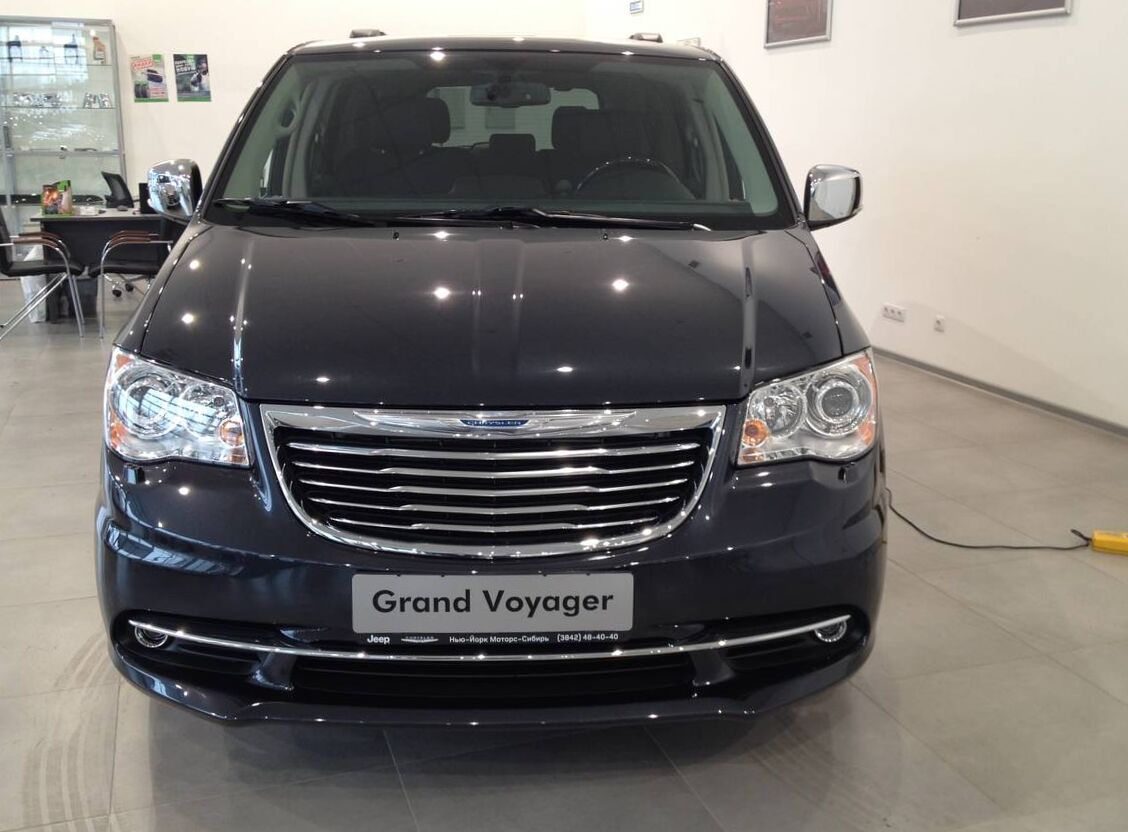

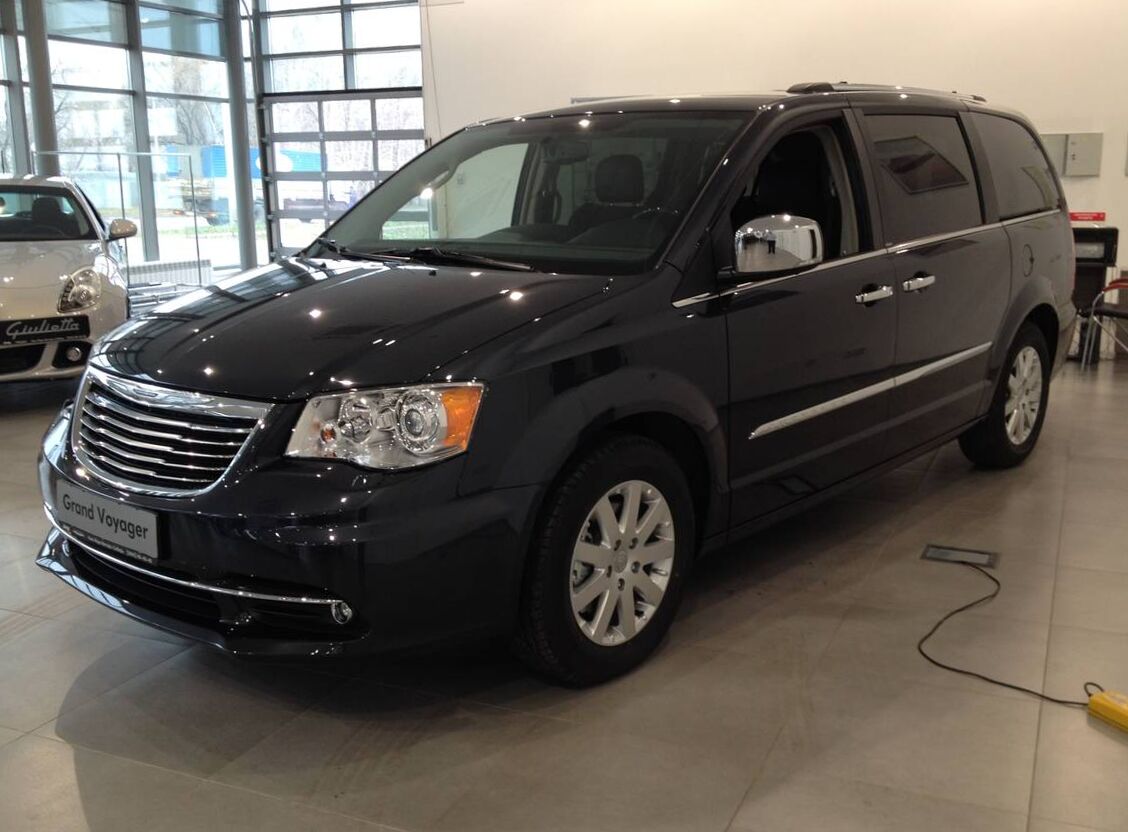

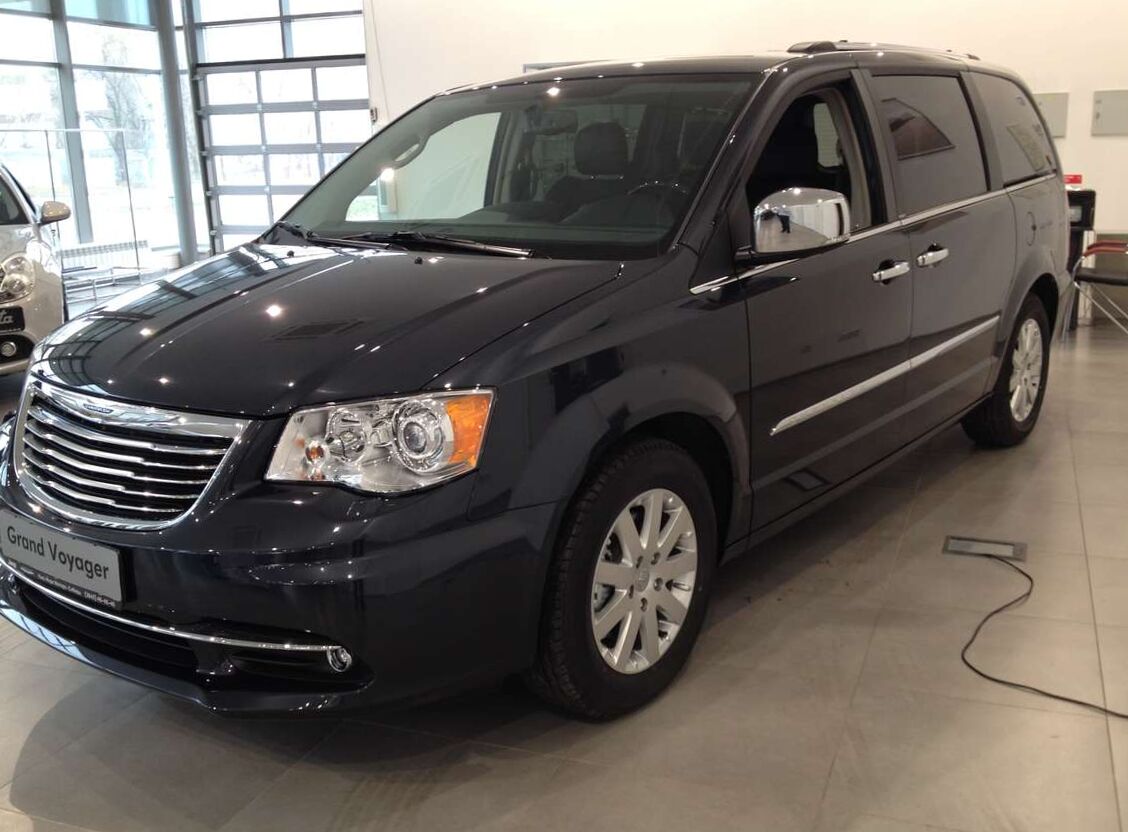

2014 Chrysler Grand Voyager V 3.6 AT Limited
More photos of Chrysler Grand Voyager
Chrysler Grand Voyager Problems
Powersteering pump
1999, I have a 1999 voyager will a pwersteering
pump off a 2004 model fit I can purchase one t...
Chrysler Grand Voyager
1993, Hallo, can you help me, please? Where can
I buy a parts for my car? I need an on-line sh...
Chrysler Grand Voyager Problems
Powersteering pump
1999, I have a 1999 voyager will a pwersteering
pump off a 2004 model fit I can purchase one t...
Chrysler Grand Voyager
1993, Hallo, can you help me, please? Where can
I buy a parts for my car? I need an on-line sh...
| Body type | Minivan |
|---|---|
| Engine Displacement | 3600 cm3 or 3.6L or 219.6 cu-in |
| Color | gray |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Price (out of date) | $45710 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2014 Chrysler Grand Voyager V? | Minivan, 7 Seats, 5 Doors |
| What is the fuel economy, 2014 Chrysler Grand Voyager 3.6 AT Limited? | 10.8 l/100 km |
| How fast is the car, Chrysler Grand Voyager V 2014 Minivan 3.6 AT Limited (283 Hp)? | 209 km/h, 0-100 km/h: 9.5 sec |
| How much power, 2014 Chrysler Grand Voyager Minivan 3.6 AT Limited (283 Hp)? | 283 Hp |
| What is the engine size, 2014 Chrysler Grand Voyager V? | 3.6L or 3604cm3 |
| How many gears, What type is the gearbox, 2014 Chrysler Grand Voyager 3.6 AT Limited? | Automatic transmission 6 |
| What is the drivetrain, Chrysler Grand Voyager V 2014 Minivan 3.6 AT Limited (283 Hp)? | Front |
| How long is this vehicle, 2014 Chrysler Grand Voyager Minivan 3.6 AT Limited (283 Hp)? | 5175 mm |
| How wide is the vehicle, 2014 Chrysler Grand Voyager V? | 1998 mm |
| What is the gross weigh, 2014 Chrysler Grand Voyager 3.6 AT Limited? | 2690 kg |
| How much trunk (boot) space, Chrysler Grand Voyager V 2014 Minivan 3.6 AT Limited (283 Hp)? | 934 l |
Chrysler Grand Voyager V 3.6 AT Limited (283 Hp) 2011, 2012, 2013, 2014, 2015 Specs
General information | |
|---|---|
| Complectation name | 3.6 AT Limited |
| Production start year | 2011 |
| Production end year | 2015 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Automatic transmission 6 |
| Engine volume, cc | 3604 |
| 0 to 100 time | 9.5 |
| Max speed | 209 |
| Clearance, mm | 140 |
| Manufacturing country | USA |
| Doors | 5 |
| Winter complectation | yes |
| Warranty | 2 years regardless of mileage |
Engine, transmission and steering specs | |

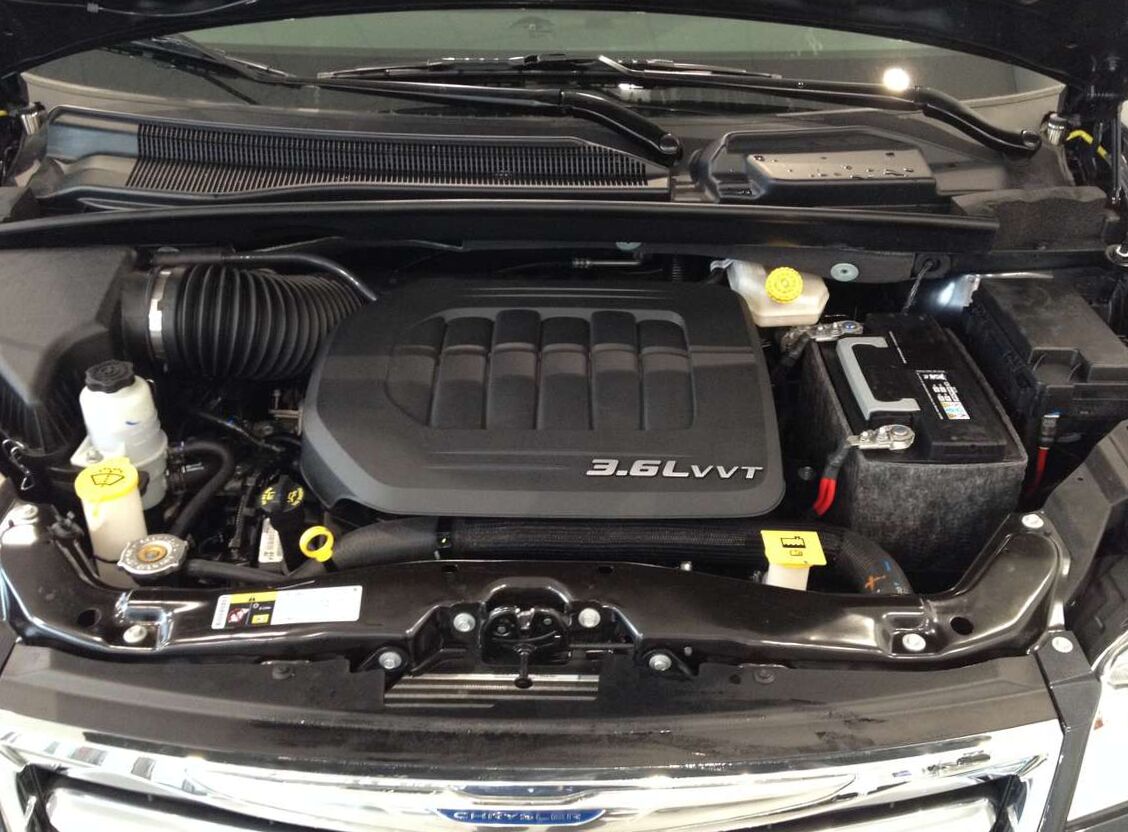

Engine specs | |
| Engine name | Pentastar |
| Fuel | Petrol (Gasoline) |
| Engine type | V6 |
| Has turbo | no |
| Max power, hp | 283 |
| Max power RPM, rpm | 6600 |
| Max power, hp (kWt) / rpm | 283 (208) / 6600 |
| Max torque, N*m | 344 |
| Max torque RPM, rpm | 4400 |
| Max torque, N*m (kg*m) / rpm | 344 (35) / 4400 |
| Valves per cylinder | 4 |
| Compression ratio | 10.2 |
| Bore, mm | 96 |
| Stroke, mm | 83 |
| Engine additional info | Injector |
| Eco type | Euro-5 |
Fuel consumption | |
| City | 15.8 |
| Country side | 7.9 |
| Combined | 10.8 |
| Co2 emission | 251 |
Transmission | |
| 1st gear ratio | 3.9 |
| 2nd gear ratio | 2.69 |
| 3rd gear ratio | 2.16 |
| 4th fear ratio | 1.37 |
| 5th gear ratio | 0.95 |
| 6th gear ratio | 0.65 |
| Reduced gear ratio | 1.49 |
| Rear gear ratio | 3.04 |
| Main gear ratio | 3.16 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5175 |
| Exterior width, mm | 1998 |
| Exterior height, mm | 1750 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
Chassis dimensions | |
| Wheel base, mm | 3078 |
| Turning radius, m | 6.04 |
| Wheel spacing front | 1663 |
| Wheel spacing rear | 1645 |
| Front overhang | 983 |
| Rear overhang | 1121 |
Weight and permissible load | |
| Mass, kg | 2016 |
| Max. weight | 2690 |
| Max roof weight | 68 |
| Trailer max weight wobrakes | 450 |
| Trailer max weight wbrakes | 1600 |
| Front axe load | 1303 |
| Rear axe load | 1387 |

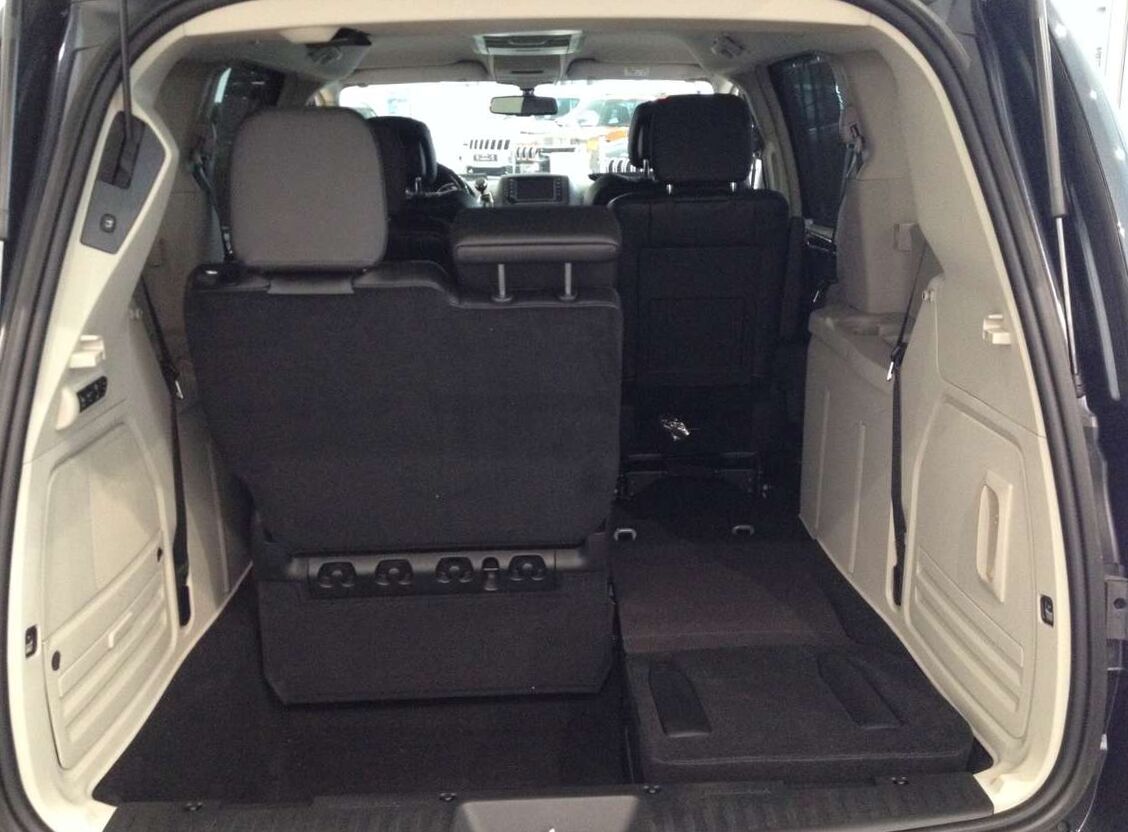

Volumes | |
| Fuel tank capacity, l | 75 |
| Trunk volume | 934 |
Other | |

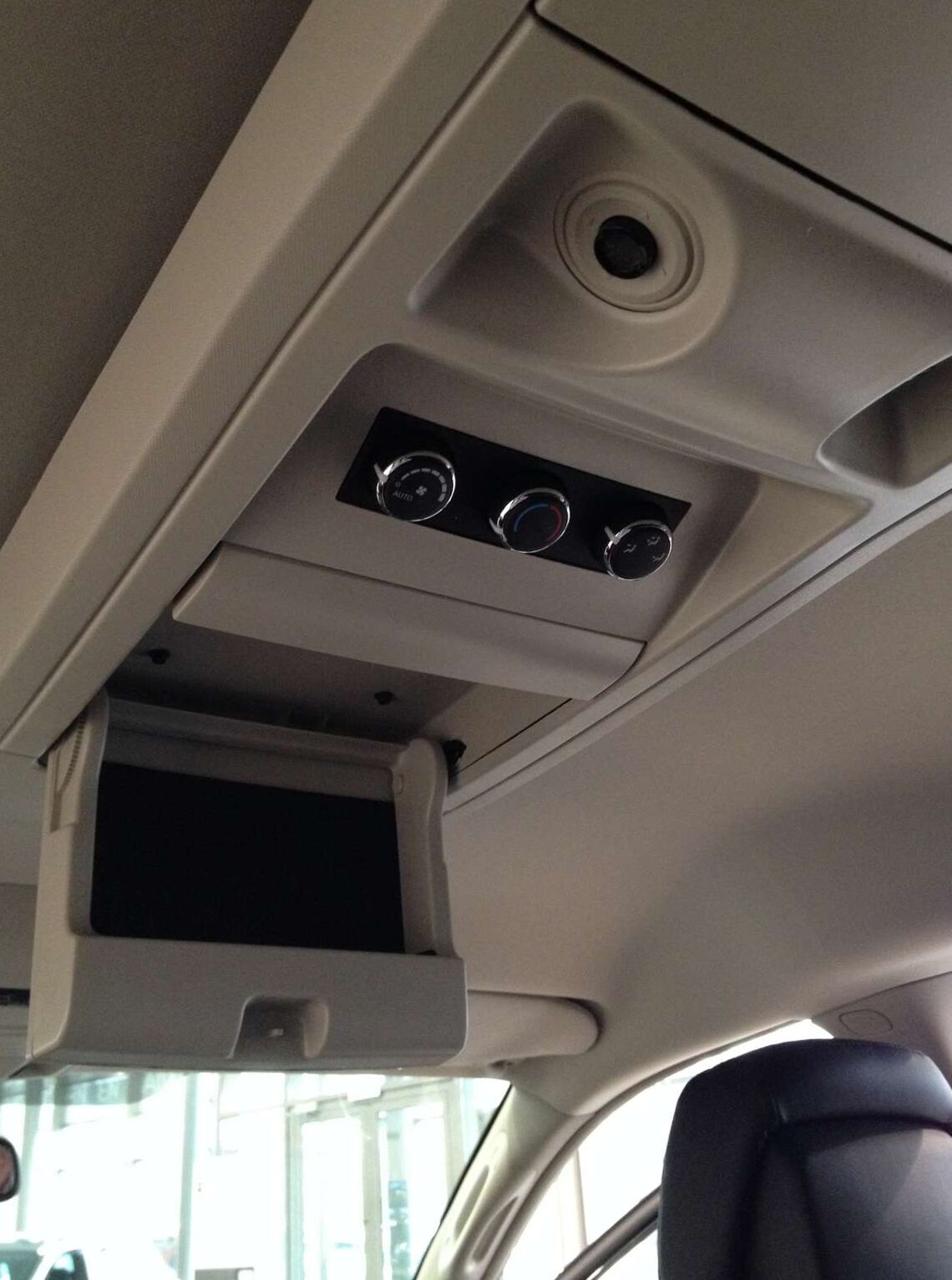

| Special equipment | Mini console ceiling |
| Aerodynamic drag | 0.31 |

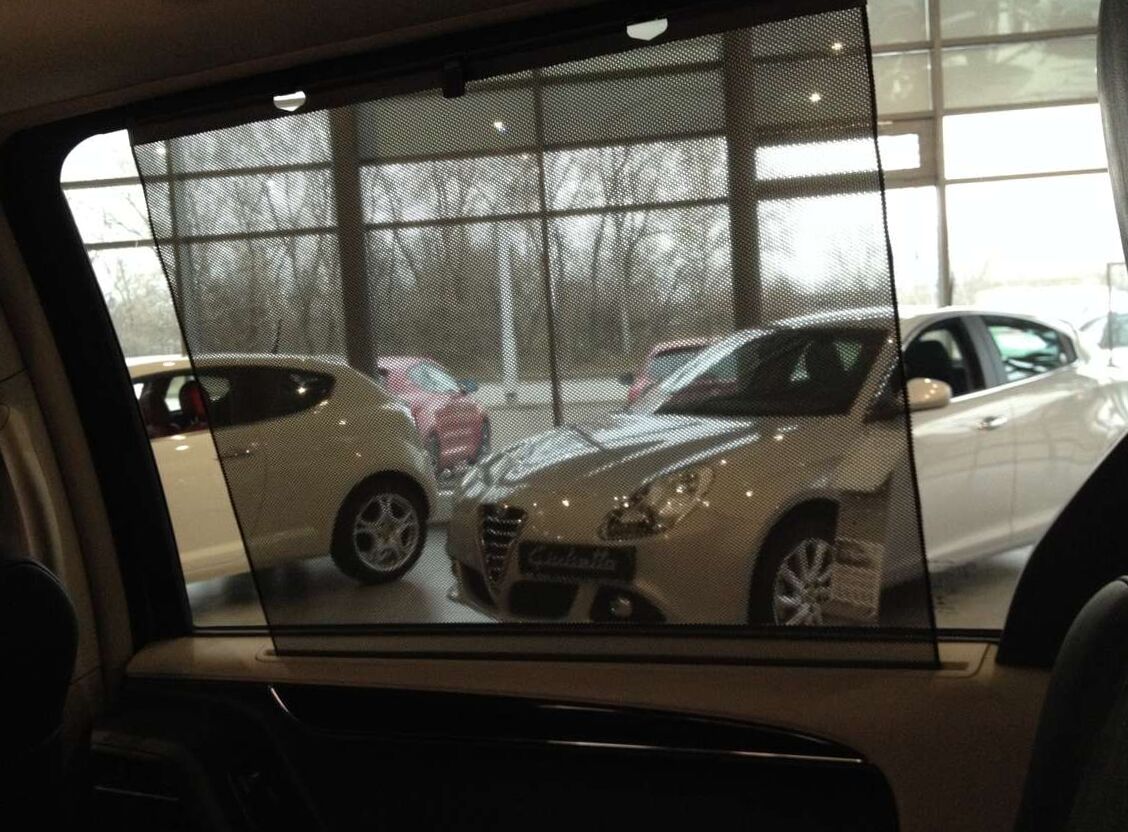

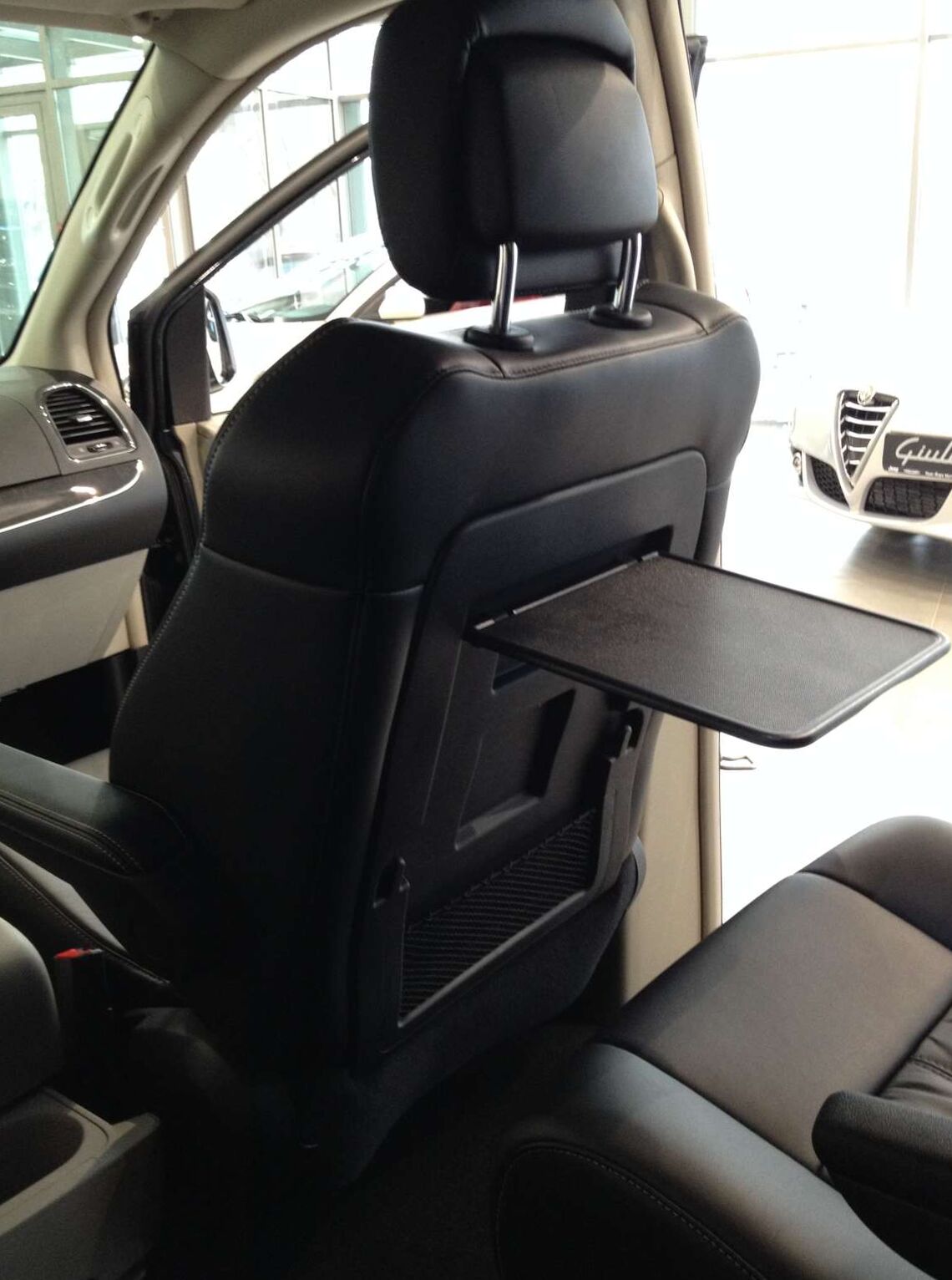

| Addinfo | Fold-out table on the backrest of the first row seats;Clock on the front panel;Window shades on the 2nd and 3rd rows of seats |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Semi-independent, torsion bar |
| Sport suspension | yes |
Wheel rims | |
| Aluminium wheel | yes |
| Disc | 17X6,5J |
Tires | |
| Front wheels | 225/65 R17 |
| Rear wheels | 225/65 R17 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
Exterior | |
Headlights | |

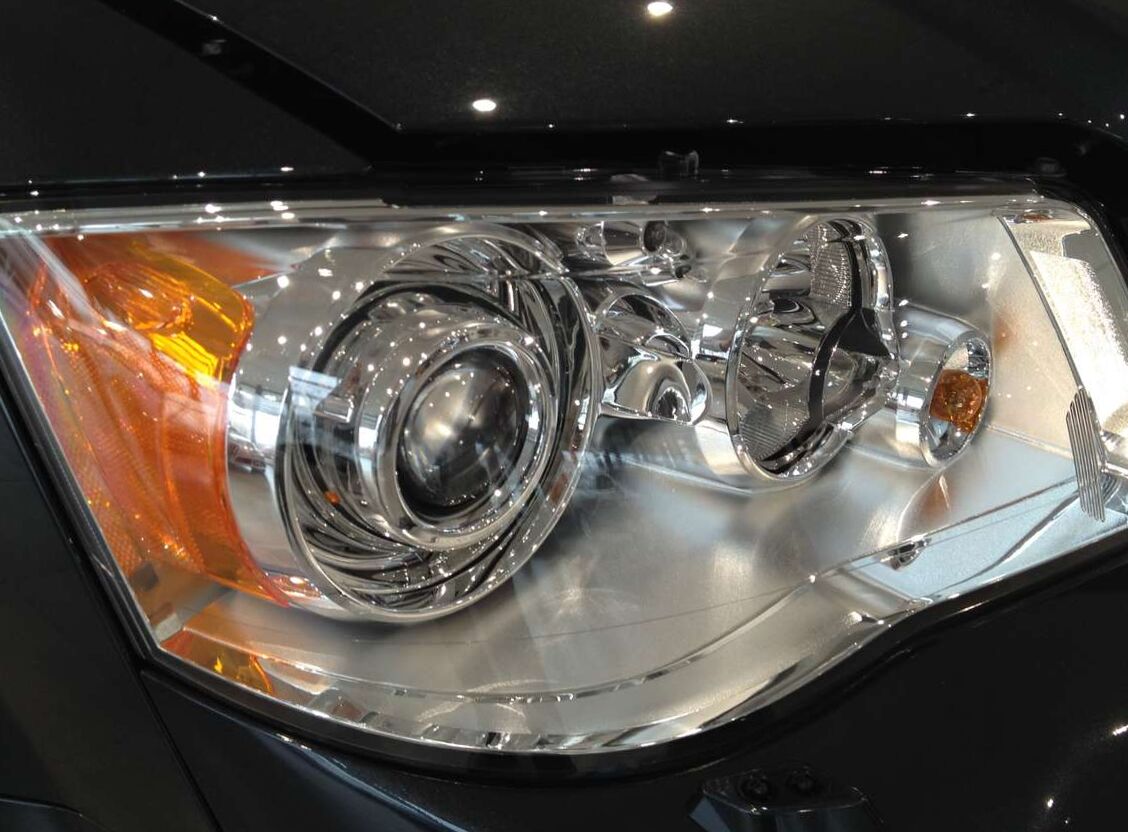

| Xenon lamps | yes |
| Head lights washer | yes |
| Front fog lamps | yes |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | no |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Sliding electric doors | yes |
| Chrome door handles | yes |
| Power rear door | yes |
Windows | |
| Privacy glass | yes |
| Rear glass heat | yes |
Roof | |
| Sunroof | option |
| Tilt sunroof | option |
Accessories | |
| Roof rail | yes |
| Bumpers | body color, chrome grille trim |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |
Interior | |

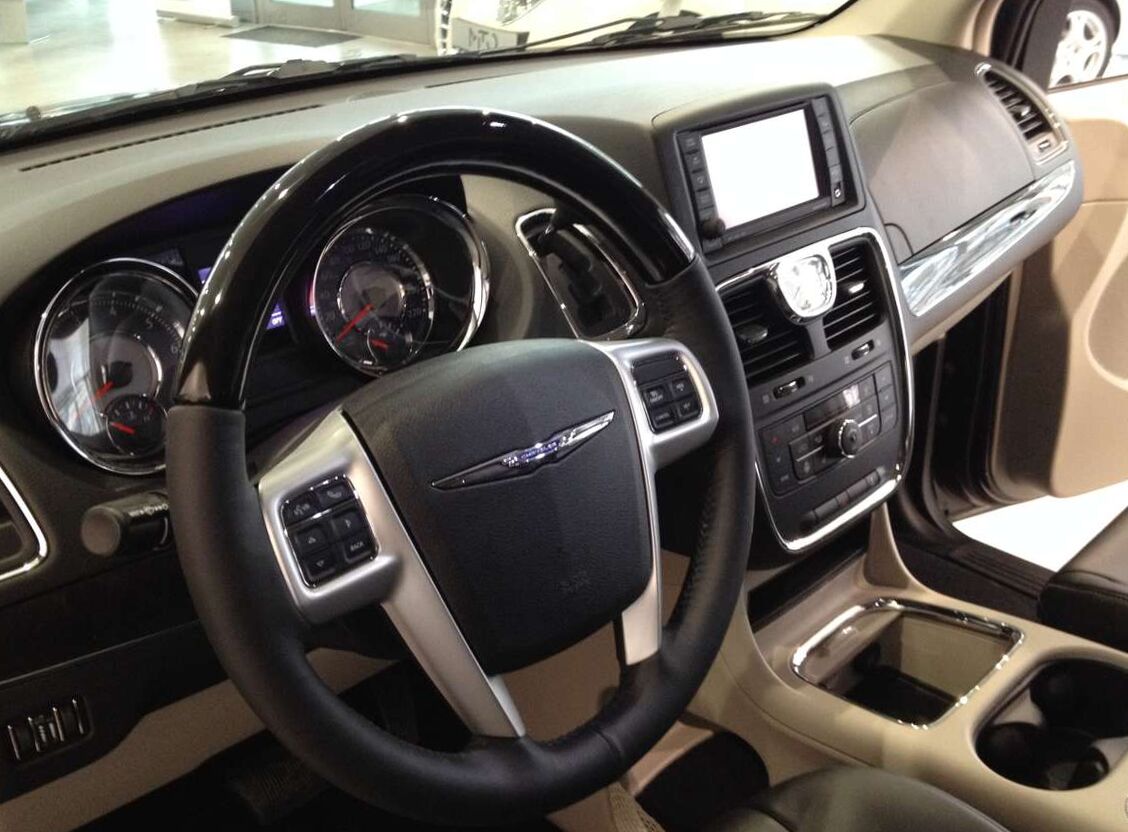

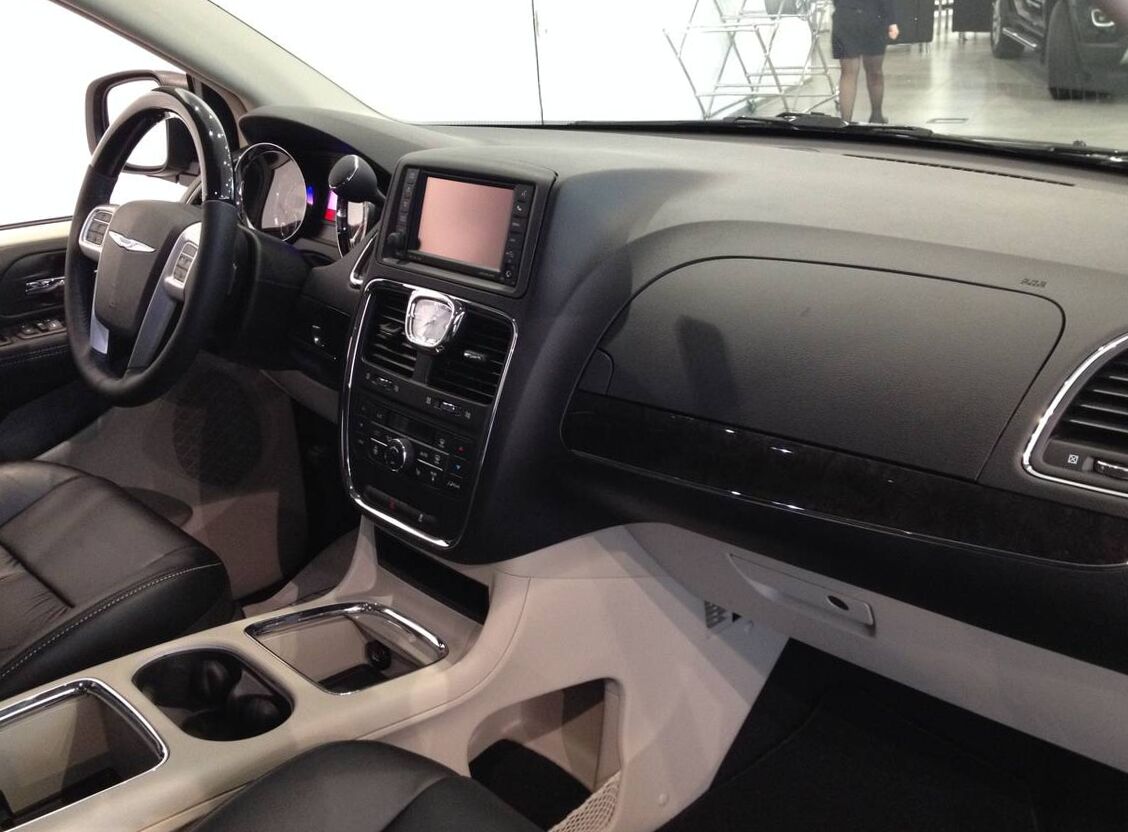

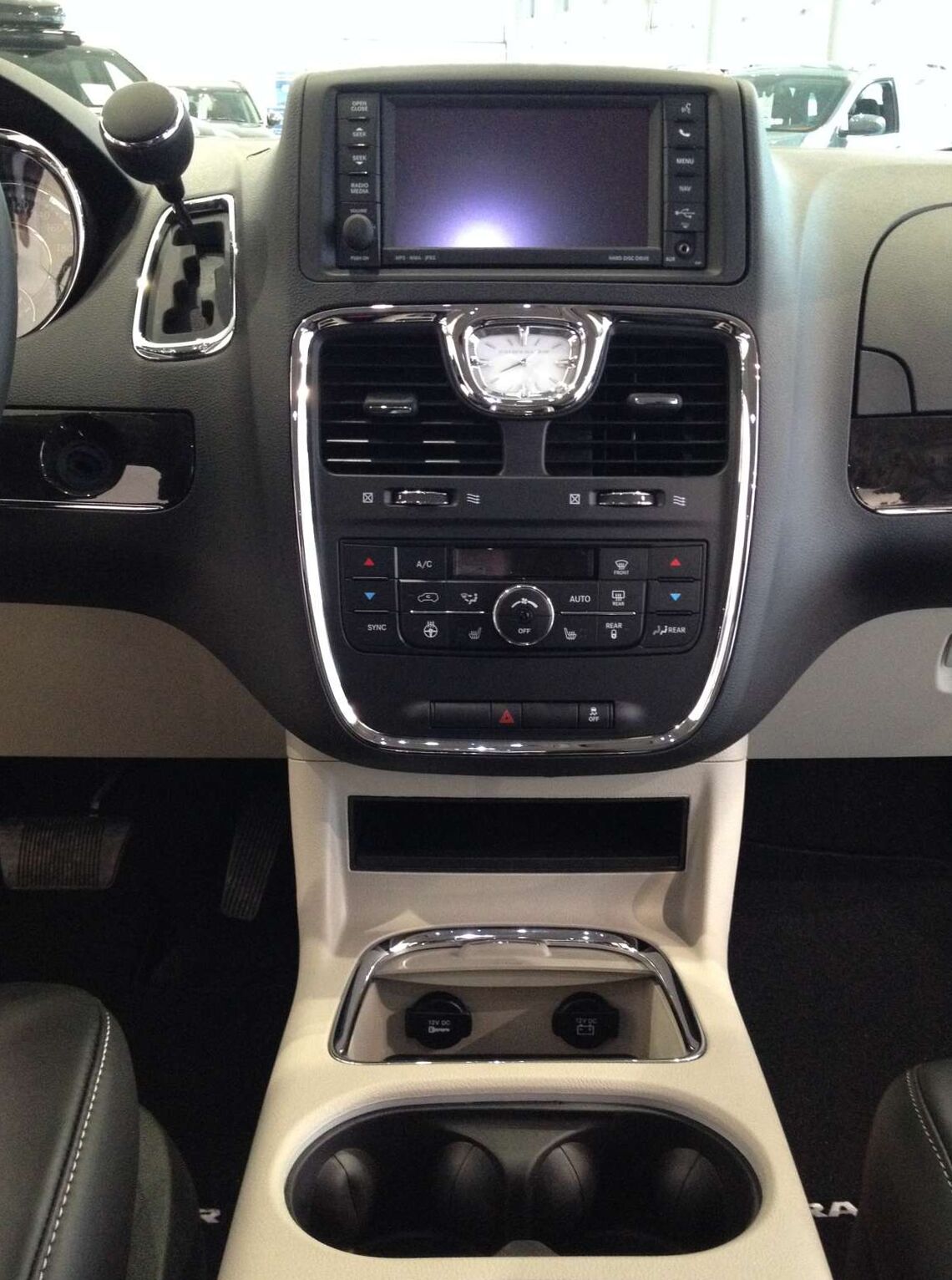

Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | no |
| Tilt steering | yes |
| Audio control on steering wheel | yes |

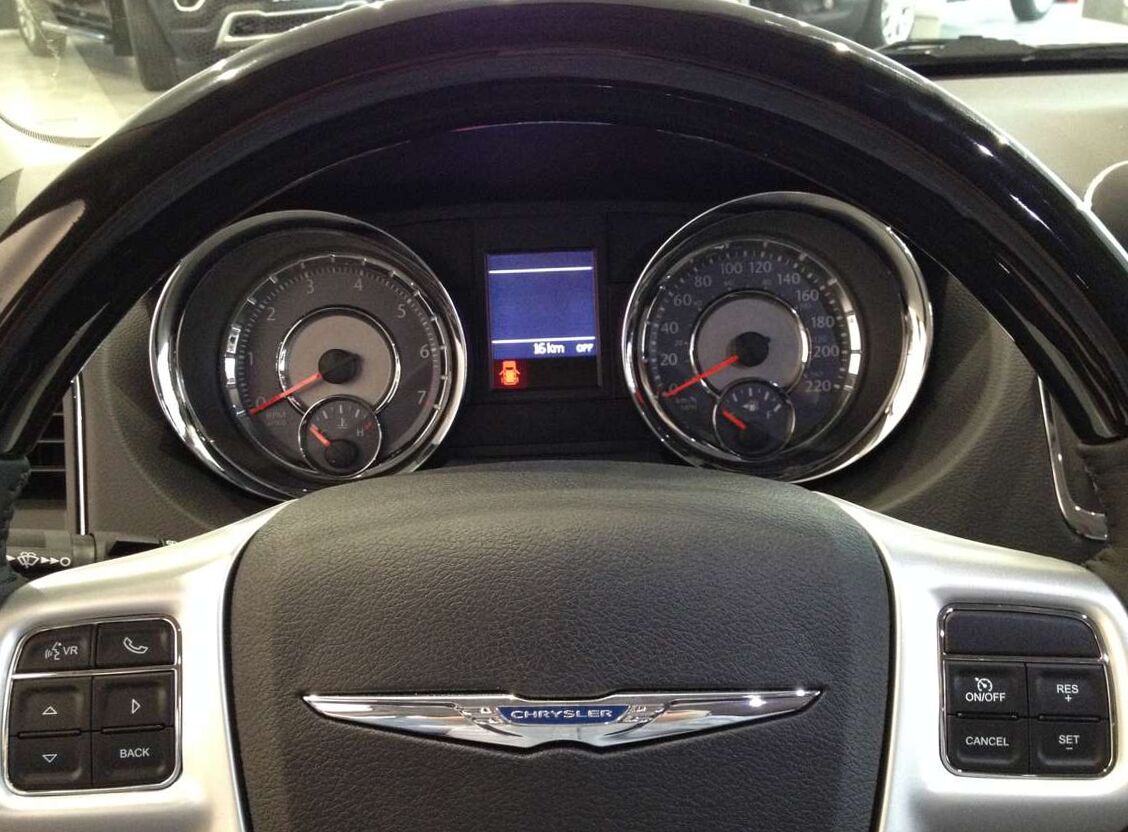

| Tachometer | yes |
Interior design | |
| Leather upholstery | yes |
| Combined obivka Salon | yes |
| Alcantara | yes |

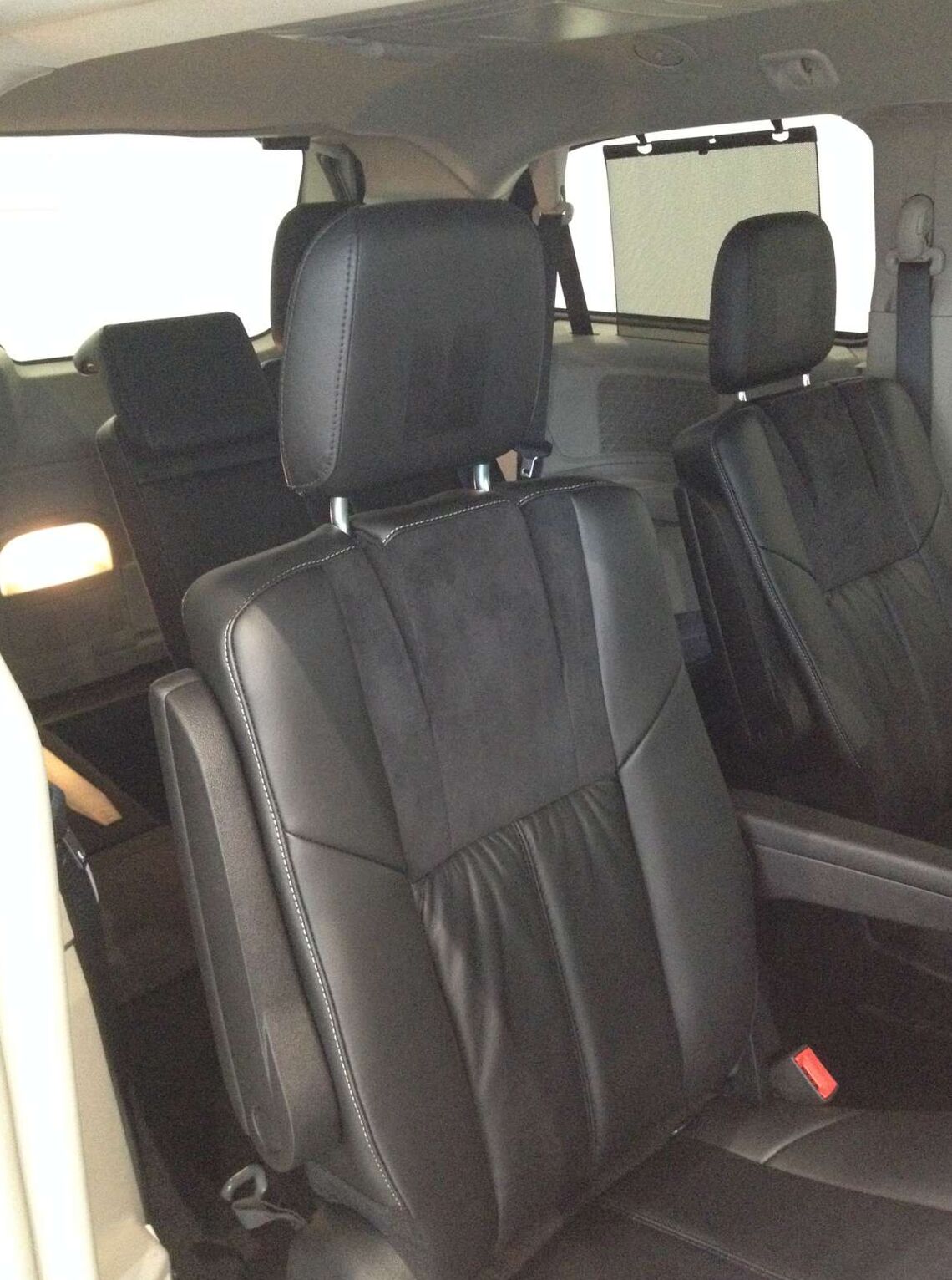

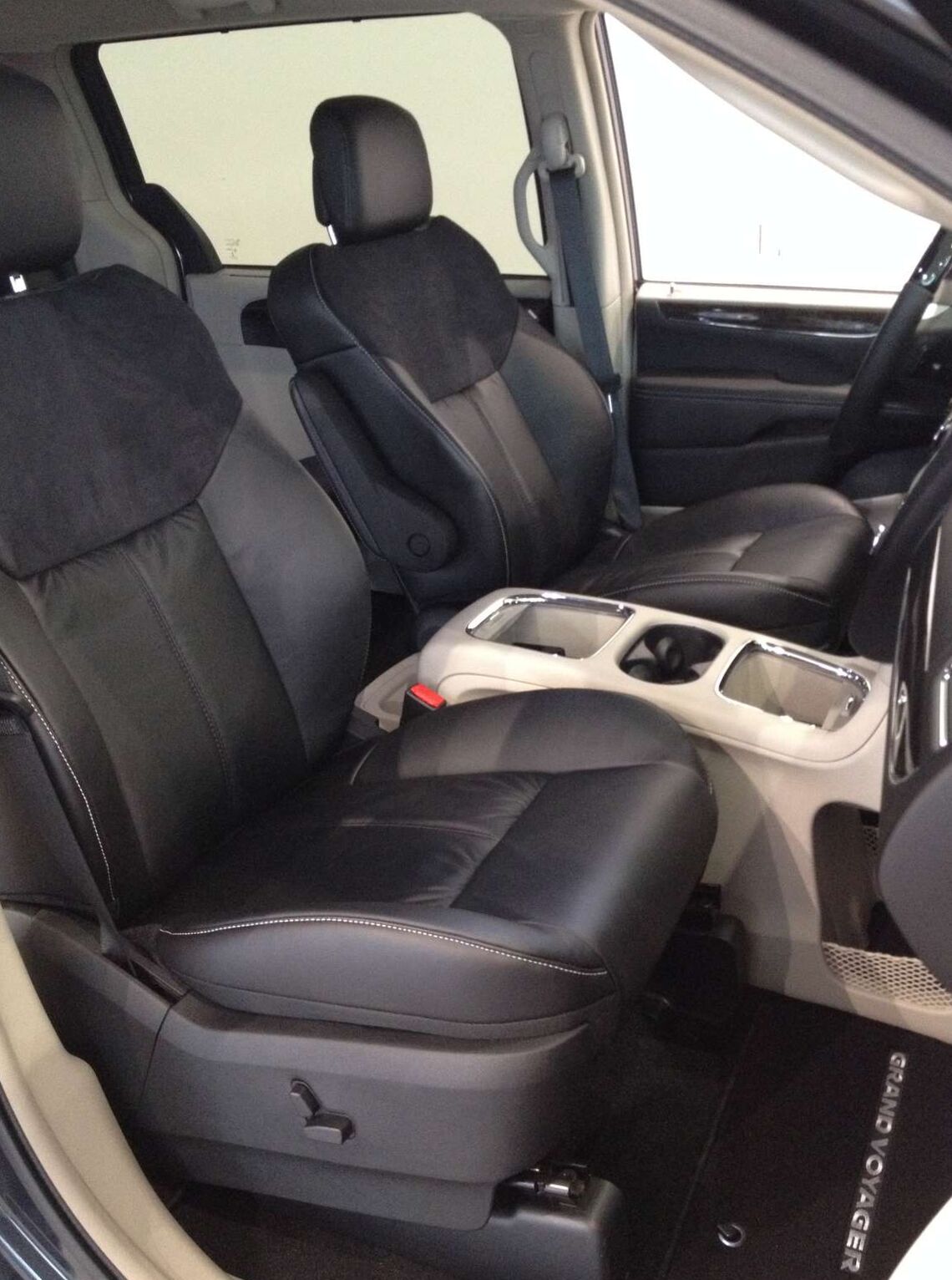

Seats | |
| Bucket seat | option |

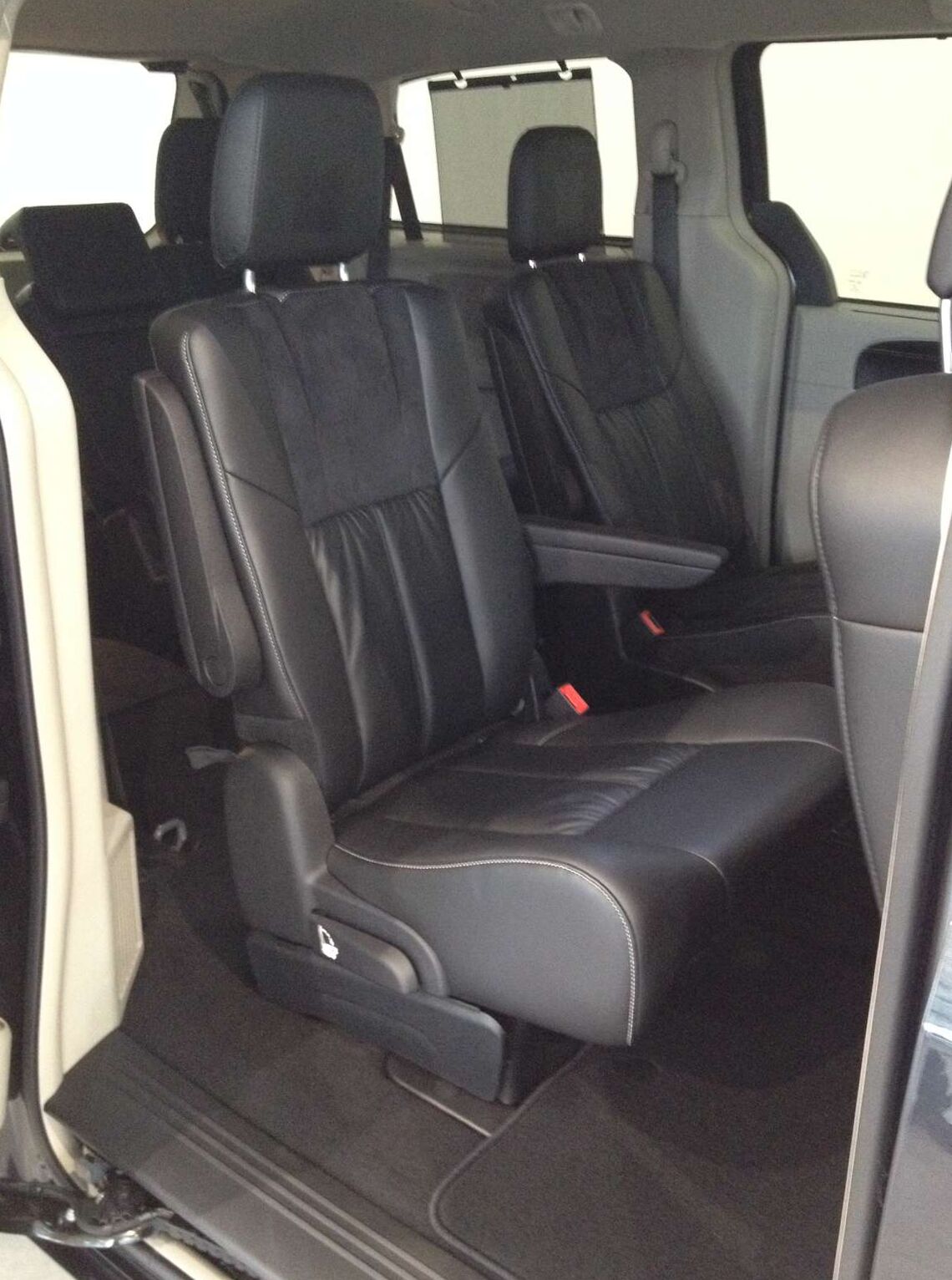

| 2nd row | two individual seats |

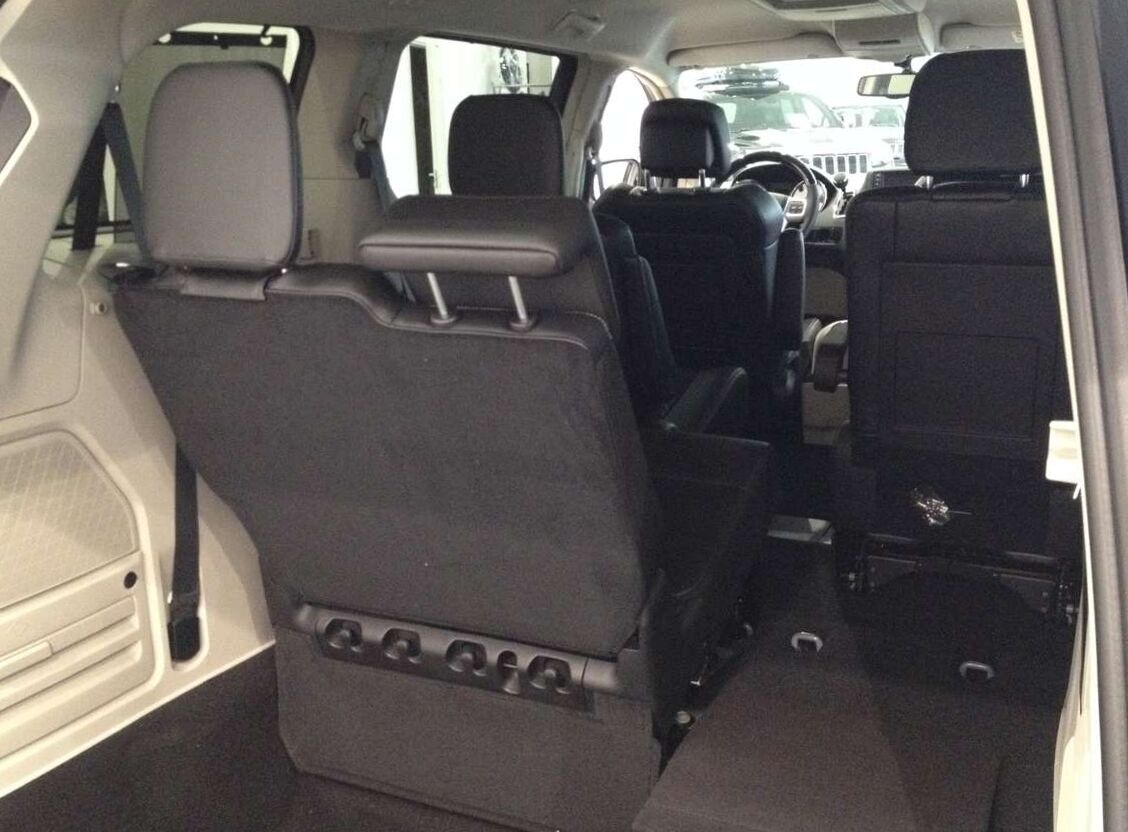

| 3nd row | 60/40 ratio fold seat |
| Seats pockets | yes |
| Mats | yes |
Electric interior package | |
| Power adjustable driver seat | yes |
| Power ajustable front seat | yes |
| Front seat heater | yes |
| Rear seats heater | yes |
| Seat position memory | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
| Stearing wheel heater | yes |
Additional interior equipment | |
| Smokers packet | yes |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Active and passive safety | |
| Active headrest | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Cruise control | yes |
| Function "Take me home" | yes |
| Autolight | yes |
| Dynamic cornering light | yes |
| System tire pressure monitoring | yes |
| Front sonar | no |
| Rear sonars | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
| Air filter | yes |
Audio systems | |
| Radio | yes |
| CD player | yes |
| DVD-audio | yes |
| Audio HDD | yes |
| MP3 Support | yes |
| Hands free | yes |
| Rear entertainment system | option |
| Additional sound equipment | Audio jack input, 8 speakers, subwoofer, USB |
Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |

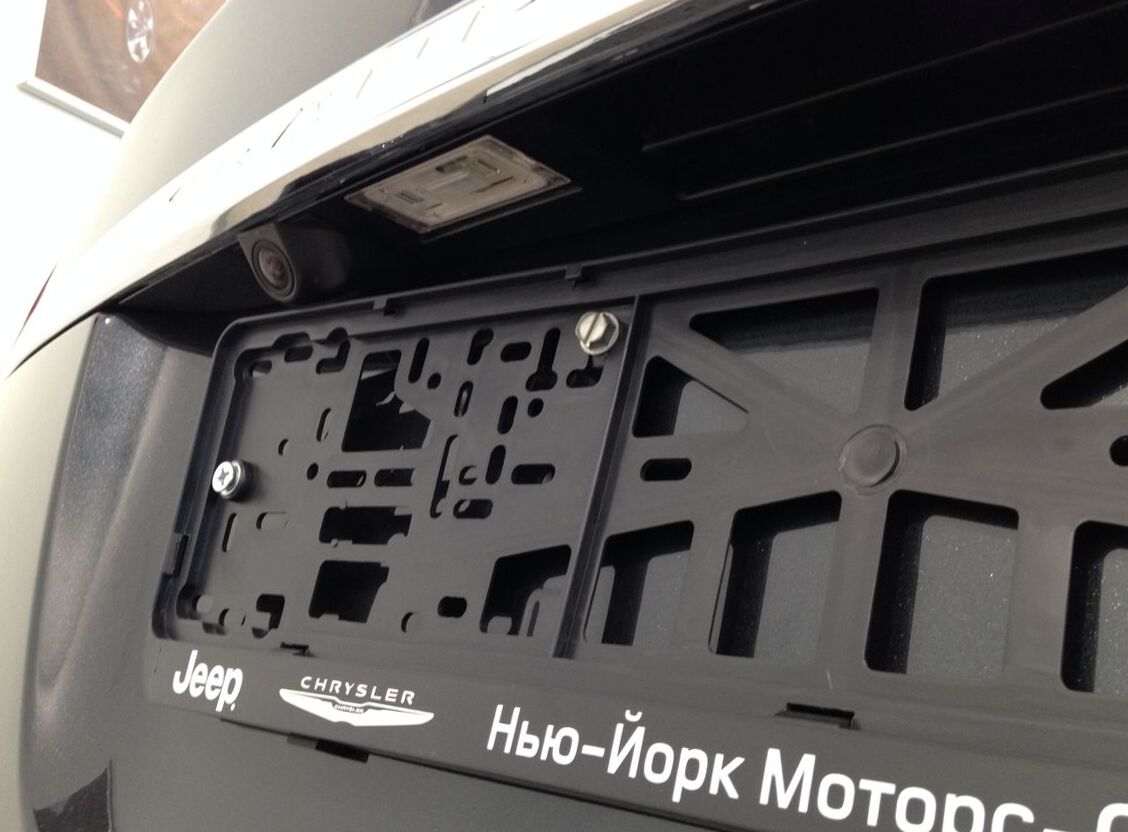

| Back monitor | yes |
Additional amenities | |
| Antidazzle rearview mirror | yes |
| Mirrors in sunshields | yes |
| Blind in luggage compartment | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
| Security alarm | yes |
Driver Kit | |
| Spare tyre small | yes |
2014 Chrysler Grand Voyager V 3.6 AT Limited (283 Hp) specs
|
Though no longer available in North America, Chrysler continues to use Chrysler Voyager nameplate in global markets, e.g., Mexico, Europe. Together with its nameplate variants, the Dodge Caravan, Chrysler Town & Country, Plymouth Voyager and Volkswagen Routan, the Chrysler minivans have ranked as the 13th bestselling automotive nameplate worldwide, with over 12 million sold. The European Chrysler Voyager was first released in 1988, nearly identical to its American counterpart, the Plymouth Voyager; the only visual differences between the two were the head/ taillights and grille. Besides of the slightly different appearance European Voyagers were sold with different engines, including diesel engines, which are popular in Europe; the trim was also different. The current European Voyagers are very similar to the 2008 Chrysler Town & Country cars. Although produced in Ontario now, they are still available with diesel engines. They are sold as Chrysler Grand Voyagers in Europe, since 2008 only in the long wheelbase version (as in North America). » Read More About Chrysler Grand Voyager |
