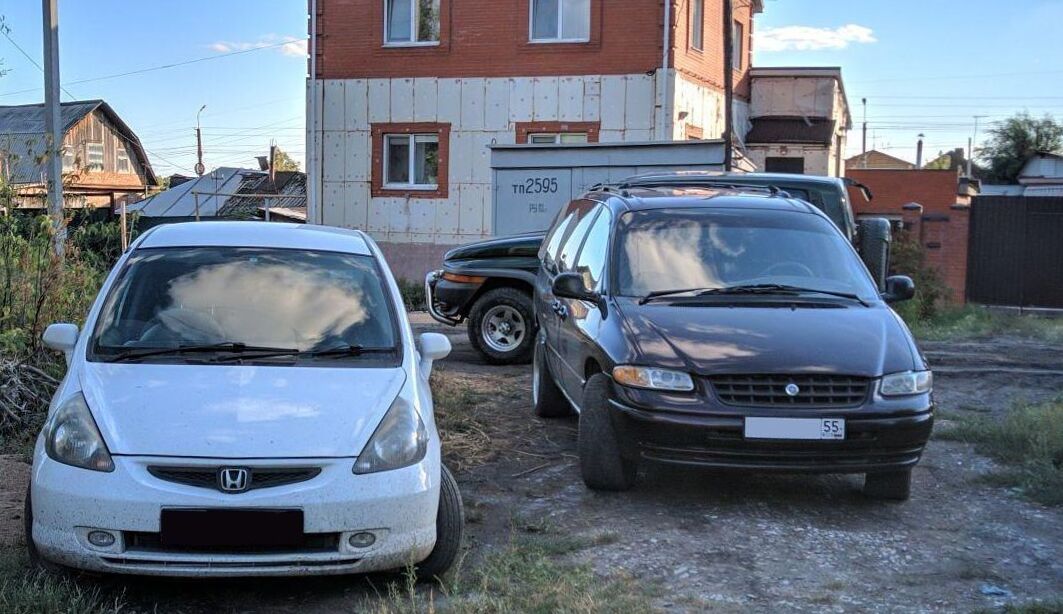

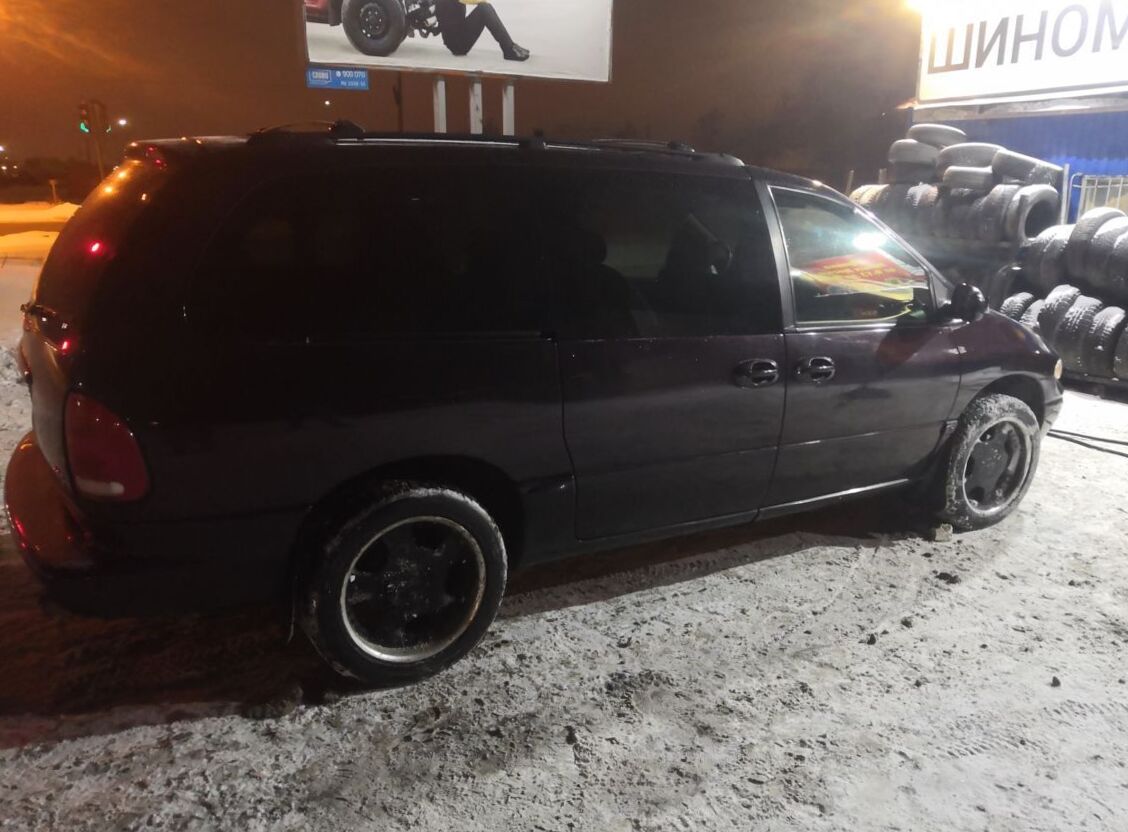

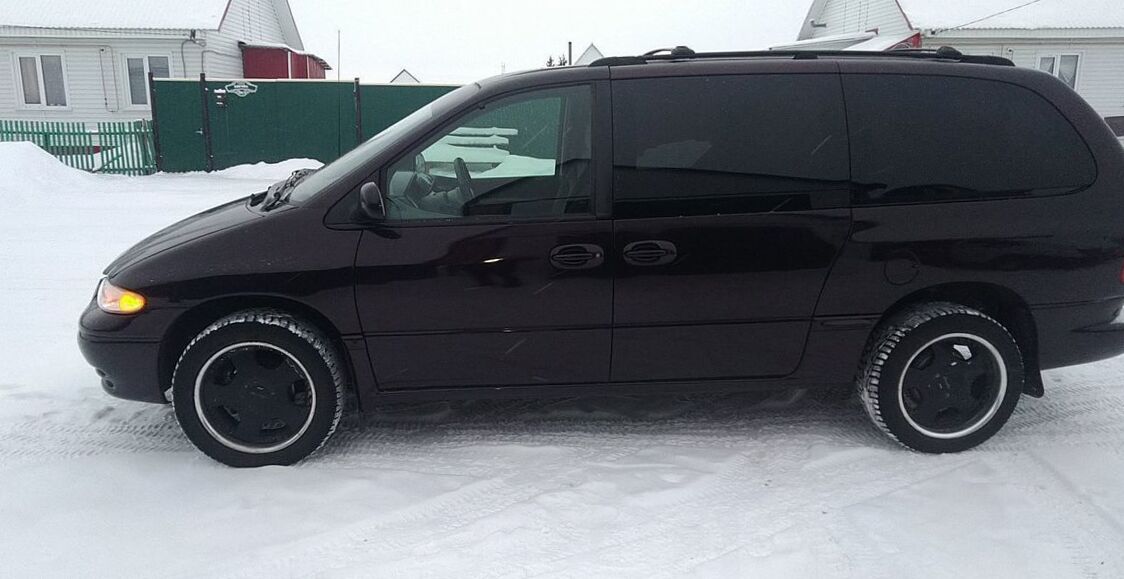

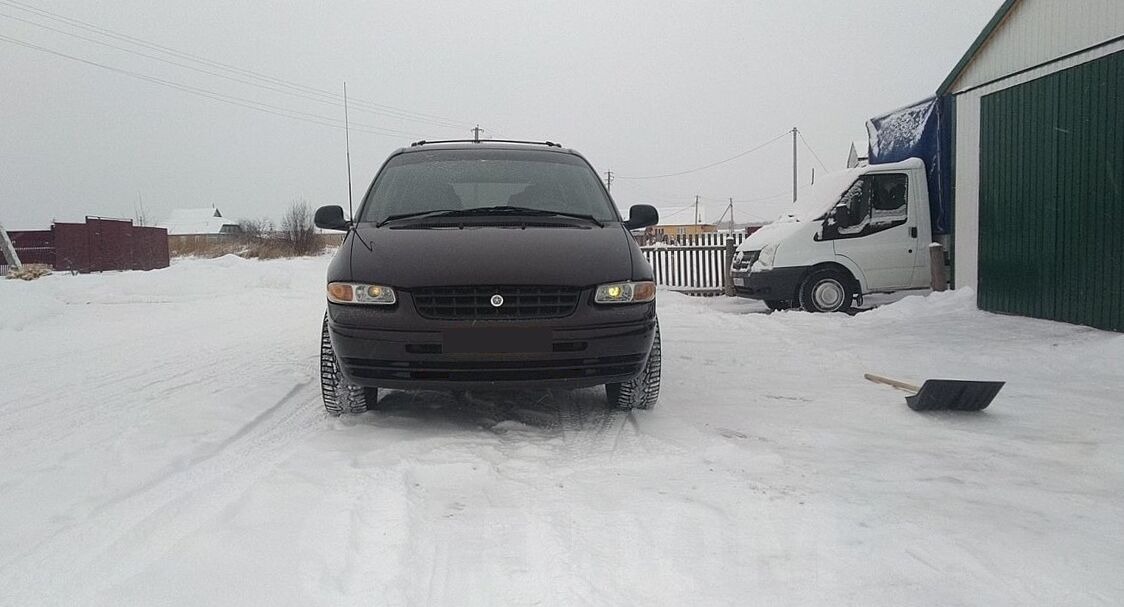

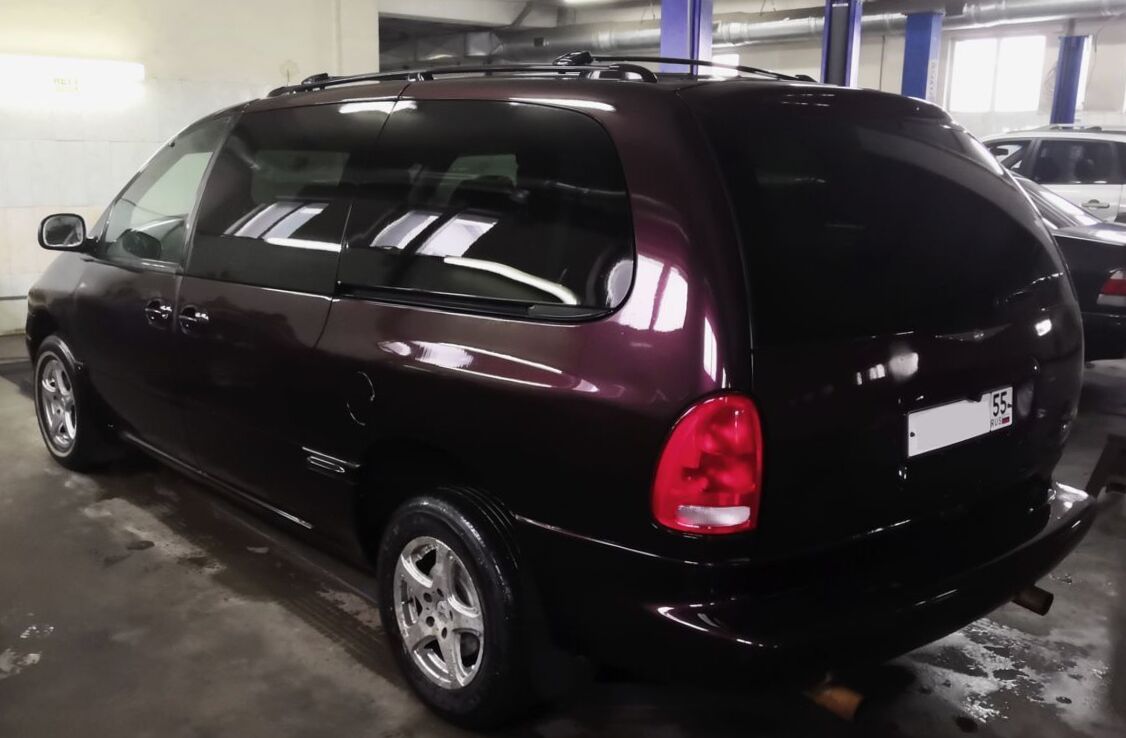

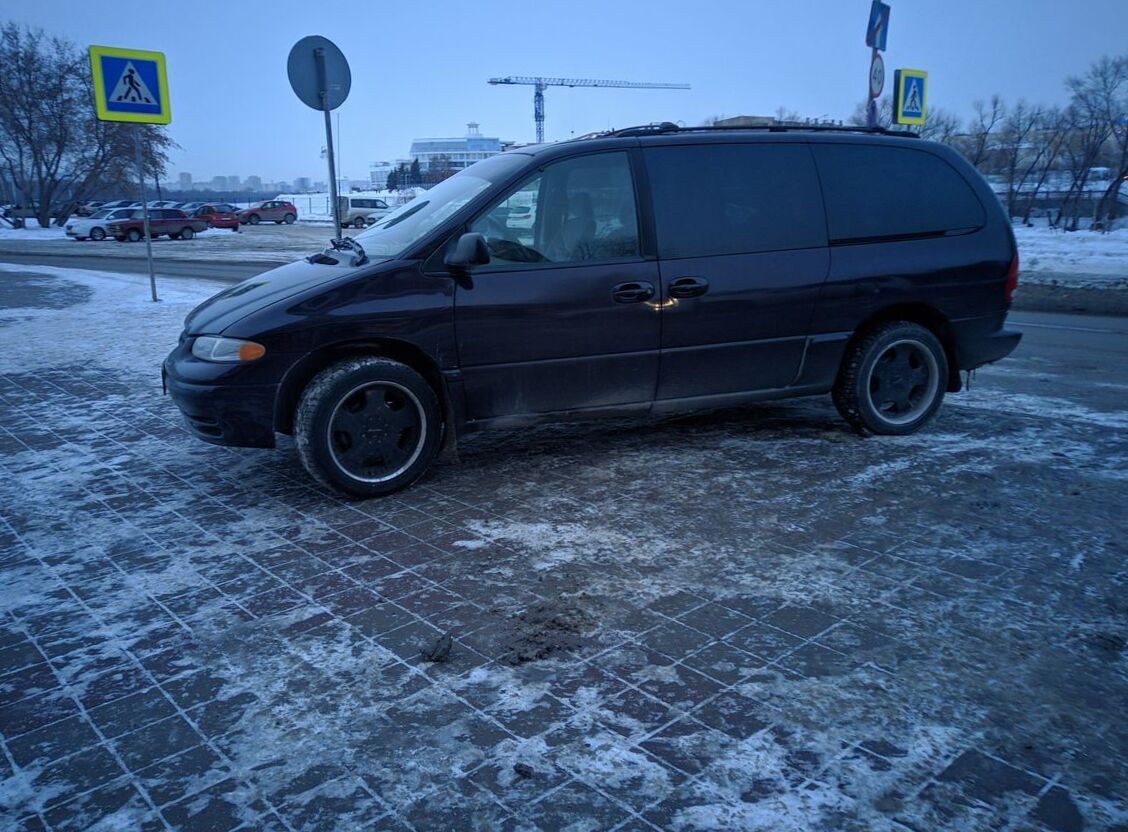

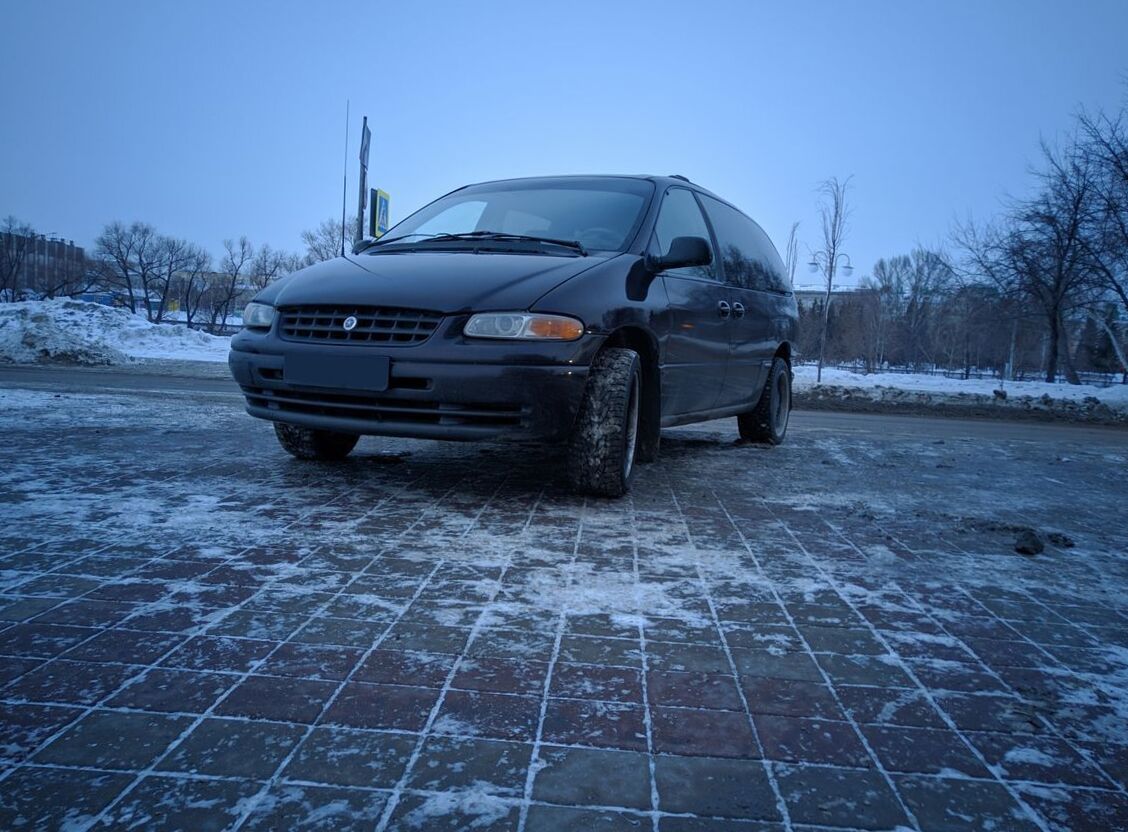

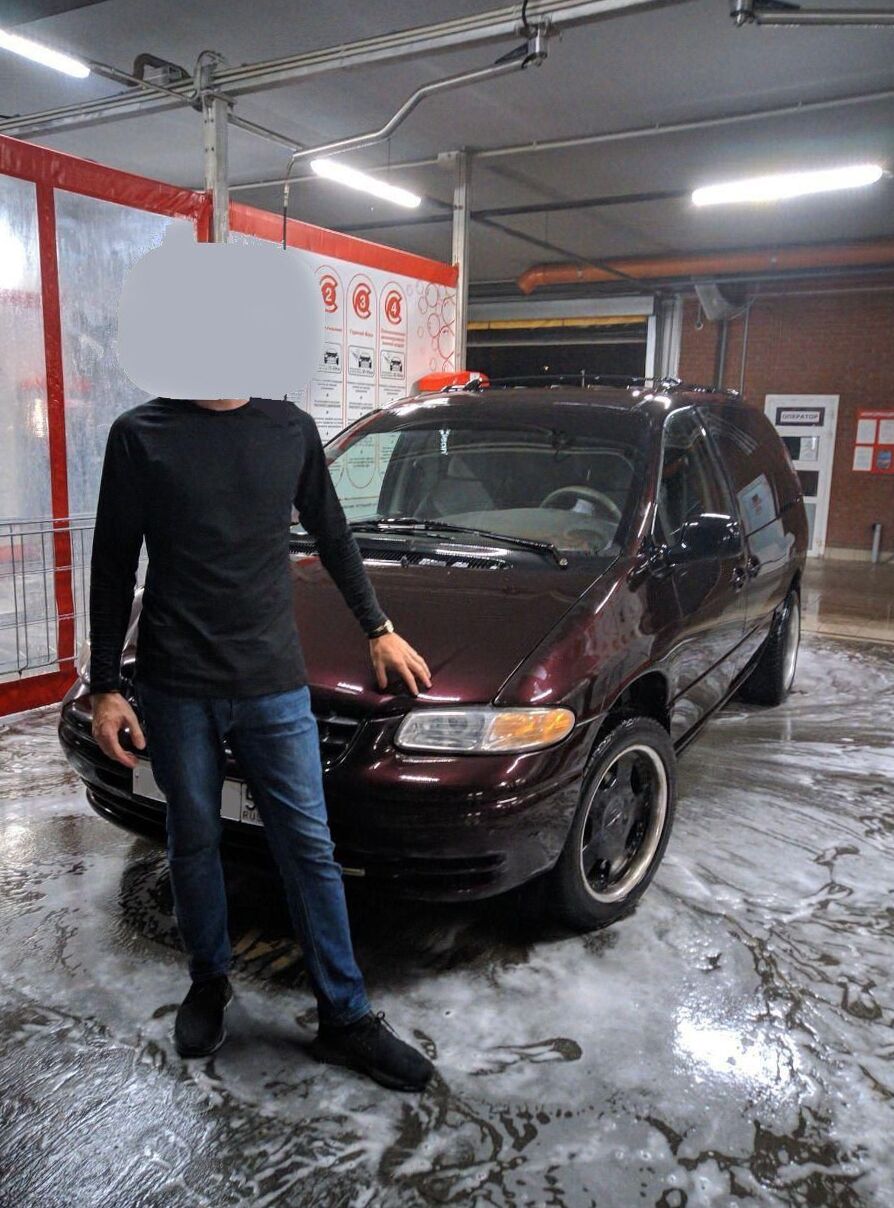

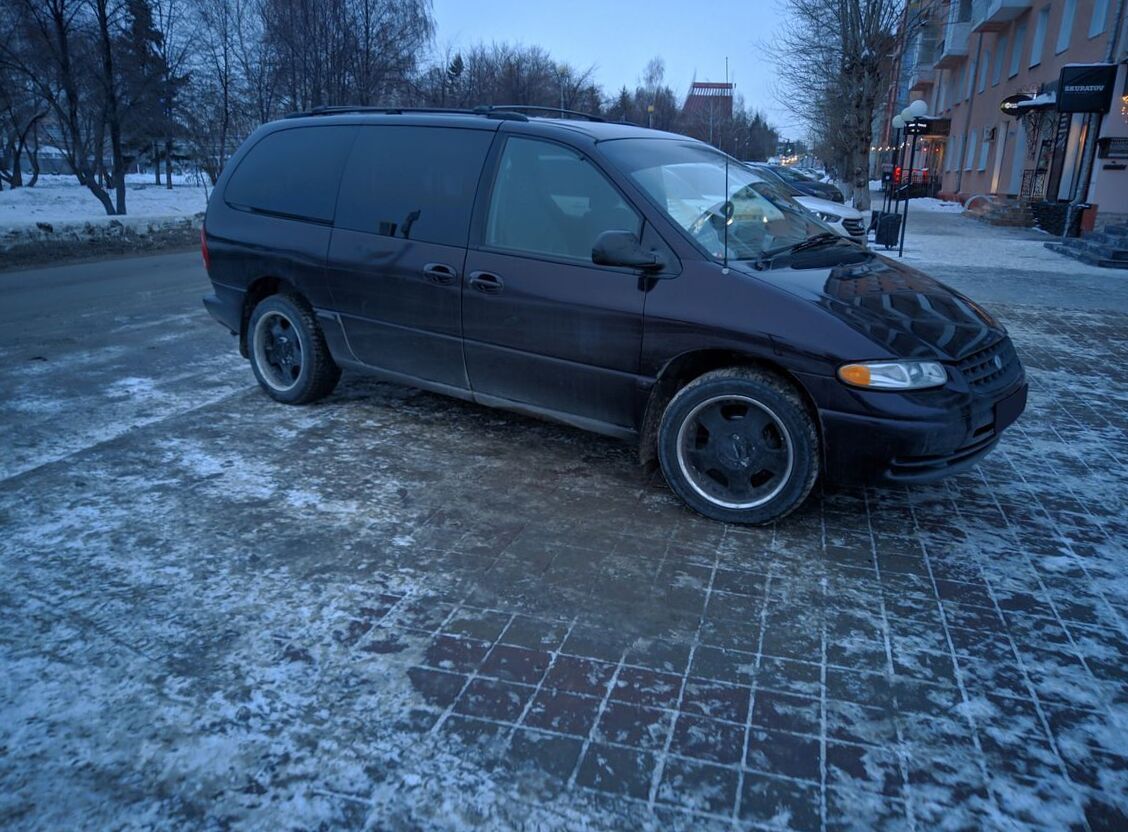

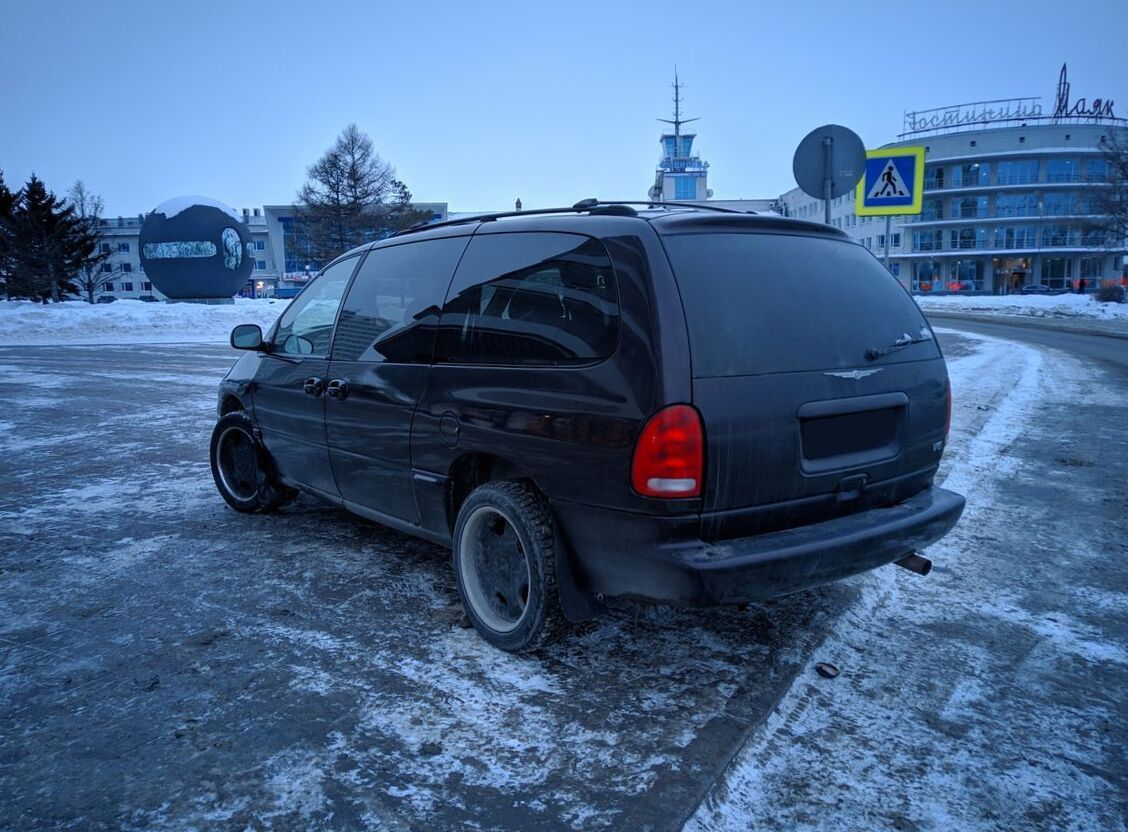

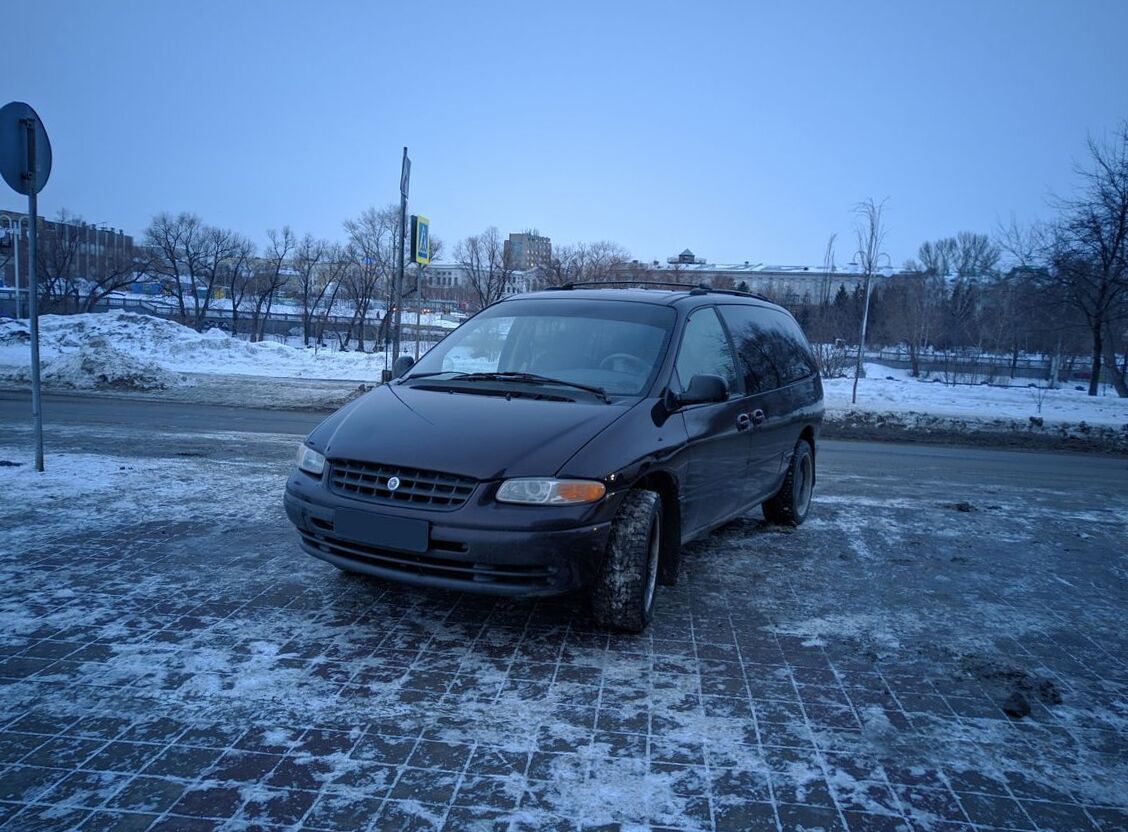

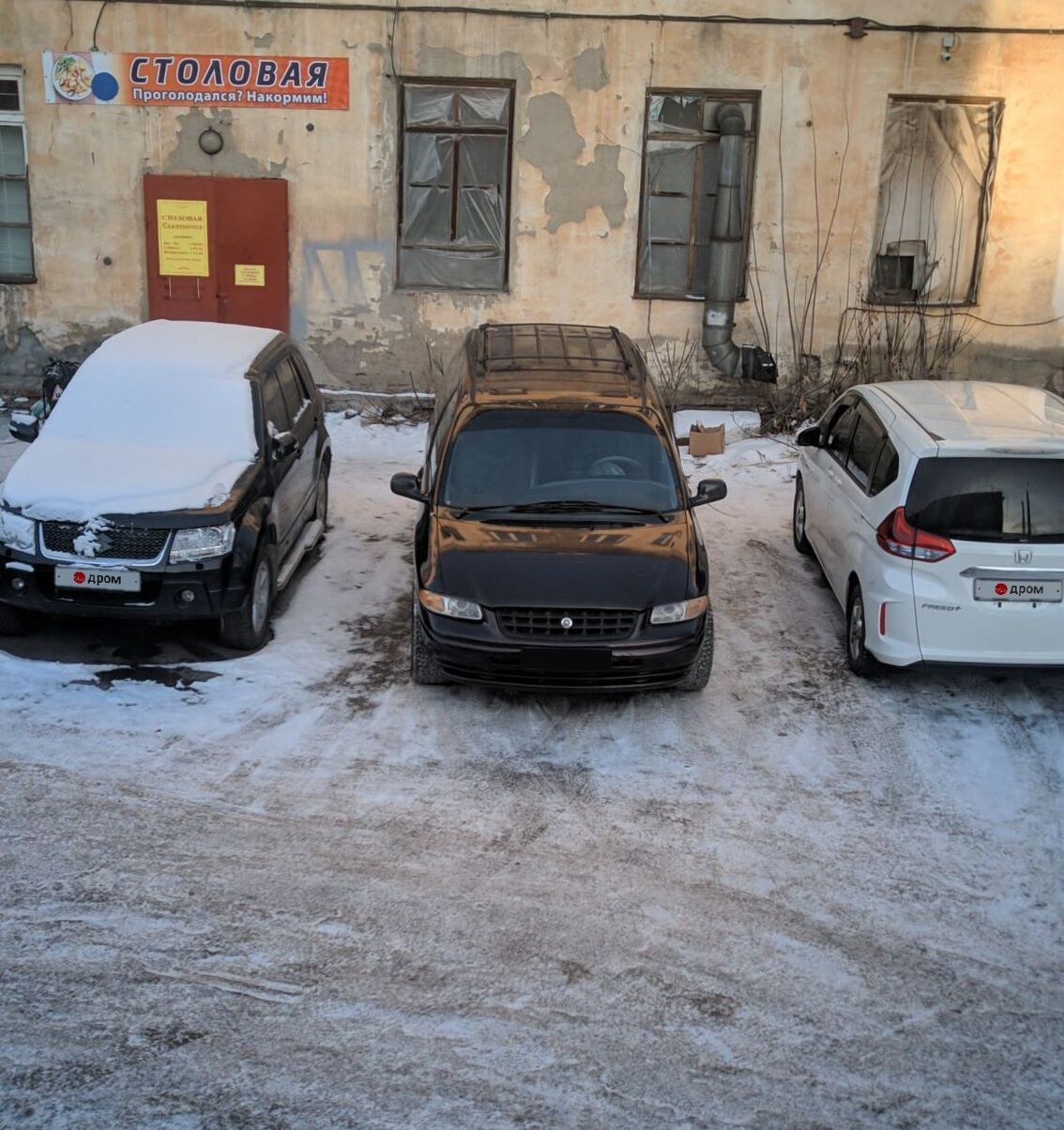

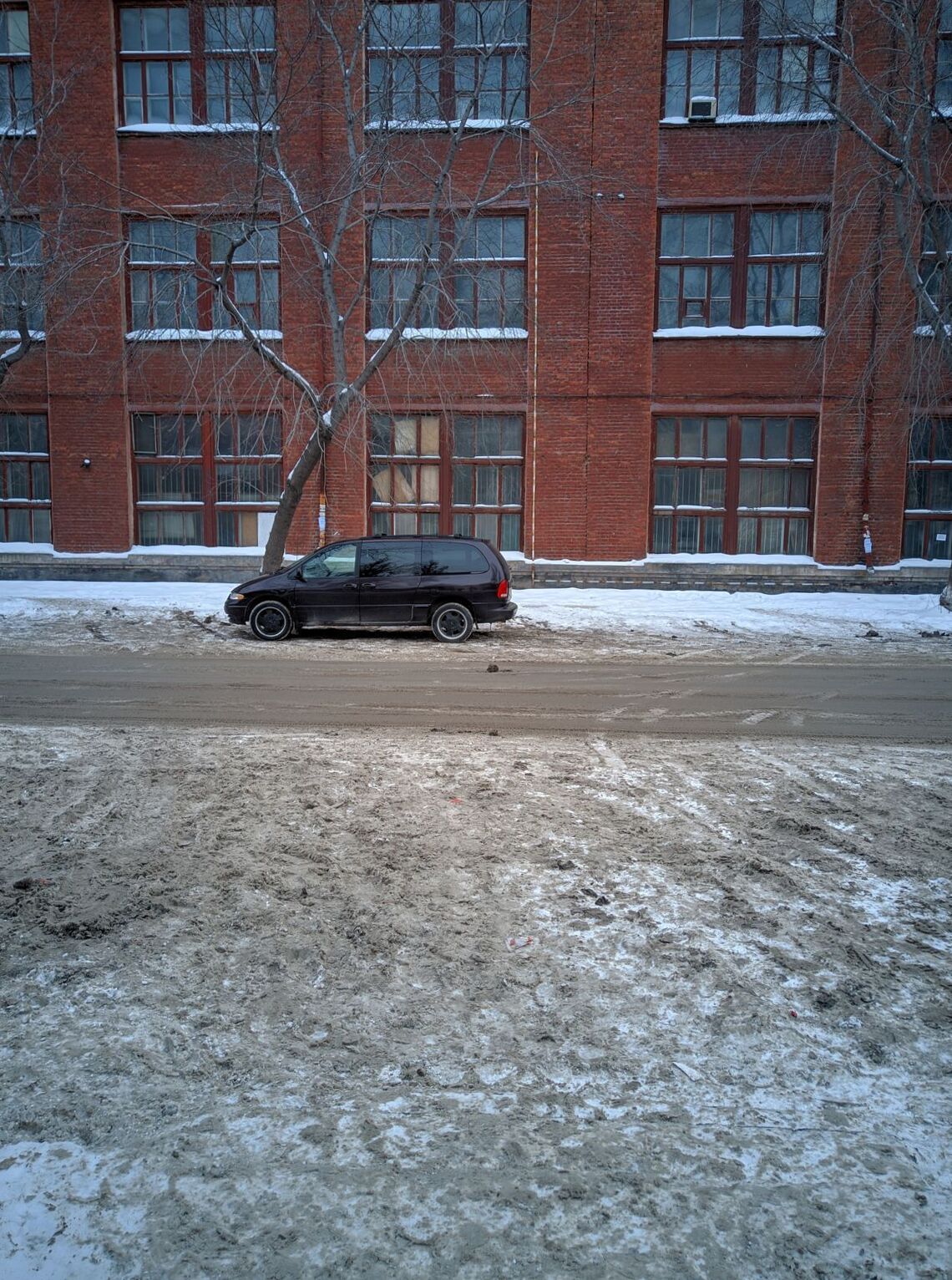

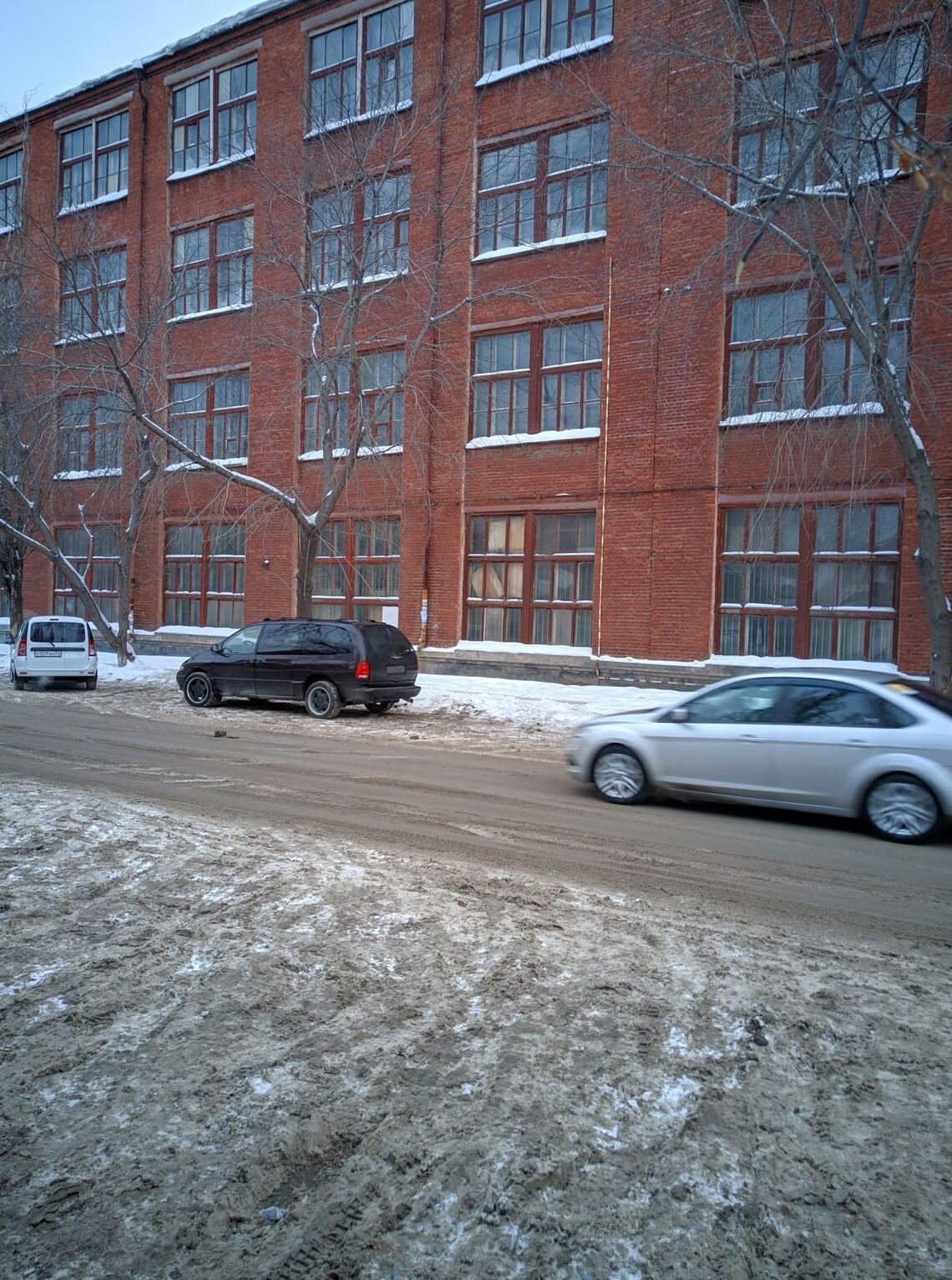

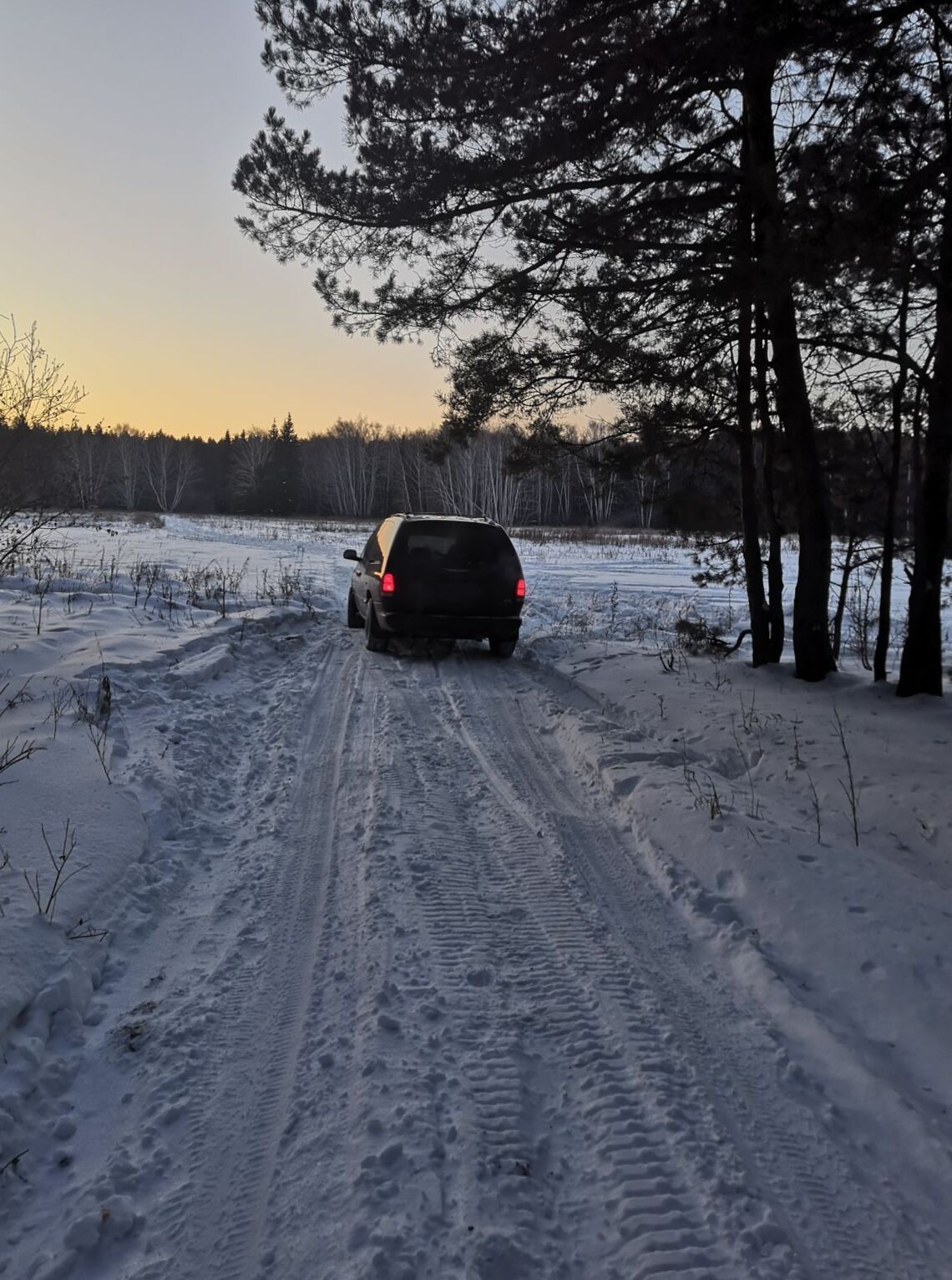

1996 Chrysler Grand Voyager III 3.3 AT LE
Chrysler Grand Voyager Problems
Powersteering pump
1999, I have a 1999 voyager will a pwersteering
pump off a 2004 model fit I can purchase one t...
Chrysler Grand Voyager
1993, Hallo, can you help me, please? Where can
I buy a parts for my car? I need an on-line sh...
| Body type | Minivan |
|---|---|
| Power | 156 Hp |
| Engine Displacement | 3300 cm3 or 3.3L or 201.3 cu-in |
| Color | claret |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 77671 Miles |
| Vin | 1B4GP55R1TB****76 |
| Price (out of date) | $4452 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 1996 Chrysler Grand Voyager III? | Minivan, 5 Seats, 5 Doors |
| What is the fuel economy, Chrysler Grand Voyager Minivan 1996? | 12.2 l/100 km |
| How fast is the car, Chrysler Grand Voyager GH 1996? | 175 km/h |
| How much power, 1996 Chrysler Grand Voyager 3.3 AT LE? | 156 Hp |
| What is the engine size, Chrysler Grand Voyager III 1996 Minivan 3.3 AT LE (156 Hp)? | 3.3L or 3301cm3 |
| How many gears, What type is the gearbox, 1996 Chrysler Grand Voyager Minivan 3.3 AT LE (156 Hp)? | Automatic transmission 4 |
| What is the drivetrain, 1996 Chrysler Grand Voyager III? | Front |
| How long is this vehicle, Chrysler Grand Voyager Minivan 1996? | 5070 mm |
| How wide is the vehicle, Chrysler Grand Voyager GH 1996? | 1950 mm |
| What is the gross weigh, 1996 Chrysler Grand Voyager 3.3 AT LE? | 2515 kg |
| How much trunk (boot) space, Chrysler Grand Voyager III 1996 Minivan 3.3 AT LE (156 Hp)? | 670 l |
Chrysler Grand Voyager III GH 3.3 AT LE (156 Hp) 1995, 1996, 1997, 1998, 1999, 2000 Specs
General information | |
|---|---|
| Complectation name | 3.3 AT LE |
| Production start year | 1995 |
| Production end year | 2000 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 3301 |
| Frame name | GH |
| Max speed | 175 |
| Clearance, mm | 140 |
| Manufacturing country | Austria |
| Doors | 5 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | EGA |
| Fuel | Petrol (Gasoline) |
| Engine type | V6 |
| Has turbo | no |
| Max power, hp | 156 |
| Max power RPM, rpm | 4850 |
| Max power, hp (kWt) / rpm | 156 (115) / 4850 |
| Max torque, N*m | 275 |
| Max torque RPM, rpm | 3250 |
| Max torque, N*m (kg*m) / rpm | 275 (28) / 3250 |
| Valves per cylinder | 4 |
| Bore, mm | 93 |
| Stroke, mm | 81 |
Fuel consumption | |
| City | 17.3 |
| Country side | 9.3 |
| Combined | 12.2 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5070 |
| Exterior width, mm | 1950 |
| Exterior height, mm | 1740 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 3030 |
| Turning radius, m | 6 |
| Wheel spacing front | 1600 |
| Wheel spacing rear | 1626 |
Weight and permissible load | |
| Mass, kg | 1850 |
| Max. weight | 2515 |
Volumes | |
| Fuel tank capacity, l | 75 |
| Trunk volume | 670 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Dependent, spring loaded |
Wheel rims | |
| Aluminium wheel | no |
Tires | |
| Front wheels | 215/65 R15 |
| Rear wheels | 215/65 R15 |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
Exterior | |
Side mirrors | |
| Door mirrors heating | yes |
Interior | |
Electric interior package | |
| Power window | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
Electronic security and traffic control systems | |
| ABS | yes |
Amenity | |
Microclimate | |
| Air conditioner | option |
Audio systems | |
| Radio | yes |
| Additional sound equipment | 4 speakers |
1996 Chrysler Grand Voyager III GH 3.3 AT LE (156 Hp) specs
|
Though no longer available in North America, Chrysler continues to use Chrysler Voyager nameplate in global markets, e.g., Mexico, Europe. Together with its nameplate variants, the Dodge Caravan, Chrysler Town & Country, Plymouth Voyager and Volkswagen Routan, the Chrysler minivans have ranked as the 13th bestselling automotive nameplate worldwide, with over 12 million sold. The European Chrysler Voyager was first released in 1988, nearly identical to its American counterpart, the Plymouth Voyager; the only visual differences between the two were the head/ taillights and grille. Besides of the slightly different appearance European Voyagers were sold with different engines, including diesel engines, which are popular in Europe; the trim was also different. The current European Voyagers are very similar to the 2008 Chrysler Town & Country cars. Although produced in Ontario now, they are still available with diesel engines. They are sold as Chrysler Grand Voyagers in Europe, since 2008 only in the long wheelbase version (as in North America). » Read More About Chrysler Grand Voyager |
