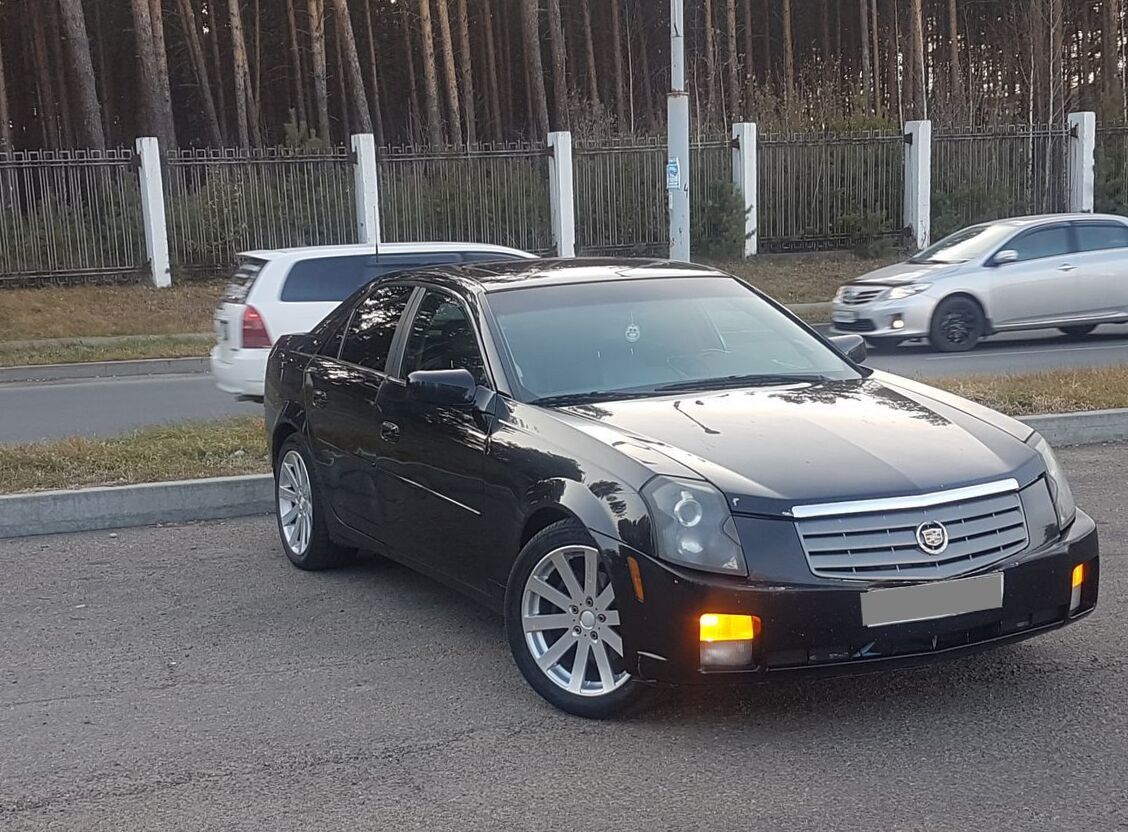

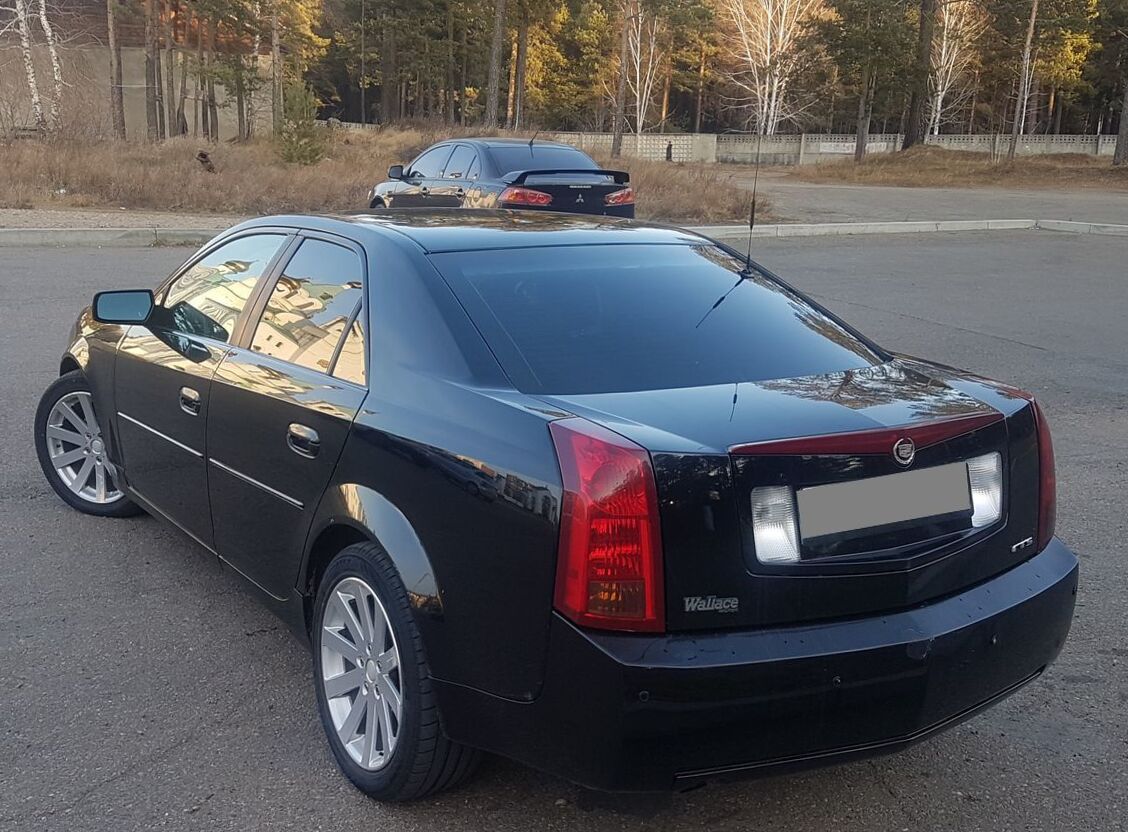

2002 Cadillac CTS 3.2 AT RWD Base
Cadillac CTS Problems
Engine performance
2007, I thought I could make it to gas
station,(ran out).My first reaction was to try
and see ...
| Body type | Sedan |
|---|---|
| Power | 220 Hp |
| Engine Displacement | 3200 cm3 or 3.2L or 195.2 cu-in |
| Color | black |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FR or RR |
| Vin | 1G6DM57N830****89 |
| Price (out of date) | $10548 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2002 Cadillac CTS 3.2 AT RWD Base? | Sedan, 5 Seats, 5 Doors |
| What is the fuel economy, Cadillac CTS 2002 Sedan 3.2 AT RWD Base (220 Hp)? | 11.7 l/100 km |
| How fast is the car, 2002 Cadillac CTS Sedan 3.2 AT RWD Base (220 Hp)? | 230 km/h, 0-100 km/h: 7.7 sec |
| How much power, 2002 Cadillac CTS 3.2 AT RWD Base? | 220 Hp |
| What is the engine size, Cadillac CTS 2002 Sedan 3.2 AT RWD Base (220 Hp)? | 3.2L or 3175cm3 |
| How many gears, What type is the gearbox, 2002 Cadillac CTS Sedan 3.2 AT RWD Base (220 Hp)? | Automatic transmission 5 |
| What is the drivetrain, 2002 Cadillac CTS 3.2 AT RWD Base? | Rear |
| How long is this vehicle, Cadillac CTS 2002 Sedan 3.2 AT RWD Base (220 Hp)? | 4828 mm |
| How wide is the vehicle, 2002 Cadillac CTS Sedan 3.2 AT RWD Base (220 Hp)? | 1795 mm |
| What is the gross weigh, 2002 Cadillac CTS 3.2 AT RWD Base? | 2125 kg |
| How much trunk (boot) space, Cadillac CTS 2002 Sedan 3.2 AT RWD Base (220 Hp)? | 430 l |
Cadillac CTS 3.2 AT RWD Base (220 Hp) 2002, 2003, 2004, 2005, 2006, 2007 Specs
General information | |
|---|---|
| Complectation name | 3.2 AT RWD Base |
| Production start year | 2002 |
| Production end year | 2007 |
| Drive type | Rear |
| Frame type | Sedan |
| Transmission type | Automatic transmission 5 |
| Engine volume, cc | 3175 |
| 0 to 100 time | 7.7 |
| Max speed | 230 |
| Clearance, mm | 150 |
| Manufacturing country | USA |
| Doors | 5 |
| Winter complectation | yes |
| Warranty | 3 years or 100,000 km |
Engine, transmission and steering specs | |
Engine specs | |
| Fuel | Petrol (Gasoline) |
| Engine type | V6 |
| Has turbo | no |
| Max power, hp | 185 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 185 (136) / 6000 |
| Max torque, N*m | 300 |
| Max torque RPM, rpm | 3400 |
| Max torque, N*m (kg*m) / rpm | 300 (31) / 3400 |
| Valves per cylinder | 4 |
| Compression ratio | 10 |
| Bore, mm | 87.5 |
| Stroke, mm | 88 |
| Engine additional info | Injector |
Fuel consumption | |
| City | 16.4 |
| Country side | 9 |
| Combined | 11.7 |
| Co2 emission | 276 |
Transmission | |
| 1st gear ratio | 3.42 |
| 2nd gear ratio | 2.21 |
| 3rd gear ratio | 1.6 |
| 4th fear ratio | 1 |
| 5th gear ratio | 0.75 |
| Rear gear ratio | 3.03 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4828 |
| Exterior width, mm | 1795 |
| Exterior height, mm | 1441 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2880 |
| Wheel spacing front | 1525 |
| Wheel spacing rear | 1525 |
Weight and permissible load | |
| Mass, kg | 1725 |
| Max. weight | 2125 |
Volumes | |
| Fuel tank capacity, l | 68 |
| Trunk volume | 430 |
Other | |
| Addinfo | Remote garage door opener (optional) |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, spring multi-link |
| Rear suspension | Independent, spring multi-link |
Wheel rims | |
| Disc | 16" |
Tires | |
| Front wheels | 225/55 R16 |
| Rear wheels | 225/55 R16 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Ventilated discs |
Exterior | |
Headlights | |
| Front fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Power rear door | yes |
Windows | |
| Rear glass heat | yes |
Roof | |

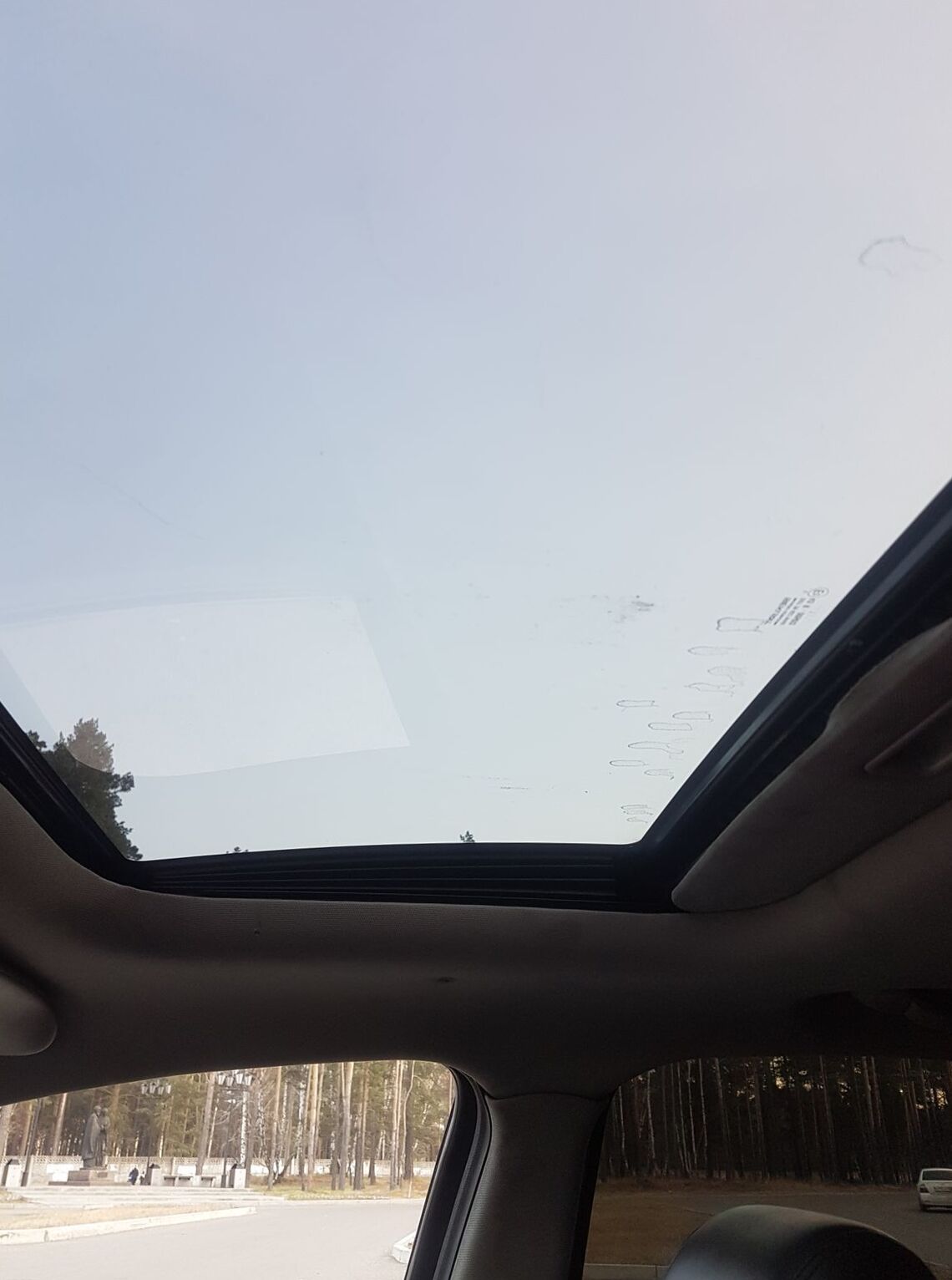

| Tilt sunroof | option |
Interior | |

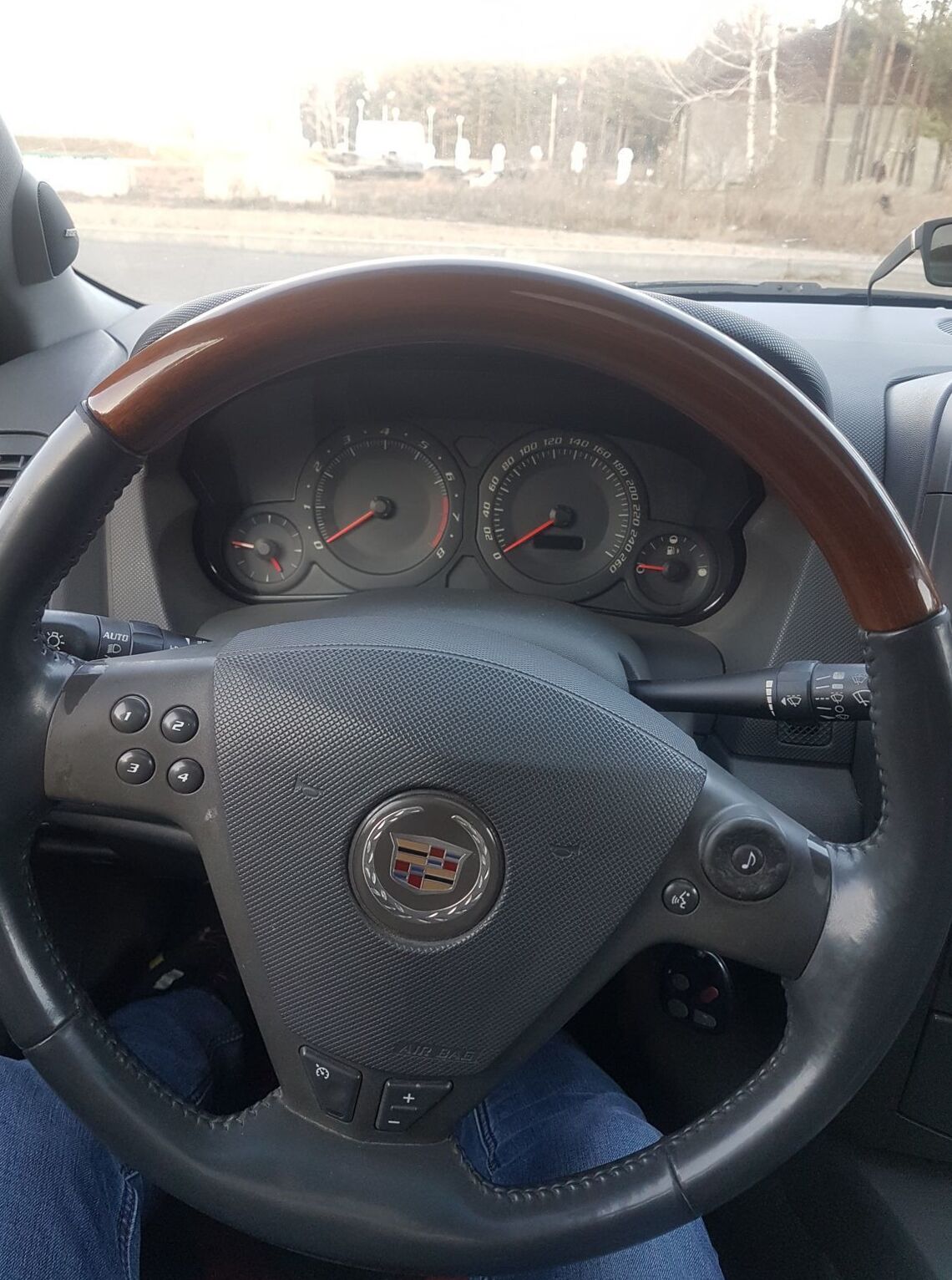

Steering wheel and center panel | |
| Leather winding | yes |
| Audio control on steering wheel | yes |
| Tachometer | yes |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | option |
| Panels | Interior wood trim (optional) |
Seats | |
| Bucket seat | yes |
| Front seats ajust | Electric adjustment of the driver's and passenger seats in 8 positions |

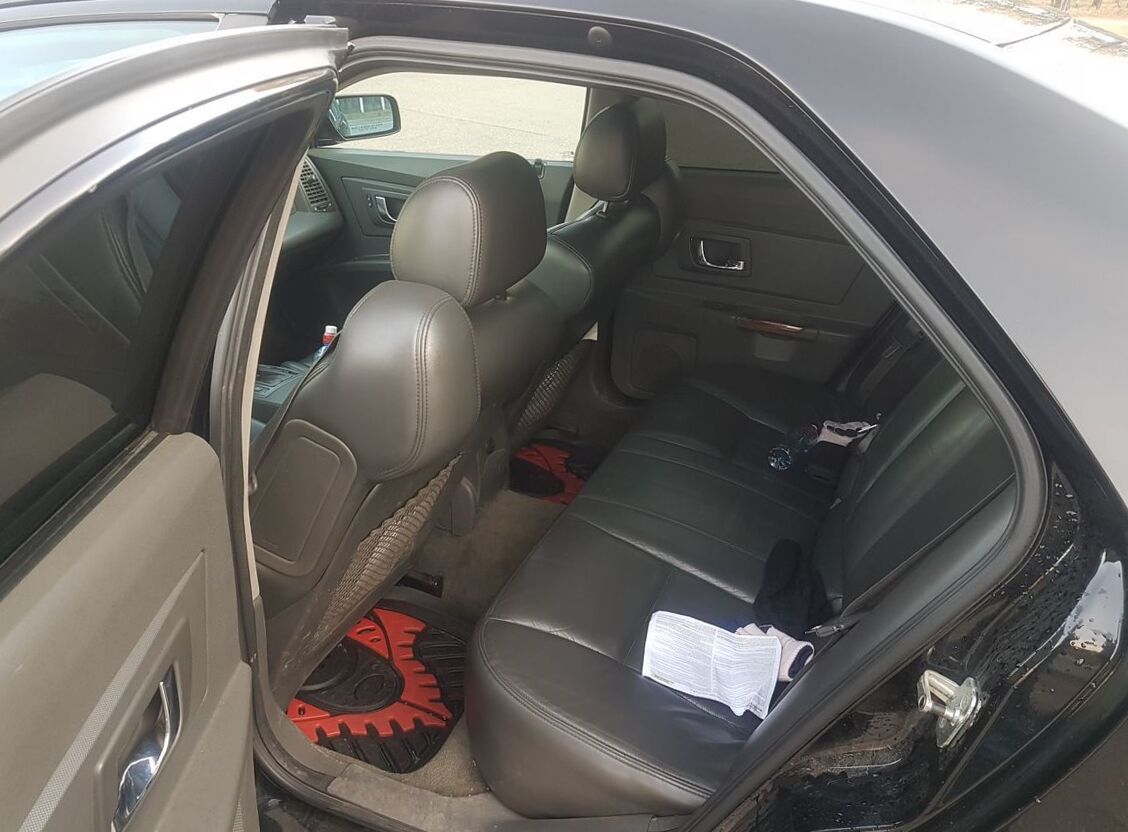

| 2nd row | 60/40 ratio fold seat |
| Separating armrest front | yes |
| Separating armrest rear | yes |
| Mats | yes |
Electric interior package | |
| Power ajustable front seat | yes |
| Front seat heater | yes |
| Seat position memory | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
| Power window rear | yes |
| Injectors heat | yes |
Additional interior equipment | |
| Smokers packet | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Electronic security and traffic control systems | |
| ABS | available at |
| traction control | yes |
| Cruise control | yes |
Amenity | |
Microclimate | |

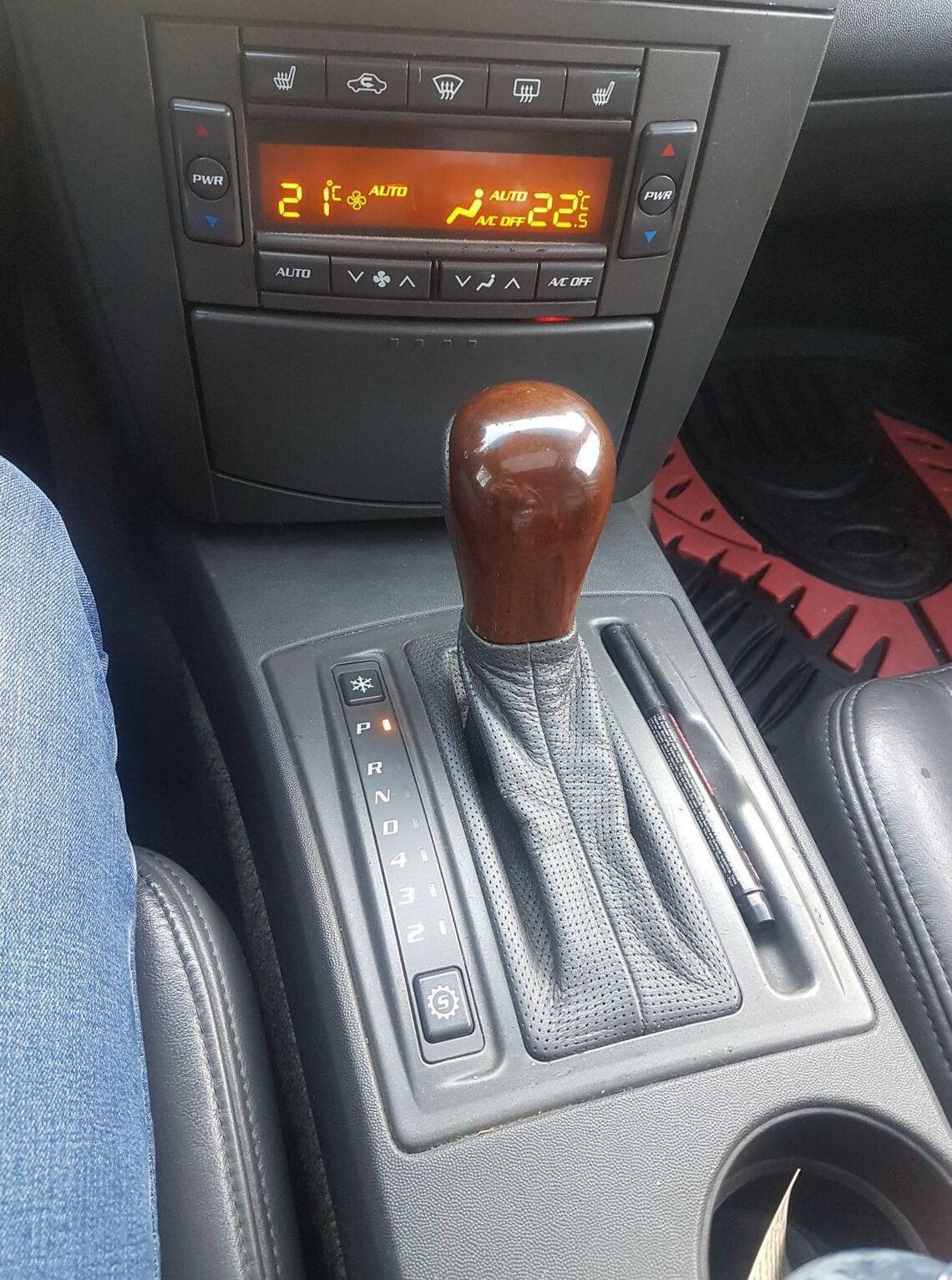

| Twin conditioning system | yes |
Audio systems | |
| Radio | yes |
| CD changer | option |
| Additional sound equipment | Bose audio system: AM/FM stereo radio with RDS, audio cassette player, CD player, 7 speakers |
Additional amenities | |
| Antidazzle rearview mirror | yes |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Driver Kit | |
| Medkit | yes |
| Spare tire | yes |
The CTS is powered by a 3.2L V6 engine with 220 horsepower and 218 lb-ft of torque. Available transmissions include a five-speed manual Getrag transmission or an optional five-speed automatic transmission with sport and winter modes.
2002 Cadillac CTS 3.2 AT RWD Base (220 Hp) specs
|
The 2008 CTS was unveiled at the North American International Auto Show. It borrows styling cues from the Cadillac Sixteen concept car, and went on sale in late August, 2007. Introduced in 2002 for the 2003 model year, the CTS rode on the new rear-wheel drive GM Sigma platform. It was a return to rear-wheel drive, as well as being the first Cadillac with a manual transmission since the 1988 Cimarron. It replaced the mid-size rear-wheel drive Catera. The CTS name likely came from the initials of Catera Touring Sedan[citation needed]. The CTS was nominated for the North American Car of the Year award for 2002. The CTS is built at GM's Lansing Grand River plant in Lansing, Michigan. The CTS was also assembled in China in 2006, but assembly was discontinued shortly thereafter due to poor sales in that market. The CTS in China is now an exported model once again. Originally powered by a 3.2L LA3 V6 producing 220hp (164kW), the CTS received a 3.6L DOHC V6 with variable valve timing in 2004, producing 255hp (190kW) and 252lb·ft (342N·m) of torque. The 3.2L engine went out of production in 2005, when a new 2.8L version of the DOHC V6 debuted in an entry-level version of the CTS. In Europe, the 2.8L replaces the previous entry level 2.6L. » Read More About Cadillac CTS |
