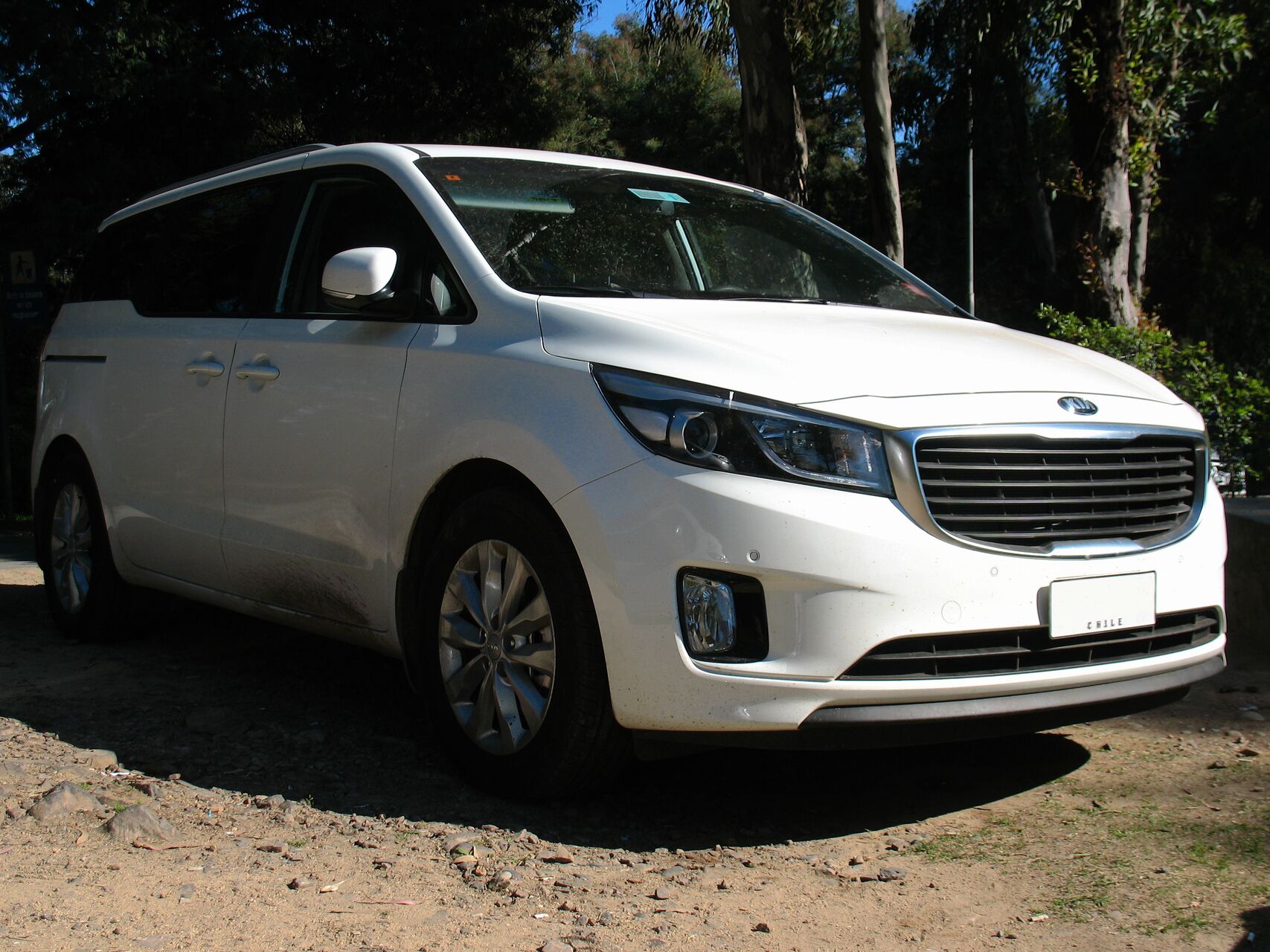

Kia Grand Carnival III 3.3 V6 (270 Hp) Automatic Specs

Kia LogoKia Grand Carnival III 3.3 V6 (270 Hp) Automatic has been in production since 2014 - 2018. Cars comes in Minivan body types and can be suited with Petrol (Gasoline) engine types with a volume of 3.3L liters, engines produces a power of 270 Hp. Fuel consumption of Kia Grand Carnival III 3.3 V6 (270 Hp) Automatic is 11.1 l/100 km. The overall dimensions of the car are 5115x1985x1740 mm, and the weight is from 1968-2046 kg.

Kia Grand Carnival III 3.3 V6 (270 Hp) Automatic 2014 - 2018


General data

GenerationGrand Carnival III
Modification3.3 V6 (270 Hp) Automatic
Start of production2014 year
End of production2018 year
Powertrain ArchitectureInternal Combustion engine
Body typeMinivan
Seats8-11
Doors5
Fuel TypePetrol (Gasoline)

Fuel consumption (economy), emissions

Fuel consumption - urban14.9 l/100 km
Fuel consumption - extra urban10.7 l/100 km
Fuel consumption - combined11.1 l/100 km
CO2 emissions257 g/km
Emission standardEuro 5

Performance specs

Acceleration 0 - 100 km/h (0 - 62 mph)8.6 sec
Maximum speed190 km/h
Weight-to-power ratio7.3 kg/Hp, 137.2 Hp/tonne

Engine technical data

Power270 Hp @ 6400 rpm.
Power per litre80.8 Hp/l
Torque318 Nm @ 5200 rpm.
Engine locationFront, Longitudinal
Engine displacement3342 cm3
Number of cylinders6
Position of cylindersV-engine
Cylinder Bore92 mm
Piston Stroke83.8 mm
Compression ratio10.69
Number of valves per cylinder4
Fuel SystemMulti-point indirect injection
Engine aspirationNaturally aspirated engine
ValvetrainDOHC
PowerHydraulic Steering

Suspension and brakes specs

Drivetrain ArchitectureThe Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheelFront wheel drive
Number of Gears (automatic transmission)6
Front suspensionIndependent, Spring McPherson, with stabilizer
Rear suspensionDouble wishbone
Front brakesVentilated discs
Rear brakesDisc
Assisting systemsABS (Anti-lock braking system)
Steering typeSteering rack and pinion
Tires size235/65 R17
Wheel rims sizeR17

Dimensions

Length5115 mm
Width1985 mm
Height1740-1767 mm
Wheelbase3060 mm
Front track1745 mm
Rear (Back) track1752 mm
Front overhang955 mm
Rear overhang1100 mm
Ride height171 mm
Minimum turning circle (turning diameter)11.2 m

Weights, volume and space

Kerb Weight1968-2046 kg
Max. weight2990 kg
Max load944-1022 kg
Trunk (boot) space - minimum359 l
Trunk (boot) space - maximum2335 l
